HD512LC-7

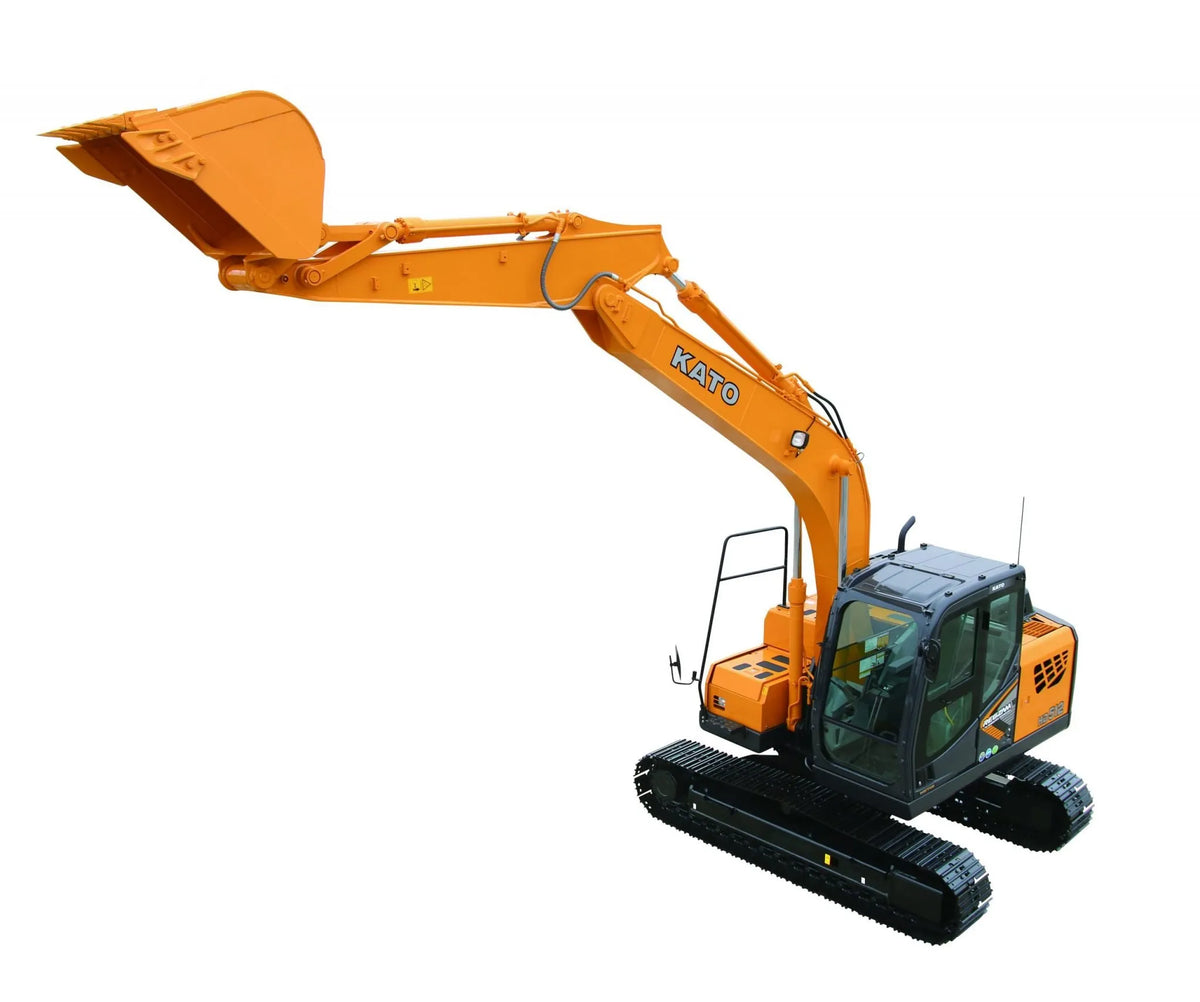

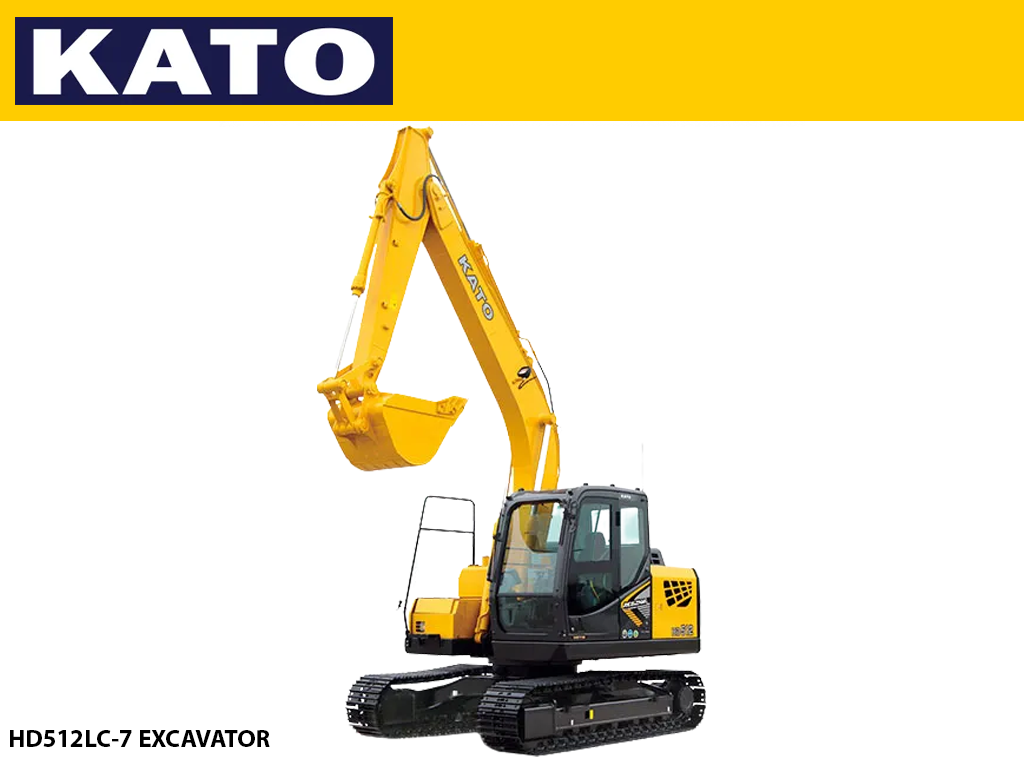

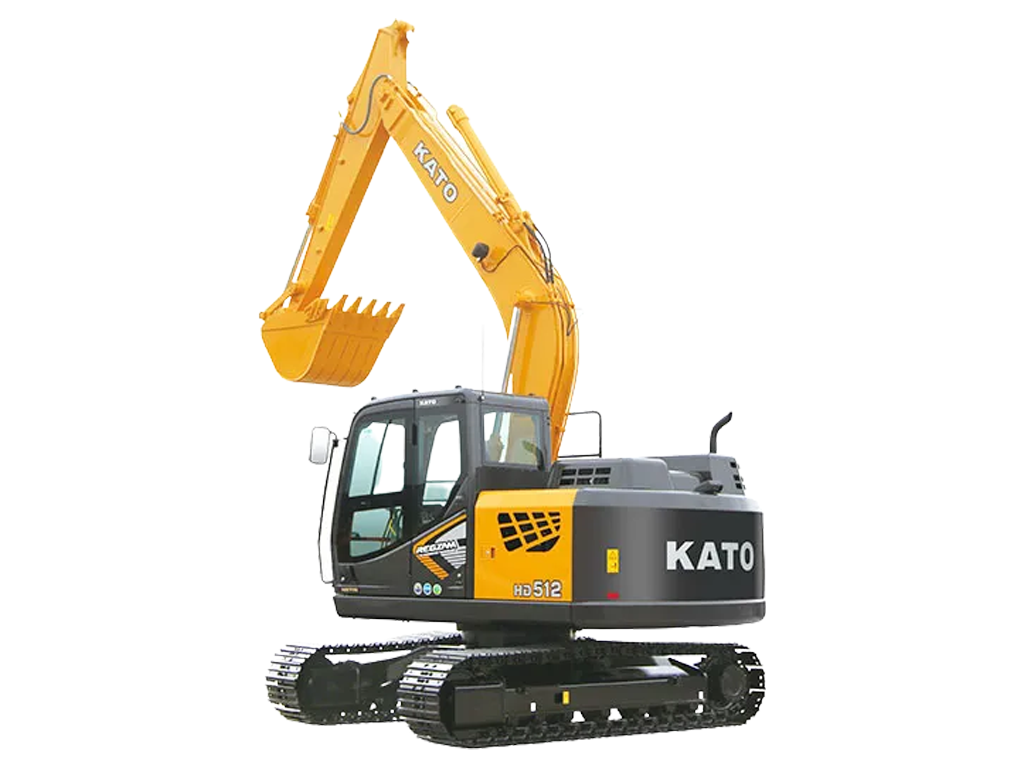

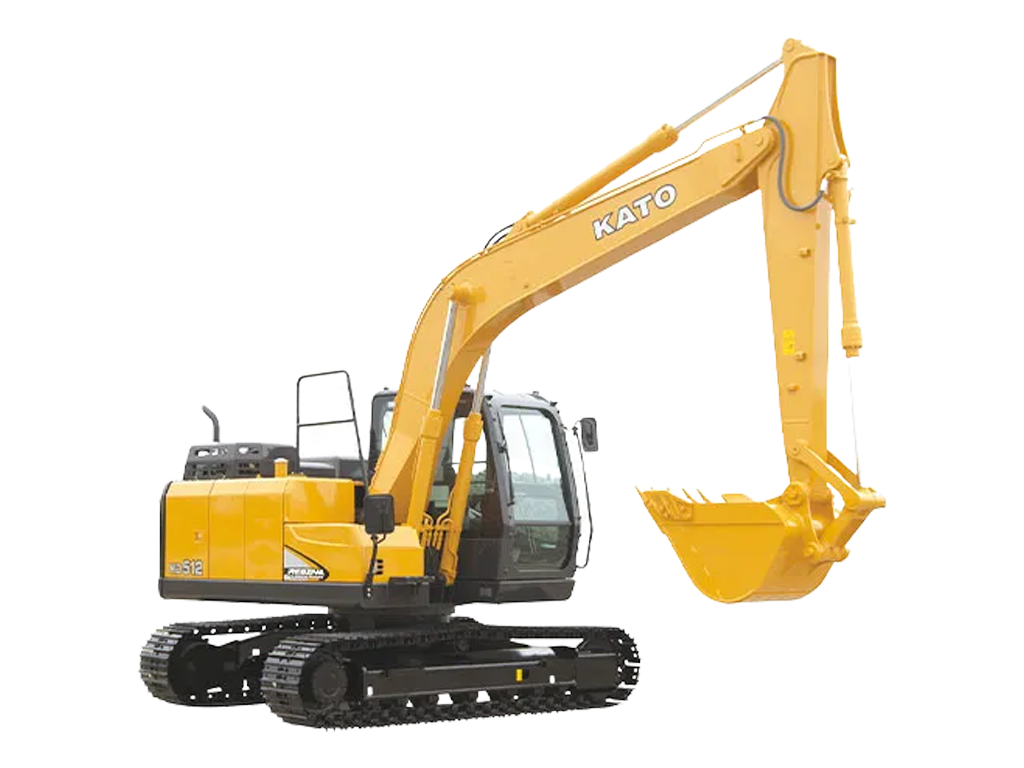

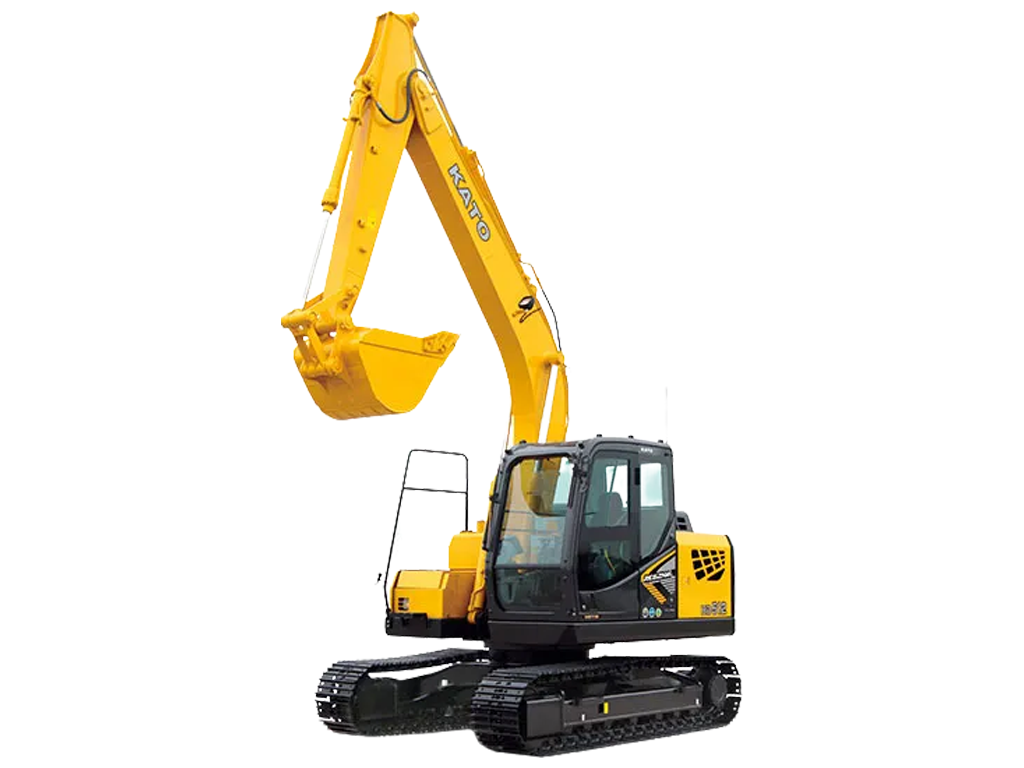

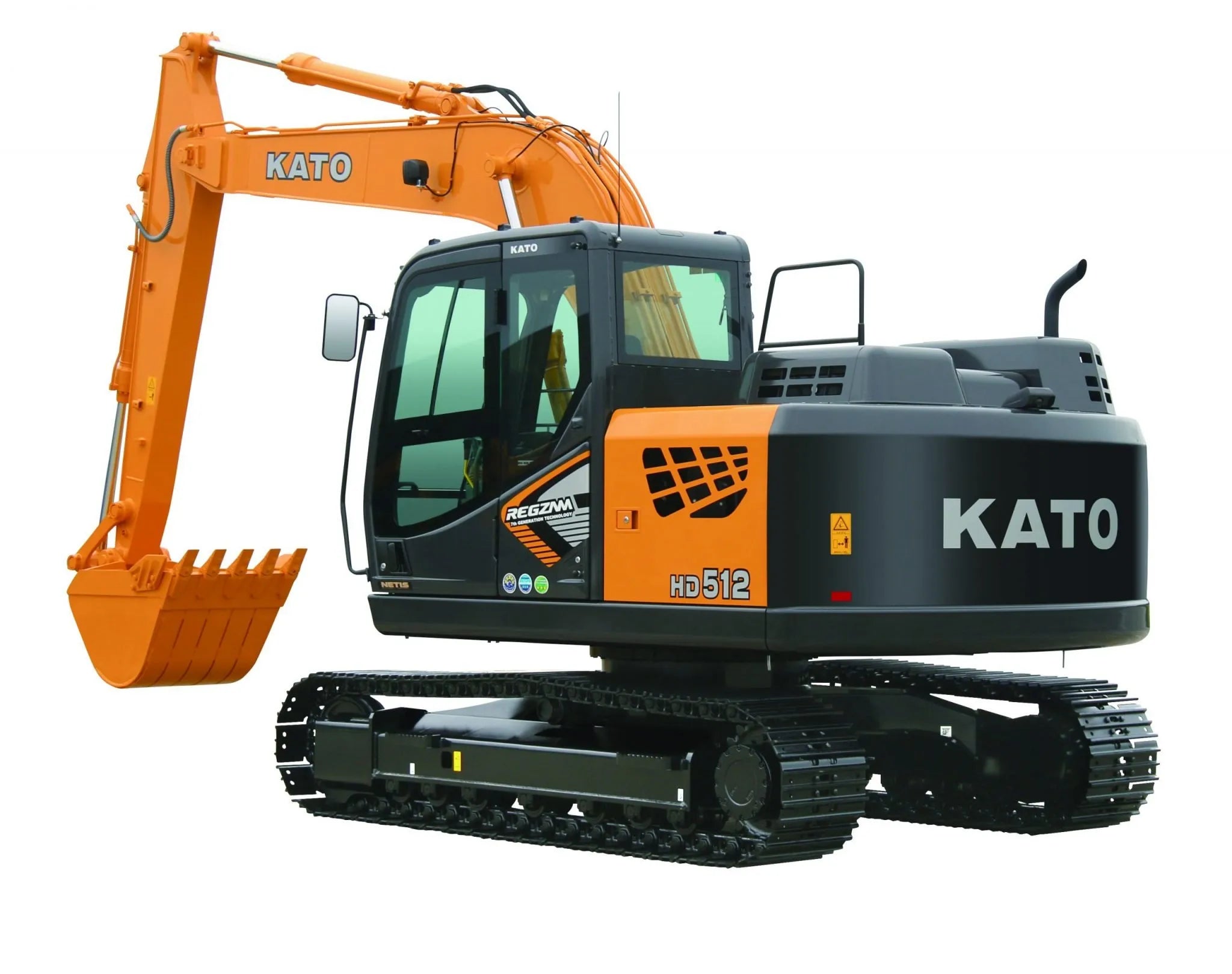

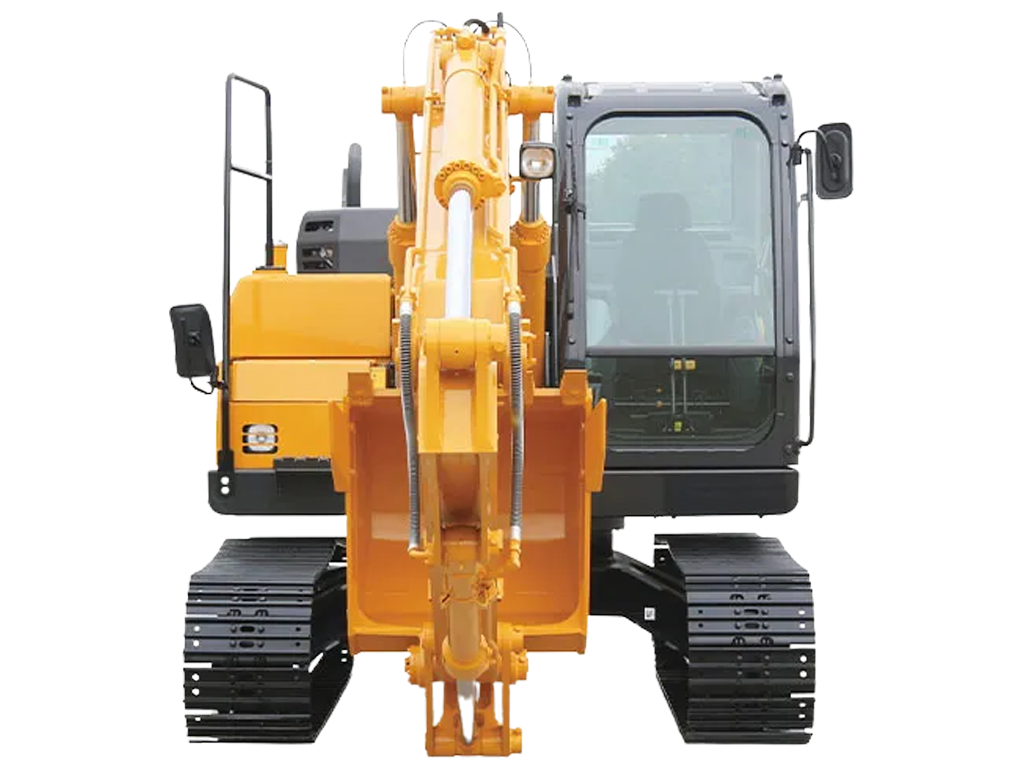

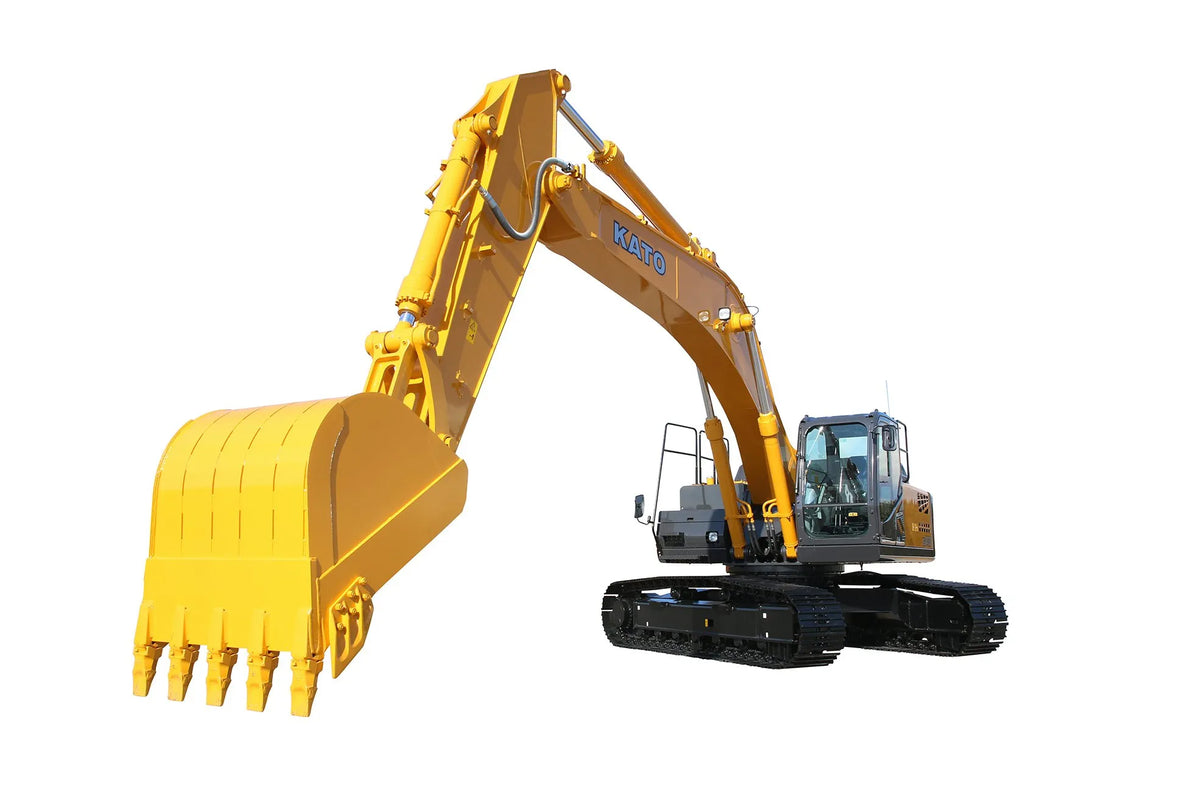

KATO HD512LC-7 Excavator

Model
Bucket option

HD512LC-7

Powerful Large Hydraulic Excavator
Comfortable Operator Room and Easy Manipulation
Easily visible 7″ LCD touchscreen monitor
Pressurized Cabin
Centralized switches
Retractable windshield
Error-Prevention
Safety lock lever
Battery disconnect
High Power Digging and Quick Response
Quickly responsive 4-pump system
Dual Auxiliary Hydraulics

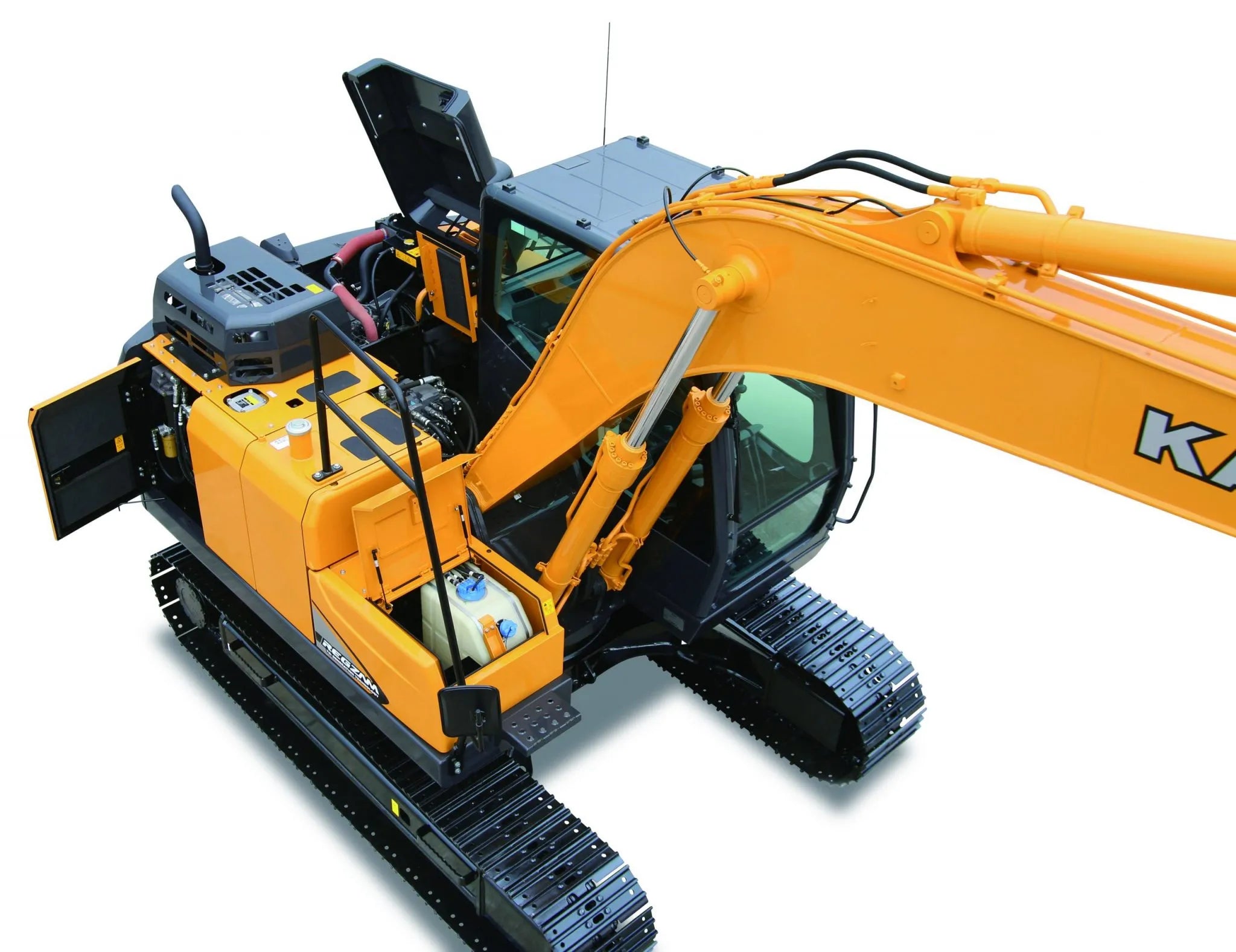

Easy Maintenance
Large covers for easier access
Large capacity tool box
Easy Fuel Refilling

Specifications

Max swing speed 13.0/min
Travel speed high/low 3.6/2.1 mph
Gradeability 35º
Max drawbar pull 24,728 lbs
Arm digging force 15,512 lbs
Bucket digging force 21,132 lbs
Fuel tank 73 gal
Cooling system 5.5 gal
Engine oil 5.17 gal
DEF tank capacity 14.5 gal
Track drive 2x .55 gal
Hydraulic oil tank 41.7 gal
Operating weight 28,429 lbs
Ground Pressure 5.94 psi



Engine

Model Isuzu 4JJ1X Tier 4 Final
Rated output 105 HP@2000rpm
Starter/Alternator 24 Volt
Max torque 277 lbf-ft/1800 rpm



Boom Swing System

Max swing speed 13.0/min
Lubrication Completely housed and greased bathed



Hydraulic System

System flow 2 x 33.3 g/min
Max system psi 4554 psi
Max digging psi 4771 psi
