124803

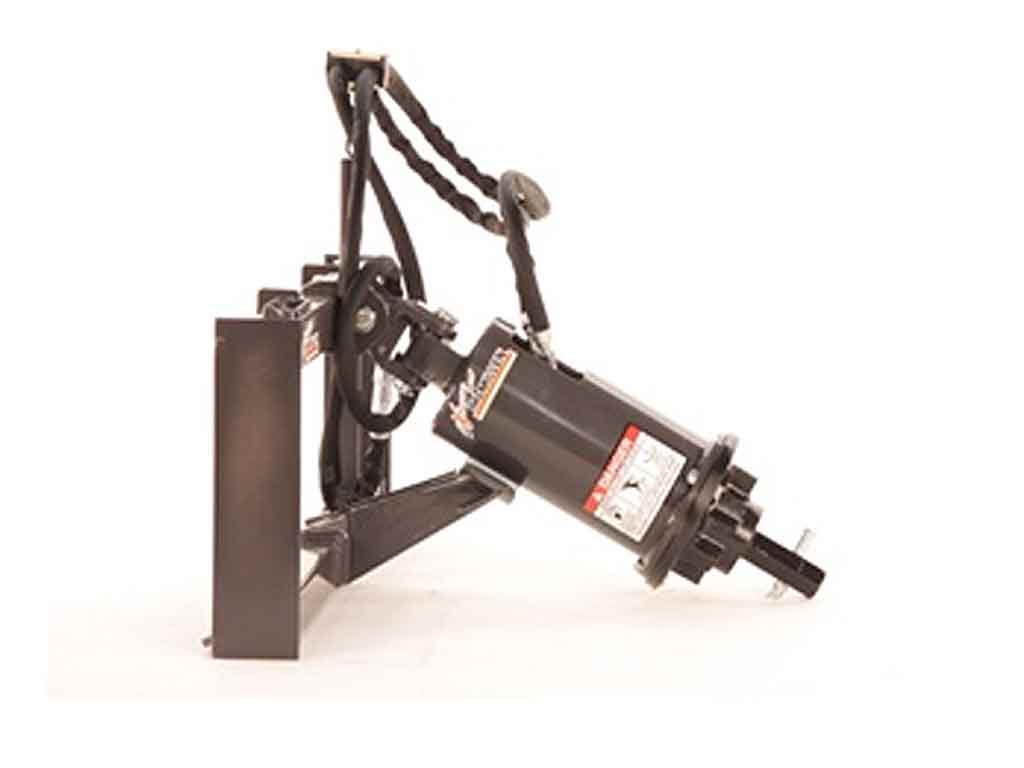

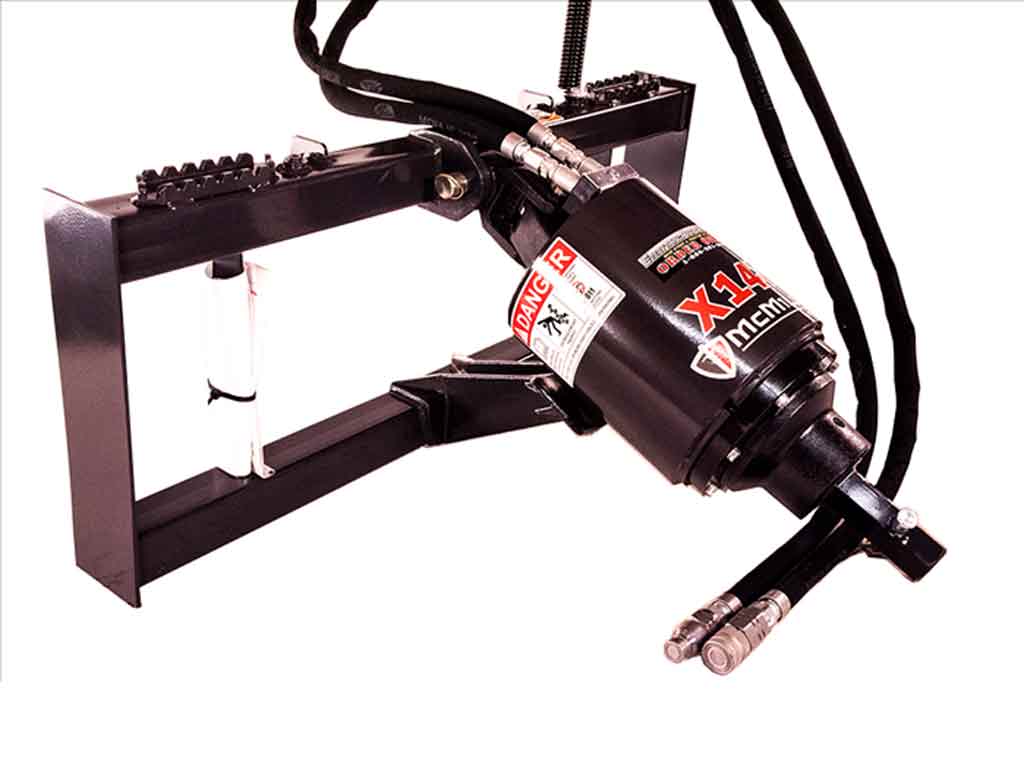

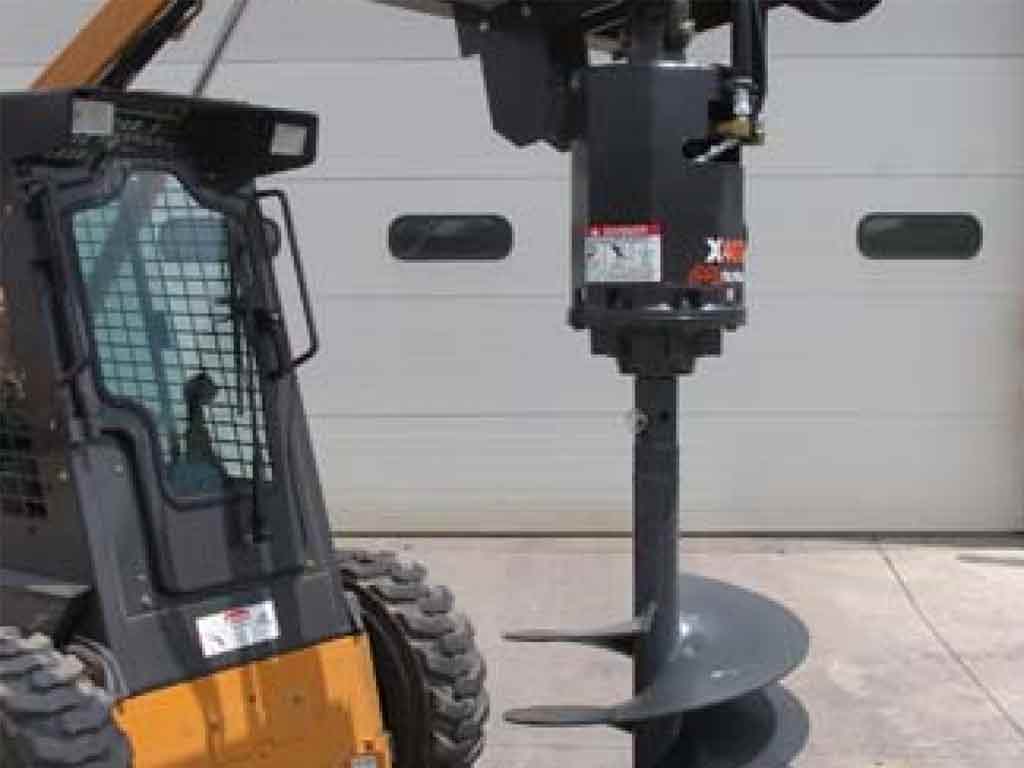

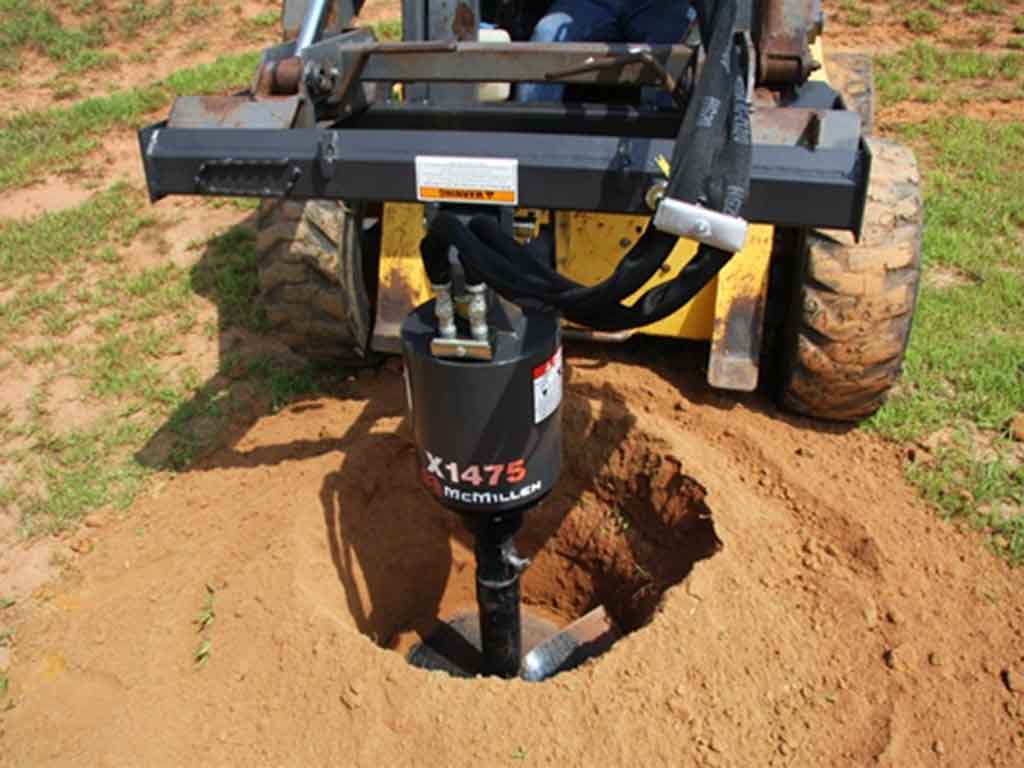

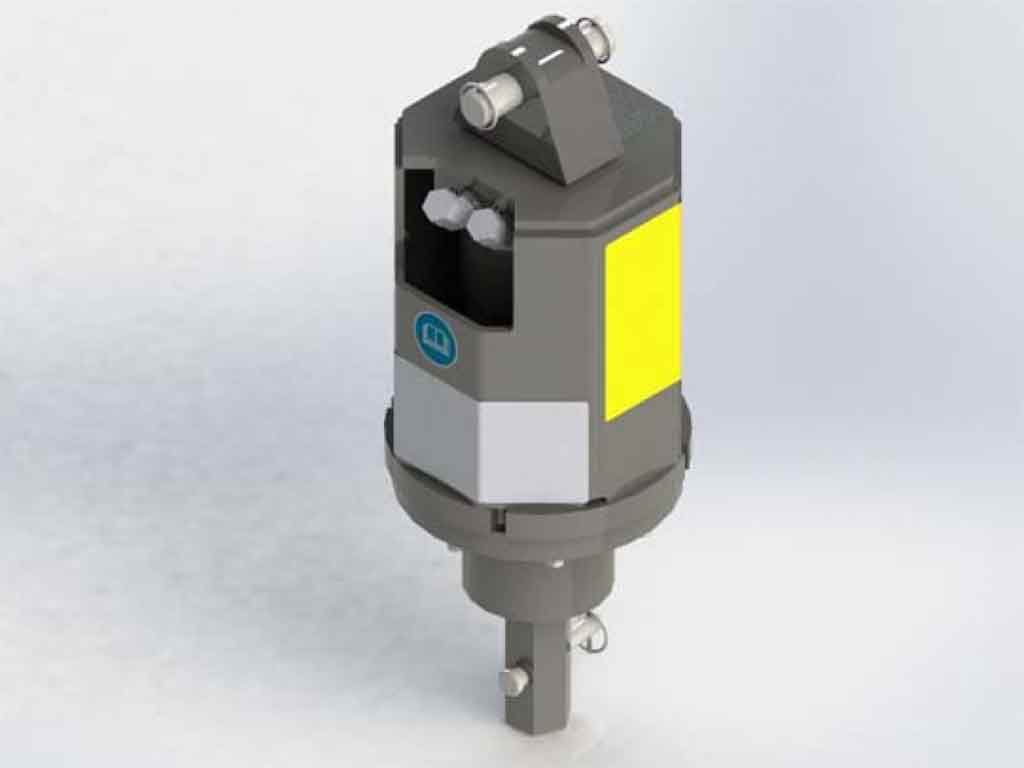

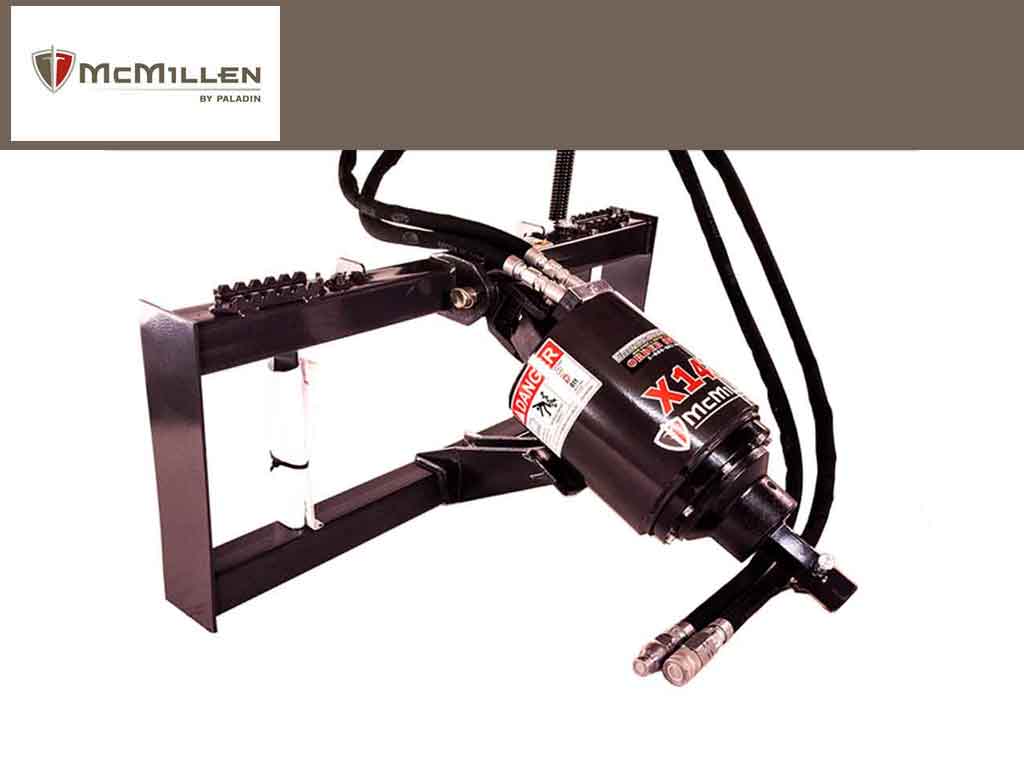

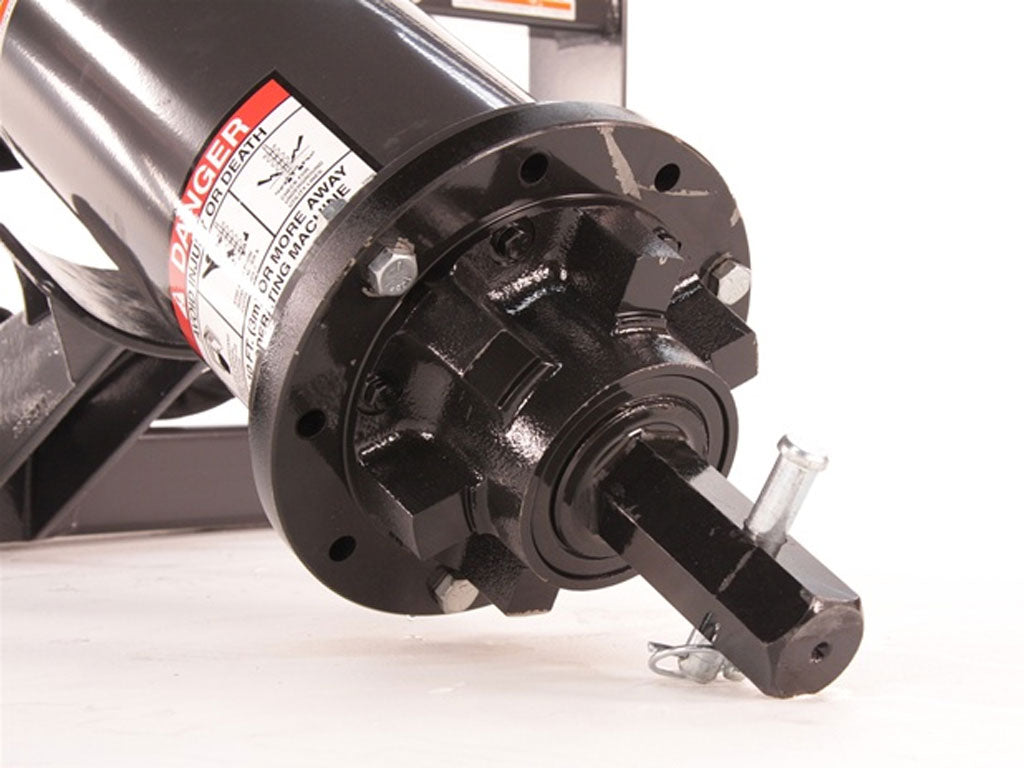

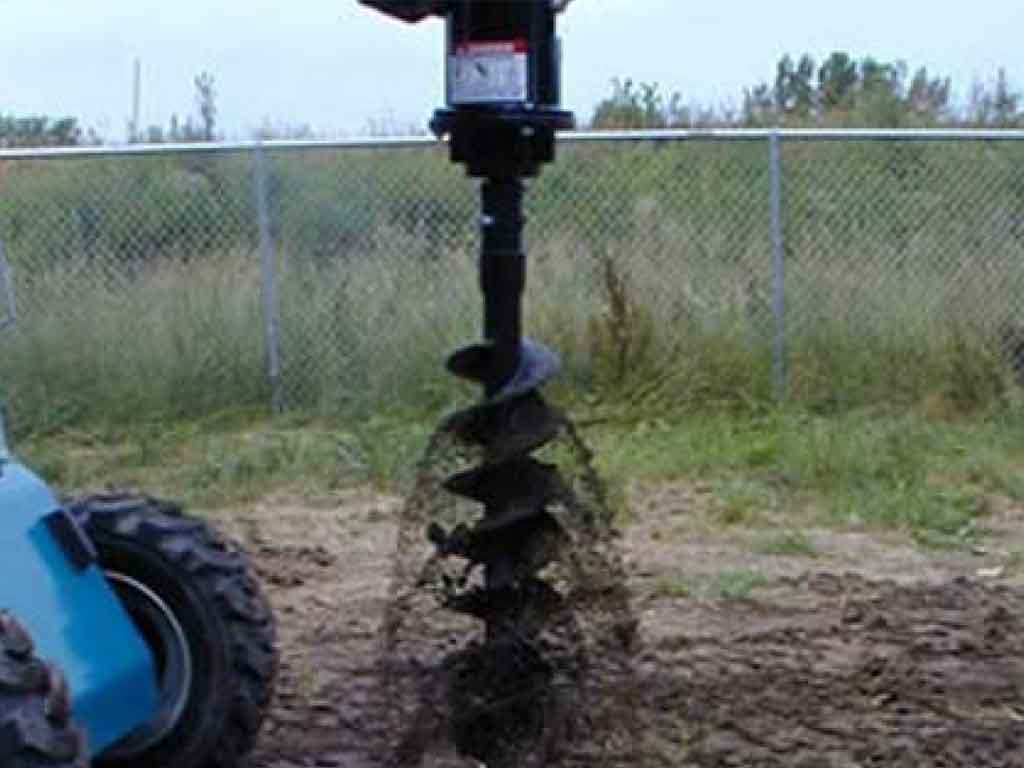

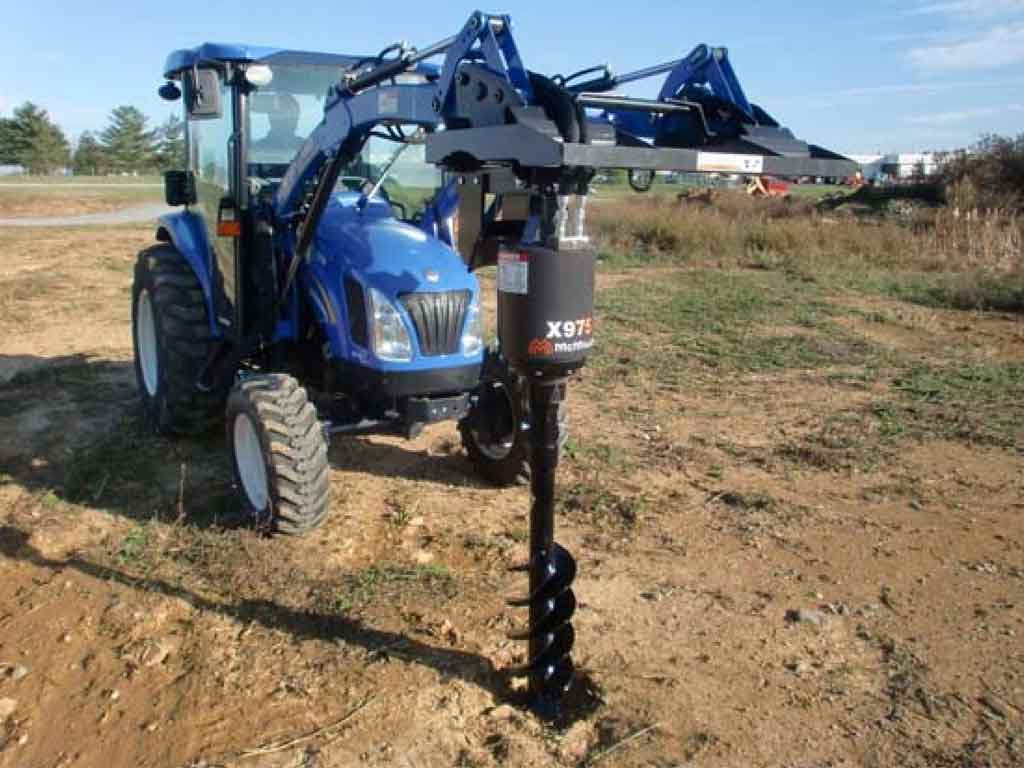

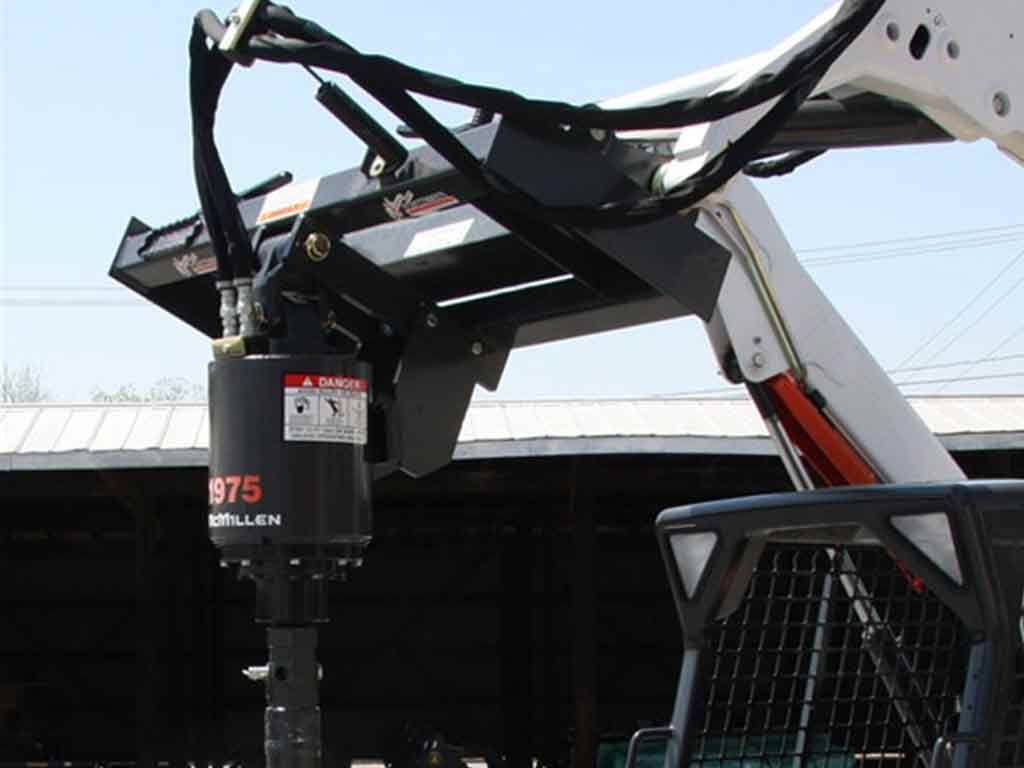

McMillen's Auger Drives feature a wide variety of auger diameters, lengths and styles for every digging application. Comes with various mounts available for most applications. All X Series hydraulic motors drive the auger through a sealed planetary gear reduction. The heavy-duty, all-gear design gives these units a long life with minimal maintenance and service costs. X Series drive units are completely sealed, with all moving components running in oil for total lubrication on a constant basis. All models feature reverse rotation for quick back-out when obstructions are encountered. The system's hydraulic relief valve protects the units from damage when the auger hits large, immovable objects. This product is also available CE certified.
THINGS TO CONSIDER BEFORE SELECTING AN AUGER DRIVE
MODEL | X975D | X1475D |
ORDER# | 124803, 124804 | 124805, 124806 |
FLOW RANGE | 6-15 GPM | 10-25 GPM |
SHIP LB | 405 LB | 407 LB |
SPEED @ 12 GPM | 75 RPM | 49 RPM |
SPEED @ 15 GPM | 95 RPM | 61 RPM |
TORQUE @ 3000 PSI | 1500 FT LB | 2377 FT LB |
TORQUE @ 3500 PSI | 1713 FT LB | 2630 FT LB |
MAX BIT | 24" | 30" |
MODEL | X1975D | X2475D |
ORDER# | 124807, 124808 | 124809, 124810 |
FLOW RANGE | 15-30 GPM | 20-35 GPM |
SHIP LB | 409 LB | 411 LB |
SPEED @ 20 GPM | 79 RPM | 56 RPM |
SPEED @ 24 GPM | 84 RPM | 67 RPM |
TORQUE @ 3000 PSI | 2769 FT LB | 3451 FT LB |
TORQUE @ 3500 PSI | 3044 FT LB | 3821 FT LB |
MAX BIT | 36" | 36" |
MODEL |
3000 PSI TORQUE |
15 GPM RPM |
24 GPM RPM |
LBS |
X975 | 1500 | 89 | NA | 405 |
X1475 | 2377 | 60 | NA | 407 |
X1975 | 2769 | 49 | 78 | 409 |
X2475 | 3451 | NA | 63 | 411 |
X3375 | 4279 | NA | 45 |
MODEL |
GPM RANGE |
PSI MAX |
PSI CONTINUOUS |
X975 | 6 - 15 | 3500 | 3000 |
X1475 | 10 - 25 | 3500 | 3000 |
X1975 | 15 - 30 | 3500 | 3000 |
X2475 | 20 - 35 | 3500 | 3000 |
X3375 | 18 - 30 | 3500 | 3000 |
Typically ships in (3-5) days. If Back-ordered (3-6) weeks.
Pay attention to the maximum bit size and flow ranges in the specification section of this attachment. The most common size drive ordered for medium frame and large frame standard flow skid steers and compact track loaders is the X1975. Keep in mind the PSI or pressure creates the torque and the flow GPM determines the speed the bit will turn.
