PF55K48WT48-HYD

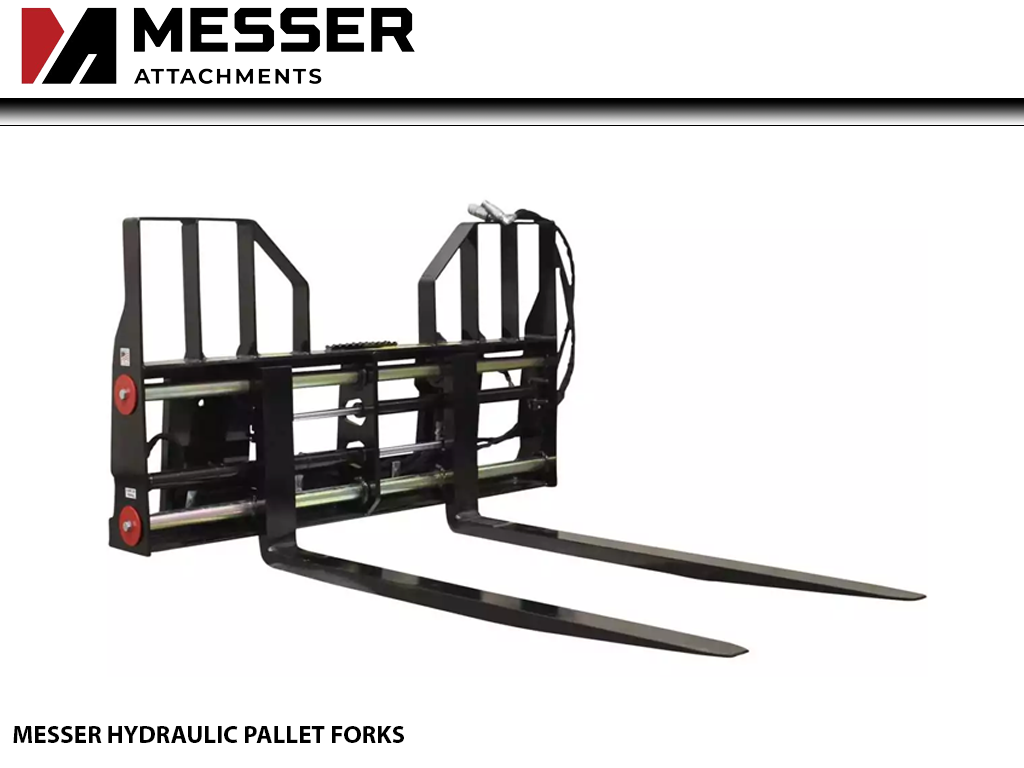

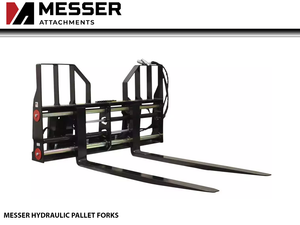

MESSER Hydraulic Sliding Pallet Forks
$3,300.00 - $4,170.00$4,440.00 - $5,870.00
11/25
Description
Hydraulic Sliding Pallet Fork: A Game-Changer for Material Handling
Enhanced Operator Comfort and Safety
Designed with operator comfort and efficiency in mind. Its innovative walk-through design, paired with compatible swing-out cab doors, makes entry and exit of the machine a breeze. This streamlined access reduces operator fatigue and improves overall productivity.
Superior Visibility and Load Support
Excellent visibility of the Pallet Fork tines is crucial for precise and safe operation. The Brickguard, flush with the front of the tine uprights, provides superior load support, ensuring the secure handling of heavy and bulky materials.
Versatile Tine Adjustment
The frame allows for flexible tine spacing, accommodating a wide range of pallet sizes. Adjust the tines from a minimum of 2″ to a maximum of 50″ spacing, optimizing the fork for specific load requirements. This versatility enhances efficiency and reduces the need for multiple attachments.
Powerful and Reliable Hydraulic System
- Robust Cylinders: 2-3,500 PSI welded cross tube cylinders deliver exceptional lifting power, enabling the handling of heavy loads with ease.
- Stable Tine Operation: A dual 1-15/16″ diameter shaft system ensures stability and durability, preventing unwanted movement and ensuring precise control.
- Even Tine Movement: A flow divider guarantees smooth and synchronized opening and closing of the hydraulic sliding tines, optimizing performance and minimizing wear and tear.
Complete Package
The Hydraulic Pallet Fork comes with Flat Face Couplers and is rated for a maximum load capacity of 5,500 lbs per pair at 24″ from the carriage frame. This comprehensive package provides everything needed for efficient and reliable material handling.
Elevate Your Material Handling
Experience the difference. Its advanced design and powerful performance make it the ideal choice for demanding material handling applications. By improving operator comfort, enhancing visibility, and optimizing versatility, this innovative fork can significantly boost productivity and efficiency in your operations.
48" Wide Frame
| PART # | Frame width | Tine length | Tine thickness | Load Rating Capacity | Approx. Weight |

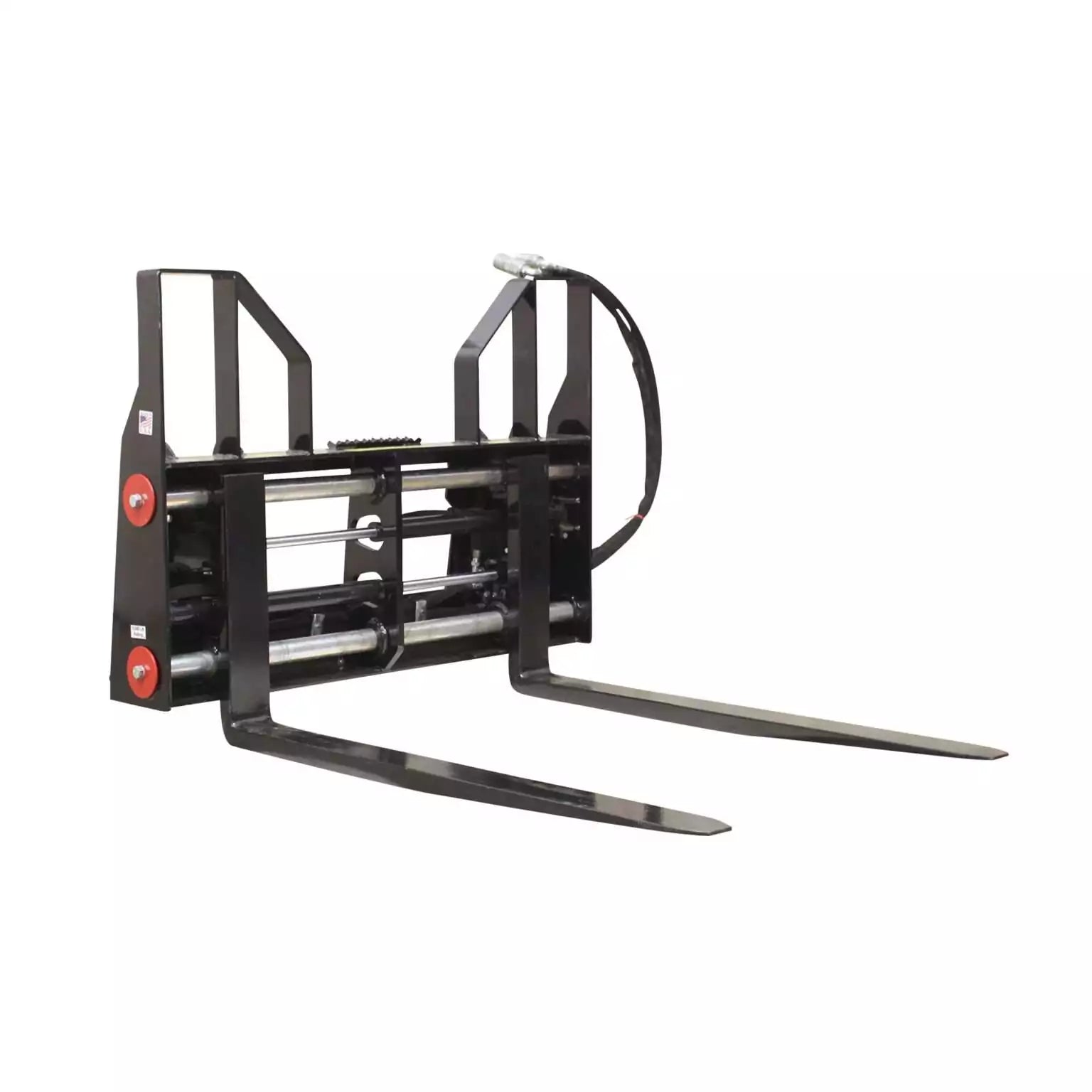

| PF55K48WT48-HYD | 48" | 48" | 1 1/2" | 5,500 | 600 |
| PF55K60WT48-HYD | 48" | 60" | 1 3/4" | 5,500 | 690 |
| PF55K72WT48-HYD | 48" | 72" | 1 3/4" | 5,500 | 740 |
60" Wide Frame
| PART # | Frame width | Tine length | Tine thickness | Load Rating Capacity | Approx. Weight |
| PF55K48WT60-HYD | 60" | 48" | 1 1/2" | 5,500 | 660 |

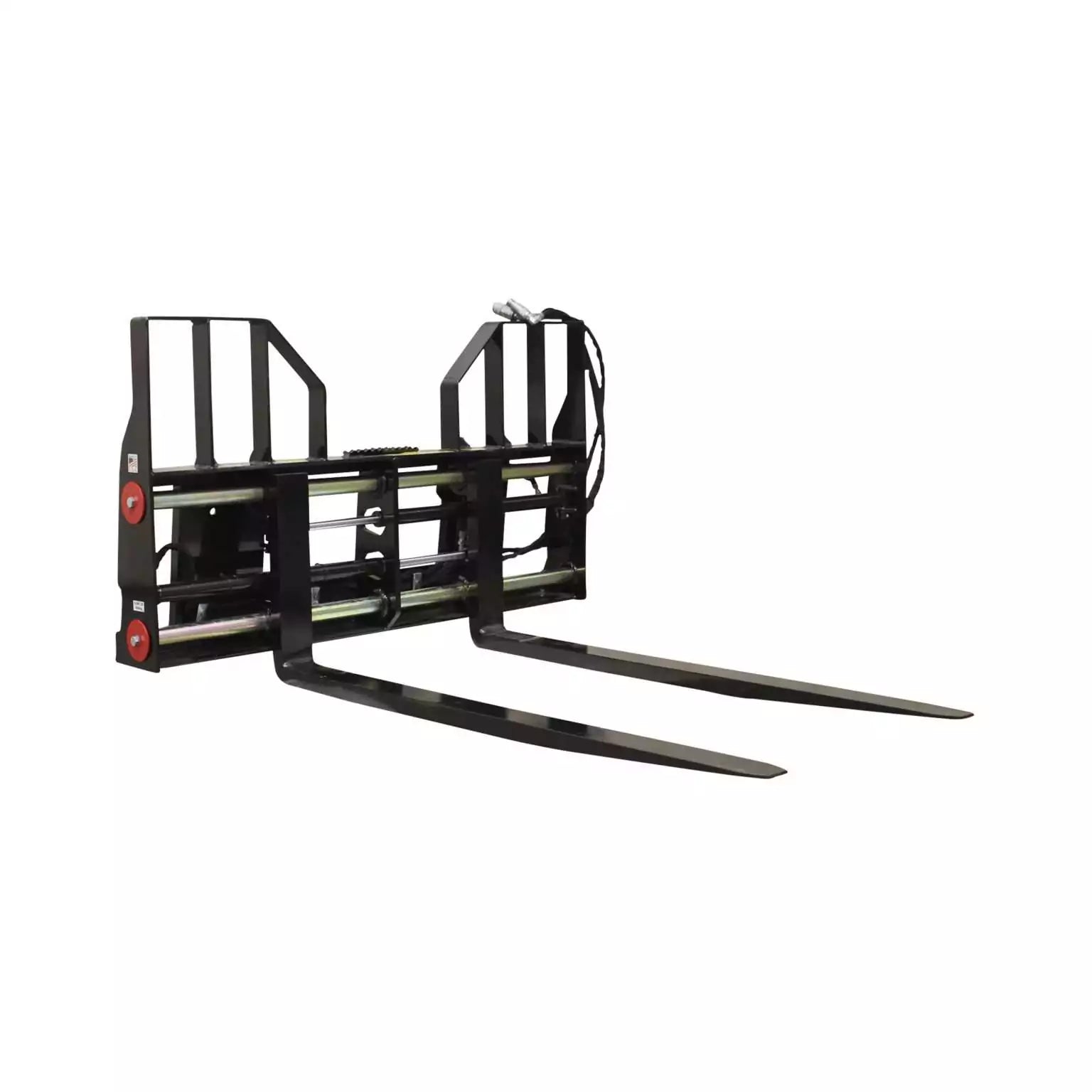

| PF55K60WT60-HYD | 60" | 60" | 1 3/4" | 5,500 | 750 |
| PF55K72WT60-HYD | 60" | 72" | 1 3/4" | 5,500 | 800 |
72" Wide Frame
| PART # | Frame width | Tine length | Tine thickness | Load Rating Capacity | Approx. Weight |
| PF55K48WT72-HYD | 72" | 48" | 1 1/2" | 5,500 | 710 |
| PF55K60WT72-HYD | 72" | 60" | 1 3/4" | 5,500 | 800 |

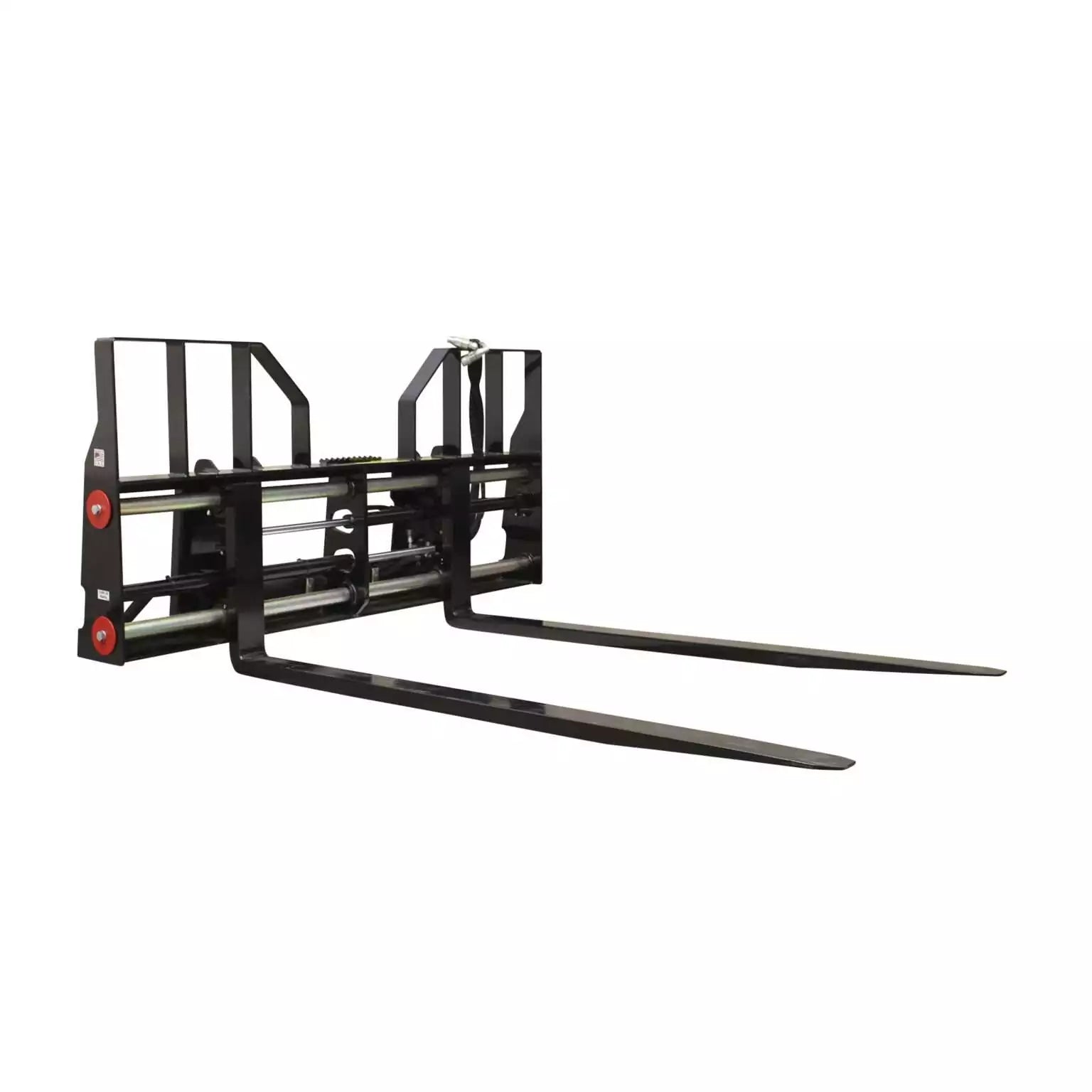

| PF55K72WT72-HYD | 72" | 72" | 1 3/4" | 5,500 | 850 |
