PALADIN / MCMILLEN AUGER FLIGHTS

style
Size
Shaft

MEDIUM DUTY - HDF STYLE

These Augers are made for light to moderate ground conditions. The HDF augers feature a fabricated boring head with hardened bolton gage (outside) and wisdom (inside) teeth, as well as a hardened fishtail point. These augers also are equipped with heavy-duty double flighting.

HEAVY DUTY - HDC STYLE

These Augers are made for difficult ground conditions, compacted soils, heavy clay, frozen ground and fracturable rock. The HDC Augers feature heavy duty cast steel boring head, hardened drive-in gage (outside) and wisdom (inside) teeth. Equipped with hardened fishtail point and heavy-duty, double flighting.

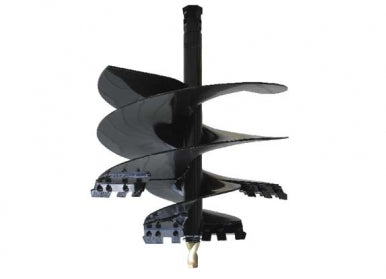

ROCK AUGERS - BULLET TOOTH

These Augers are made for solid, fracturable rock, frozen ground, asphalt and compacted soils. These rock augers feature bullet style teeth and a fabricated boring head, as well as heavy-duty single flighting. This auger comes in 2" hexagon collar only and is available in 4’ length. The auger has a .75" thick bottom flight and a hardface outer edge.

HEAVY DUTY - HTF STYLE

These Augers are made for tree and shrub planting. The HTF augers have a 2" diameter design with a fabricated boring head and hardened bold-on gauge (outside) and wisdom (inside) teeth. Augers also come equipped with a hardened fishtail point and heavy-duty double flighting.

HDF

LENGTH (IN) WIDTH (IN) # OF TEETH WEIGHT (LB)
36" 6" 2  32
36" 9" 3 62
36" 12" 4 83
36" 18" 6 115
36" 24" 8 164
36" 30" 10 233
36" 36" 12 315
48"
6" 2 42
48" 9" 4 86
48" 12" 4 120
48" 18" 6 160
48" 24" 8 278
48" 30" 10 325
48" 36" 12 443



 HDC

LENGTH (IN) WIDTH (IN) # OF TEETH WEIGHT (LB)
36" 6" 2  36
36" 9" 4 74
36" 12" 4 96
36" 18" 6 134
36" 24" 8 173
36" 30" 10 220
36" 36" 12 302
48"
6" 2 45
48" 9" 4 98
48" 12" 4 128
48" 18" 6 204
48" 24" 8 272
48" 30" 10 312
48" 36" 12 430
48" 42" 16 460
48" 48" 18 550



 ROCK

LENGTH (IN) WIDTH (IN) # OF TEETH WEIGHT (LB)
48" 6" 8
 82
48" 9" 10 110
48" 12" 12 137
48" 18" 16 192
48" 24" 20 285
48" 30" 24 315
48" 36" 26 414



 HTF

LENGTH (IN) WIDTH (IN) # OF TEETH WEIGHT (LB)
48" 18"
7 144
48" 24" 10 198
48" 30" 11 264
48" 36" 13 349
48" 42" 15 330
48" 48" 17 427

Not available at this time.
