PALADIN / CP dirt buckets for 5 metric ton class excavators
PALADIN / CP dirt buckets for 5 metric ton class excavators
PALADIN / CP dirt buckets for 5 metric ton class excavators
PALADIN / CP dirt buckets for 5 metric ton class excavators
PALADIN / CP dirt buckets for 5 metric ton class excavators
PALADIN / CP dirt buckets for 5 metric ton class excavators
PALADIN / CP dirt buckets for 5 metric ton class excavators
PALADIN / CP dirt buckets for 5 metric ton class excavators

05HQ0-12

PALADIN / CP dirt buckets for 5 metric ton class excavators

$732.00 - $1,666.00

Business Financing Available

Style
Size

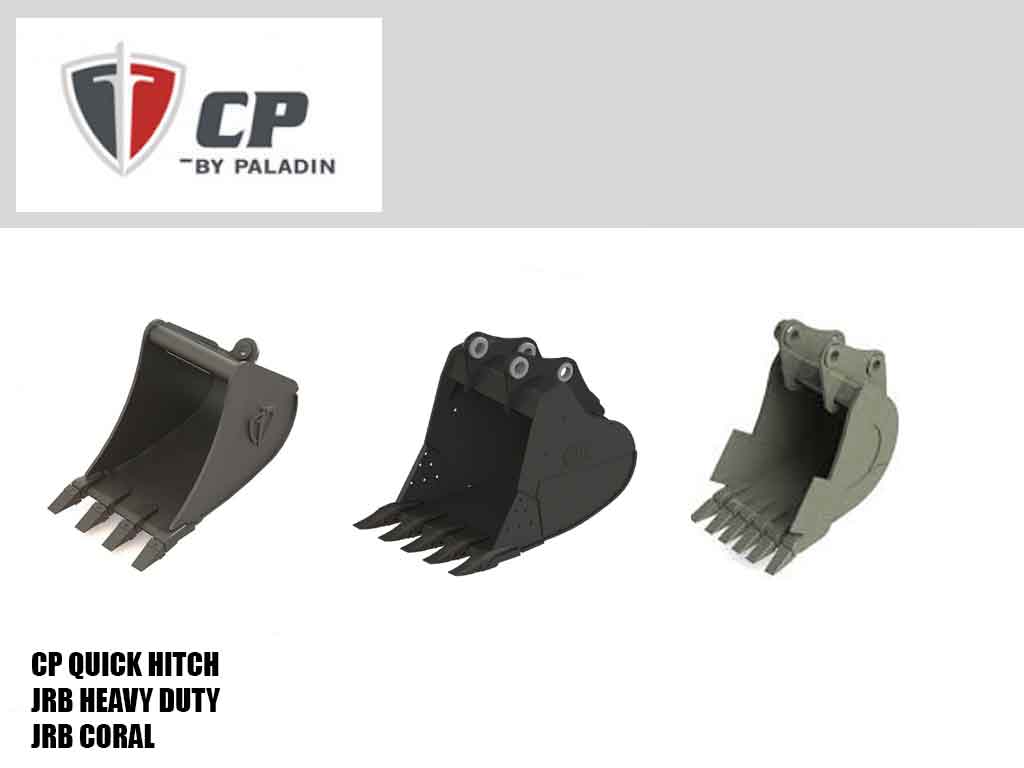

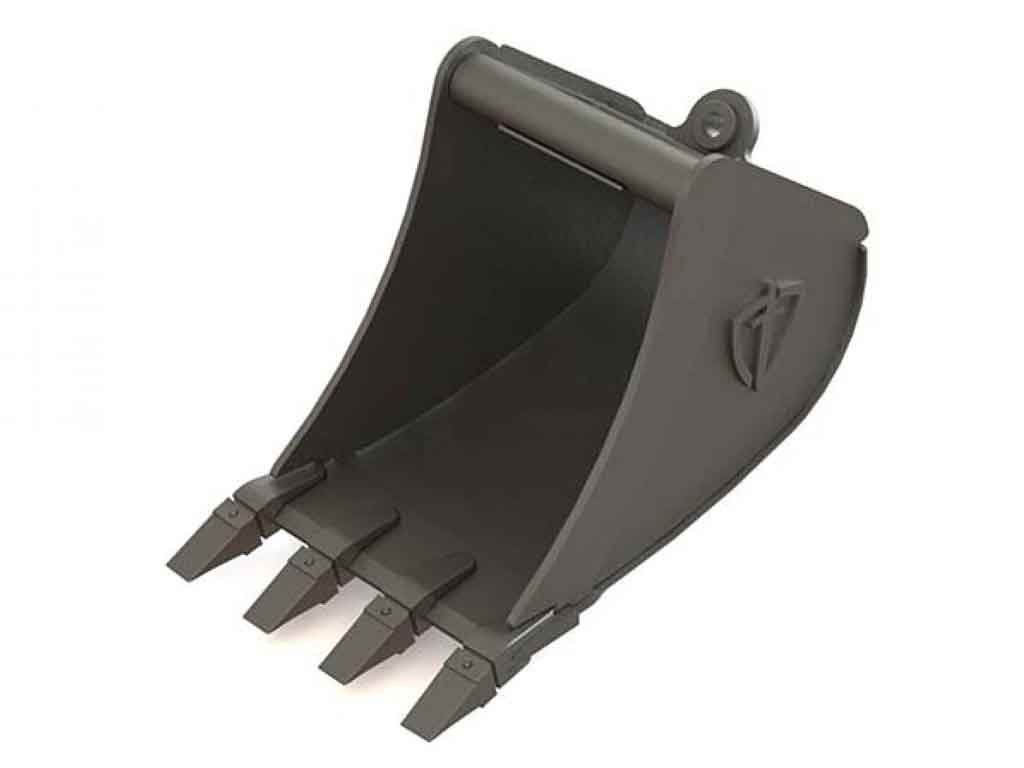

Quick Hitch Heavy-Duty Buckets

  • Unique, long floor design for superior trenching and grading
  • Curved side edges reduce stress and enhance power concentration in dig cycle •
  • Manufactured using high-quality materials with protected welds for superior wear resistance and durability
  • AR400 shell, cutting edge and side edges provide superior wear-resistance over traditional mild steel design without compromising structural integrity
  • Double-radius curl geometry allows for:
  • Aggressive Digging
  • Optimal Bucket Capacities
  • Minimal Heel Drag
  • All QuickShip buckets are stocked with Hensley X156 teeth.
  • Multiple tooth options are available
  • Hook and vertical t-pin mounting

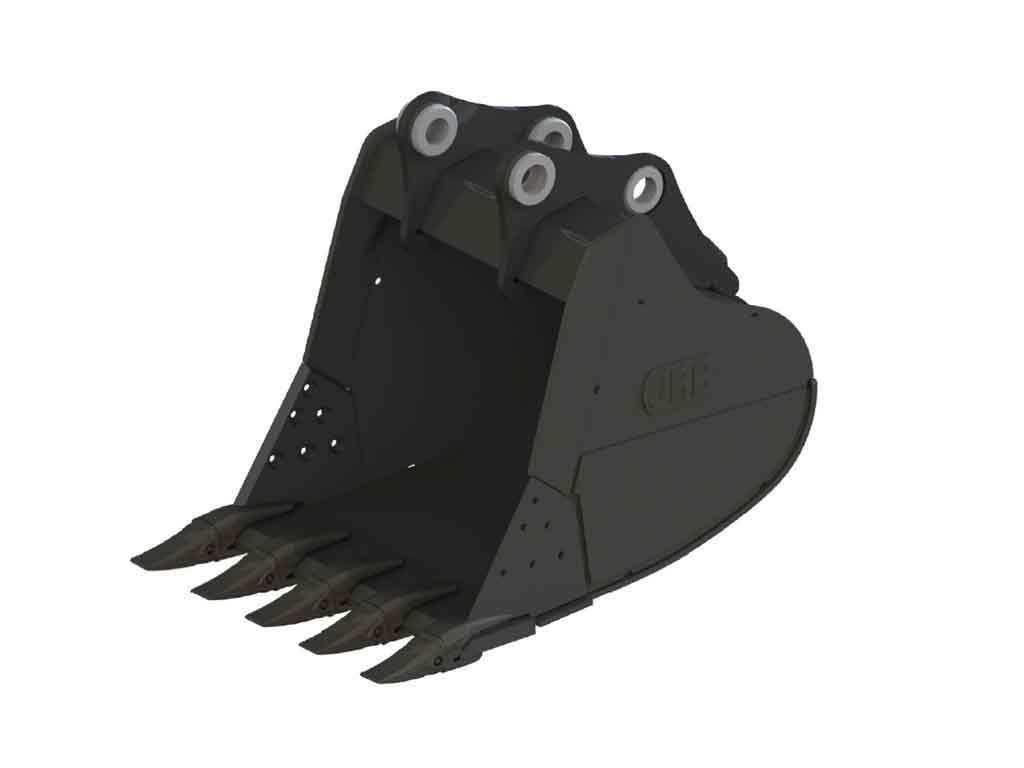

JRB Heavy Duty Buckets

  • Optimized profile for better filling & dumping
  • Dual taper design provides better heel clearance for less resistance and wear during digging
  • Improved construction reduces weight up to 10% for larger payloads
  • Horizontal two pin mounting

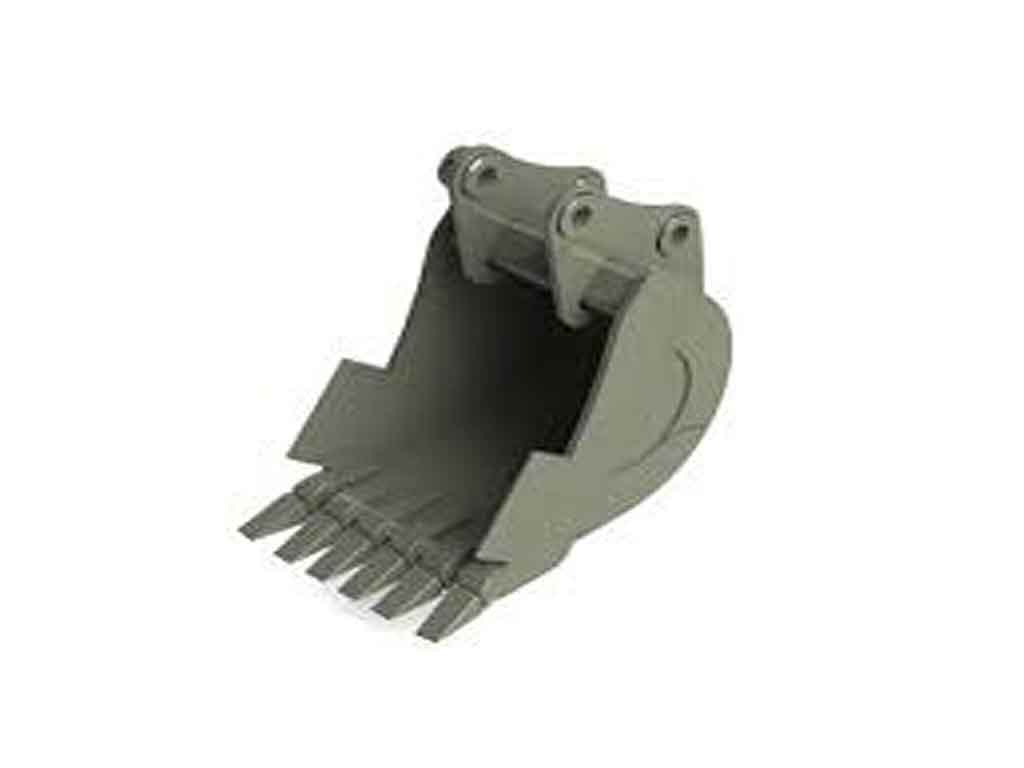

JRB Coral Rock Buckets

  • Performs Severe Duty applications
  • Weld-on wings for peeling away coral rock
  • Operates under frost conditions
  • Side wear pads for extra durability
  • Buckets are equipped with standard Hensley X156 Teeth
  • Horizontal two pin mounting
    TYPE  WIDTH CAPACITY TEETH WEIGHT
    DIRT QH 12 1.96 3 140
    DIRT QH 18 3.43 4 177
    DIRT QH 24 4.99 5 219
    DIRT QH 30 6.03 5 254
    DIRT HD PIN 12 1.56 3 150
    DIRT HD PIN 18 2.65 4 185
    DIRT HD PIN 24 3.78 5 220
    DIRT HD PIN 30 4.92 5 255
    DIRT HD PIN 36 6.06 6 295
    CORAL PIN 12 1.56 4 150
    CORAL PIN 18 2.65 6 185
    CORAL PIN 24 3.78 8 220
    CORAL PIN 30 4.92 9 255
    CORAL PIN 36 6.06 11 295



    MAKE  MODELS
    BOBCAT E42,E45,E50,E55,E63
    CASE CX55B,CX57C,CX60C
    CAT 304ECR,304.5ECR,305ECR,305.5ECR
    DEVELON DX60-3,DX63-3
    GEHL Z45, Z55
    HITACHI ZX50U-5, ZX60USB-5
    HYUNDIA  R55, R55W, R60CR
    IHI 45V-4,55V-4,65V-4
    KATO HD45V,HD55V,HD65V
    JCB 8045,8052,8060,45Z,48Z,55Z,57C,67C
    JOHN DEERE 50G,60G
    KOBELCO SK45SRX, SK55SRX
    KOMATSU PC45MR, PC55MR
    KUBOTA KX040, KX057,KX121, U45, U48, U55, RS20S,R530,R630
    LIUGONG 906D
    MUSTANG 450Z, 550Z
    NEW HOLLAND E55, E57C, E60C
    SANY
    TAKEUCHI TB260
    TEREX
    VOLVO  EC55,ECR58,EC60,EW60
    WACKER NEUSON EZ53, 6003, ET65
    YANMAR  ViO45, ViO35


     Not available at this time
