PENGO CS-3 drilling auger drive
$0.00
PENGO CS-3 CS Series (Drilling)
Pengo's latest addition to the Revolution Series Drilling drives are the CS Models. These models compact and light weight and are designed to work with our General Purpose 2" Hex Aggressor®, TriMax® and Severe Rock Ripper® augers. Combining this drive with the CS-3 Mount and your Pengo auger gives you a complete auger package.
- LIGHT WEIGHT COMPACT DESIGN
- ONE PIECE CAST HOUSING
- (1) CONNECTION AVAILABLE 2" HEX
- UNIVERSAL SKID STEER BRACKET (BOBCAT)
- WARRANTY - 24 MONTH GEAR BOX, 12 MONTH HYDRAULIC

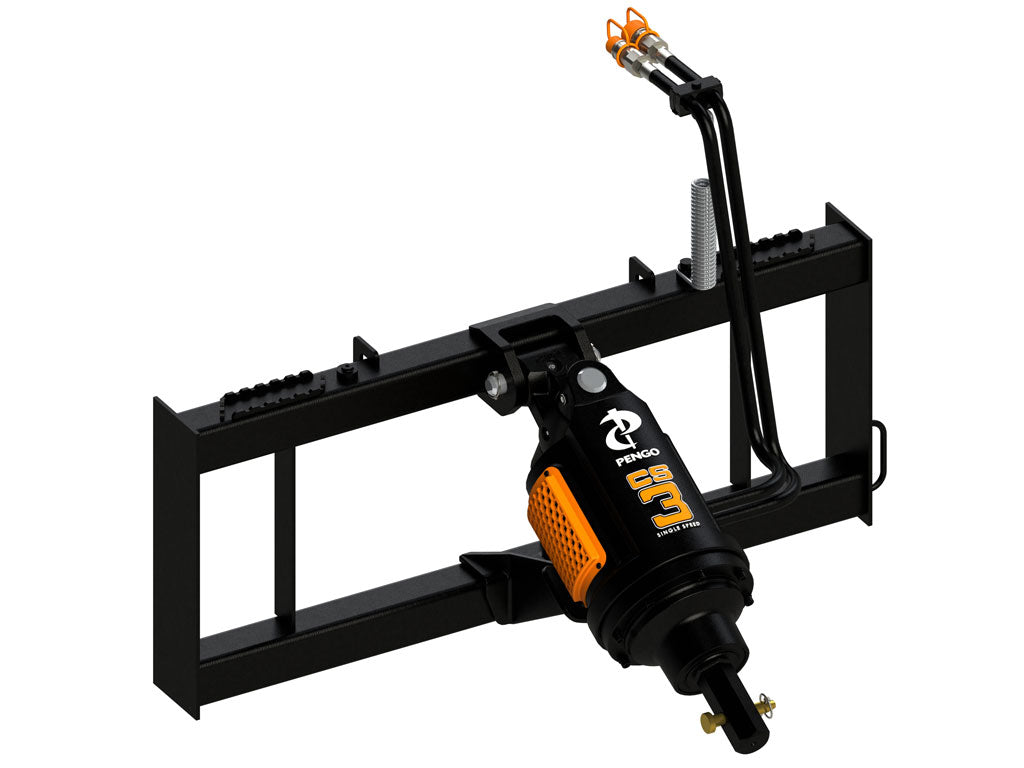

MOUNT for CS-3
This CS-3 Drive and Mount are sold as a unit. Couple your Aggressor®, TriMax® or Severe Rock Ripper® with this unit for a complete General Purpose drive package.
| DISPLACEMENT | 18.3 CU IN |
| MOTOR TYPE | SINGLE SPEED, BI DIRECTIONAL |
| MOTOR OUTPUT | 1 1/4" SPLINE 14T |
| MOTOR MOUNT | SAE A 2 BOLT |
| MOTOR PARTS | 7/8-14 UNF-2B O-RING |
| CROSS OVER | NA |
| GEARBOX | PLANETARY SINGLE STAGE |
| REDUCTION RATIO | 3.69:1 |
| OUTPUT SHAFT | 2" HEX |
| INTERNAL OIL CAP | 25 OZ |
| OIL TYPE | SAE 80W90 GL-5 |
| MAX HOLE DEPTH | 8' |
| MAX HOLE DIAMETER | 36" |
| WEIGHT | 130 LB DRIVE / 300 LB WITH SSL MOUNT |
| MIN / MAX FLOW | 5 - 30 GPM |
| MAX PRESSURE | 3600 |
| MAX DIAM AUGER | 36" |
SPEED
| FLOW GPM | SPEED |
| 15 | 51 |
| 20 | 68 |
| 25 | 85 |
| 30 | 103 |
TORQUE CHART
| PRESSURE | THEORETICAL |
| 1200 | 1075 |
| 1400 | 1254 |
| 1600 | 1434 |
| 1800 | 1613 |
| 2000 | 1792 |
| 2200 | 1971 |
| 2400 | 2151 |
| 2600 | 2330 |
| 2800 | 2509 |
| 3000 | 2689 |
| 3200 | 2868 |
| 3400 | 3047 |
| 3600 | 3226 |

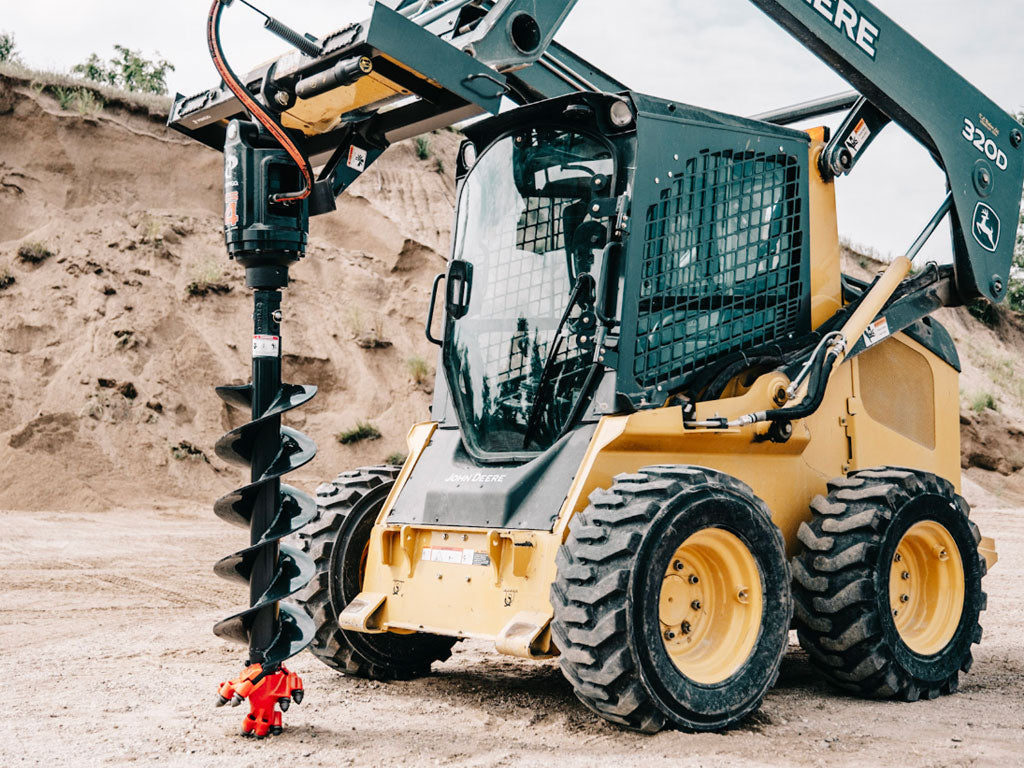

This drive will fit on most medium and large frame skid steers. The flow range is 5 to 30 GPM. Keep in mind the max pressure or PSI is 3600 PSI. The largest bit that can be used on this auger is 36".
