PENGO MS-125 drilling auger drive
$0.00

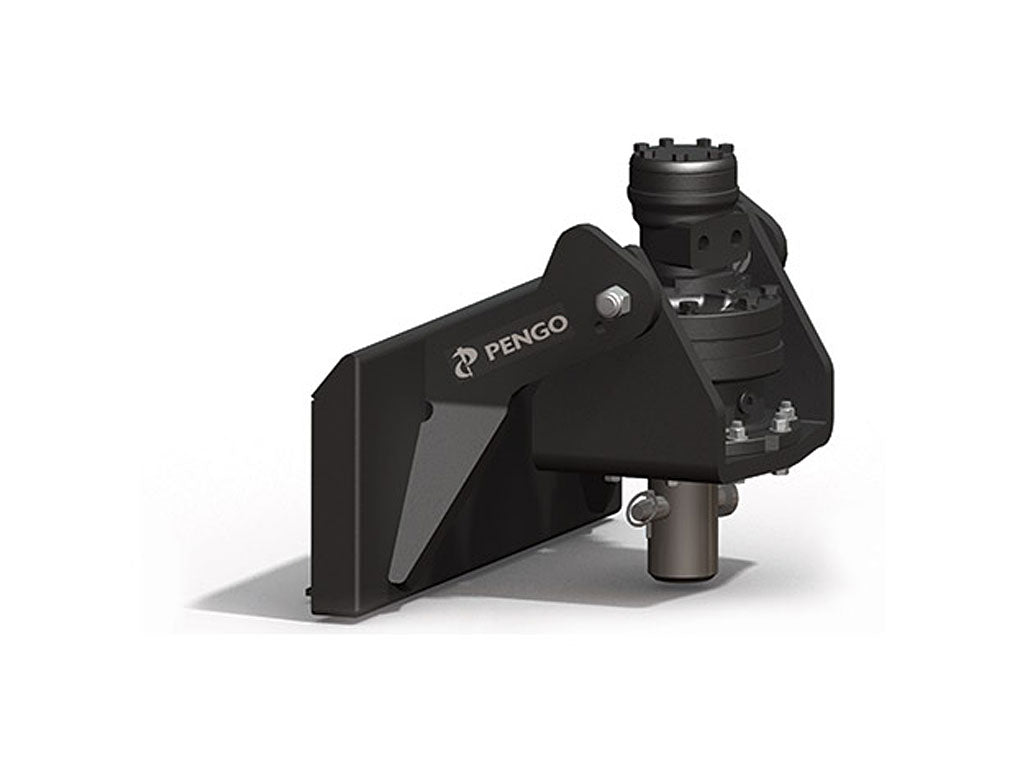

PENGO MS-125 MS Series (Drilling)
The MS series drives are made specifically for mini-skid machines. They are lightweight and offered with either a 2 9/16” round output shaft or 2” hex. The MS series is perfect for backyard drilling projects. Its compact size perfectly accommodates Pengo’s Landscape Aggressor® auger.
This single speed Revolution Drive for mini skid steer is your solution to backyard dirt digging. It's compact size accommodates the Landscape Aggressor auger perfectly. Universal Compact Skid Mount and Hydraulic Hoses included. Note that both theoretical and actual torque values are listed, but that Pengo recommends to go by ACTUAL torque listings.
- HIGHLY EFFICIENT GEARBOX DESIGN FOR LONG DUTY CYCLES

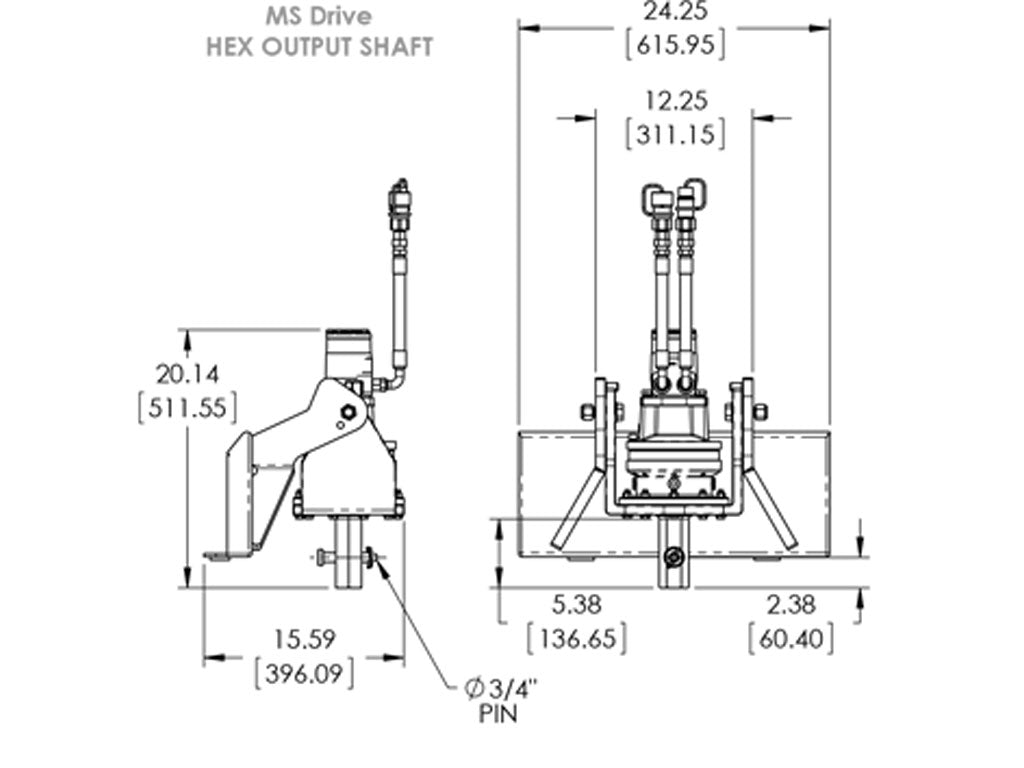

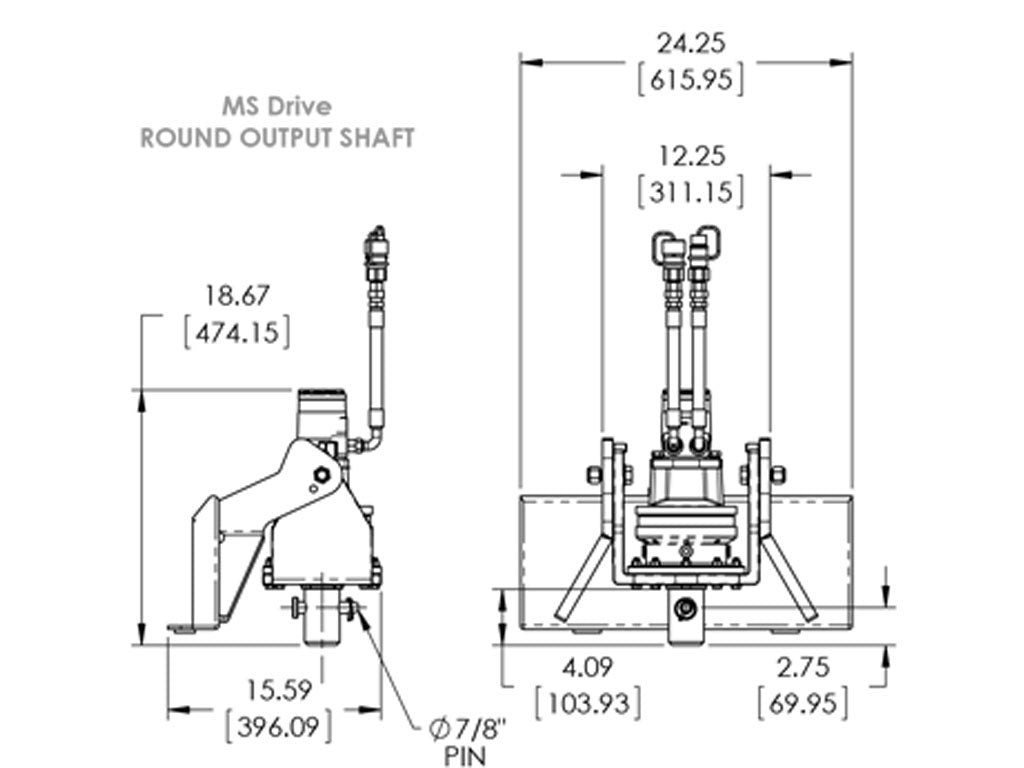

- (2) CONNECTIONS AVAILABLE 2" HEX OR 2 9/16" ROUND
- (2) BRACKETS SINGLE OR DOUBLE
| DISPLACEMENT | 16.1 CU IN |
| MOTOR TYPE | SINGLE SPEED, BI DIRECTIONAL |
| MOTOR OUTPUT | 7/8" SPLINE 14T |
| MOTOR MOUNT | SAE A 2 BOLT |
| MOTOR PARTS | 1/2" BSP |
| CROSS OVER | NA |
| GEARBOX | PLANETARY SINGLE STAGE |
| REDUCTION RATIO | 5.77:1 |
| OUTPUT SHAFT | 2" HEX OR 2 9/16" ROUND |
| INTERNAL OIL CAP | .13 GAL |
| OIL TYPE | SAE 80W90 GL-5 |
| MAX HOLE DEPTH | 4' |
| MAX HOLE DIAMETER | 4' |
| WEIGHT | 146 LB |
SPEED
| FLOW GPM | SPEED |
| 10 | 45 |
| 15 | 67 |
| 20 | 90 |
| 25 | 112 |
TORQUE CHART
| PRESSURE | THEORETICAL | ACTUAL |
| 1200 | 672 | 551 |
| 1400 | 784 | 643 |
| 1600 | 897 | 736 |
| 1800 | 1009 | 827 |
| 2000 | 1121 | 919 |
| 2200 | 1233 | 1011 |
| 2400 | 1345 | 1103 |
| 2600 | 1457 | 1195 |
| 2800 | 1569 | 1287 |
| 3000 | 1681 | 1378 |
