* ST200 IS CURRENTLY THE ONLY MODEL AVAILIBLE IN THE USA

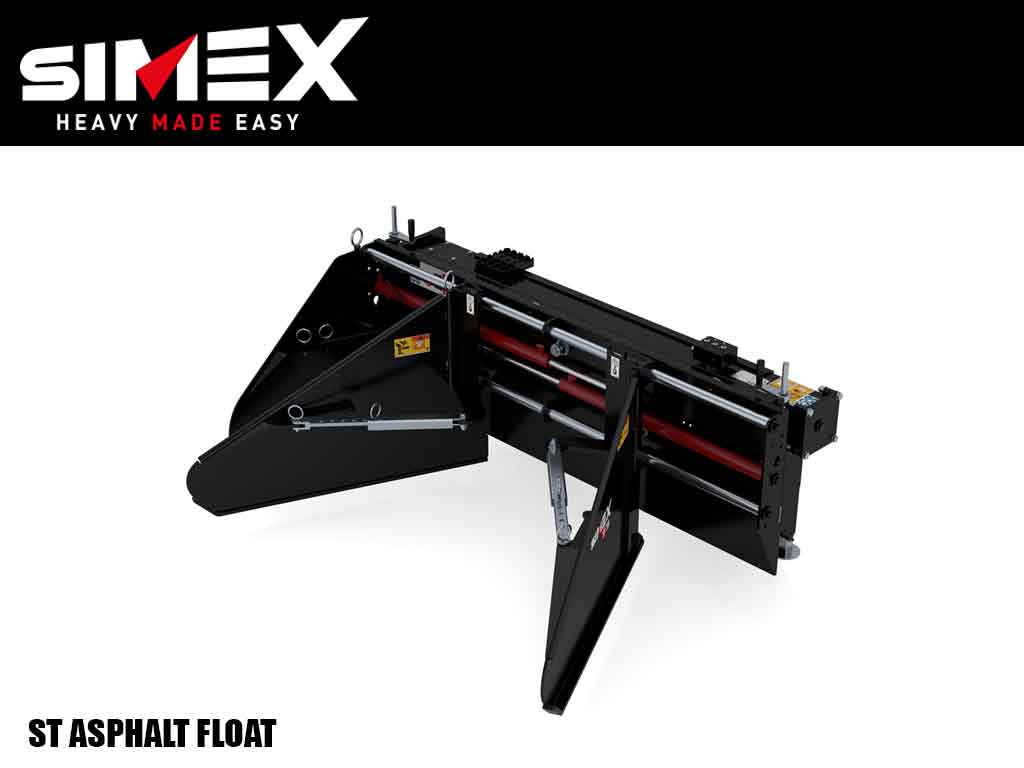

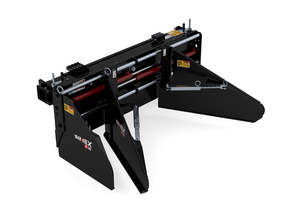

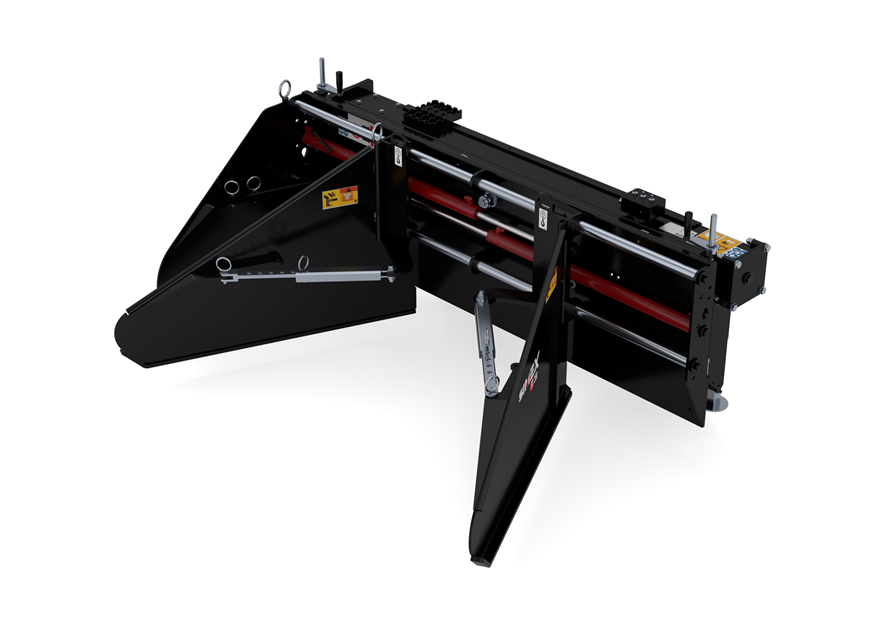

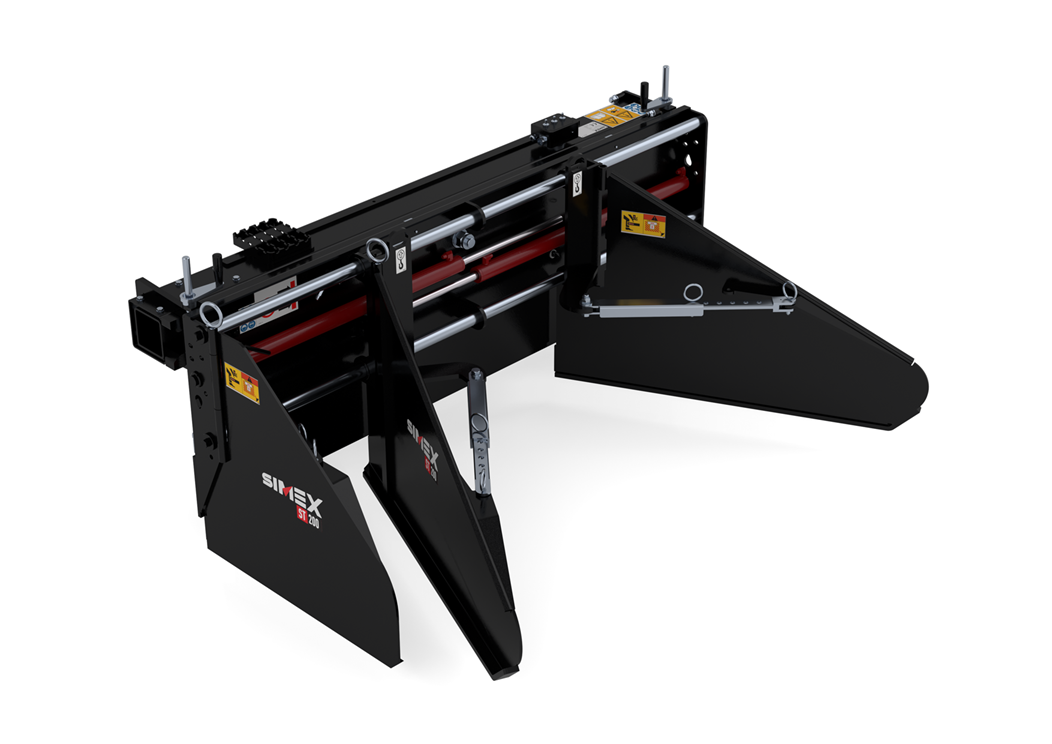

ST asphalt floats are designed to lay asphalt or waste material to fill set-section trenches, create sidewalks or widen existing roadways. The lateral slides take the existing surface as reference, whereas the thickness of the laid asphalt can be adjusted. The floating transverse tilt can be locked in case a slide doesn’t touch the ground. They can lay asphalt on sidewalks or widen the road surface without the prime mover passing over the spread material since they can work totally offset the machine. (except ST 160B).
ADVANTAGES
TECHNICAL DATA | ST 160B | ST 160 | ST200 |
LAYING | MECH / HYD | HYD | HYD |
THICKNESS | MECHANICAL | MECHANICAL | MECHANICAL |
TILT DEGREE | 5 | 5 | 5 |
TILT LOCK | SI | SI | SI |
SIDESHIFT | NA | HYDRAULIC | HYDRAULIC |
SPEED INCH / MIN | 50-120 | 50-120 | 50-120 |
WEIGHT | 1050 | 1350 | 1485 |
REQ FLOW | 12 | 12 | 12 |
PSI | 2900 | 2900 | 2900 |
