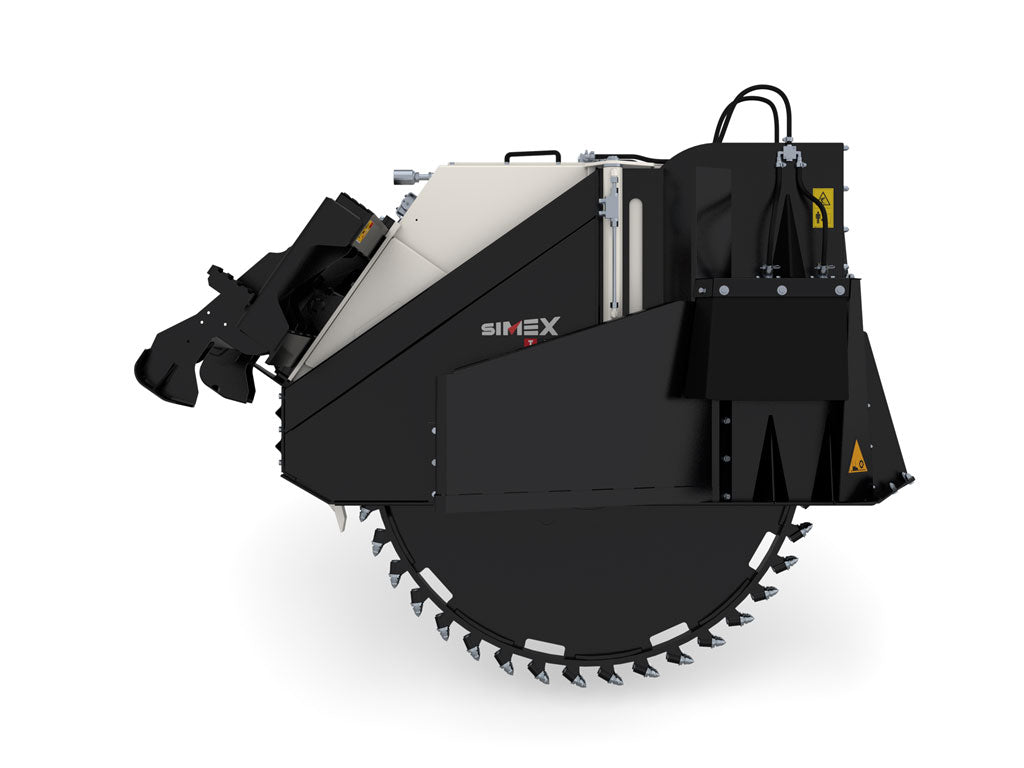

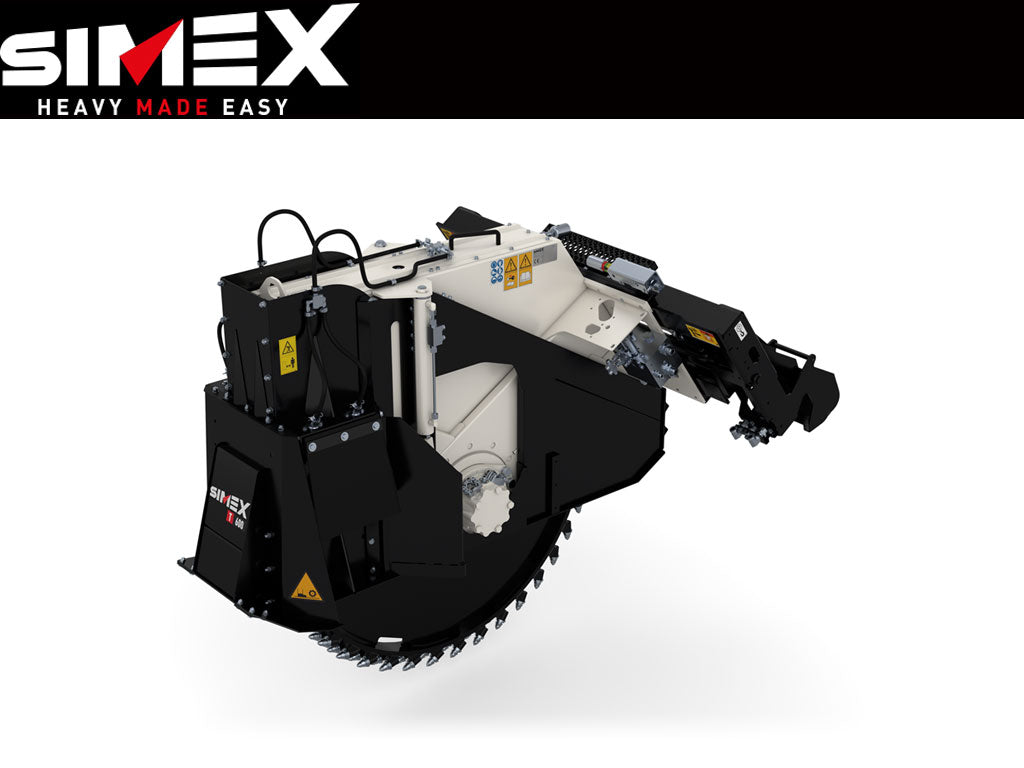

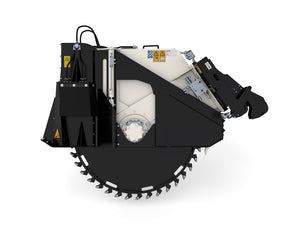

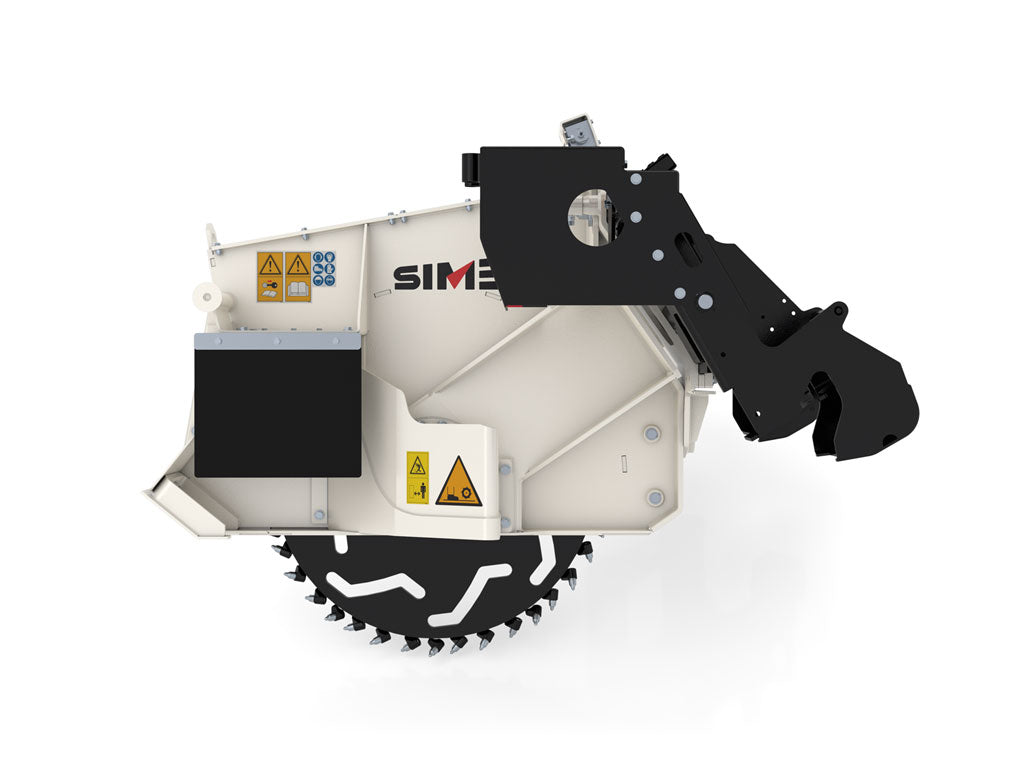

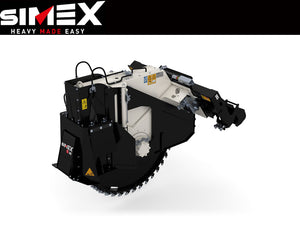

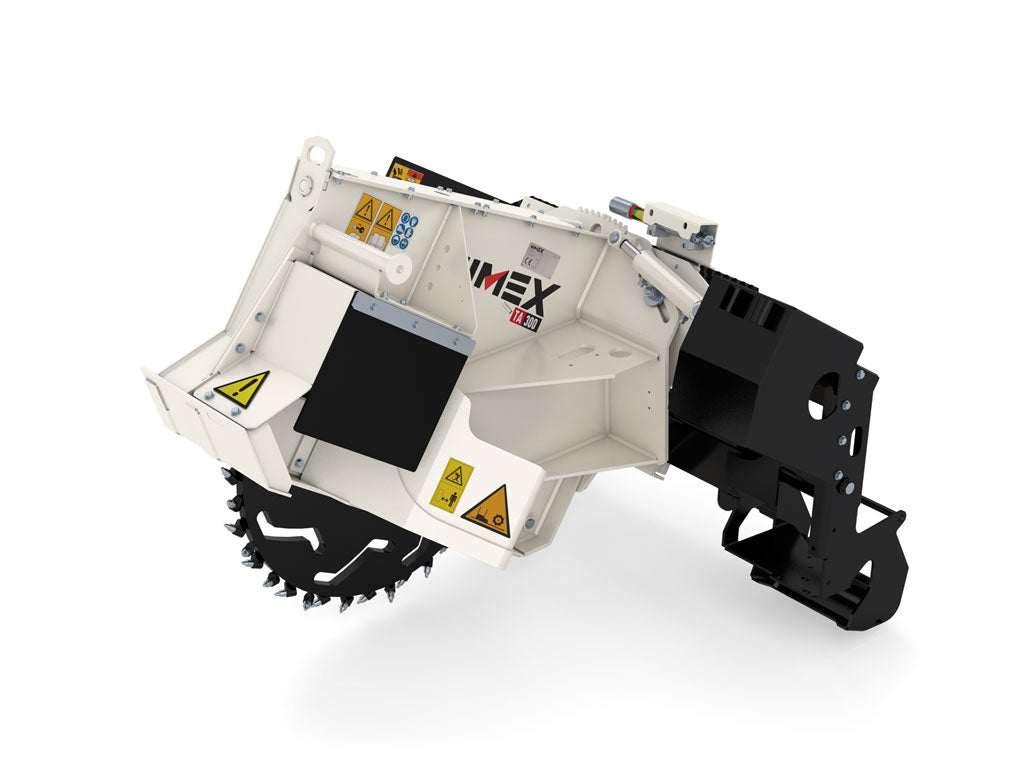

SIMEX T/TA rock saw for skid steer loaders
$0.00
2/25
ROCK SAW T/TA MODELS
SKID STEER

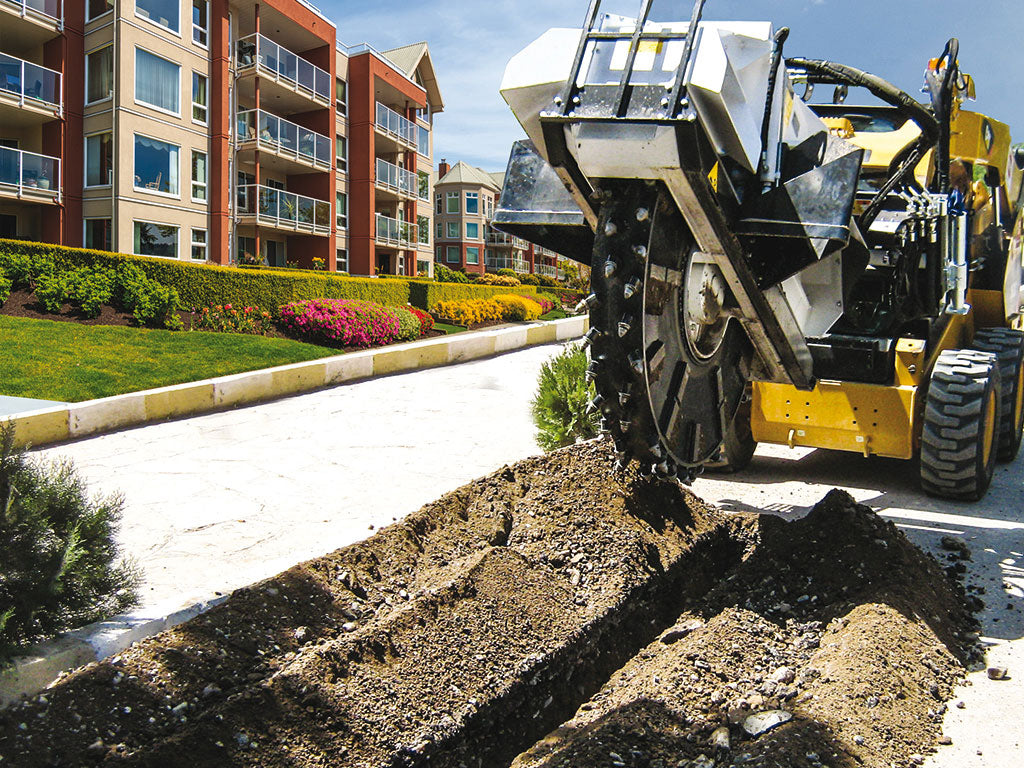

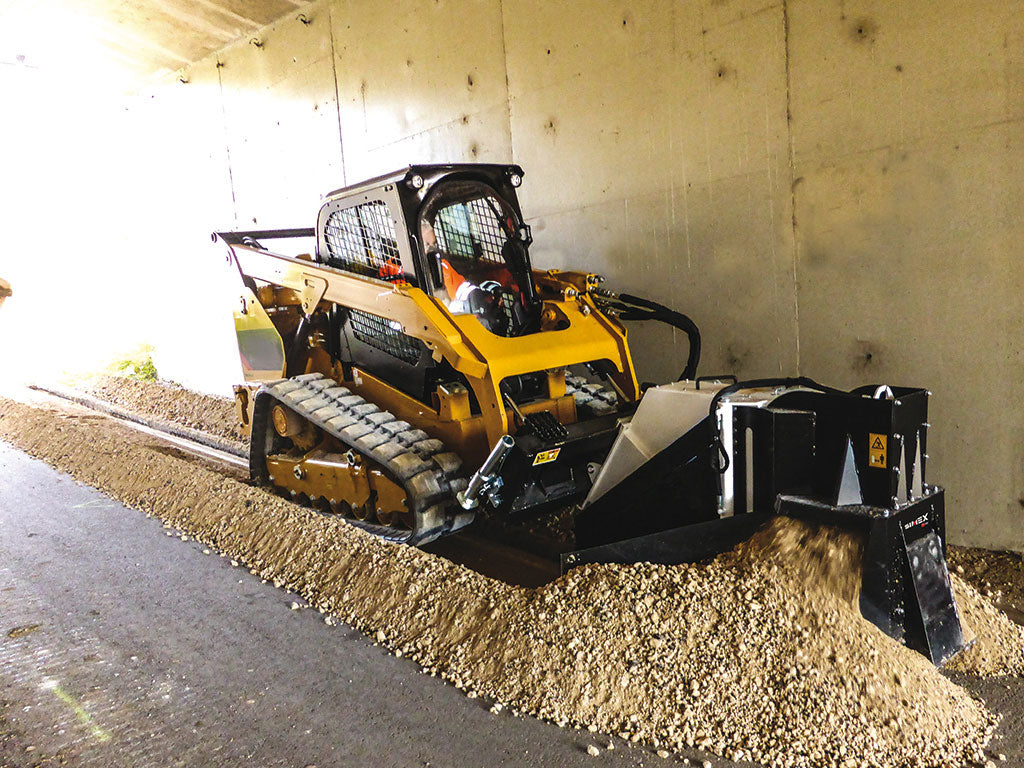

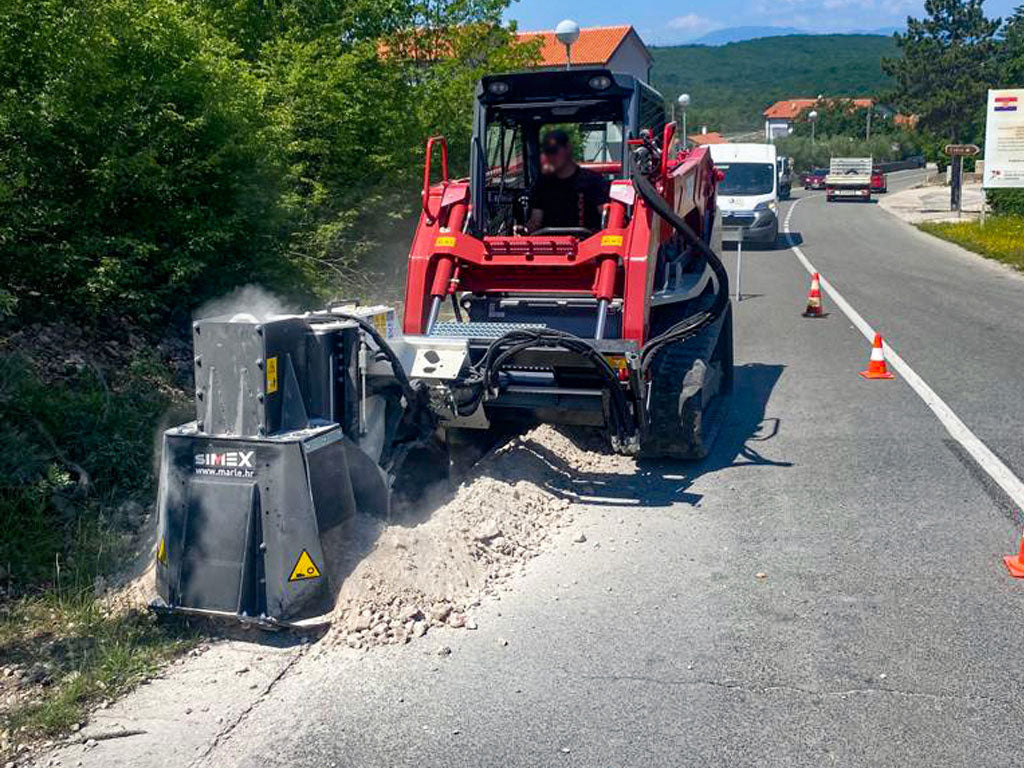

Intended for skid steer mounting, Simex wheel saws offer different solutions for working on hard or compact surfaces, including asphalt, cement and rock: cuts and small trenches, set-section trenches, mini- and micro-trenches for fiber optic cable installation. Full wheel protection at any working depth ensures maximum safety of persons and property.
FEATURES
- Side discharge of material
- Hydraulic depth adjustment (Model T450 and up)
- Performer
- Hydraulic side shift
- Cutting discs
- Segmented discs
- Nebulizer
- Mini and micro trenching
- Hydraulic lateral tilt
- trench cleaning device
OPTIONS

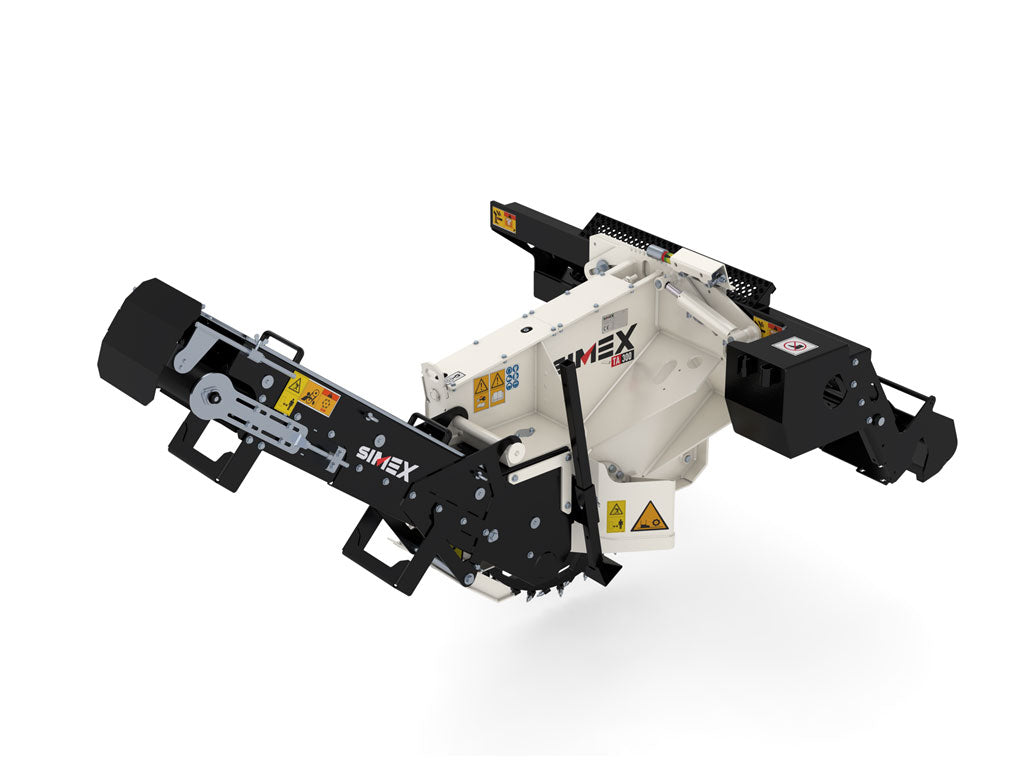

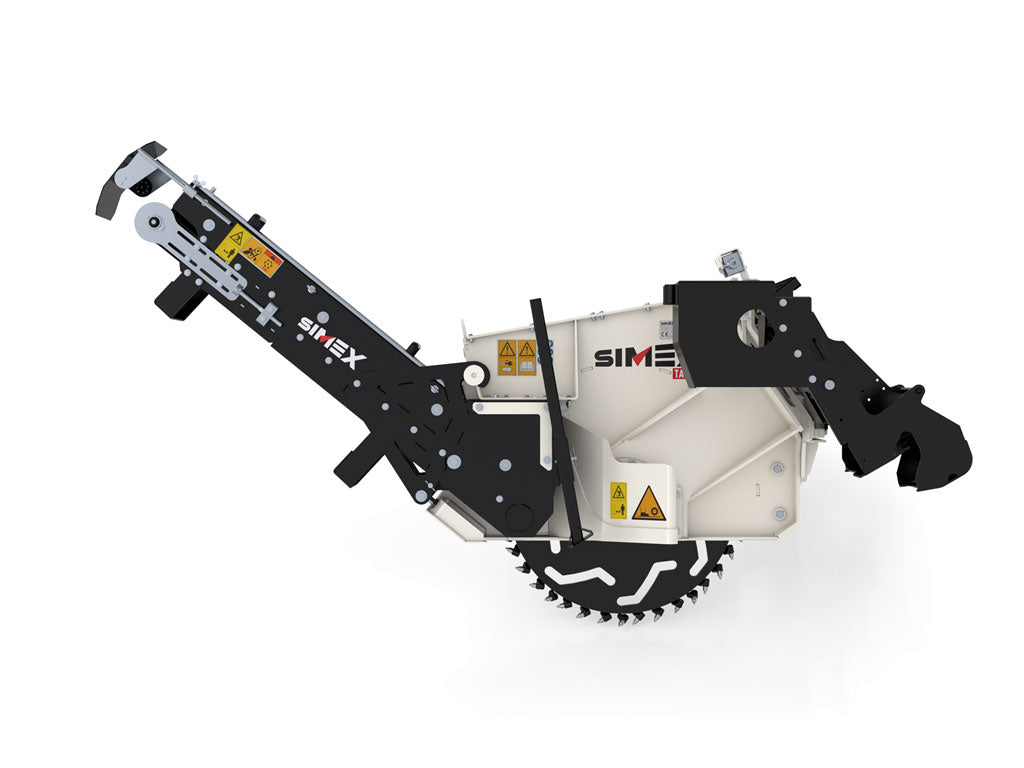

- Conveyor belt
- Aspiration kit
| MODEL | GPM FLOW | WIDTHS | DEPTHS | SIDE SHIFT | SEGMENTED WHEEL |
| T200 | 9-20 | 1", 1.2", 1.6", 2" | 8" | MANUAL | |
| T300 | 16-30 | 1", 1.2", 1.6" 3.2" | 12" | HYDRAULIC | |
| TA300 | 16-30 | 1", 1.2", 1.6", 3.2" | 12" | HYDRAULIC | |
| T450 | 27-42 | 1.6", 3.2", 4", 5", 6.3", 8" | 6-17" | HYDRAULIC | OPTION |
| T600 | 29-45 | 3.2", 4", 5", 6.3", 8" | 8-24" | HYDRAULIC | OPTION |
| T800 | 29-45 | 10" | 17-31" | HYDRAULIC |

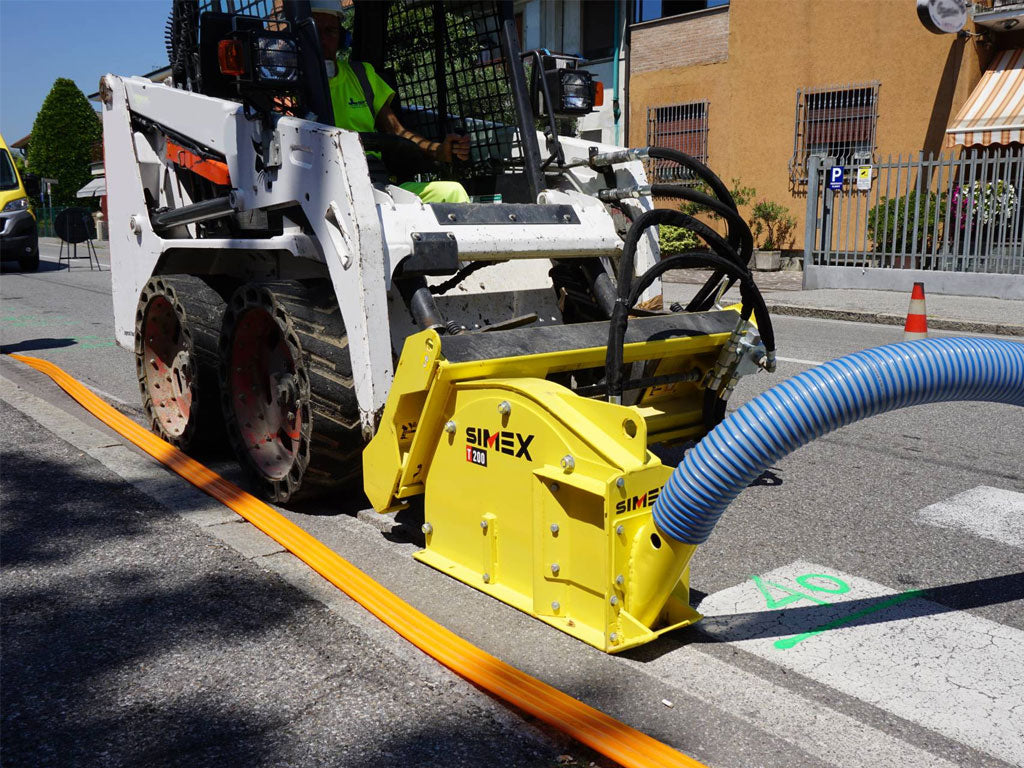

T 200
Features mechanical side shift
| T200 | ||
| Trench width | 25-30-40-50 mm | 1-1,2-1,6-2 inch |
| Trench depth | 200 mm | 8 inch |
| Operating weight with standard wheel (1) | 270 kg | 600 lbs |
| Required oil flow | 35-75 l/min | 9-20 gpm |
T 300
Features hydraulic side shift and trench clearing device
| T300 | ||
| Trench width | 25-30-50-80 mm | 1-1,2-1,6-3,2 inch |
| Trench depth | 300 mm | 12 inch |
| Operating weight with standard wheel (1) | 665 kg | 1460 lbs |
| Required oil flow | 60-115 l/min | 16-30 gpm |

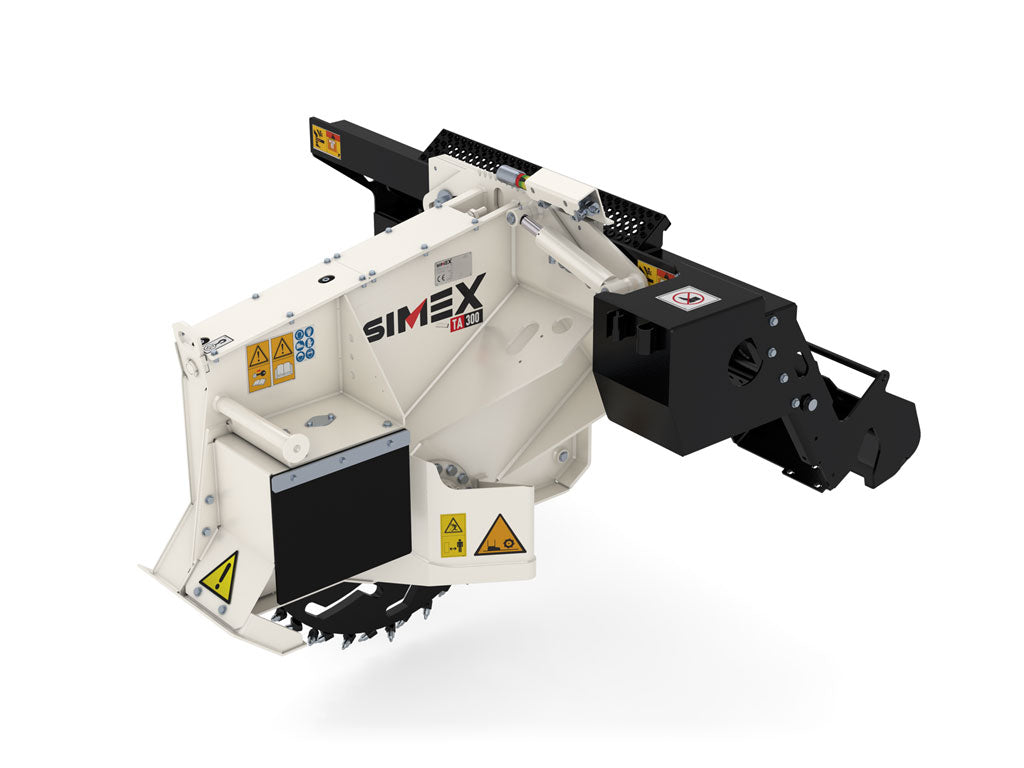

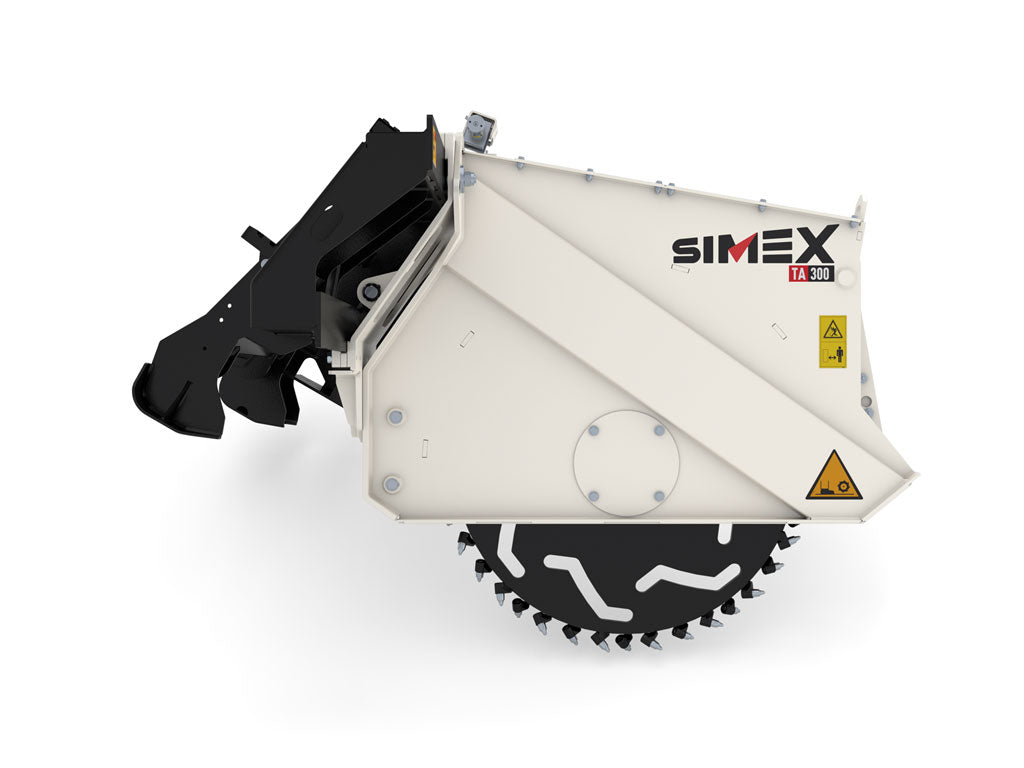

TA 300

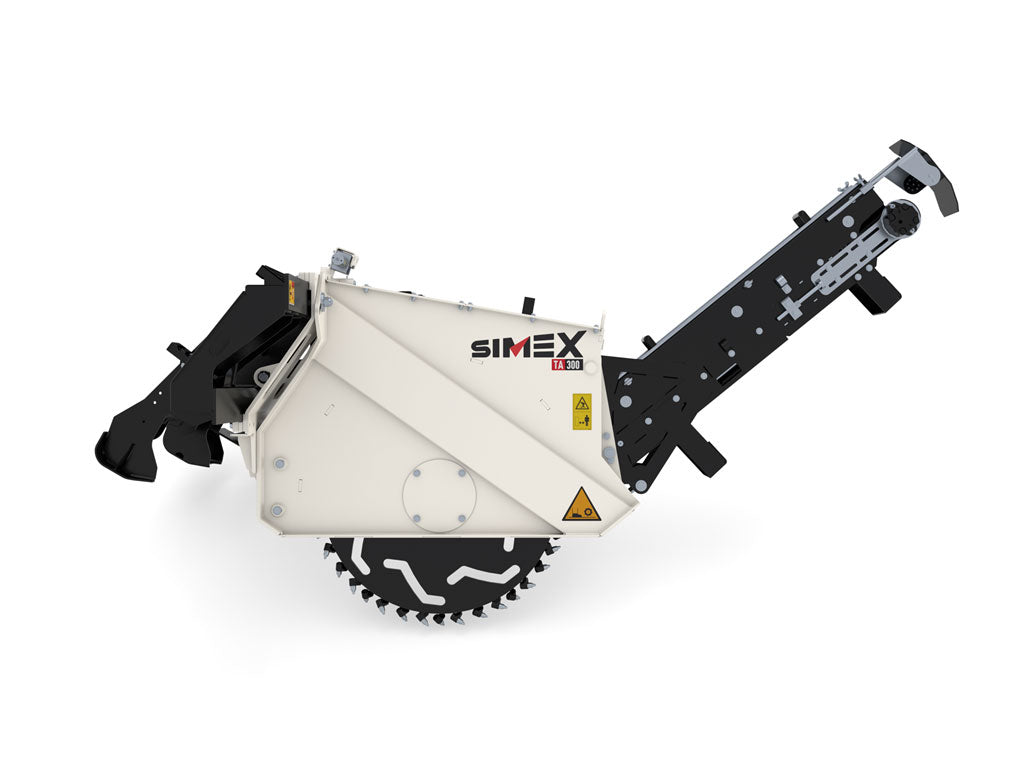

Ideal for laying fiber optics, fitted with hydraulic lateral tilt allowing wheel saw to stay vertical in any condition, even when the prime mover is not parallel to the road surface. Also available with conveyor belt.
| TA300 | ||
| Trench width | 25-30-50-80 mm | 1-1,2-1,6-3,2 inch |
| Trench depth | 300 mm | 12 inch |
| Operating weight with standard wheel (1) | 845 kg | 1860 lbs |
| Required oil flow | 60-115 l/min | 16-30 gpm |
T 450
Features hydraulic depth adjustment, hydraulic side shift and trench clearing device. Possibility of side discharge of material. Set up for installation of aspiration and conveyor belt.
| T450 | ||
| Trench width | 50-80-100-130-160-200 mm | 1,6-3,2-4-5-6,3-8 inch |
| Trench depth | 150-450 mm | 6-17 inch |
| Operating weight with standard wheel (1) | 1115 kg | 2450 lbs |
| Required oil flow | 100-160 l/min | 27-42 gpm |
T 600
Hydraulic depth adjustment, hydraulic side shift, trench clearing device, side discharge of material. Set up for installation of aspiration and conveyor belt.
| T600 | ||
| Trench width | 80-100-130-160-200 mm | 3,2-4-5-6,3-8 inch |
| Trench depth | 200-600 mm | 8-24 inch |
| Operating weight with standard wheel (1) | 1340 kg | 2950 lbs |
| Required oil flow | 110-170 l/min | 29-45 gpm |
T 800
Compared to the other models of the T range, the T 800 is fitted with an integrated motor in the wheel that enters the trench and goes down to a depth of 800mm without excessively increasing the wheel diameter. The T 800 is also the only one that can work in reverse.
| T800 | ||
| Trench width | 250 mm | 10 inch |
| Trench depth | 450-800 mm | 17-31 inch |
| Operating weight with standard wheel (1) | 1430 kg | 3150 lbs |
| Required oil flow | 110-170 l/min | 29-50 gpm |
