SKID LIFT 1908E HD

SKID LIFT 1908E HD - 25' WORKING HEIGHT

Our heaviest duty model.

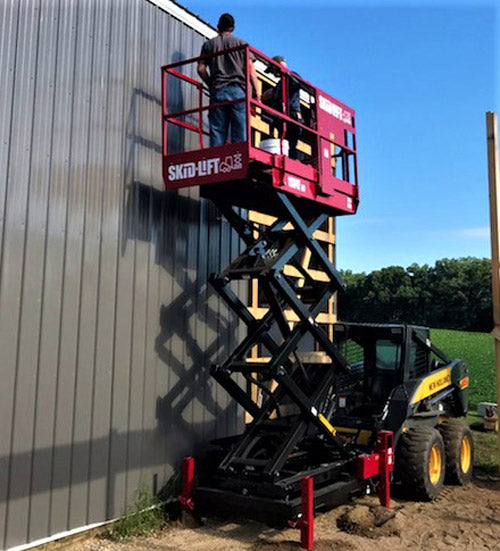

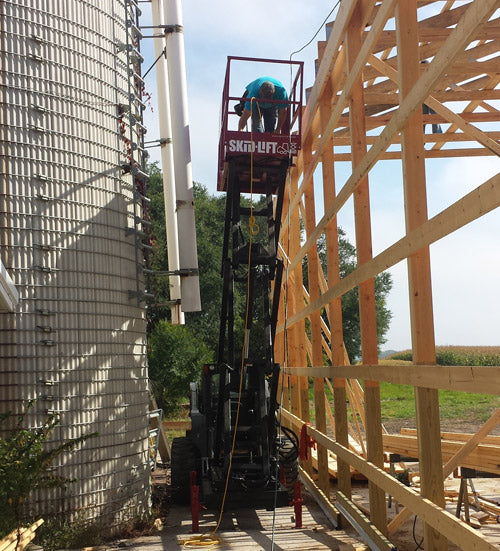

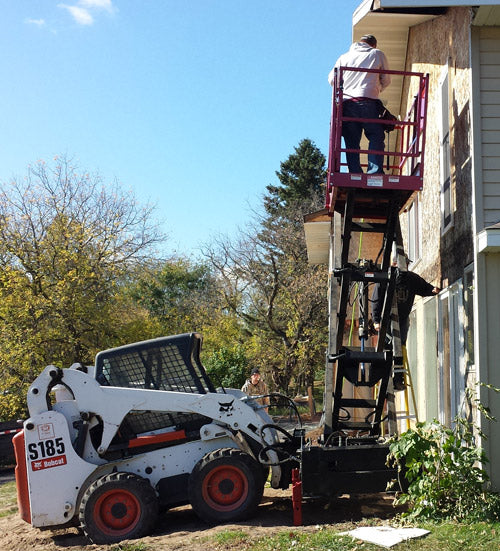

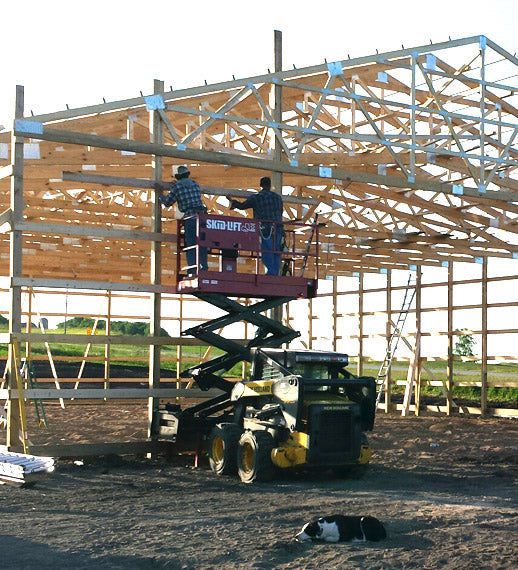

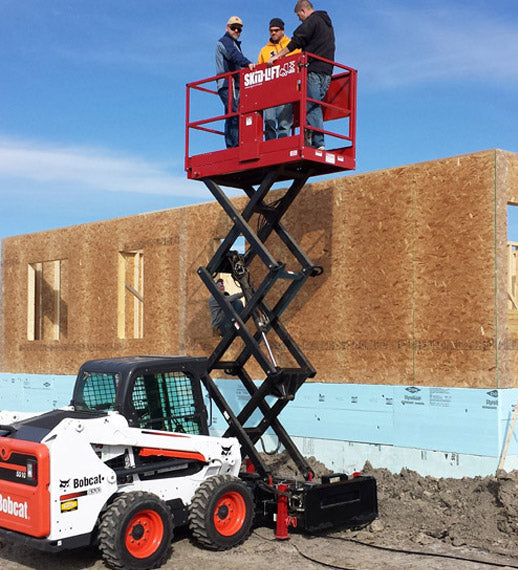

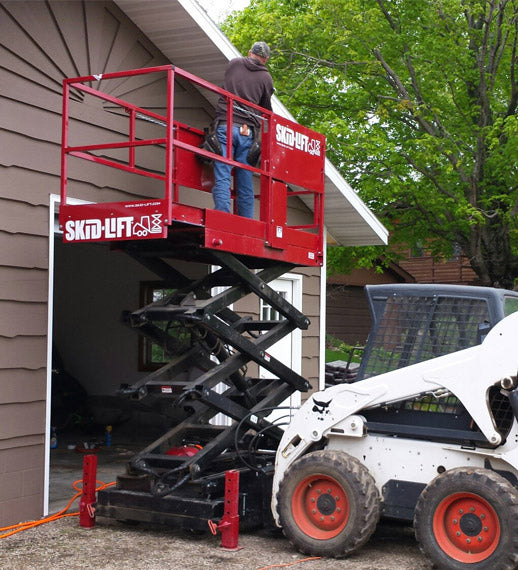

The Skid-Lift was developed to pair the advantages of a scissor lift with the flexibility of a skid steer or tractor. The auxiliary hydraulic system on your skid steer provides the power for the lift and tilt. The 1908E HD model has a built-in quick attach plate on the end of the lift along with a side attach plate that bolts on and is included as standard equipment. This gives added versatility when getting into tight spots or positioning of the basket in relation to the work you are doing. The side tilt functionality allows for 4 degrees of tilt of the basket both forward and back which allows you to either level out your basket as needed or get closer or farther from your work area as needed.

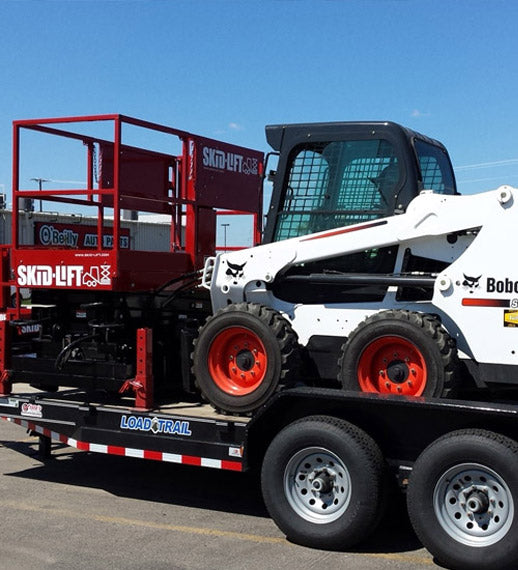

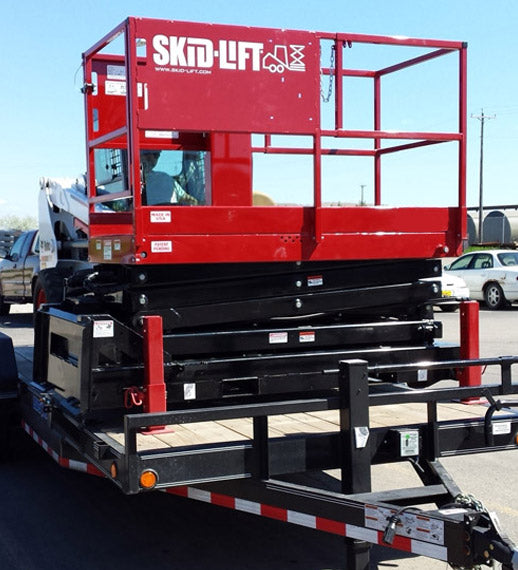

The Skid-Lift is designed for easy transport and will easily fit on the front of a skid steer trailer for transportation along with your skid steer. An optional attach plate can be obtained when hooking to a 3-point hitch on a tractor.

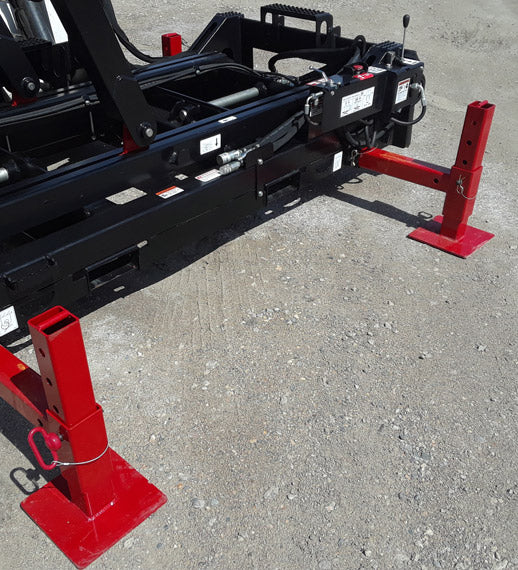

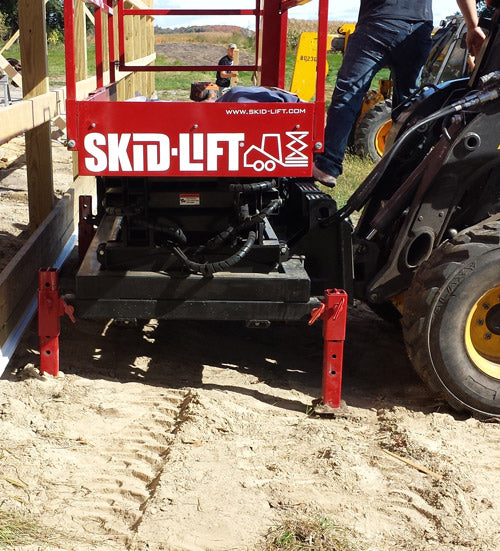

The support legs are adjustable for uneven terrain. The unit will also work with many fork lifts that have external hydraulic hooks. Tractors can also be hooked up to the Skid-Lift with the use of the optional 3 point hitch adaptor plate.

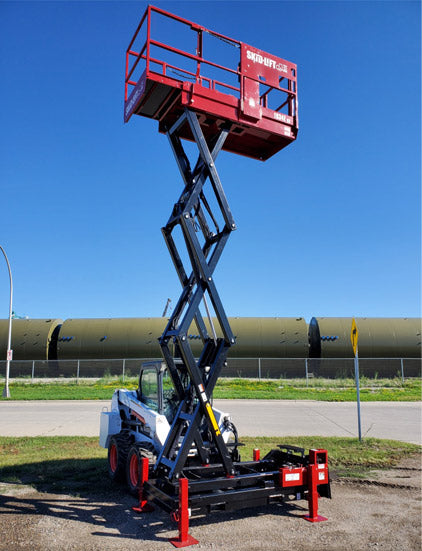

Lift Height: 25’ Working Height (18.8’ Platform Height)

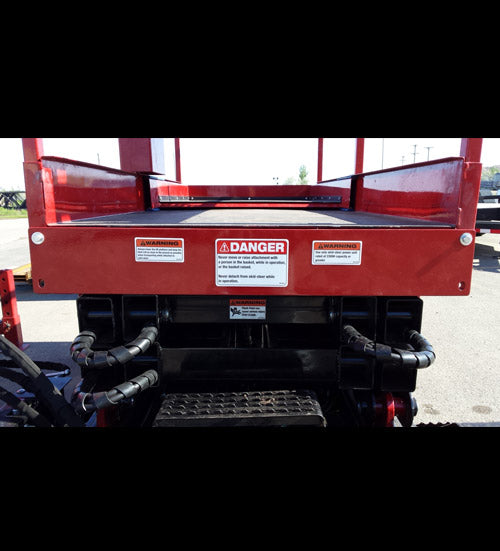

6’2″ x 34” Platform with 22” deck extension (8′ Total Length)
Weight: 2400 lbs
Lift Capacity Rating: 1,000 lbs on Main Deck, 500 lbs on Deck Extension
Includes 4° Side Tilt feature
End and Side Attach Plates included
Hydraulic Hook-Up Couplers at Both Attach Plates

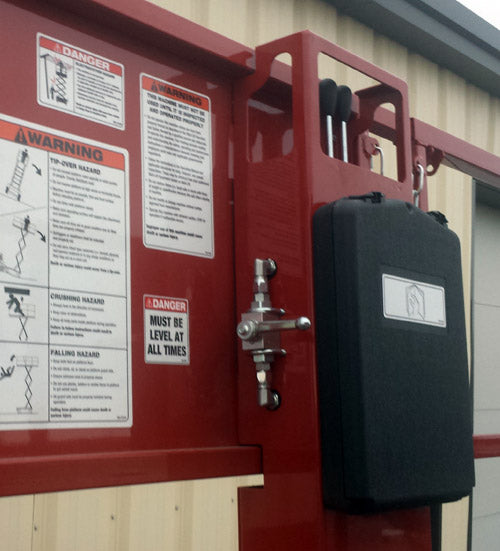

End and Side Access Doors
Heavy Duty Tube Steel Base Frame Construction
