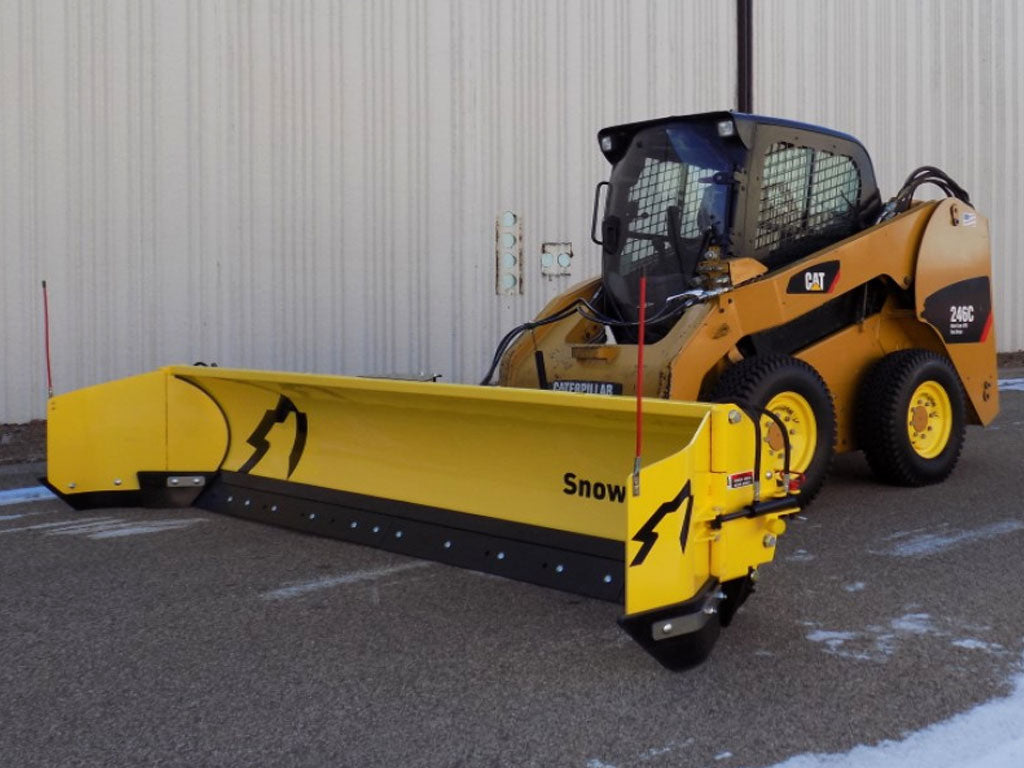

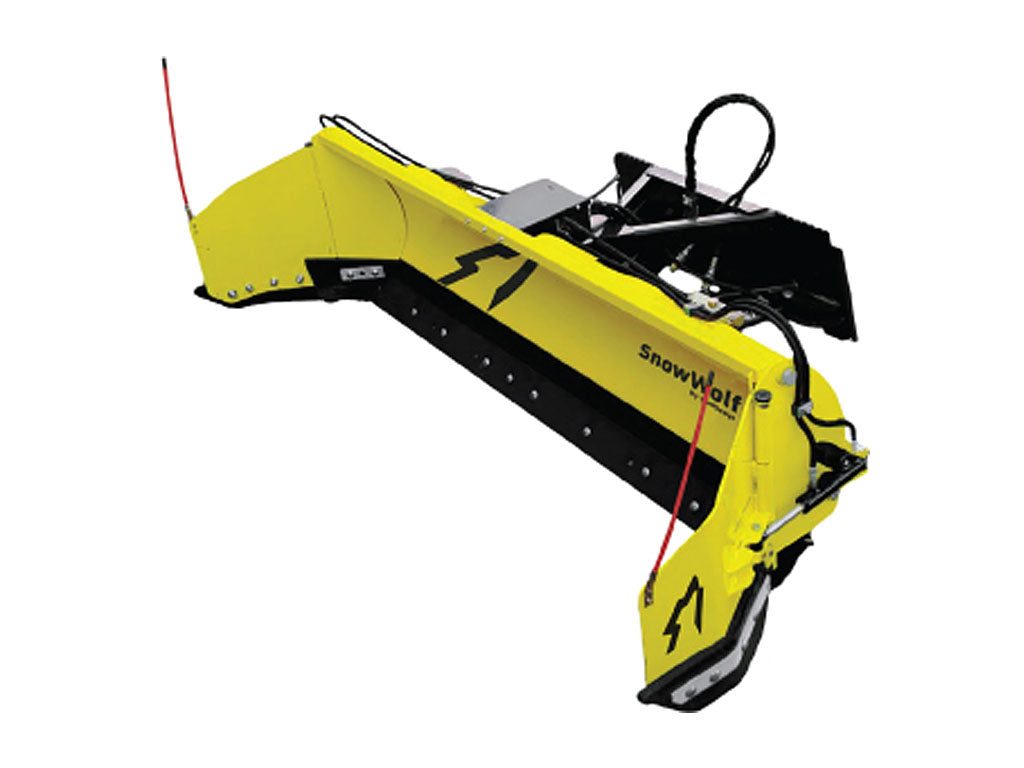

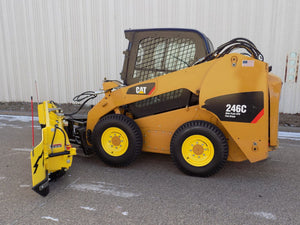

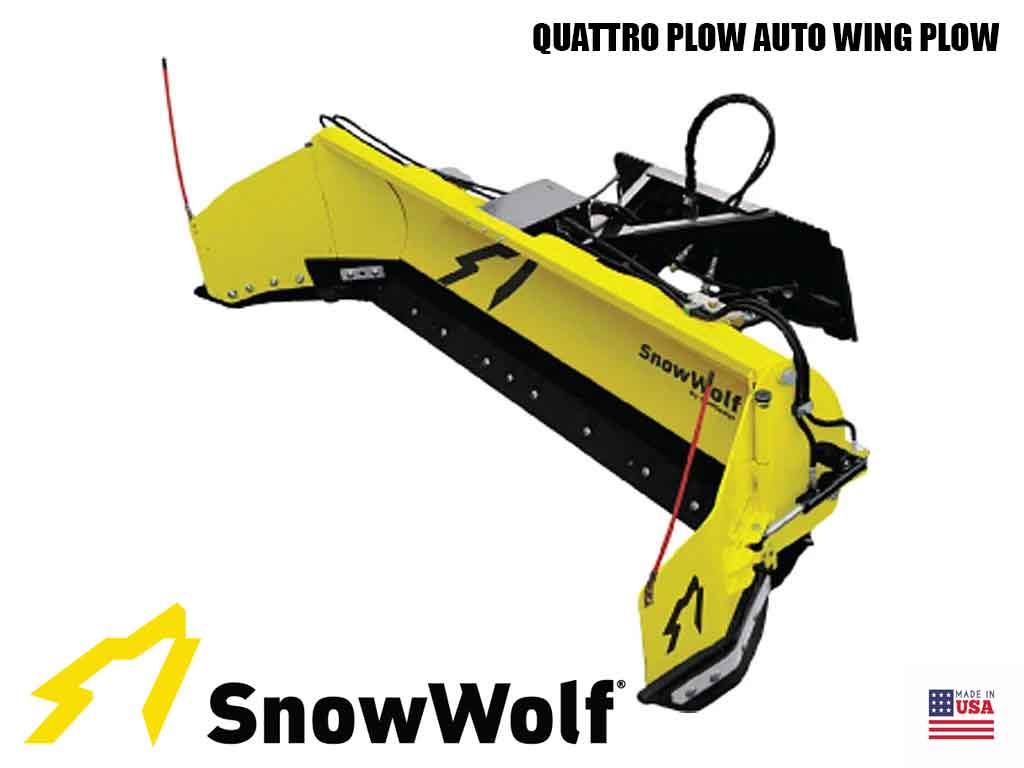

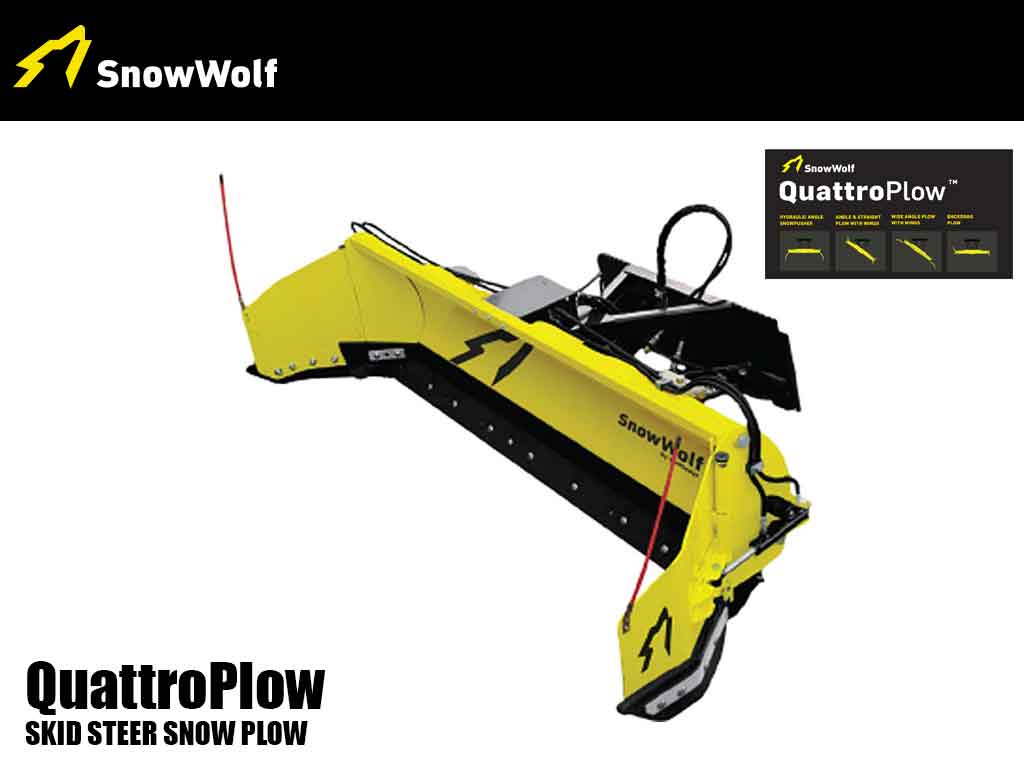

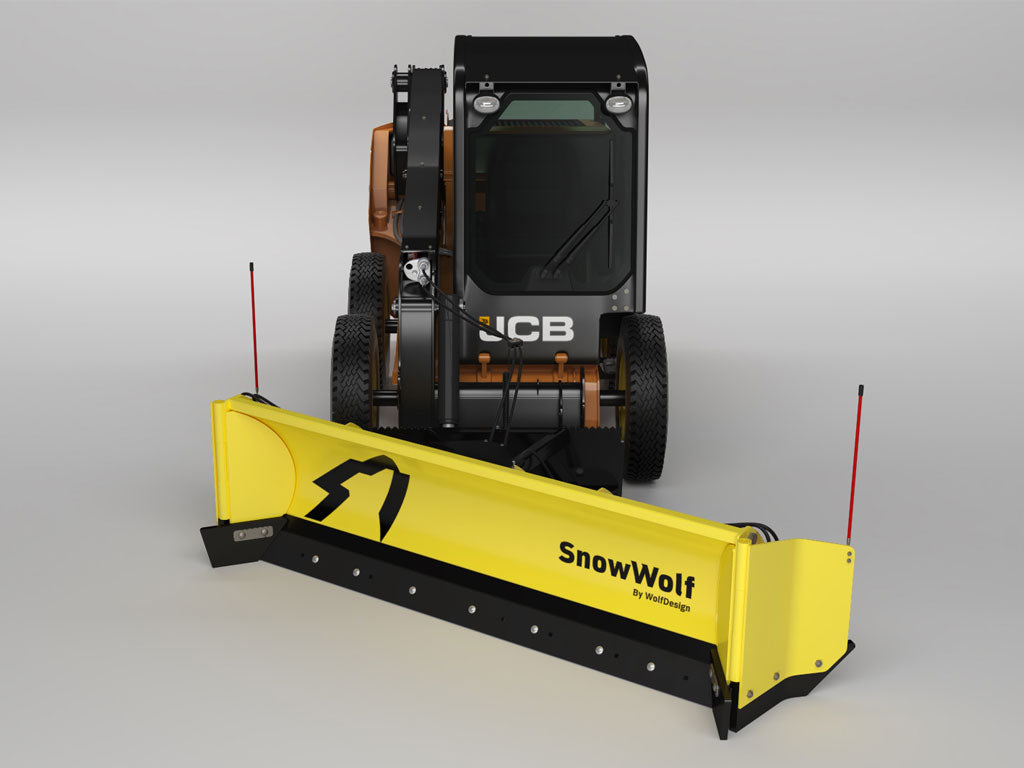

SnowWolf QuattroPlow auto wing plow for skid steers

QP-102A

SnowWolf QuattroPlow auto wing plow for skid steers

Name: SnowWolf QuattroPlow auto wing plow for skid steers
Brand: SNOW WOLF
SKU: QP-102A
Price: 12725.0 USD
Availability: InStock

$12,725.00

Size

Frame

Edge

Size

QP-102 (7') sold out

QP-114 (8') sold out

QP-126 (9') sold out

QP-138 (10') sold out

QP-150 (11') sold out

Frame

FLEX-FRAME sold out

Edge

STANDARD STEEL EDGE sold out

SECTIONAL ACTIVE EDGE sold out

SECTIONAL CARBIDE ACTIVE EDGE sold out

Qty

QuattroPlow For: 6,000-10,000lb. Machinery

4X THE PLOW for your Skid Steer

The QuattroPlow is the most advanced plow in snow removal.

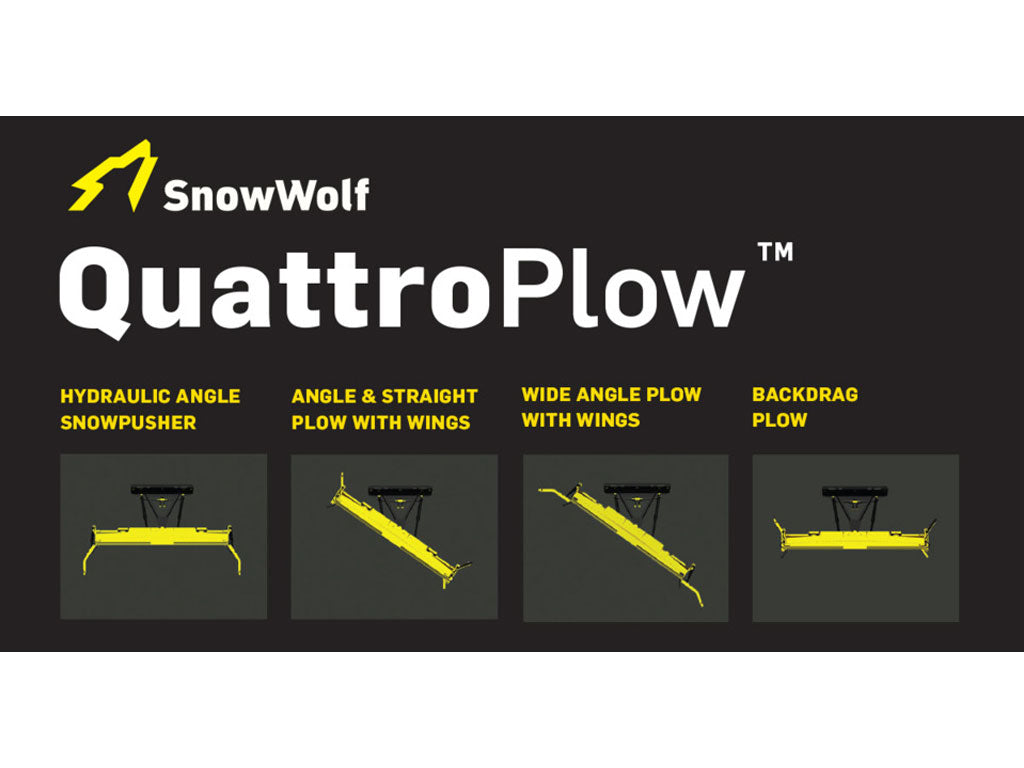

This innovative equipment combines and improves upon the ingenuity of two prior SnowWolf innovations, the FastTach® and WolfWings™. The results are greater flexibility, efficiency and effectiveness in four distinct functions, all without any extra electric harnesses or controllers in your machine. Easily shift from angle plowing to straight plowing to high-capacity pushing to back-dragging in just seconds without ever leaving your machine or even pushing a button. A fifth function, wide-angle plowing, extends your plow by 23 inches on each end. All it takes is less than a minute to reposition the wing cylinders on each side of the plow. Revolutionize the way you move snow – and your business – in the right directions.

OPTIONS THAT CAN BE ADDED TO ORDER BY PHONE:

SPILL GUARDS CAN BE ADDED TO BLADE
FLOATING STEEL SIDE PLATE IN LIE OF URETHANE WINGS
POWERED WING MANIFOLD UPGRADE IN LIE OF SMART VALVE
PAINT COLOR UPGRADES

Features	Benefits
Smart Valve	This SnowWolf exclusive hydraulic valve controls the plow's wings without removing your hands from the controls. Angle right and hold for snow-pusher position. Angle left and hold for wing plow or back-drag position.

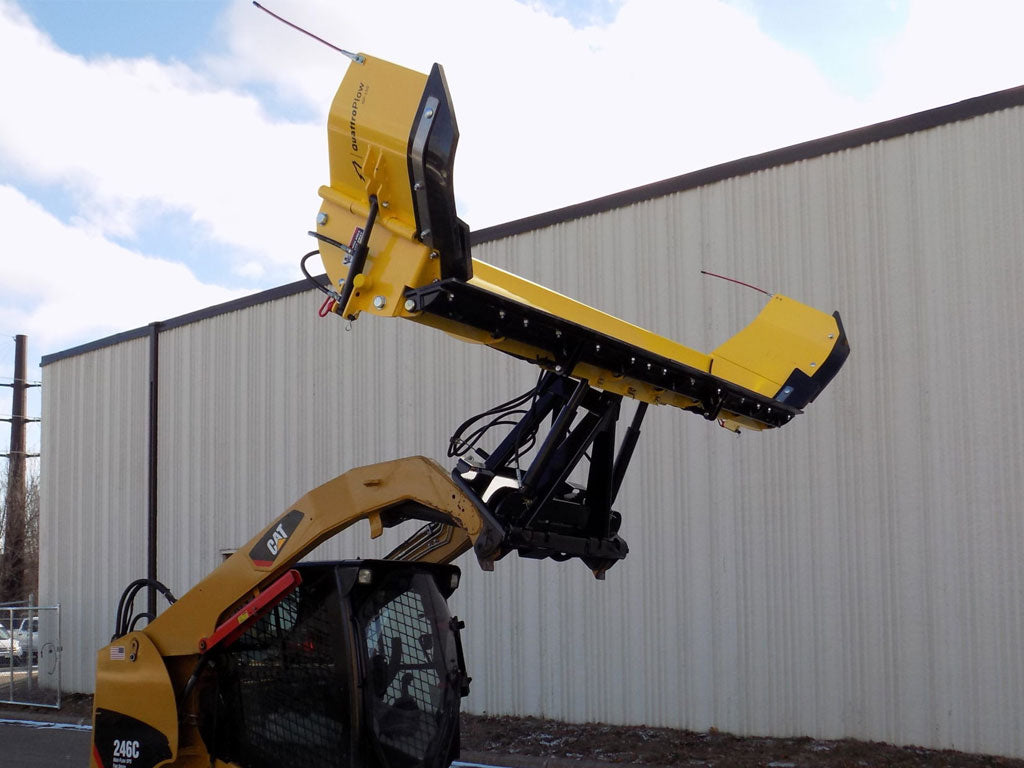

165-Degree Wing Rotation	Move the wing all the way forward for pushing, to the sides for plowing, or all the way back for back-dragging. Allows you to carry more snow backward for a greater distance and fewer windrows.
23-Inch Extension on Each End in Wide-Angle Position	Especially efficient for operators who seldom or never need back-dragging containment.
35-Degree-Angle Tips on Wings	Provides greater carrying capacity while minimizing windrows regardless of the direction the machine is moving. Keeps the wings clear of the machine’s front tires.
Back-dragging Down Pressure	Delivers exemplary scraping ability and containment.

Image	Part Number	Description
	FF100	Optional FlexFrame® attachment plate & A-Frame assembly. The FlexFrame® utilizes a rubber torsion joint between the quick-attach mounting plate and the A-Frame. This allows the operator to simply tilt the mounting plate forward or backward to adjust the amount of down-pressure on the cutting edge. Not only will it allow the plow to follow the rise and fall of the plowing surface, but all the machine’s tires can remain on the ground driving ahead for maximum traction.
	50012-CU-6.5	SoftTouch™ Polymer Cutting Edge, 7′, in lieu of standard edge
	50012-EU-6.5	SoftTouch™ Polymer Cutting Edge, 8′, in lieu of standard edge
	50012-G-6.5	SoftTouch™ Polymer Cutting Edge, 9′, in lieu of standard edge
	50012-H-6.5	SoftTouch™ Polymer Cutting Edge, 10′, in lieu of standard edge
	50012-I-6.5	SoftTouch™ Polymer Cutting Edge, 11′, in lieu of standard edge
	QP-FS	Floating AR400 Steel Sideplate Shoe Upgrade (in lieu of Urethane on front wings)
	AE-7	ActivEdge® AR-400 Sectional Cutting Edge, 7’
	AE-8	ActivEdge® AR-400 Sectional Cutting Edge, 8’
	AE-9	ActivEdge® AR-400 Sectional Cutting Edge, 9’
	AE-10	ActivEdge® AR-400 Sectional Cutting Edge, 10’
	AE-7-CBD	ActivEdge® Carbide Sectional Cutting Edge, 7’
	AE-8-CBD	ActivEdge® Carbide Sectional Cutting Edge, 8’
	AE-9-CBD	ActivEdge® Carbide Sectional Cutting Edge, 9’
	AE-9-CBD	ActivEdge® Carbide Sectional Cutting Edge, 10’
	SG-7	7′ SpillGuard, Perforated Steel 10″ Blade Height Extension
	SG-8	8′ SpillGuard, Perforated Steel 10″ Blade Height Extension
	SG-9	9′ SpillGuard, Perforated Steel 10″ Blade Height Extension
	SG-10	10′ SpillGuard, Perforated Steel 10″ Blade Height Extension
	QP-PW	Powered Wing Upgrade, incl. Joystick

QUATTROPLOW: 6,000-10,000 LBS.
Model Number	QP-102	QP-114	QP-126	QP-138
Blade Width	7.0'	8.0'	9.0'	10.0'
Width In Pusher Position	102" (8'-6")	114" (9'-6")	126" (10'-6")	138" (11'-6")
Width in Angled Backdrag Position	93” (7’-9")	103” (8'-7")	113” (9'-5")	123” (10'-3")
Maximum Width	130" (10'-10")	142" (11'-10")	154" (12'-10")	166" (13'-10")
Width In Backdrag Position	102" (8'-6")	114" (9'-6")	126" (10'-6")	138" (11'-6")
Clearing Width at Wide Angle	106" (8'-10")	116" (9'-8")	126" (10'-6")	136" (11'-4")
Blade Height	30.7”	30.7”	30.7”	30.7”
Unit Weight (lbs.)	1,132	1,269	1,301	1,345
Moldboard Gauge	10 Ga.	10 Ga.	10 Ga.	10 Ga.
Trip Springs	4 Ext.	4 Ext.	4 Ext.	4 Ext.
Wear Shoes	Opt.	Opt.	Opt.	Opt.
Moldboard Cutting Edge	5/8” x 6” Top Punch, High Carbon Standard (Carbide Insert Optional)
Angle Rams	2" x 13" Chrome
Vertical Ribs	6	6	6	8
Moldboard Radius	14”	14”	14”	14”
Full Down Pressure	Yes	Yes	Yes	Yes
Universal Skid Steer Compatible	Standard
Crossover Relief Valve	Standard
Wing Thickness	3/8” Grade 50
Wing Wear Shoes	1” High Density Urethane
Wing Hinge Pin	1 3/8” x 21-1/2”
Wing Cylinder	Double Acting, Chrome Plate Rod
PowerWing Upgrade	Optional
