HSX3025S
STANLEY Hydraulic plate compactors
$5,200.00 - $18,400.00
Revised 3/24

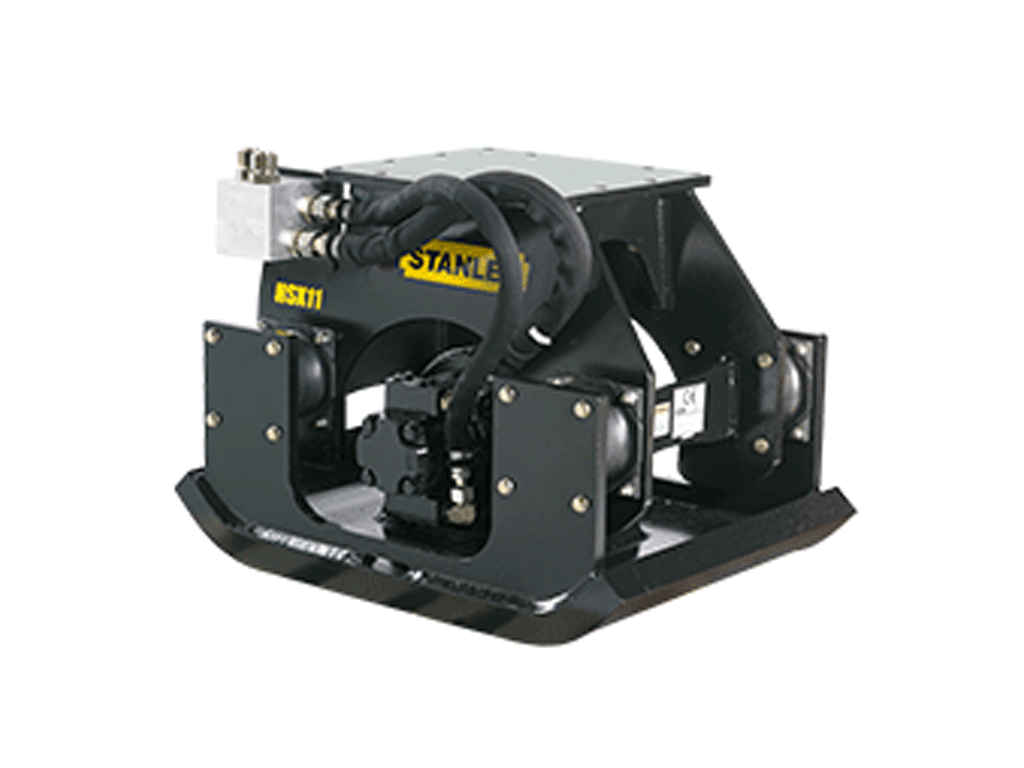

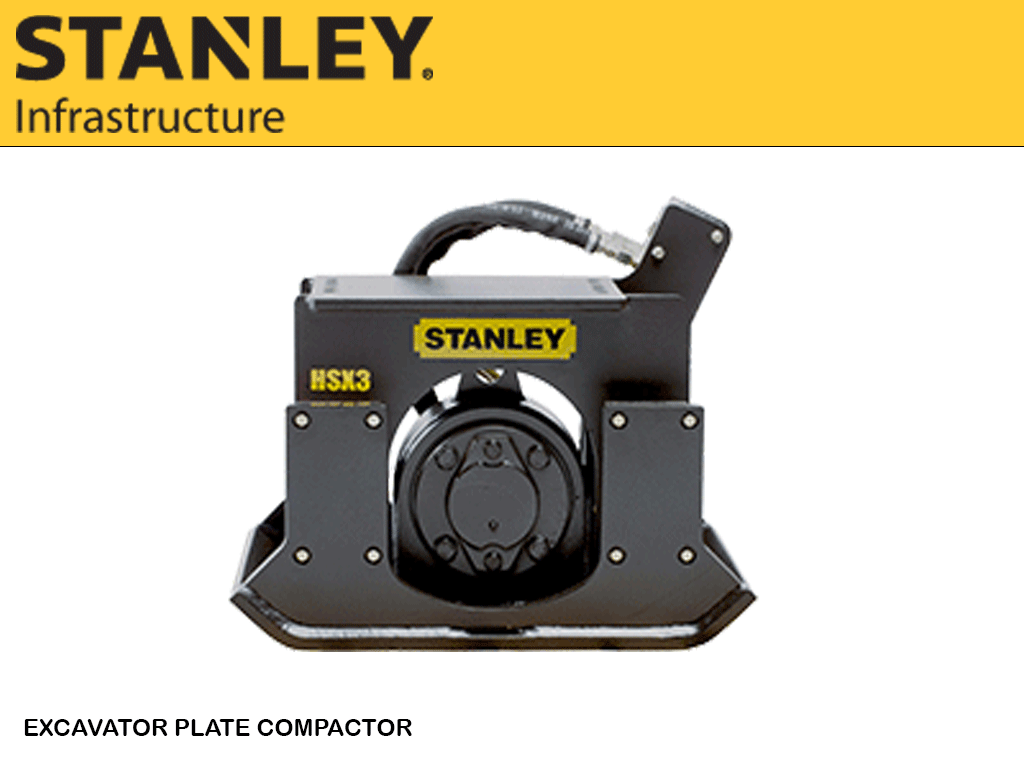

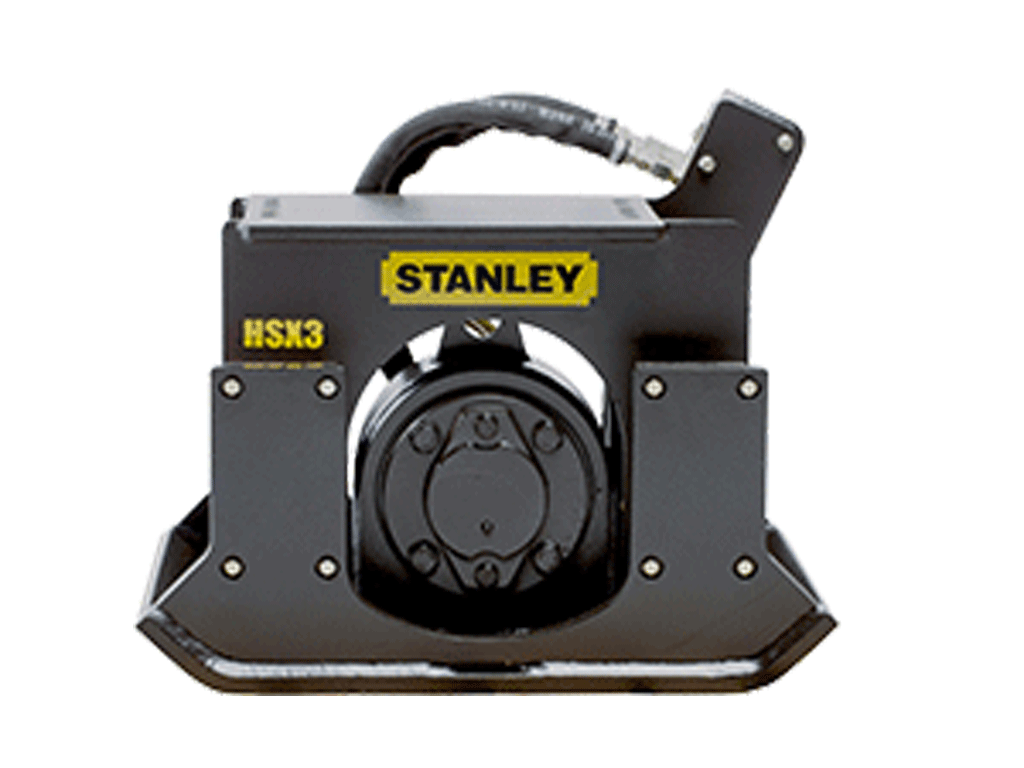

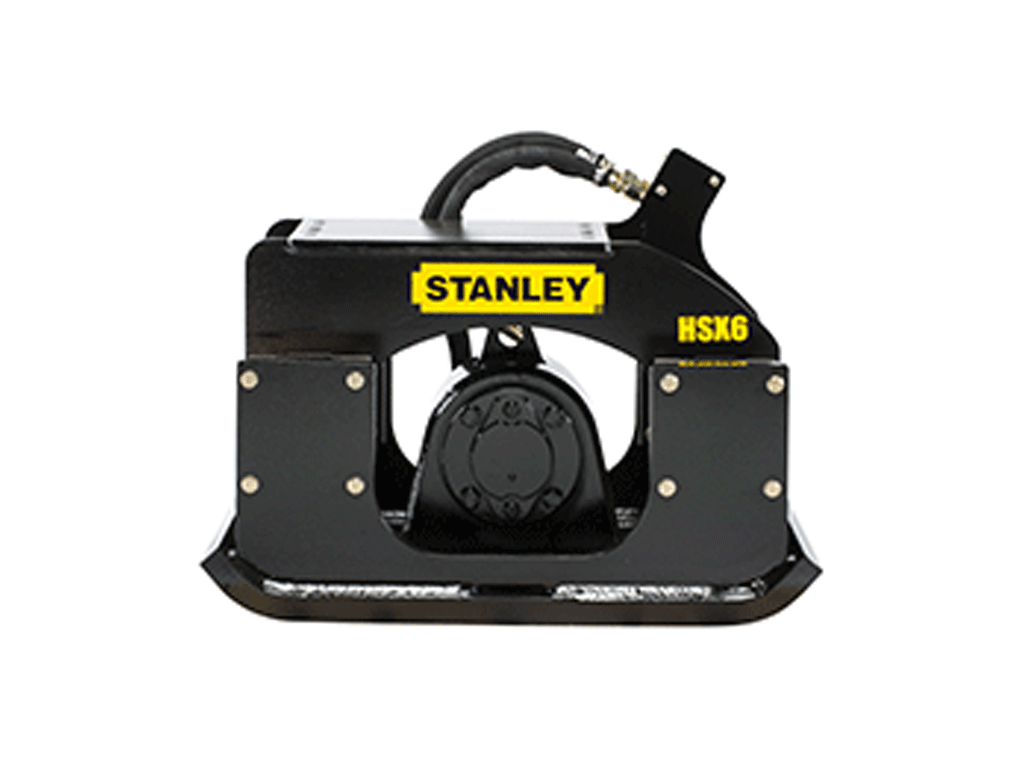

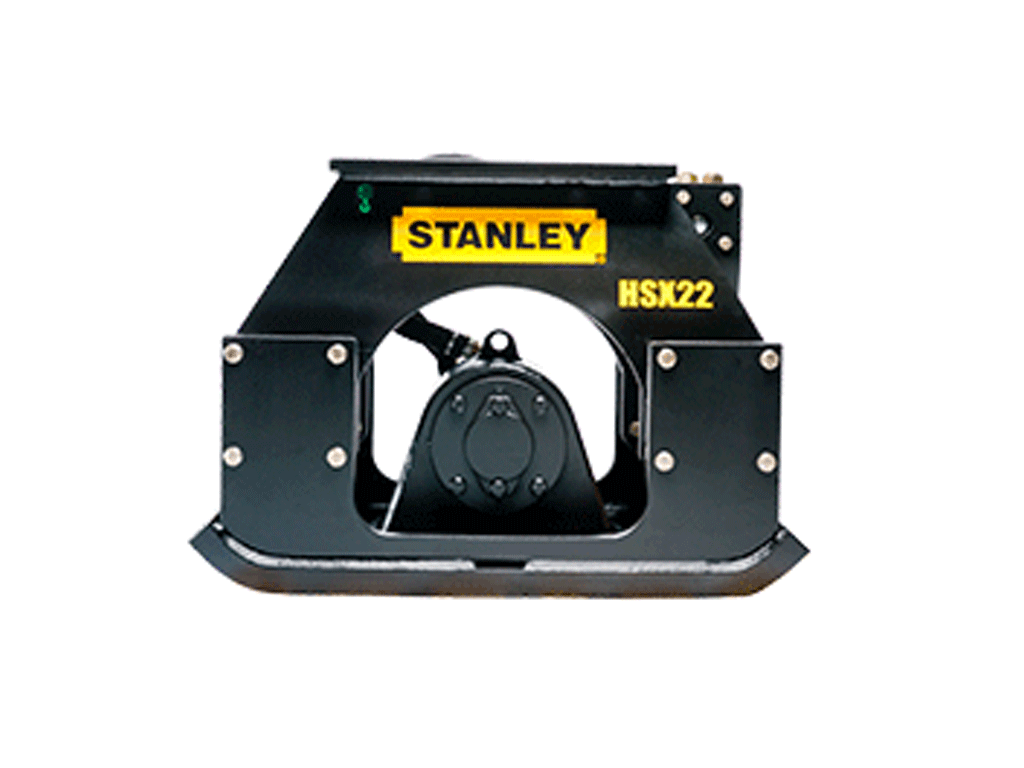

Vibratory Plate Compactors
HSX3 / HSX6 / HSX11 / HSX22
Stanley's vibratory plate mounted compactors are designed for extreme-duty applications and built to deliver maximum vibratory force.
Features:- Stanley mounted compactors provide a high level of centrifugal force ranging from 3,400 to 22,000 pounds.
- These units have more compaction force than a walk-behind plate compactor which eliminates the need for a person working down in the trench simplifying ease-of-use and operator comfort.
- Enhanced valve block cover provides additional protection from accidental mishaps.
- Hydraulic hoses are protected with a nylon sleeve cover and precisely routed near the frame to minimize movement and interference while on the job-site.
- Flat top models offer compatibility with many different mounting configurations to simplify your connection at the carrier.
- Each compactor has four heavy duty, industrial grade shock mounts that distribute vibration evenly. This delivers consistent force to improve the operator’s efficiency and work quality.
* TOP MOUNTS NEEDED TO BE ADDED TO THIS PRODUCT. PLEASE CALL FOR PRICES.
SPECIFICATIONS
| UNIT | HSX3 | HSX6 | HSX11 | HSX22 | |
|---|---|---|---|---|---|
| Vibrations Per Minute | vpm | 2100 | 2000 | 2000 | 2100 |
| Centrifugal Force | lbs | 3400 | 6400 | 11,350 | 22,000 |
| Centrifugal Force | kg | 1542 | 2902 | 5147 | 10,000 |
| Hydraulic Pressure | psi | 1600 - 2000 | 1800 - 2000 | 1800 - 2150 | 1800 - 2250 |
| Hydraulic Pressure | bar | 110-140 | 127-140 | 124-148 | 124-155 |
| Flow Range | gpm | 12-25 | 12-25 | 28-60 | 42-70 |
| Flow Range | lpm | 45-95 | 45-95 | 106-227 | 159-265 |
| System Relief | psi | 2500 | 2500 | 2500 | 2500 |
| System Relief | bar | 172 | 172 | 172 | 172 |
| Back Pressure (max) | psi | 250 | 250 | 250 | 250 |
| Back Pressure (max) | bar | 17 | 17 | 17 | 17 |
