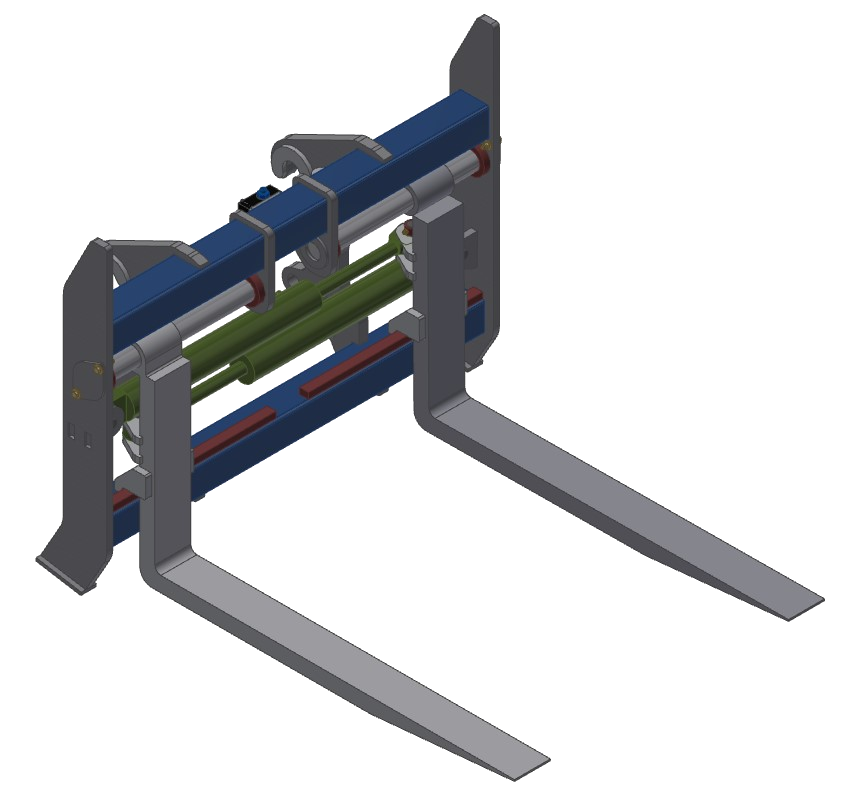

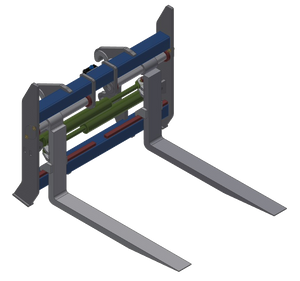

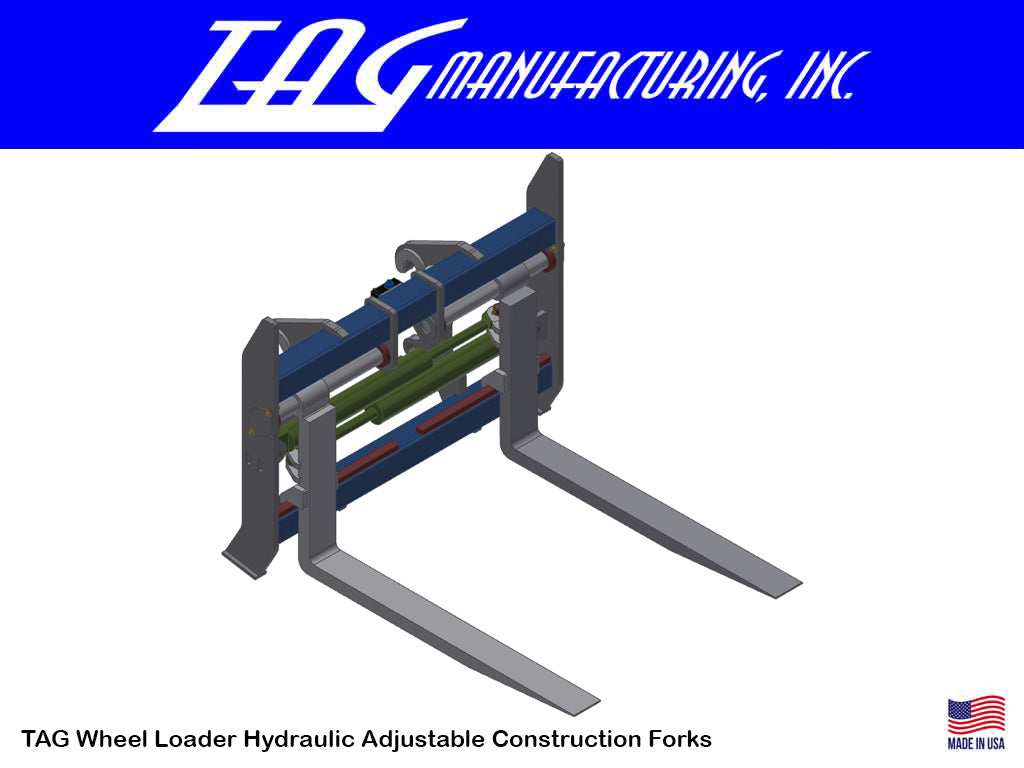

TAG Hydraulic Adjustable Construction Forks for Class 200 Wheel Loaders
TAG Hydraulic Adjustable Construction Forks for Class 200 Wheel Loaders
TAG Hydraulic Adjustable Construction Forks for Class 200 Wheel Loaders
TAG Hydraulic Adjustable Construction Forks for Class 200 Wheel Loaders

P200CF6048H

TAG Hydraulic Adjustable Construction Forks for Class 200 Wheel Loaders

$8,710.00 - $11,265.00

Business Financing Available

Mounting
Size Class
Tine Size

Hydraulic Adjustable Construction Forks (Class 200 Only)

TAG Hydraulic Construction Forks Offer A Heavy Duty Fork Solution For General Construction Work With The Added Feature Of Hydraulically Adjusted Tines. Tines Will Evenly Narrow And Widen From The Cab Thru Hydraulic Control.

  • Heavy Duty Carriage
  • Rod Mounted Tines Hydraulically Adjustable
  • Split Collar Lock Collars Allow Repositing Of Tines Without Damaging Rods
  • Carriage Widths: 60" - 106" - Tine Lengths: 48" - 96"
  • Requires 3Rd Function Hydraulics
  • **These Will Not Side Shift**
  • Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
  • Please use the "FITS" tab to find compatible Make and model machines.

DIRECTIONS

  1. CHOOSE YOUR MOUNTING / COUPLER SYSTEM
  2. CHOOSE YOUR SIZE
  3. ADD ITEM(S) TO CART
  4. PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
  5. ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE

Pin On

 Size SKU # Carr Width Tine Size Min/Max Tine Cap @ 24" Load Weight
200  P200CF6048H 60" 2.0 X 4" X 48" 22"-56" 12600 LBS 1600 LBS
200 P200CF6060H 60" 2.0" X 4" X 60" 22"-56" 12600 LBS 1675 LBS
200 P200CF6072H 60" 2.0" X 4" X 60"  22"-56" 12600 LBS 1750 LBS
200 P200CF6084H 60" 2.0" X 4" X 60"  22"-56" 12600 LBS 1825 LBS
200 P200CF6096H 60" 2.0" X 4" X 60" 22"-56" 12600 LBS 1900 LBS



Quick Coupler

 Size SKU # Carr Width Tine Size Min/Max Tine Cap @ 24" Load Weight
200  QC200CF6048H 60" 2.0 X 4" X 48" 22"-56" 12600 LBS 1600 LBS
200 QC200CF6060H 60" 2.0" X 4" X 60" 22"-56" 12600 LBS 1675 LBS
200 QC200CF6072H 60" 2.0 X 4" X 60"  22"-56" 12600 LBS 1750 LBS
200 QC200CF6084H 60" 2.0" X 4" X 60" 22"-56" 12600 LBS 1825 LBS
200 QC200CF6096H 60"

2.0" X 4" X 60"

 22"-56" 12600 LBS 1900 LBS
