P500CF6048H

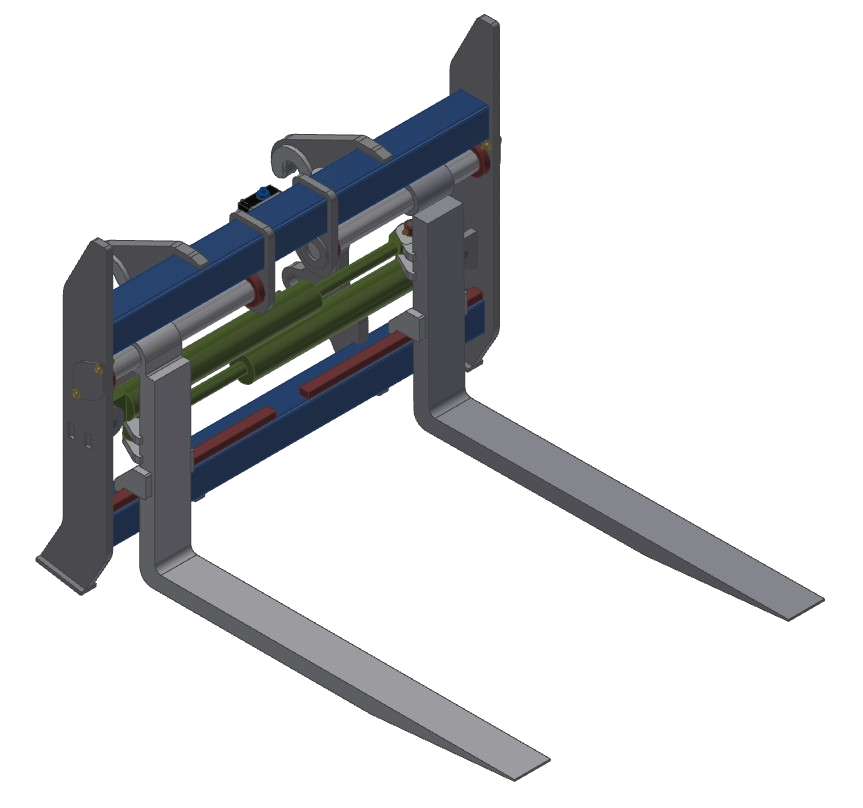

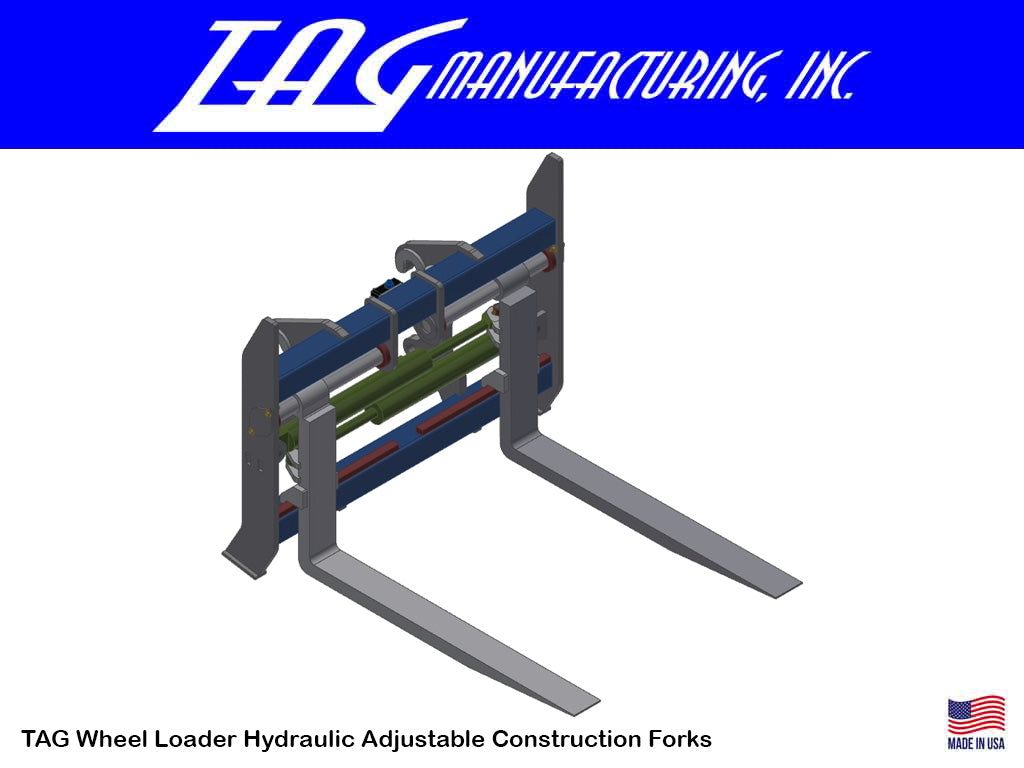

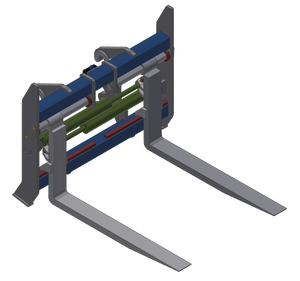

TAG Hydraulic Adjustable Construction Forks for Class 500 Wheel Loaders
$8,710.00 - $13,310.00
Hydraulic Adjustable Construction Forks (Class 500 Only)
TAG Hydraulic Construction Forks Offer A Heavy Duty Fork Solution For General Construction Work With The Added Feature Of Hydraulically Adjusted Tines. Tines Will Evenly Narrow And Widen From The Cab Thru Hydraulic Control.
- Heavy Duty Carriage
- Rod Mounted Tines Hydraulically Adjustable
- Split Collar Lock Collars Allow Repositing Of Tines Without Damaging Rods
- Carriage Widths: 60" - 106"
- Tine Lengths: 48" - 96"
- Requires 3Rd Function Hydraulics
- **These Will Not Side Shift**
- Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
- Please use the "FITS" tab to find compatible Make and model machines.
DIRECTIONS
- CHOOSE YOUR MOUNTING / COUPLER SYSTEM
- CHOOSE YOUR SIZE
- ADD ITEM(S) TO CART
- PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
- ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE
Pin On
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24" Load | Weight |
| 500 | P500CF6048H | 60" | 2.5" X 6" X 48" | 26"-56" | 19700 LBS | 1725 LBS |
| 500 | P500CF6060H | 60" | 2.5" X 6" X 60" | 26"-56" | 19700 LBS | 1825 LBS |
| 500 | P500CF6072H | 60" | 2.5" X 6" X 72" | 26"-56" | 19700 LBS | 1925 LBS |
| 500 | P500CF6084H | 60" | 2.5" X 6" X 84" | 26"-56" | 19700 LBS | 2025 LBS |
| 500 | P500CF6096H | 60" | 2.5" X 6" X 96" | 26"-56" | 19700 LBS | 2125 LBS |
| 500 | P500CF9648H | 96" | 2.5" X 6" X 48" | 36"-92" | 19700 LBS | 1900 LBS |
| 500 | P500CF9660H | 96" | 2.5" X 6" X 60" | 36"-92" | 19700 LBS | 2000 LBS |
| 500 | P500CF9672H | 96" | 2.5" X 6" X 72" | 36"-92" | 19700 LBS | 2100 LBS |
| 500 | P500CF9684H | 96" | 2.5" X 6" X 84" | 36"-92" | 19700 LBS | 2200 LBS |
| 500 | P500CF9696H | 96" | 2.5" X 6" X 96" | 36"-92" | 19700 LBS | 2300 LBS |
Quick Coupler
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24" Load | Weight |
| 500 | QC500CF6048H | 60" | 2.5" X 6" X 48" | 26"-56" | 19700 LBS | 1725 LBS |
| 500 | QC500CF6060H | 60" | 2.5" X 6" X 60" | 26"-56" | 19700 LBS | 1825 LBS |
| 500 | QC500CF6072H | 60" | 2.5" X 6" X 72" | 26"-56" | 19700 LBS | 1925 LBS |
| 500 | QC500CF6084H | 60" | 2.5" X 6" X 84" | 26"-56" | 19700 LBS | 2025 LBS |
| 500 | QC500CF6096H | 60" | 2.5" X 6" X 96" | 26"-56" | 19700 LBS | 2125 LBS |
| 500 | QC500CF9648H | 96" | 2.5" X 6" X 48" | 36"-92" | 19700 LBS | 1900 LBS |
| 500 | QC500CF9660H | 96" | 2.5" X 6" X 60" | 36"-92" | 19700 LBS | 2000 LBS |
| 500 | QC500CF9672H | 96" | 2.5" X 6" X 72" | 36"-92" | 19700 LBS | 2100 LBS |
| 500 | QC500CF9684H | 96" | 2.5" X 6" X 84" | 36"-92" | 19700 LBS | 2200 LBS |
| 500 | QC500CF9696H | 96" | 2.5" X 6" X 96" | 36"-92" | 19700 LBS | 2300 LBS |
