P600CF10660H

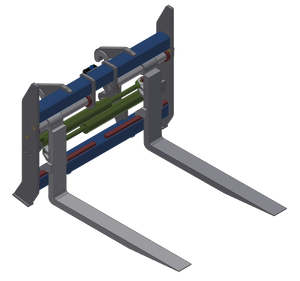

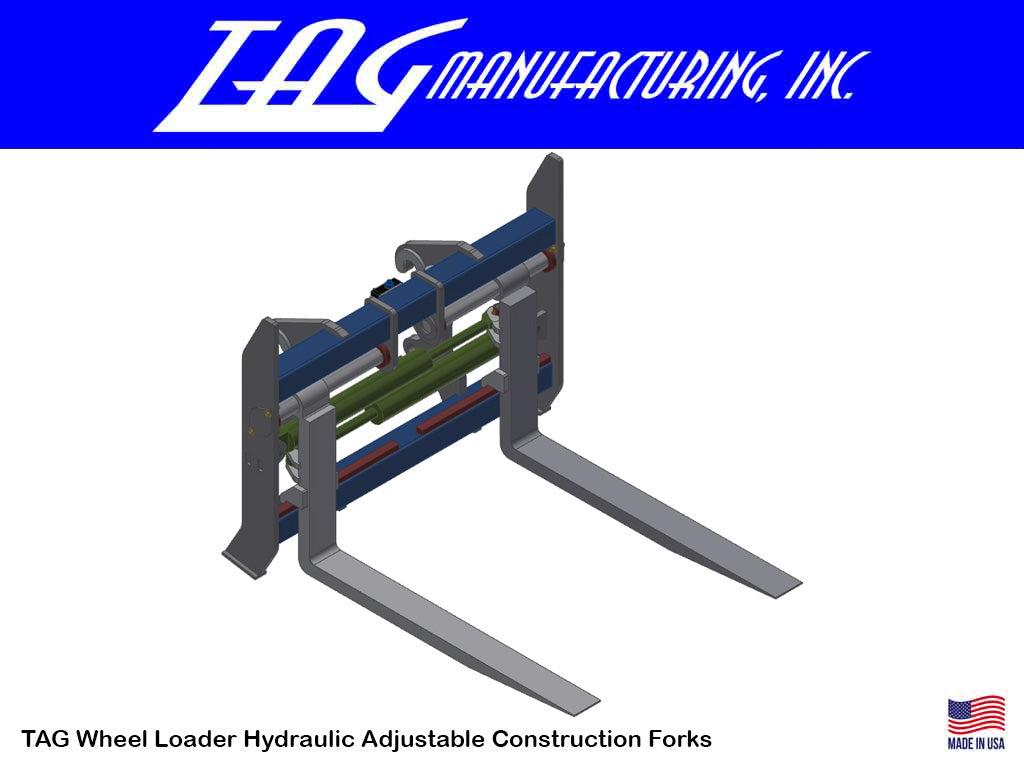

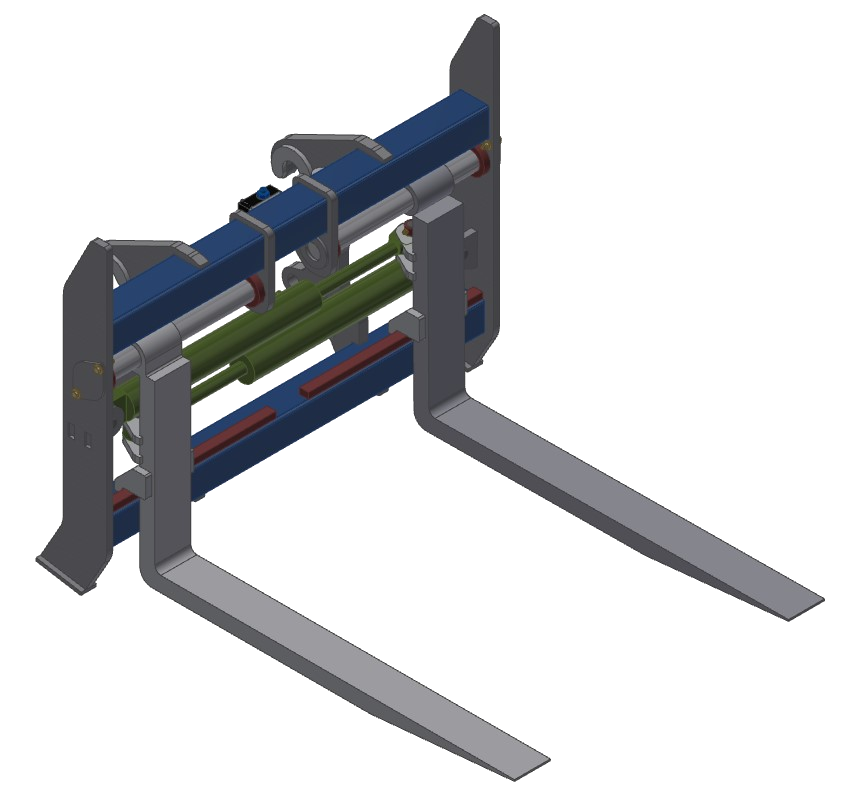

TAG Hydraulic Adjustable Construction Forks for Class 600 Wheel Loaders
$14,595.00 - $19,680.00
Hydraulic Adjustable Construction Forks (Class 600 Only)
TAG Hydraulic Construction Forks Offer A Heavy Duty Fork Solution For General Construction Work With The Added Feature Of Hydraulically Adjusted Tines. Tines Will Evenly Narrow And Widen From The Cab Thru Hydraulic Control.
- Heavy Duty Carriage
- Rod Mounted Tines Hydraulically Adjustable
- Split Collar Lock Collars Allow Repositing Of Tines Without Damaging Rods
- Carriage Widths: 60" - 106" - Tine Lengths: 48" - 96"
- Requires 3Rd Function Hydraulics
- **These Will Not Side Shift**
- Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
- Please use the "FITS" tab to find compatible Make and model machines.
DIRECTIONS
- CHOOSE YOUR MOUNTING / COUPLER SYSTEM
- CHOOSE YOUR SIZE
- ADD ITEM(S) TO CART
- PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
- ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE
Pin On
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24" Load | Weight |
| 600 | P600CF10660H | 106" | 3.0" X 7" X 60" | 28"-102" | 33250 LBS | 2850 LBS |
| 600 | P600CF10672H | 106" | 3.0" X 7" X 72" | 28"-102" | 33250 LBS | 3000 LBS |
| 600 | P600CF10684H | 106" | 3.0" X 7" X 84" | 28"-102" | 33250 LBS | 3150 LBS |
| 600 | P600CF10696H | 106" | 3.0" X 7" X 96" | 28"-102" | 33250 LBS | 3300 LBS |
Quick Coupler
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24" Load | Weight |
| 600 | QC600CF10660H | 106" | 3.0" X 7" X 60" | 28"-102" | 33250 LBS | 2850 LBS |
| 600 | QC600CF10672H | 106" | 3.0" X 7" X 72" | 28"-102" | 33250 LBS | 3000 LBS |
| 600 | QC600CF10684H | 106" | 3.0" X 7" X 84" | 28"-102" | 33250 LBS | 3150 LBS |
| 600 | QC600CF10696H | 106" | 3.0" X 7" X 96" | 28"-102" | 33250 LBS | 3300 LBS |
