P300LF8048

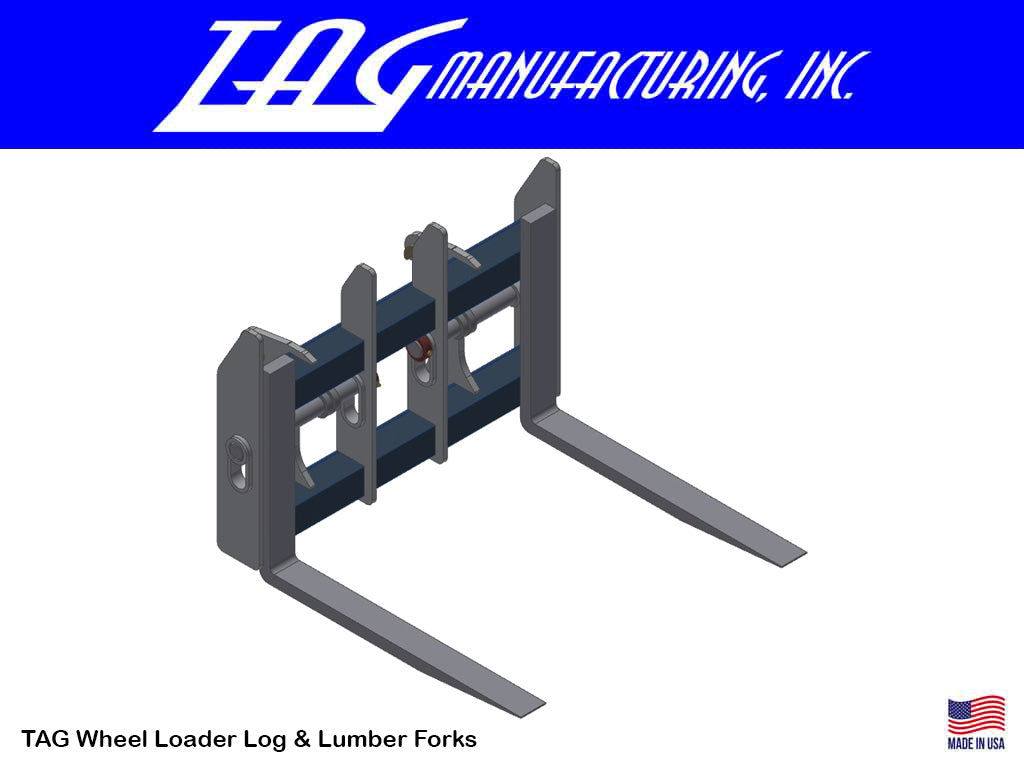

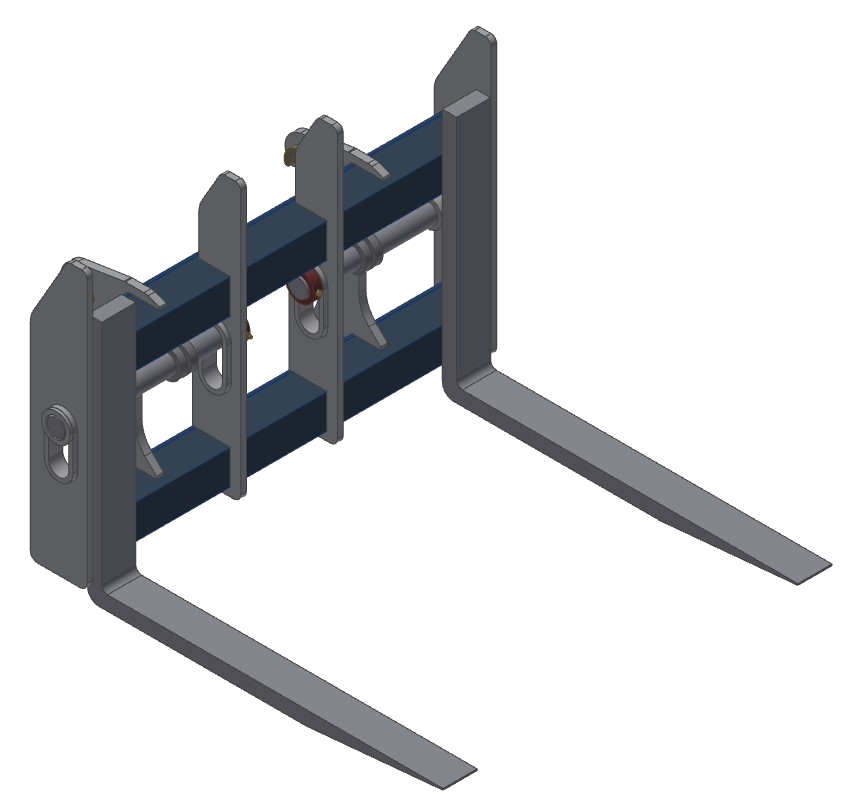

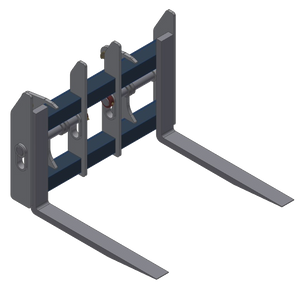

TAG Log & Lumber Forks for Class 300 Wheel Loaders
$8,080.00 - $15,030.00
Log & Lumber Forks (Class 300 Only)
PLEASE CHECK THE PICTURES OF THE STYLES BELOW!
TAG Log & Lumber Forks Offer A Heavy Duty Fork Solution For Lumber Yards.
- Heavy Duty Carriage
- Full Length Sides And Gussets With Optional Extra Height Single Piece Back Stops
- Rod Mounted Tines
- Carriages Offered With Fixed Tine Rods Or 5.00" Oscillating Rods
- Split Collar Lock Collars Allow Repositing Of Tines Without Damaging Rods
- Carriage Widths: 60" - 106"
- Tine Lengths: 48" - 96"

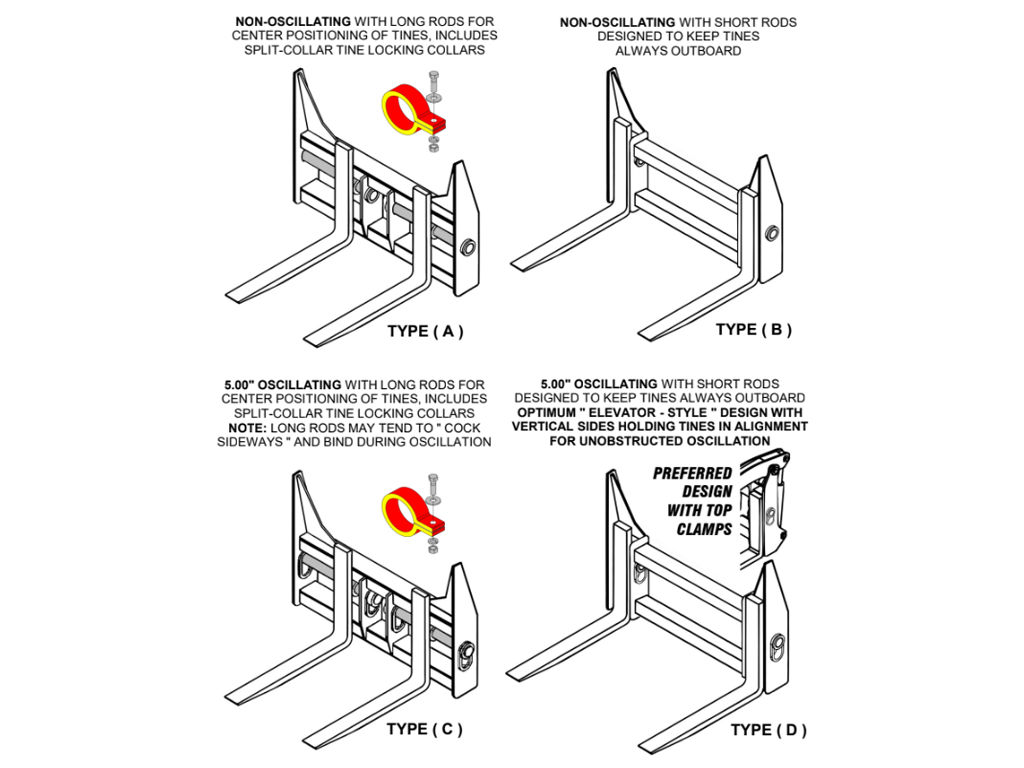

- **See Fork Carriage Configurations For Further Options**
- Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
- Please use the "FITS" tab to find compatible Make and model machines.
DIRECTIONS
- CHOOSE YOUR MOUNTING / COUPLER SYSTEM
- CHOOSE YOUR SIZE
- ADD ITEM(S) TO CART
- PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
- ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE
Pin On
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24" Load | Weight |
| 300 | P300LF8048 | 80" | 3.0" X 7" X 48" | 38"-72" | 33250 LBS |
1655 LBS |
| 300 | P300LFO8048 | 80" | 3.0" X 7" X 48" | 38"-72" | 33250 LBS | 1655 LBS |
| 300 | P300LF8060 | 80" | 3.0" X 7" X 60" | 38"-72" | 33250 LBS | 1805 LBS |
| 300 | P300LFO8060 | 80" | 3.0" X 7" X 60" | 38"-72" | 33250 LBS | 1805 LBS |
| 300 | P300LF8072 | 80" |
3.0" X 7" X 72" |
38"-72" | 33250 LBS | 1955 LBS |
| 300 | P300LFO8072 | 80" |
3.0" X 7" X 72" |
38"-72" | 33250 LBS | 1955 LBS |
| 300 | P300LF8084 | 80" |
3.0" X 7" X 84" |
38"-72" | 33250 LBS | 2105 LBS |
| 300 | P300LFO8084 | 80" |
3.0" X 7" X 84" |
38"-72" | 33250 LBS | 2105 LBS |
| 300 | P300LF8096 | 80" |
3.0" X 7" X 96" |
38"-72" | 33250 LBS | 2255 LBS |
| 300 | P300LFO8096 | 80" |
3.0" X 7" X 96" |
38"-72" | 33250 LBS | 2255 LBS |
Quick Coupler
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24" Load | Weight |
| 300 | QC300LF8048 | 80" | 3.0" X 7" X 48" | 38"-72" | 33250 LBS | 1655 LBS |
| 300 | QC300LFO8048 | 80" | 3.0" X 7" X 48" | 38"-72" | 33250 LBS | 1655 LBS |
| 300 | QC300LF8060 | 80" | 3.0" X 7" X 60" | 38"-72" | 33250 LBS | 1805 LBS |
| 300 | QC300LFO8060 | 80" | 3.0" X 7" X 60" | 38"-72" | 33250 LBS | 1805 LBS |
| 300 | QC300LF8072 | 80" | 3.0" X 7" X 72" | 38"-72" | 33250 LBS | 1955 LBS |
| 300 | QC300LFO8072 | 80" | 3.0" X 7" X 72" | 38"-72" | 33250 LBS | 1955 LBS |
| 300 | QC300LF8084 | 80" | 3.0" X 7" X 84" | 38"-72" | 33250 LBS | 2105 LBS |
| 300 | QC300LFO8084 | 80" | 3.0" X 7" X 84" | 38"-72" | 33250 LBS | 2105 LBS |
| 300 | QC300LF8096 | 80" | 3.0" X 7" X 96" | 38"-72" | 33250 LBS | 2255 LBS |
| 300 | QC300LFO8096 | 80" | 3.0" X 7" X 96" | 38"-72" | 33250 LBS | 2255 LBS |
