P600LF10660

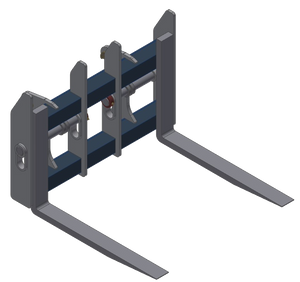

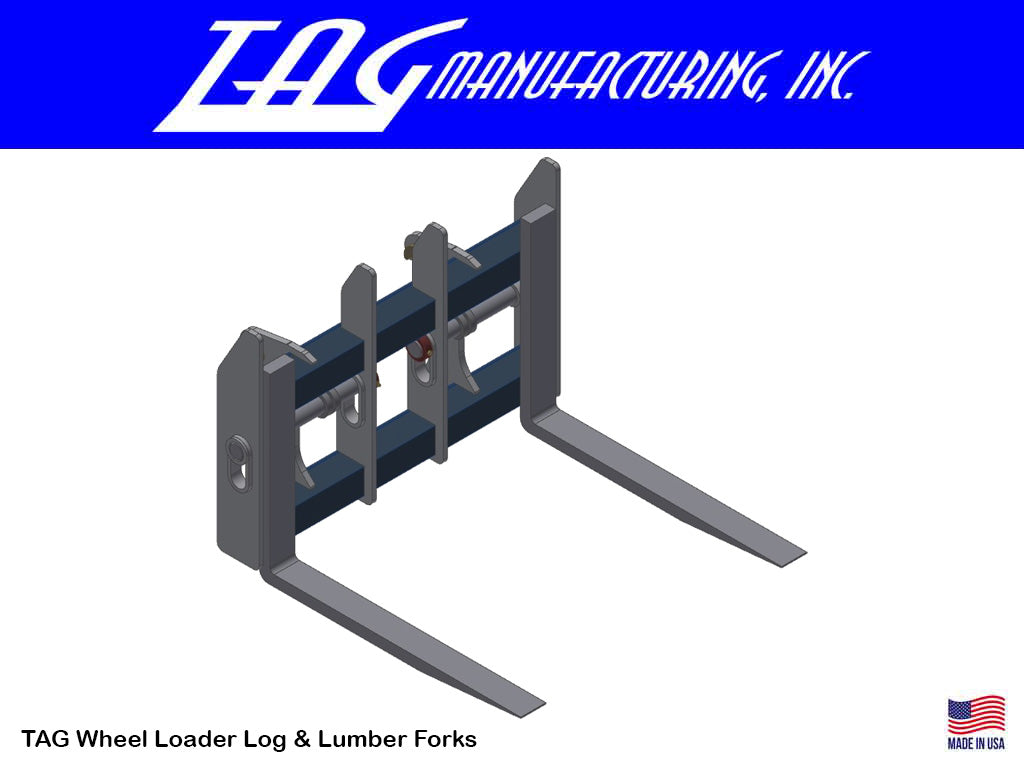

TAG Log & Lumber Forks for Class 600 Wheel Loaders
$16,885.00 - $24,860.00
Log & Lumber Forks (Class 600 Only)
PLEASE CHECK THE PICTURES OF THE STYLES BELOW!
TAG Log & Lumber Forks Offer A Heavy Duty Fork Solution For Lumber Yards.
- Heavy Duty Carriage
- Full Length Sides And Gussets With Optional Extra Height Single Piece Back Stops
- Rod Mounted Tines

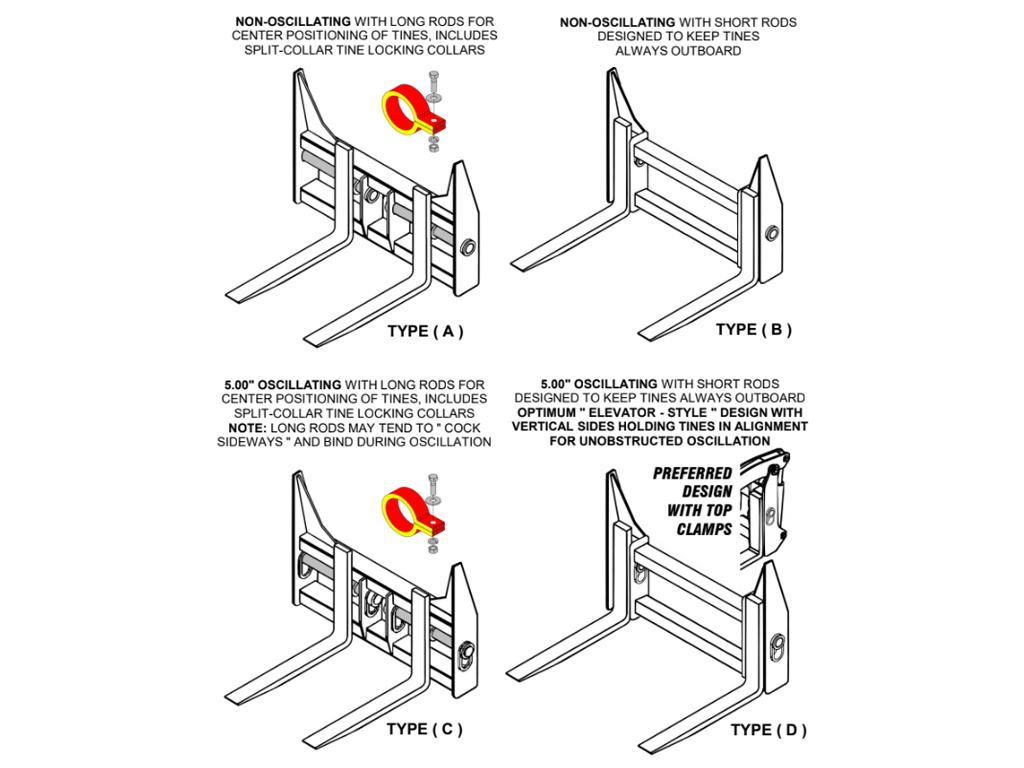

- Carriages Offered With Fixed Tine Rods Or 5.00" Oscillating Rods
- Split Collar Lock Collars Allow Repositing Of Tines Without Damaging Rods
- Carriage Widths: 60" - 106"
- Tine Lengths: 48" - 96"
- **See Fork Carriage Configurations For Further Options**
- Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
- Please use the "FITS" tab to find compatible Make and model machines.
DIRECTIONS
- CHOOSE YOUR MOUNTING / COUPLER SYSTEM
- CHOOSE YOUR SIZE
- ADD ITEM(S) TO CART
- PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
- ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE
Pin On
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24" Load | Weight |
| 600 | P600LF10660 | 106" | 3.5" X 8" X 60" | 38"-100" | 51700 LBS | 2860 LBS |
| 600 | P600LFO10660 | 106" | 3.5" X 8" X 60" | 38"-100" | 51700 LBS | 2860 LBS |
| 600 | P600LF10672 | 106" |
3.5" X 8" X 72" |
38"-100" | 51700 LBS | 3060 LBS |
| 600 | P600LFO10672 | 106" |
3.5" X 8" X 72" |
38"-100" | 51700 LBS | 3060 LBS |
| 600 | P600LF10684 | 106" |
3.5" X 8" X 84" |
38"-100" | 51700 LBS | 3260 LBS |
| 600 | P600LFO10684 | 106" |
3.5" X 8" X 84" |
38"-100" | 51700 LBS | 3260 LBS |
Quick Coupler
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24" Load | Weight |
| 600 | QC600LF10660 | 106" | 3.5" X 8" X 60" | 38"-100" | 51700 LBS | 2860 LBS |
| 600 | QC600LFO10660 | 106" | 3.5" X 8" X 60" | 38"-100" | 51700 LBS | 2860 LBS |
| 600 | QC600LF10672 | 106" | 3.5" X 8" X 72" | 38"-100" | 51700 LBS | 3060 LBS |
| 600 | QC600LFO10672 | 106" | 3.5" X 8" X 72" | 38"-100" | 51700 LBS | 3060 LBS |
| 600 | QC600LF10684 | 106" | 3.5" X 8" X 84" | 38"-100" | 51700 LBS | 3260 LBS |
| 600 | QC600LFO10684 | 106" | 3.5" X 8" X 84" | 38"-100" | 51700 LBS | 3260 LBS |
