P100CF6048H

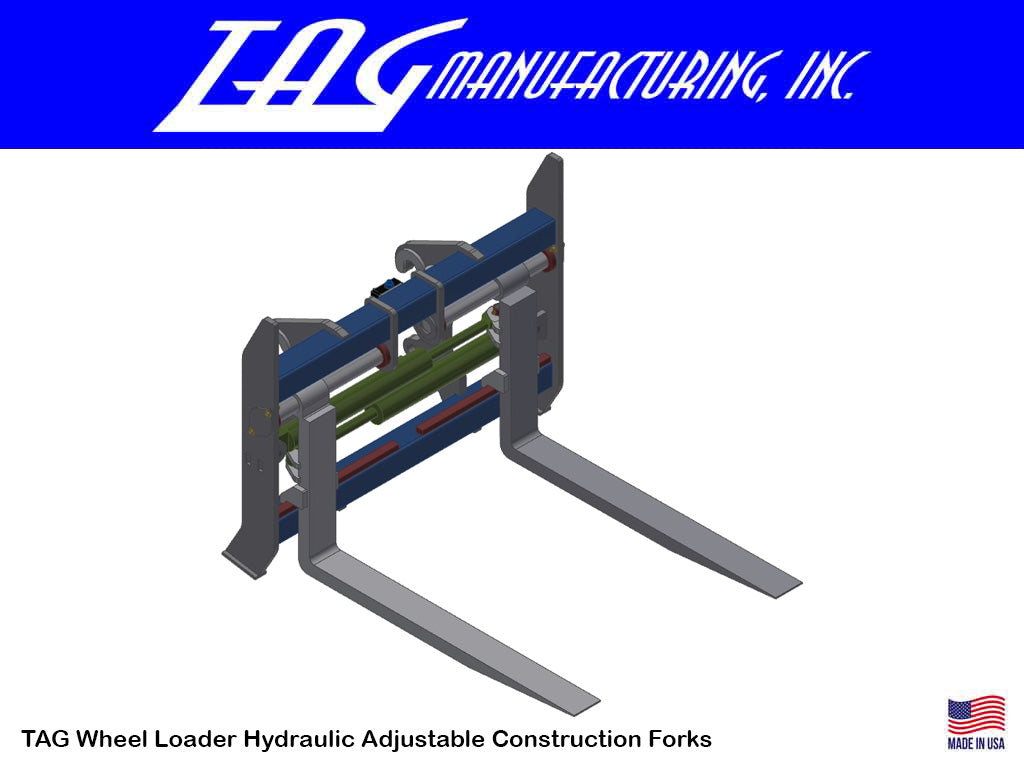

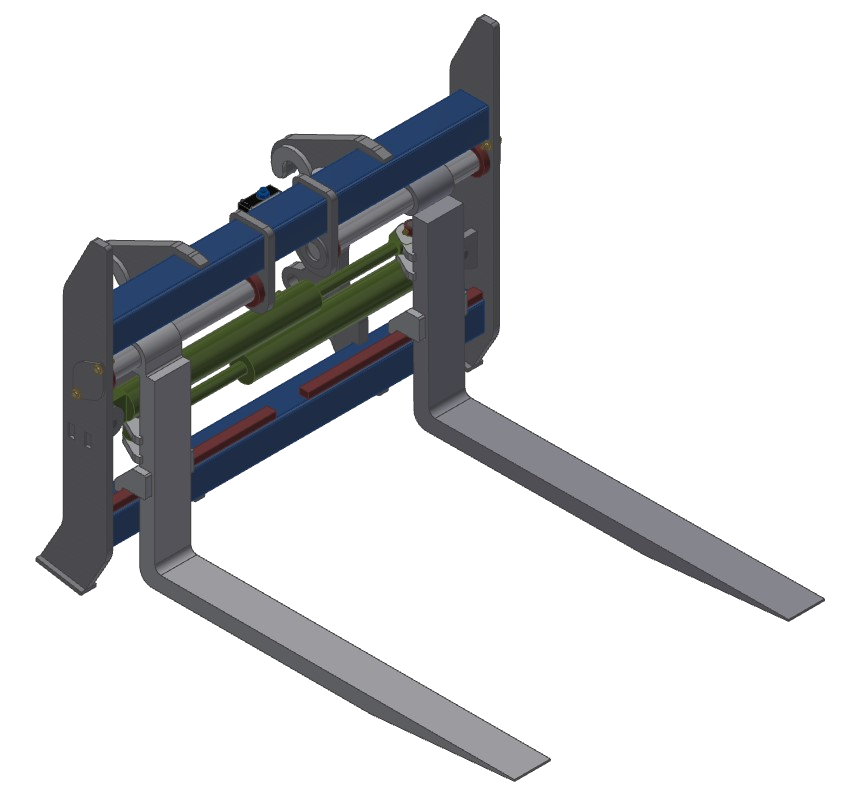

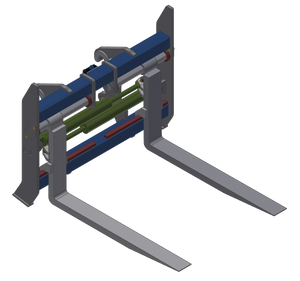

TAG Hydraulic Adjustable Construction Forks for Class 100 Wheel Loaders
$6,325.00 - $7,285.00
Hydraulic Adjustable Construction Forks (Class 100 Only)
TAG Hydraulic Construction Forks Offer A Heavy Duty Fork Solution For General Construction Work With The Added Feature Of Hydraulically Adjusted Tines. Tines Will Evenly Narrow And Widen From The Cab Thru Hydraulic Control.
- Heavy Duty Carriage
- Rod Mounted Tines Hydraulically Adjustable
- Split Collar Lock Collars Allow Repositing Of Tines Without Damaging Rods
- Carriage Widths: 60" - 106" - Tine Lengths: 48" - 96"
- Requires 3Rd Function Hydraulics
- **These Will Not Side Shift**
- Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
- Please use the "FITS" tab to find compatible Make and model machines.
DIRECTIONS
- CHOOSE YOUR MOUNTING / COUPLER SYSTEM
- CHOOSE YOUR SIZE
- ADD ITEM(S) TO CART
- PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
- ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE
Pin On
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24" Load | Weight |
| 100 | P200CF6048H | 60" | 2.0 X 4" X 48" | 22"-56" | 8400 LBS | 1250 LBS |
| 100 | P200CF6060H | 60" | 2.0" X 4" X 60" | 22"-56" | 8400 LBS | 1300 LBS |
Quick Coupler
| Size | SKU # | Carr Width | Tine Size | Min/Max Tine | Cap @ 24" Load | Weight |
| 100 | QC200CF6048H | 60" | 2.0 X 4" X 48" | 22"-56" | 8400 LBS | 1250 LBS |
| 100 | QC200CF6060H | 60" | 2.0" X 4" X 60" | 22"-56" | 8400 LBS | 1300 LBS |
