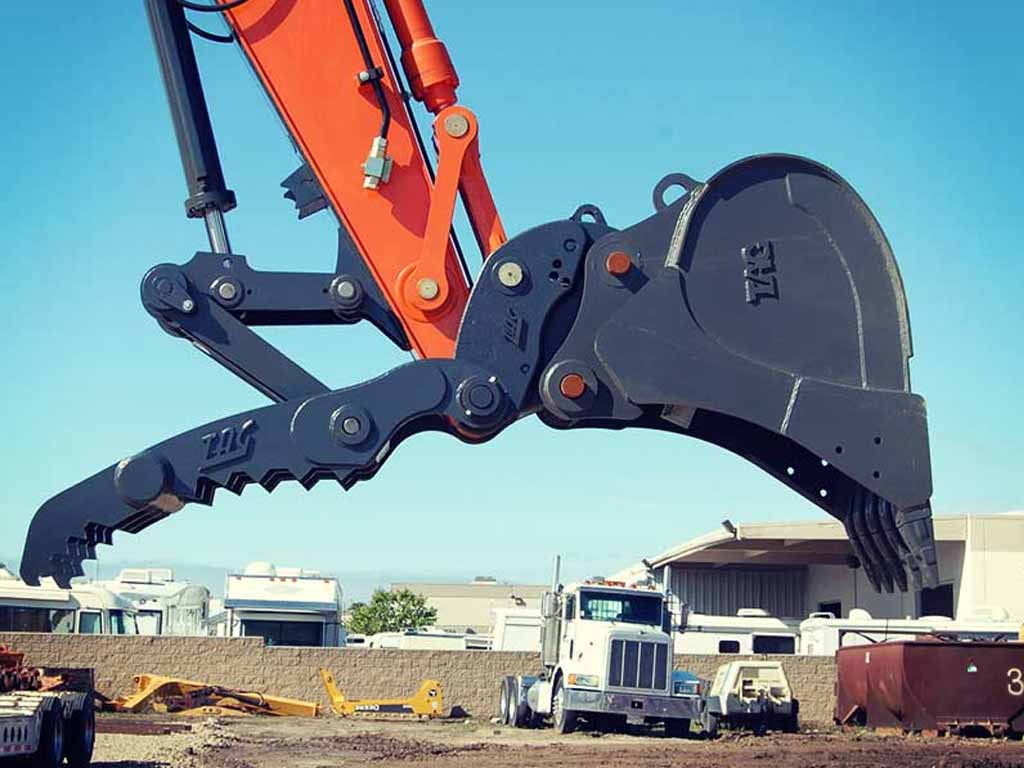

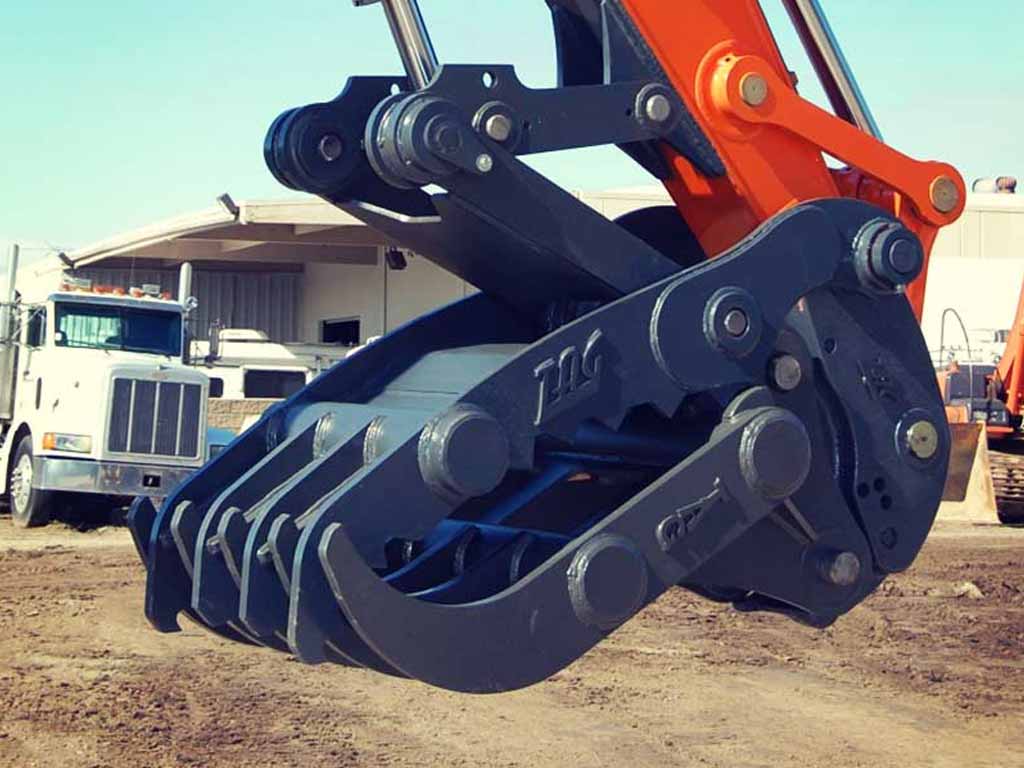

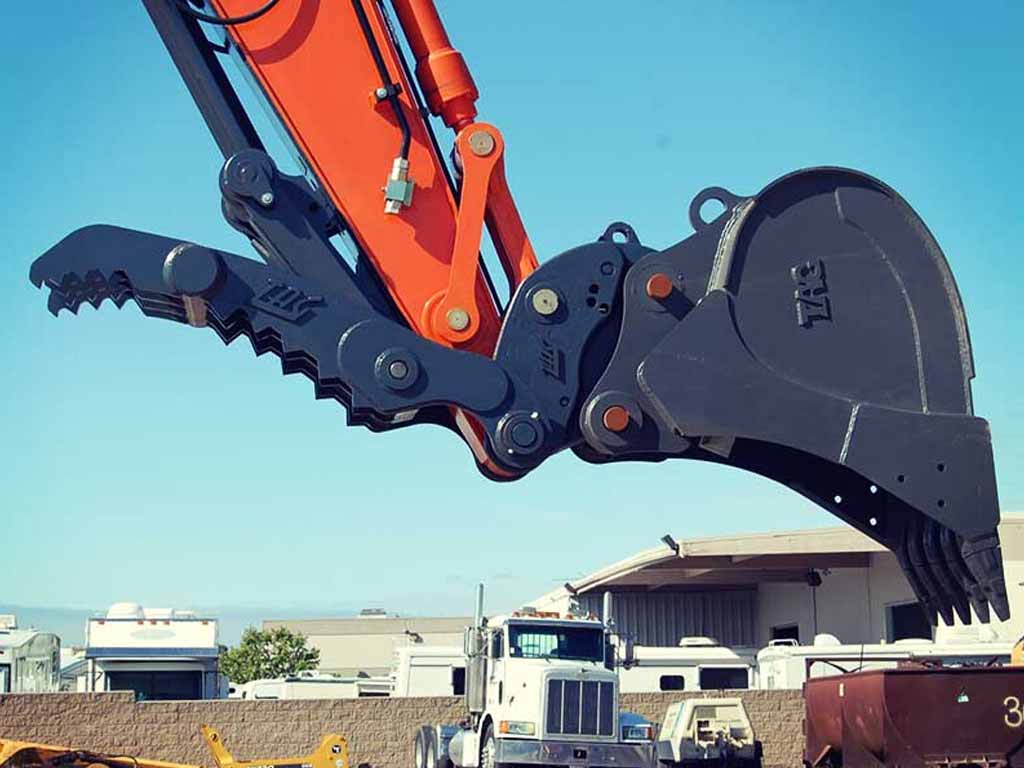

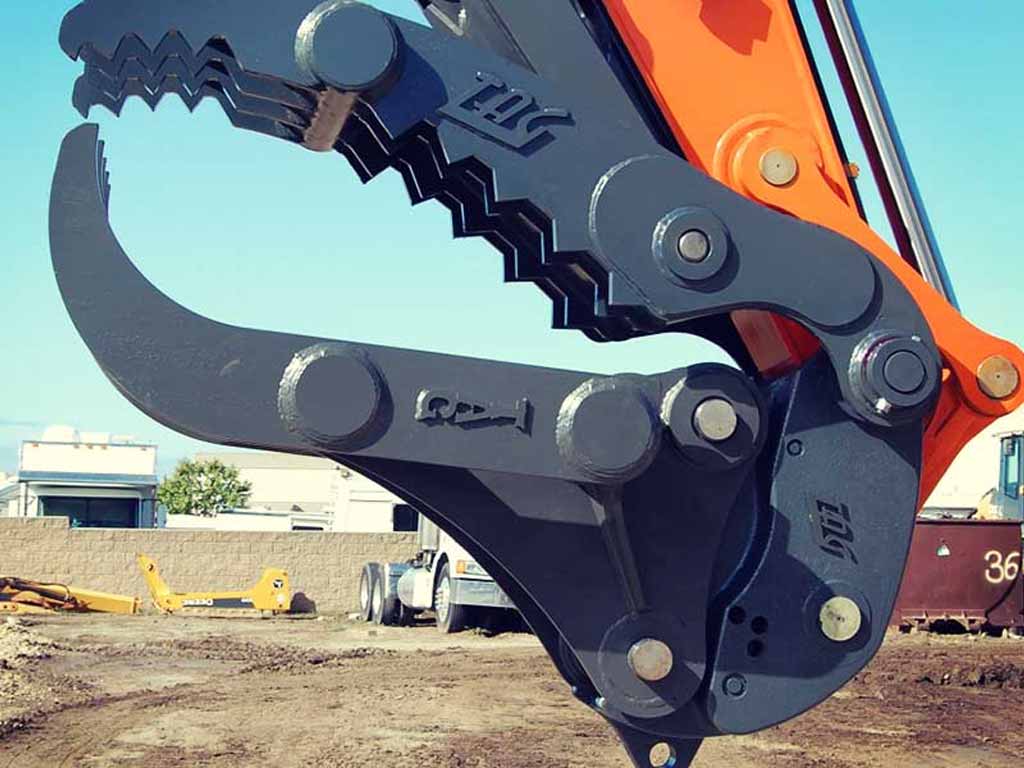

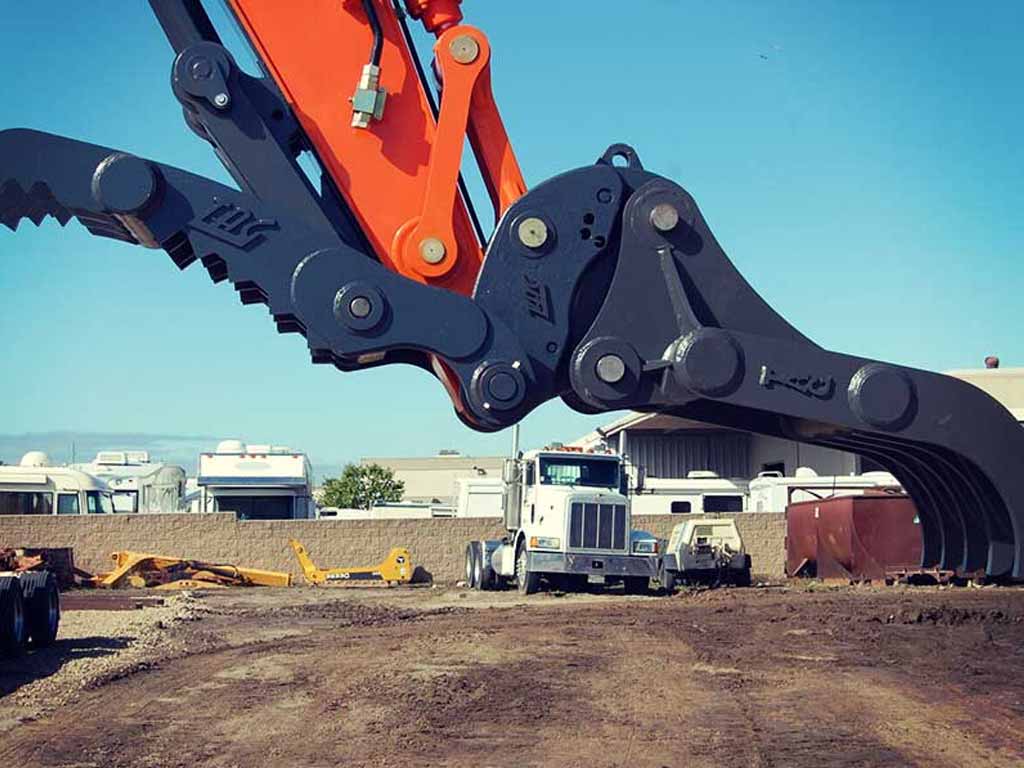

TAG QUICK LINK HYDRAULIC THUMB

11/24

• Innovative link “stays-in-the-track” for easy and quick positioning.
• Narrower two-finger design provides positive clamping.
• Provides maximum productivity and range of applications.
• Main pin and quick link thumbs available with extended lengths for use with quick-couplers.
• Innovative design delivers quicker and simpler installations
• Hardened main-pin with “no-bolt hole” midway in the pin that eliminates a potential failure point.
• Innovative “flag” retention system for long life.
• Replaceable top-hat bushings with wider bearing surfaces and “figure 8” grooving insures optimum grease transfer with a much extended service cycle.
• Maximum range of rotation from 165 degrees, up to an industry-leading 205 degrees of rotation.
• Self-contained design, fully assembled with guide-links and cylinder that are “unitized” on a pre-engineered base plate.
• Integral stop and lock standard, no extra welding cuts installation time in half, no disassembling of machine
• Maximum arc of rotation offers an increased range of motion to work where other thumbs can’t.
• Made in Tennessee

HT75

John Deere 710G / 710J Cat 446

HT120

Case CX145; CX130; CX135SR; 9010 Hyundai R140LC-7 Link Belt LS2650Q; 130LX; 135 Cat 311C; 312C; 314C; E120B JCB JS130; JS145 New Holland E130; EH130-LC Daewoo S130; S140 Kobelco SK135SR; SK115SRDZ Sany SY135 Deere 130G; 120C; 135CRTS; 490D/E Kobelco SK120-IV; SK130-IV; ED150 Takeuchi TB1140 Doosan Solar140 V Komatsu PC120 6; PC128 Terex TXC140 Options - Add $220 to Fit Coupler - Add $150 for Lock Back Kit Doosan Solar140-V Komatsu PC120-6; PC128 Terex TXC140 Hitachi Z110; Z120; Z130; Z135US Komatsu PC138;PC158 Volvo EC140B

HT150

Case CX160; 9020B Hitachi Zx180; Z160LC; EX150;EX160 Komatsu PC150LC6; PC160LC7 Cat 315C; M318 Hyundai R160-3 Link Belt 160LX; 2700Q Daewoo S170-3; S175 JCB JS160 New Holland E160; EH160; EW160 Deere 160G; 160D; 160CLC; 590D Kobelco SK150-IV; SK160LC Terex TXC175; TXC180 Doosan Solar175-V Kobelco ED180; ED190 Volvo EC160B

HT200

Case CX210; CX225; CX235; 9030B Doosan S225-V;S225N-V;S225S-V Link Belt 210LX; LS2800Q Cat 318C; 320C; E200B Hitachi Z200LC; Z210LC; Z225US New Holland EH215; EW200 Daewoo 200-3; 220-3 Hyundai R210LC7 Sany SY215 Daewoo S225; S255 JCB JS220 Terex TXC225 Deere 180CW;180G;190GW;200C;200D Kobelco SK210; 200SR; 235SR Volvo EC210B Options - Add $290 to Fit Coupler - Add $150 for Lock Back Kit Deere 180CW;180G;190GW;200C;200D Kobelco SK210; 200SR; 235SR Volvo EC210B Deere 225CRTS;245G;210G;210CW;690D/EKomatsu PC200LC-7; PC228

HT230

Case 9040; 9045; CX240; CX280 Hitachi Zx250; Zx290; Zx245 Link Belt 225MSR; 240LX; 290LX; 340 Case CX240D; CX290; CX270 Hitachi Zx240-3;Zx270-3; 270LCV New Holland EC215; EC240; E215 Cat 322CL; 325C; 225B/D Hyundai R250LC7 Terex TXC255 Deere 300G; 290G; 250G JCB JS220; JS260 Samsung 280 Deere 230G; 270C; 230C; 790D/E Kobelco SK250; SK220-IV; SK270-IV Sany SY235 Doosan Solar255-V Komatsu PC220; PC250; PC270-8; PC308 Volvo EC240B; 290B

HT330

Case CX330; 9050B Hitachi Zx350; Zx380; Zx330; Zx370 Komatsu PC300LC-7 Cat 330CL; E300 Hyundai R320LC7; R360LC7 Link Belt 330LX; 4300Q Daewoo S340LCV; 330LCV JCB JS330 New Holland EC350-LC  Daewoo S340LCV; 330LCV JCB JS330 New Holland EC350 LC Deere 350G; 380G; 892 Kobelco SK290LC-DA; SK330LC-DA Sany SY335 Deere 350D; 330CLC; 370CLC Kobelco SK350LC Terex TXC300; TXC340 Doosan DX300; DX340 Volvo EC330B; EC360B

HT450

Case CX450; CX460; 9060B Hitachi Zx470;EX450-V; Z450LC Komatsu PC400-7; PC450-6 Cat 345BL; 345CL; 350F/G;235/B/C/D Hyundai R500-7; R450LC-7; R450LC-3 Link Belt 460LX; 5800Q Daewoo S450-III; S470LCV JCB JS450; JS460 New Holland EX450LC Deere 470G; 450D; 450CLC; 992E Kobelco SK480LC-DA; SK400LC Terex TXC420; TXC470; TXC480 Doosan DX420; DX480 Volvo EC460B
