1230XLQ2
TAG XLS Dirt Buckets with 1.75" T-pin for 12,000 - 16,000 lbs. excavators (Wain Roy XLS 1/4 Yard)
$1,230.00 - $1,815.00
11/24

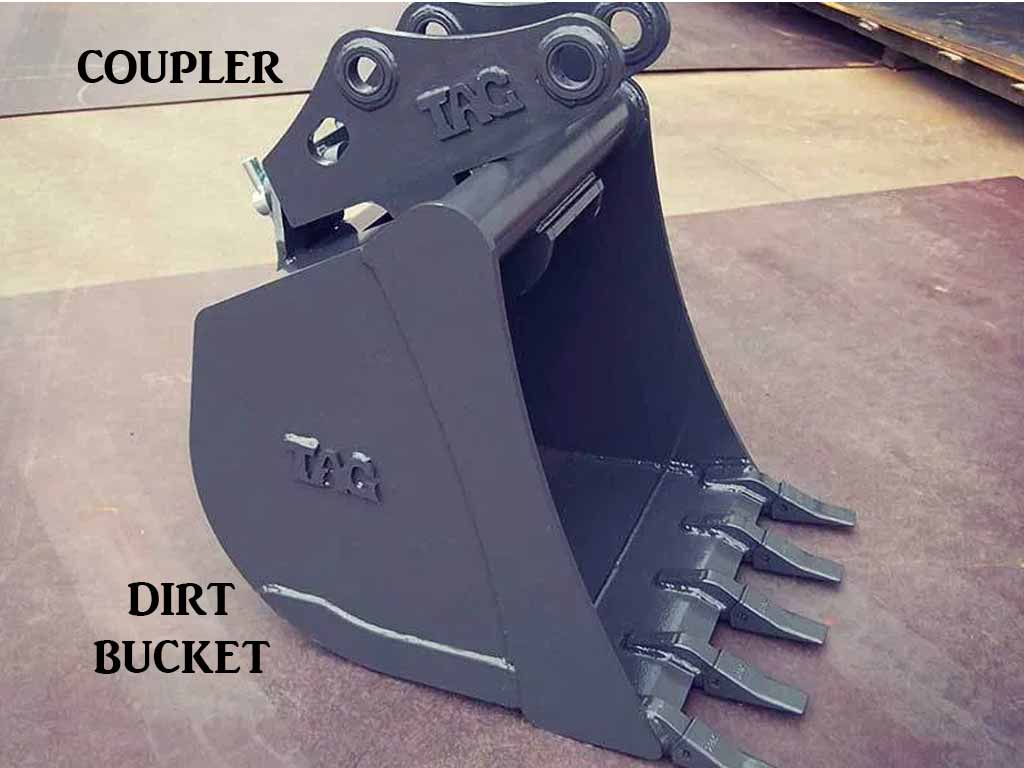

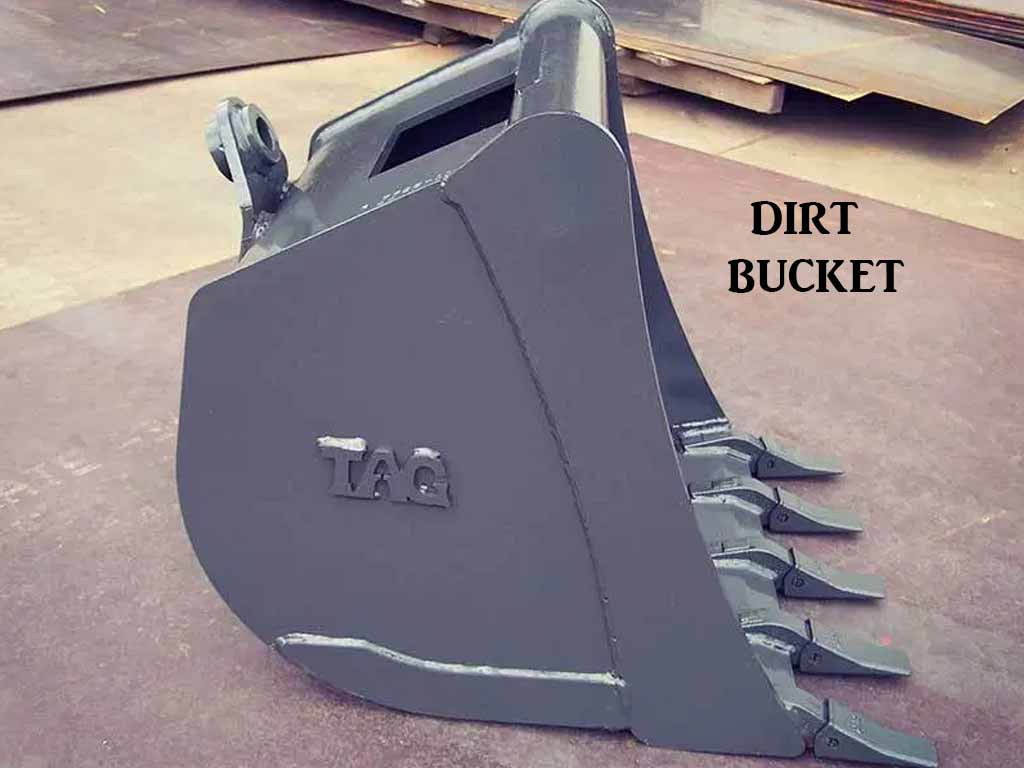

XLS HEAVY DIRT BUCKETS
These durable high quality buckets were designed with performance in mind. Dirt buckets are typically ordered with teeth. These buckets are use to dig in most soil conditions including dirt, mud, compacted soil, shale and sand.
A heavy duty bucket can be ordered without teeth, this is a special order. I will need to talk to you on the phone to make sure we order the bucket without teeth if desired.
- Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
- Please use the "FITS" tab to find compatible Make and model machines.
Mountings
|
STYLE |
PHOTO |
|

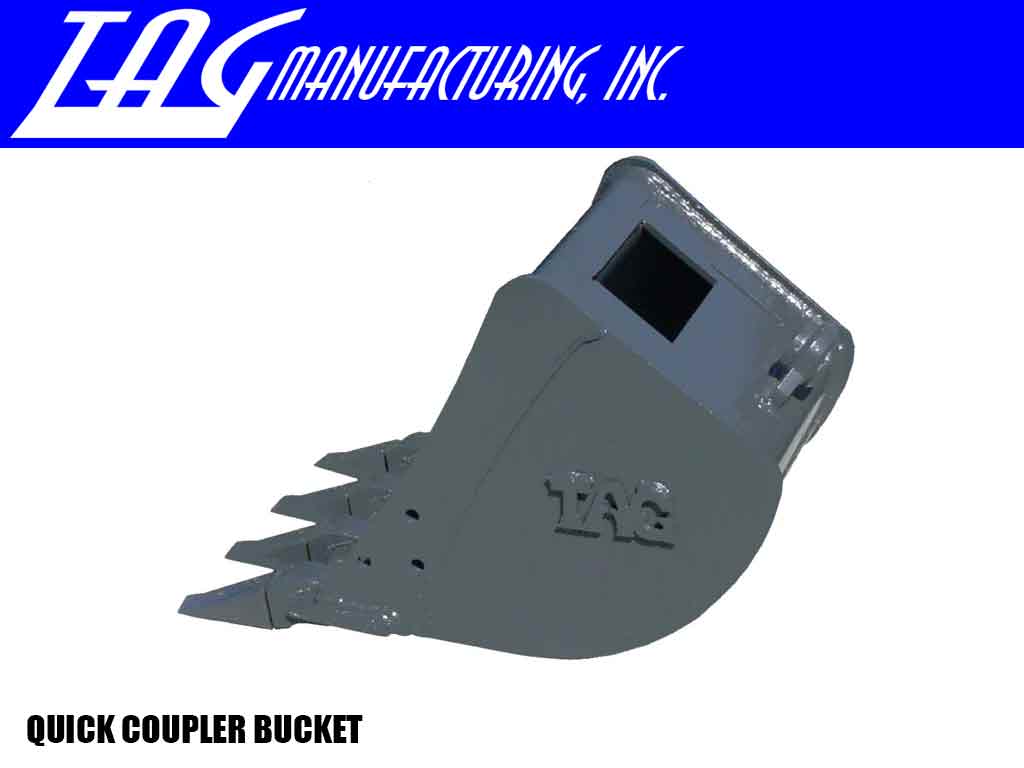

Quick Coupler - Wain Roy style hook and pin 1.75" vertical pin design (QC30, XLS 1/4 Yard) |
 |
DIRECTIONS
- CHOOSE YOUR MOUNTING / COUPLER SYSTEM
- CHOOSE YOUR SIZE
- ADD ITEM(S) TO CART
- PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
- ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE
|
ORDER # HEAVY DUTY |
WIDTH | CAP (CUBIC FT.) | LBS | DEPTH | OPENING |
| 1230XLQ2 | 12" | 4.250 | 300 | 27.95" | 24.12" |
| 1630XLQ2 | 16" | 5.400 | 325 | 27.95" | 24.12" |
| 1830XLQ2 | 18" | 6.200 | 360 | 27.95" | 24.12" |
| 2030XLQ2 | 20" | 6.850 | 390 | 27.95" | 24.12" |
| 2430XLQ2 | 24" | 8.500 | 430 | 27.95" | 24.12" |
| 3030XLQ2 | 30" | 11.00 | 480 | 27.95" | 24.12" |
| 3630XLQ2 | 36" | 12.50 | 530 | 27.95" | 24.12" |
HERE ARE SOME MODELS THIS CAN FIT (QUESTIONS PLEASE CALL)
| MAKE | MODEL 12000 TO 16000 LB |
| BOBCAT | E63,E80,E85,442, |
| CASE |
575N, 580, 580SV, 590 9007,CX75,CX80 |
| CAT |
307, 307C, 308, 308C CR,E70B 416C, 420D, 428F, 432F, 434F |
| DAEWOO | |
| DEERE |
85, 75, 80 310K, 310SK, 410K 310J, 310SJ, 410J 310G, 310SG, 410G, 510 |
| DOOSAN | S75-V, S70-III, SOLAR75-V |
| FORD |
455, 555, 655 555E, 655E, 675E |
| GEHL | |
| HYUNDAI | R75-7, R80-7 |
| IHI / KATO | 65VX, 80VX, 55N, 65NX, 80NX |
| JCB | 214, 3CX, 4CX, 8085, JS70 |
| HITACHI | Z80L, Z75US |
| KOBELCO | SK70SR, 80CS |
| KOMATSU |
WB146-5/156-5, WB140/150 PC60 ,PC75R-2, PC78 |
| KUBOTA | |
| LINK BELT | 75, 80, 1600Q |
| NAGANO | |
| NEW HOLLAND |
LB75, LB115 LB90, LB110 |
| TAKEUCHI | TB290, TB280FR, TB285, TB180FR, TB175 |
| TEREX | HR32, TC75 |
| THOMAS | |
| VOLVO | ECR88, BL60, BL70 |
| WACKER | |
| YANMAR | VIO75,VIO70, B7, B7-5A |
