22587
TORO DINGO TX 1000 TURBO Track Loader
$47,585.50
Revised 2/25

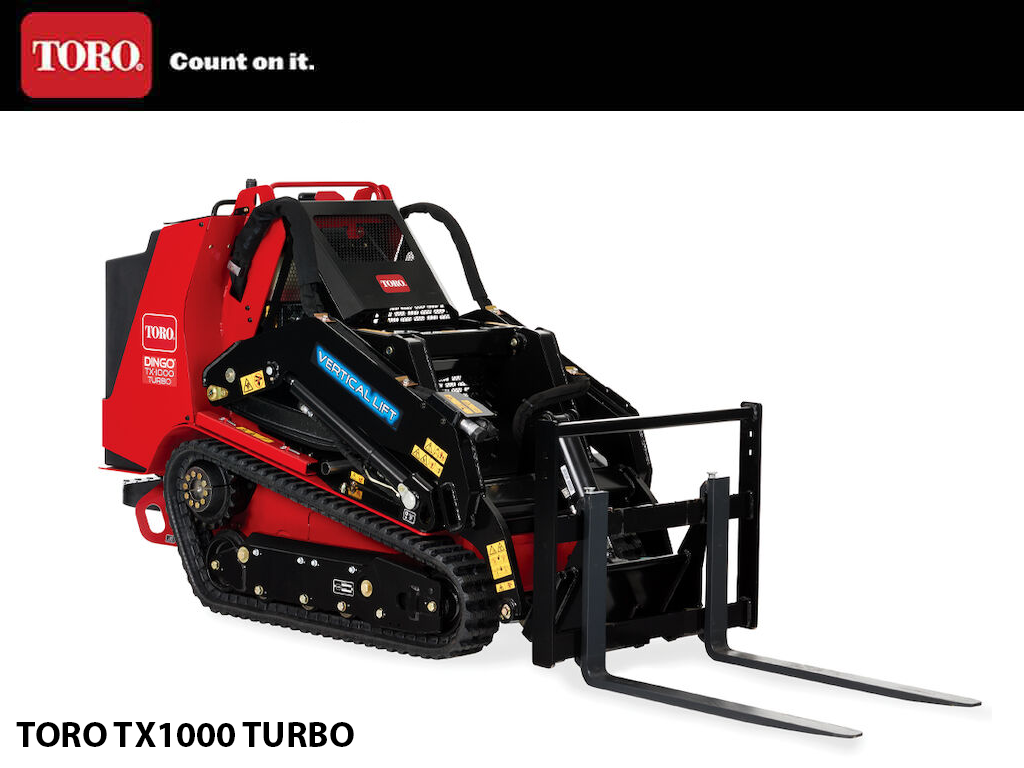

Dingo® TX 1000 Turbo Track Loader
- Model: 22587 UPC/EAN: 21038225876 (Narrow track)
- Model: 22588 UPC/EAN: 21038225883 (Wide track)
- Smart Power allows the machine to run more efficient by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.
- Maximum height and reach easily clears the side of a 30-yard dumpster
- Patented traction control
TX1000 Narrow track
The Dingo TX 1000 TURBO is a turbocharged marvel that not only enhances the unmatched success and superior performance of its predecessor but also incorporates the innovative Smart Power® feature. This feature optimizes engine, auxiliary, and traction torque, providing users with an unparalleled compact utility loader experience. With a width of under 35 inches, the Dingo TX 1000 TURBO narrow track effortlessly navigates through standard 36-inch gates, ensuring versatility and accessibility across a range of job sites.
TX1000 Wide Track
Back in 2015, Toro made waves in the industry with the introduction of the groundbreaking Dingo TX 1000, the first compact utility loader with an impressive 1,000 lbs. rated operating capacity. Now, fast forward to the present, and Toro is set to amaze once more with the launch of the game-changing Dingo TX 1000 TURBO. This turbocharged innovation not only enhances the unmatched success and superior performance of its predecessor but also introduces the state-of-the-art Smart Power® feature. This feature optimizes engine, auxiliary, and traction torque, delivering an unparalleled compact utility loader experience.
Smart Power®
Smart Power allows the machine to run more efficient by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.Traction Control System
Toro's patented traction control system allows intuitive user operation for all skill levels now includes the integration of a digital displayMaximum Height & Reach

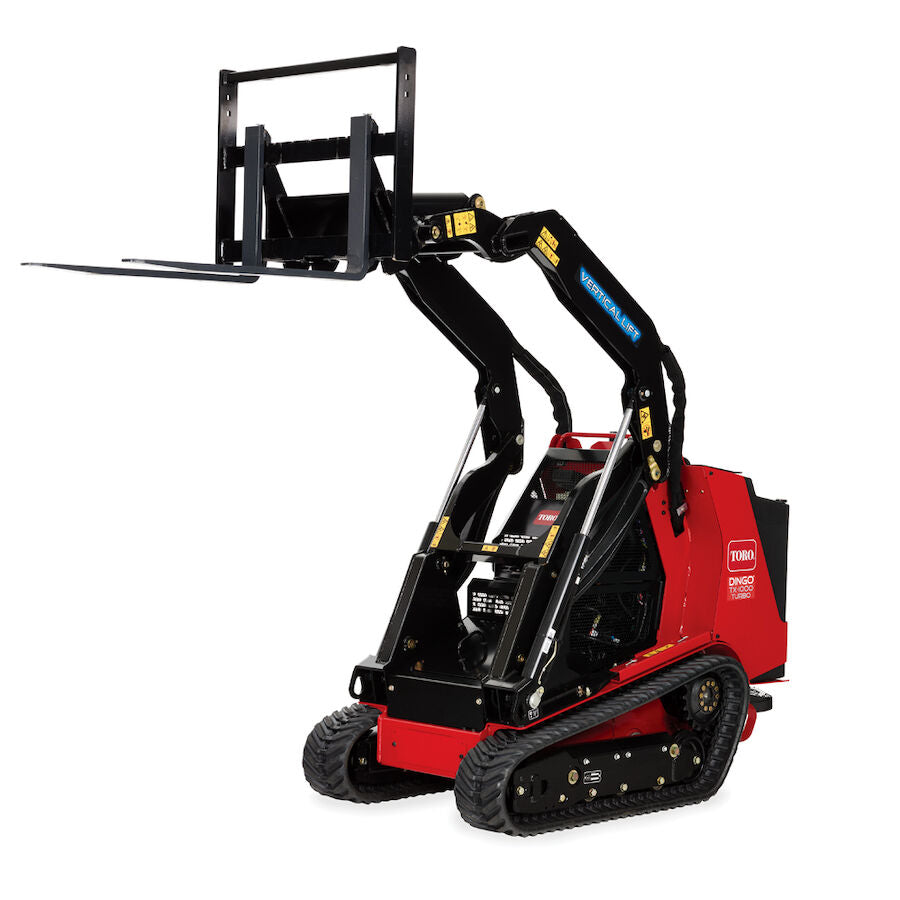

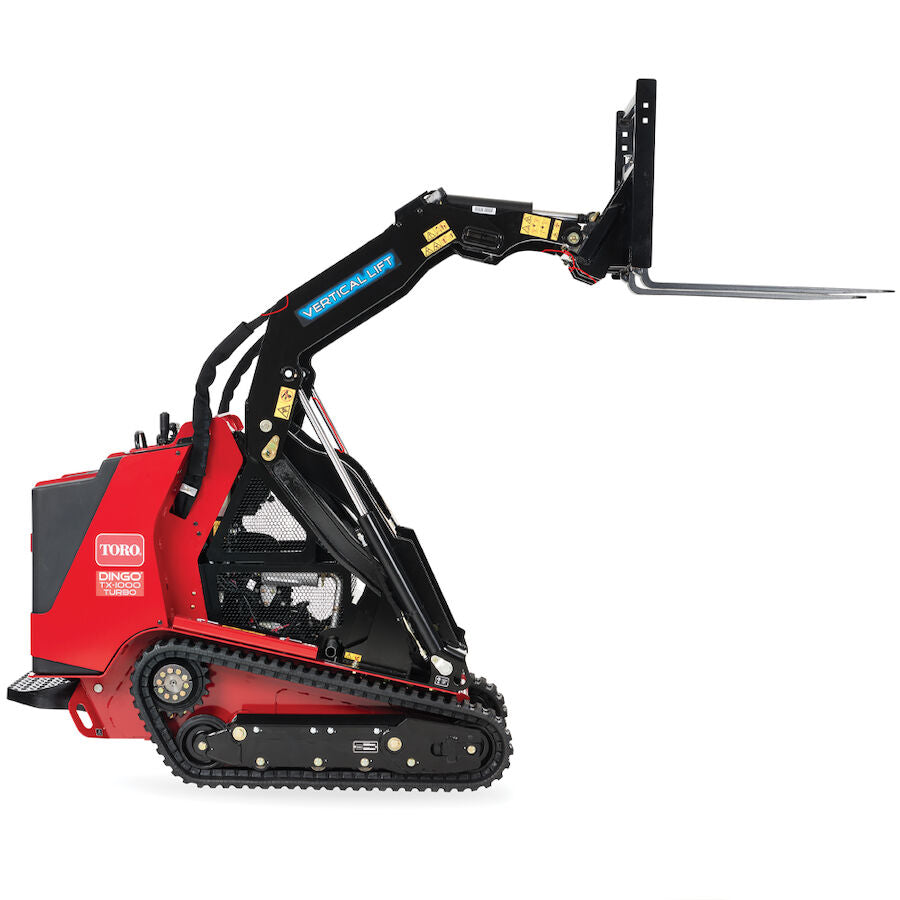

The 81” (206 cm) hinge pin height allows attachments to easily clear the side of 30-yard dumpsters or one-ton trucks.Easy Operation
The auxiliary foot pedal maintains hydraulic flow to the attachment, freeing the operator's hands to focus on ground speed an attachment positioning.
| TX1000 WIDE TRACK | |
|---|---|
| Air Filter | Remote: Primary and Safety Elements |
| Cooling System | Combo Crossflow Radiator and Oil Cooler |
| Dump Angle | 40 deg |
| Dump Height | 60.3 in. / 153.2 cm |
| Engine Horsepower | 24.7 hp (18.4 kW) |
| Engine Make | Yanmar |
| Engine Model | 3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant |
| Fuel Tank | 10.25 gal. / 38.8 L |
| Fuel Type | Diesel |
| Ground Clearance | 5.9 in. / 14.9 cm |
| Ground Pressure | 4.1 psi |
| Ground Speed - Forward | Up to 4.1 mph / 6.6 km/h |
| Ground Speed - Reverse | Up to 4.1 mph / 6.6 km/h |
| Height | 54.5 in. / 138.4 cm |
| Height - With Bucket | 54.5 in. / 138.4 cm |
| Hinge Pin Height | 81 in. / 205.7 cm |
| Hydraulic Flow - Traction | 12.3 GPM |
| Hydraulic High Flow | 13.2 GPM |
| Hydraulic Low Flow | 4.9 GPM |
| Hydraulic Pressure | 3,000 psi |
| Length | 83 in. / 210.8 cm |
| Length - With Bucket | 104 in. / 264.2 cm |
| Max Operating Height | 106.2 in. / 269.7 cm |
| Oil Capacity | 3.8 qt / 3.6 L |
| Rated Operating Capacity* | 1,000 lbs / 454 kg |
| Reach - Fully Raised | 23.3 in. / 59.2 cm |
| Reservoir Capacity | 8.6 gal. / 32.5 L |
| System Capacity | 11.5 gal. / 43.5 L |
| Track Width | 9.1 in. / 23.1 cm |
| Tracks | MERT Track With Turf Friendly Style Tread |
| Traction | Dual Hydrostatic Pump |
| Weight | 2,911 lbs / 1,320 kg |
| Wheelbase | 39 in. / 99.0 cm |
| Width | 39.9 in. / 101.3 cm |
| Width - With Bucket | 42.2 in. / 107.2 cm |
| TX1000 NARROW TRACK | |
|---|---|
| Air Filter | Remote: Primary and Safety Elements |
| Cooling System | Combo Crossflow Radiator and Oil Cooler |
| Dump Angle | 40 deg |
| Dump Height | 60.3 in. / 153.2 cm |
| Engine Horsepower | 24.7 hp (18.4 kW) |
| Engine Make | Yanmar |
| Engine Model | 3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant |
| Fuel Tank | 10.25 gal. / 38.8 L |
| Fuel Type | Diesel |
| Ground Clearance | 5.9 in. / 14.9 cm |
| Ground Pressure | 6.1 psi |
| Ground Speed - Forward | Up to 4.1 mph / 6.6 km/h |
| Ground Speed - Reverse | Up to 4.1 mph / 6.6 km/h |
| Height | 54.6 in. / 138.7 cm |
| Height - With Bucket | 54.6 in. / 138.7 cm |
| Hinge Pin Height | 81 in. / 205.7 cm |
| Hydraulic Flow - Traction | 12.3 GPM |
| Hydraulic High Flow | 13.2 GPM |
| Hydraulic Low Flow | 4.9 GPM |
| Hydraulic Pressure | 3,000 psi |
| Length | 83 in. / 210.8 cm |
| Length - With Bucket | 104 in. / 264.2 cm |
| Loader Arms | Vertical Lift |
| Max Operating Height | 106.2 in. / 269.7 cm |
| Oil Capacity | 3.8 qt / 3.6 L |
| Rated Operating Capacity* | 1,000 lbs / 454 kg |
| Reach - Fully Raised | 23.3 in. / 59.2 cm |
| Reservoir Capacity | 8.6 gal. / 32.5 L |
| System Capacity | 11.5 gal. / 43.5 L |
| Track Length | 126.6 in. / 321.5 cm |
| Track Width | 5.9 in. / 14.9 cm |
| Tracks | MERT track with “B” style tread |
| Traction | Dual Hydrostatic Pump |
| Weight | 2,826 lbs / 1,282 kg |
| Wheelbase | 39 in. / 99.0 cm |
| Width | 34.6 in. / 87.8 cm |
| Width - With Bucket | 42.2 in. / 107.2 cm |
Toro is the top selling mini loader. More attachments, low cost of ownership, and by far the best resale value. When looking for a mini loader the Toro Dingo TX1000 is defiantly a unit to look at. The TX1000 can come in narrow or wide track. All TX1000’s have KUBOTA diesel engines.
WHAT I LIKE - I love the vertical lift boom. You can actually easy dump into a dump trailer now. The controls are unbelievably smooth and easy to use. The tracks are easy to clean out. The Toro Dingo TX1000 performs like a beast more power and lift, easy to use and control, and responsive.
