22911

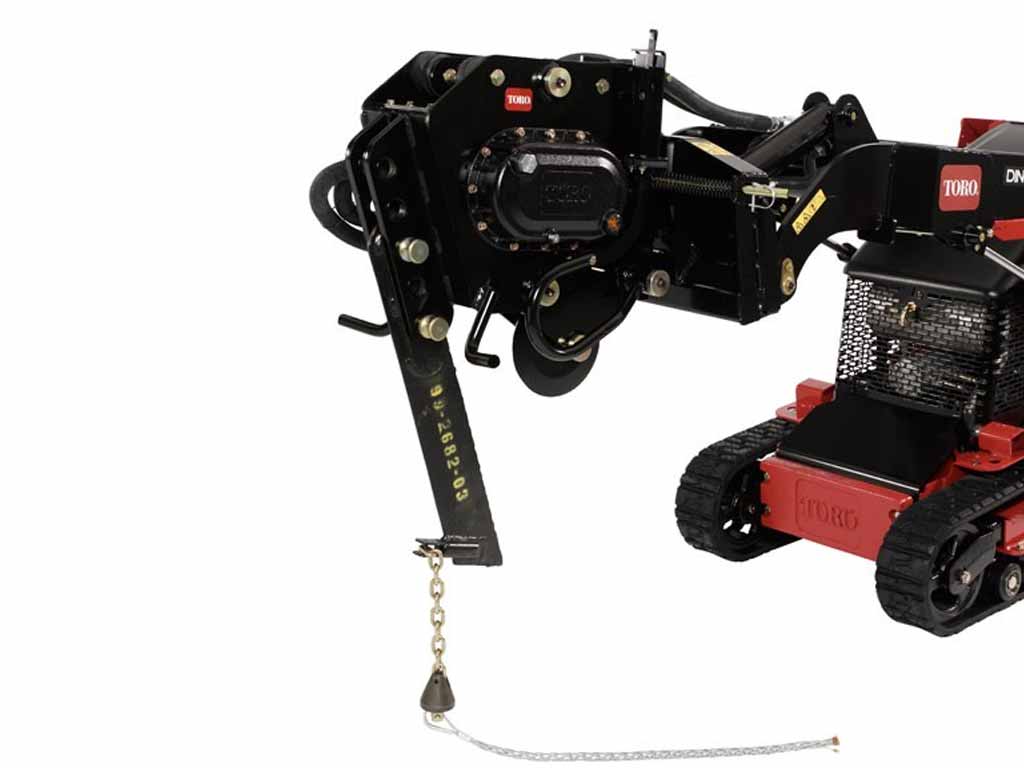

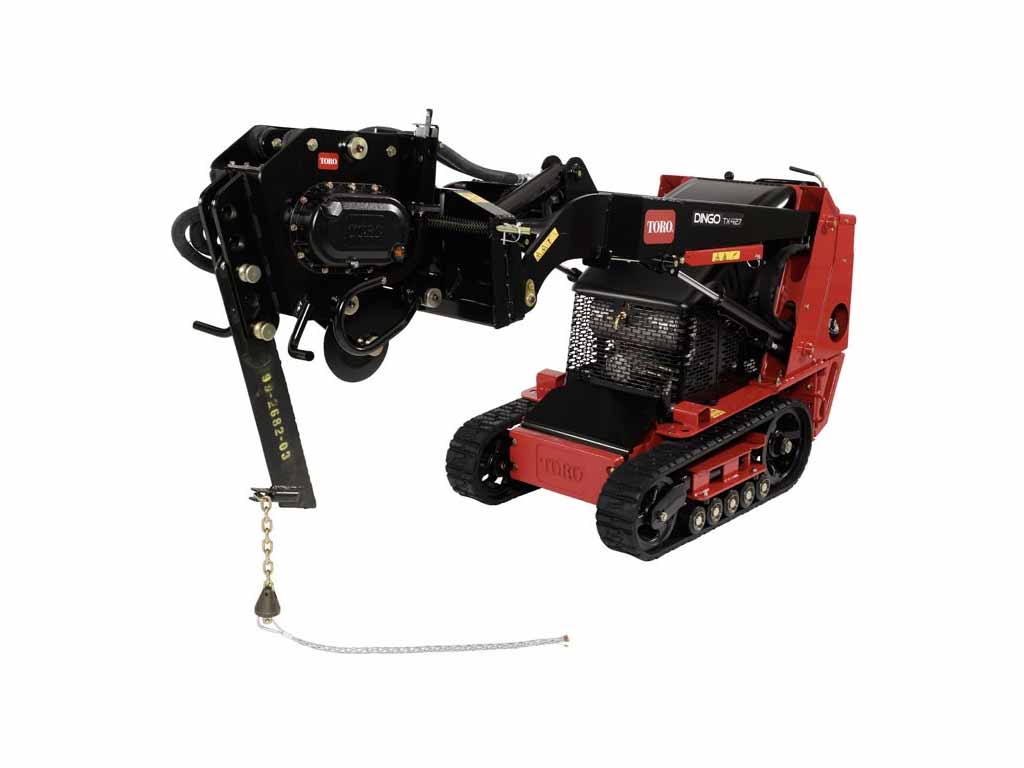

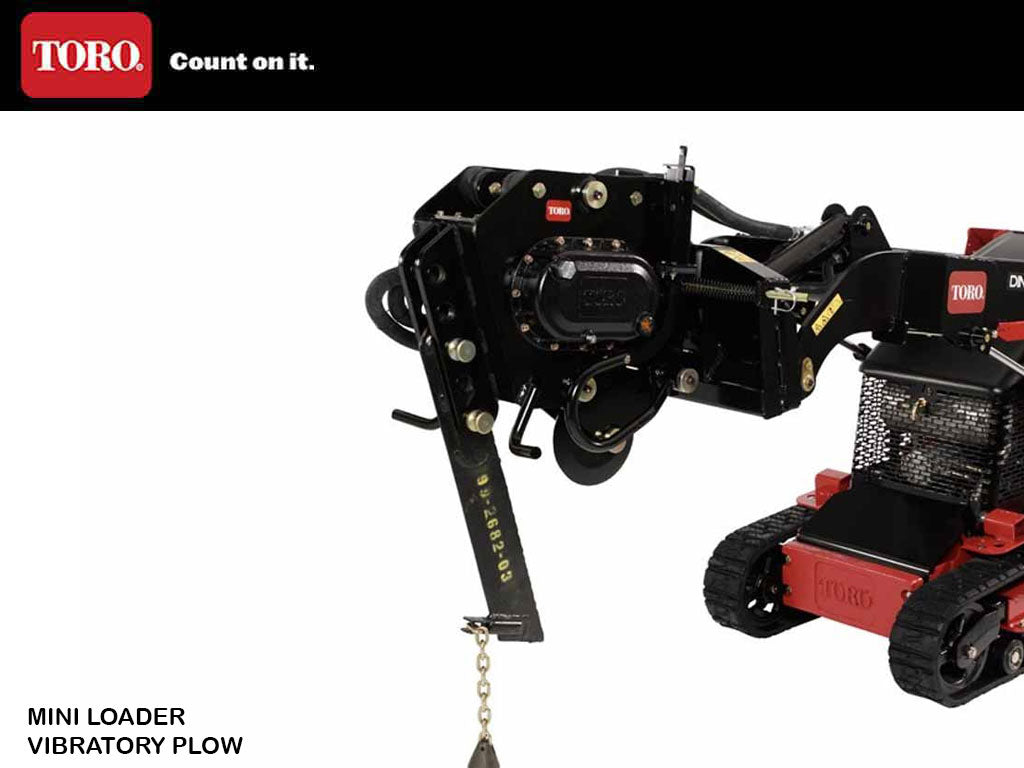

TORO DINGO vibratory drive for mini loader

BLADE
SPOOL

The Toro Dingo vibratory plow attachment greatly reduces a contractor's time spent on irrigation and cable installations. Exclusively designed and built by Toro specifically for use on the Dingo, the vibratory plow optimizes pipe-pulling performance while minimizing turf damage during an installation. Also, use the chuted blade and spool carrier to install wire or cable.

  • Convenient depth-indicator
  • Elliptical vibrating motion
  • Pull pipe up to 2" diameter
  • 12" and 18" blades available



  • Depth Indicator

    Convenient depth-indicator ensures pipe-laying at uniform depth.

  • Heavy Cast Coulter

    Provides knife like slit in turf ahead of blade. Allows blade to move through turf with minimal tearing.

  • Elliptical Vibrating Motion

    Creates natural force in the direction of the machine, thus helping to pull pipe and cable through difficult soil conditions.

  • Flexible Head

    Compression springs allow the head to pivot 30-degree side-to-side for tight turning.

  • Isolators

    Rubber isolators control the plow vibration amplitude

  • Bearings
    4 pressed-in spher. roller
  • Blade Adjustment
    Adjust f/ 0 -18" (0-46cm) Depths
  • Blade Type
    See Accessories
  • Chain
    Machined, plated 2" (5cm) hex bullet
  • Construction
    Fabricated, welded steel frame
  • Depth Control
    Adjustable
  • Height
    27.0" (69cm) w/o Blade
  • Length
    34" (86cm)
  • Quick Couplers
    Male & Female Quick Couplers
  • Weight
    457lbs (207 kg)
  • Width
    28.2" (72cm)
  • Working Depth
    Adjust f/ 6-18" (15-46cm) Depths
Spool Carrier

Mounts onto Dingo loader arm to carry spool of wire or cable. Used with the chuted blade assembly for pulling cable or wire. Part number 104-2685

Blade Options

1/4" x 12" (30.5 cm) Part number 99-2682-03
1/2" x 18" (45.7 cm) Part number 99-8600-03
3/8" x 18" (45.7 cm) Part number 99-8647-03
3/8" x 12" Part number 106-7646-03
Chuted Blade Part number 104-0640

Puller Options

1" (2.5 cm) Taper Lock Puller for PVC. Part number 100-6285
1-1/2" (3.8 cm) Taper Lock Puller for PVC. Part number 100-6290
2" (5.1 cm) Taper Lock Puller for PVC. Part number 100-6294
3/4" to 1-1/4" (1.9 cm to 3.2 cm) Basket Grip Puller for Poly. Part number 100-1661
1-1/4" to 1-1/2" (3.2 cm to 3.8 cm) Basket Grip Puller for Poly. Part number 100-1662
Tapered Threaded Puller. Part number 104-0646
Bullet (needed for Puller). Part number 100-6337
