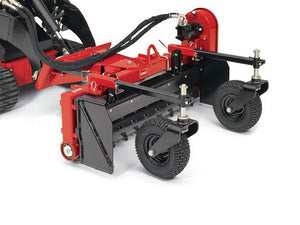

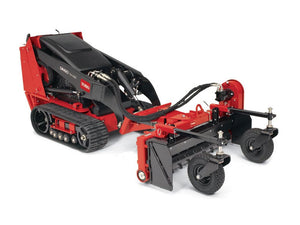

TORO mini loader power box rake

INCLUDES:

• TORO MOUNTING
• HOSES & FITTINGS
• END PLATES

The Toro Power Box Rake is the perfect tool for seed bed and sod bed preparation. The rotary drum on the power box rake pulverizes rough soil, cuts high spots and fills low spots in one pass; while removing rocks and debris. Pure carbide teeth design produces the best possible seeded sub-soil, which promote superior moisture retention and rapid seed growth.

• Reversible End Plates

  Quickly add, remove or reverse end plates, simply pull two pins and you are ready to go.

• Adjustable Wheels

  Makes depth changes easy. Set adjustable wheels low to quickly remove existing landscapes. Easily adjust depth to fill, plane and pulverize soil.

• Carbide Teeth

  Durable carbide teeth deliver a dimpled seed bed ideal for moisture retention.

• Fits
  All Dingo Traction units except TX 413
• Leveler Platform
  Fabricated welded frame
• Mounting Frame
  Fabricated, welded base
• Standard Equipment
  Dingo Quick-Attach Mount Plate
• Height 53.1 cm (20.9 inches)
• Weight 166 kg (365 lb)
• Raking width 122 cm (48 inches)
• Roller type Carbide toothed roller 22.4 cm (8.8 inches)
• Roller angle 20°
• Gap (tube to barrier) 3.2 cm (1-1/4 inches)
• Maximum pressure 20,684 kPa (3,000 psi)
