LR2460

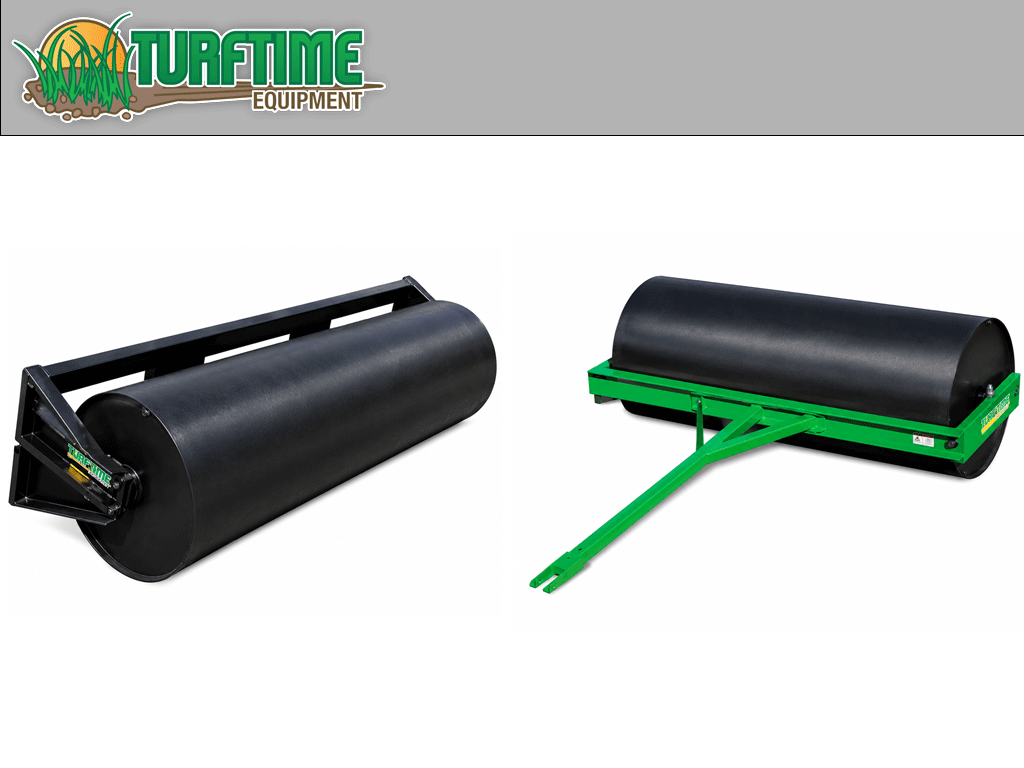

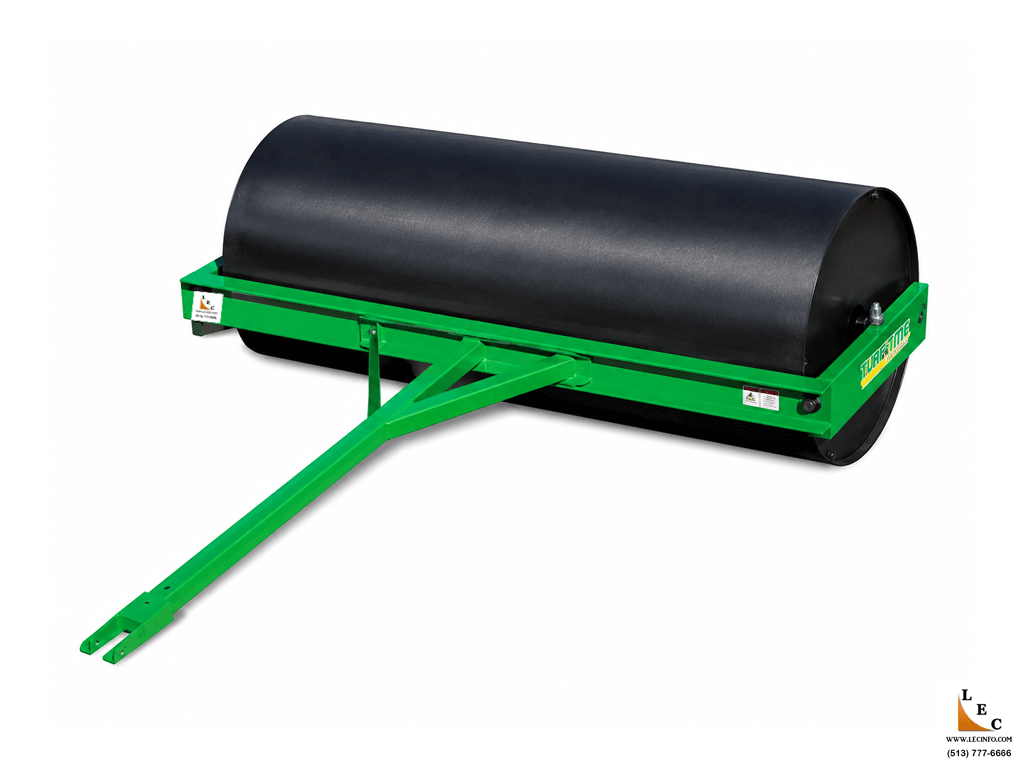

The AR-Series is 3/8 inch thick steel available in 24″ or 30″ diameter drum, commercial grade rollers with ultra strong construction makes them a best choice for large sports complexes and other high use facilities including golf courses, stadiums, grass airstrips, polo fields, turf race tracks and recreational trails.

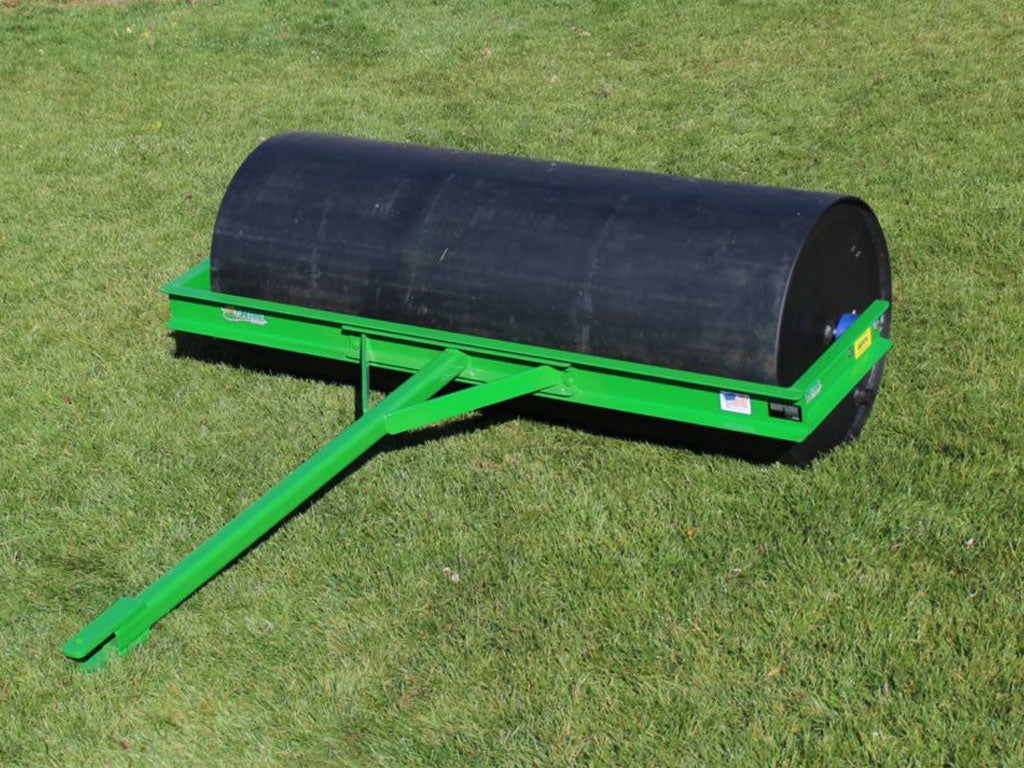

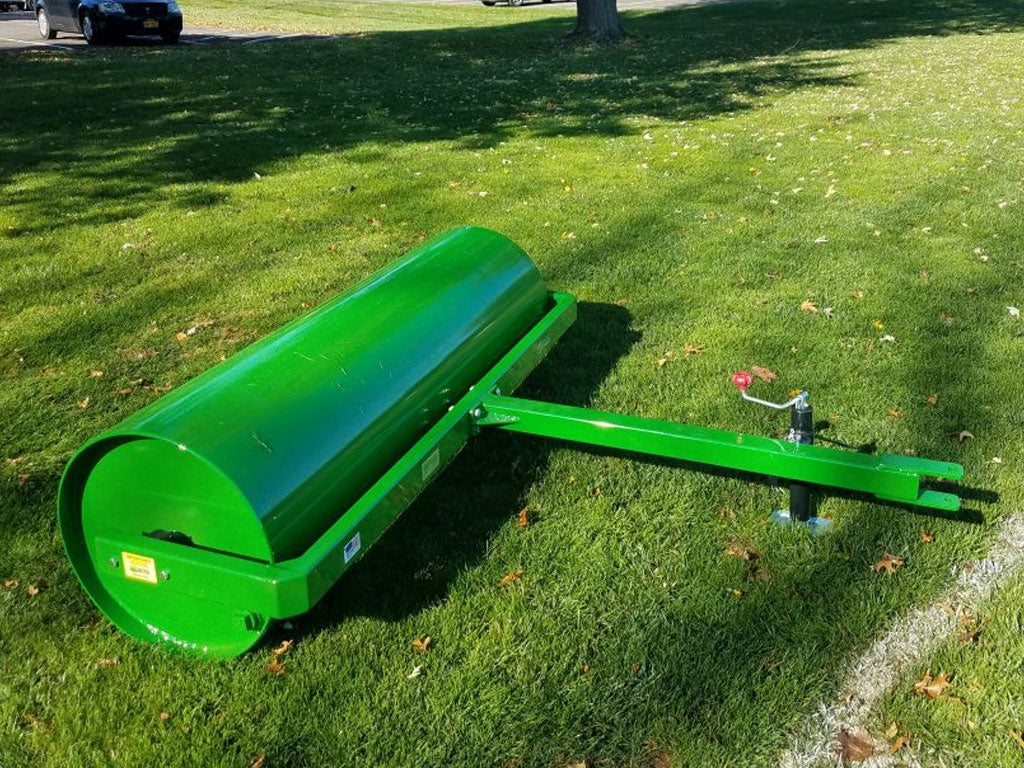

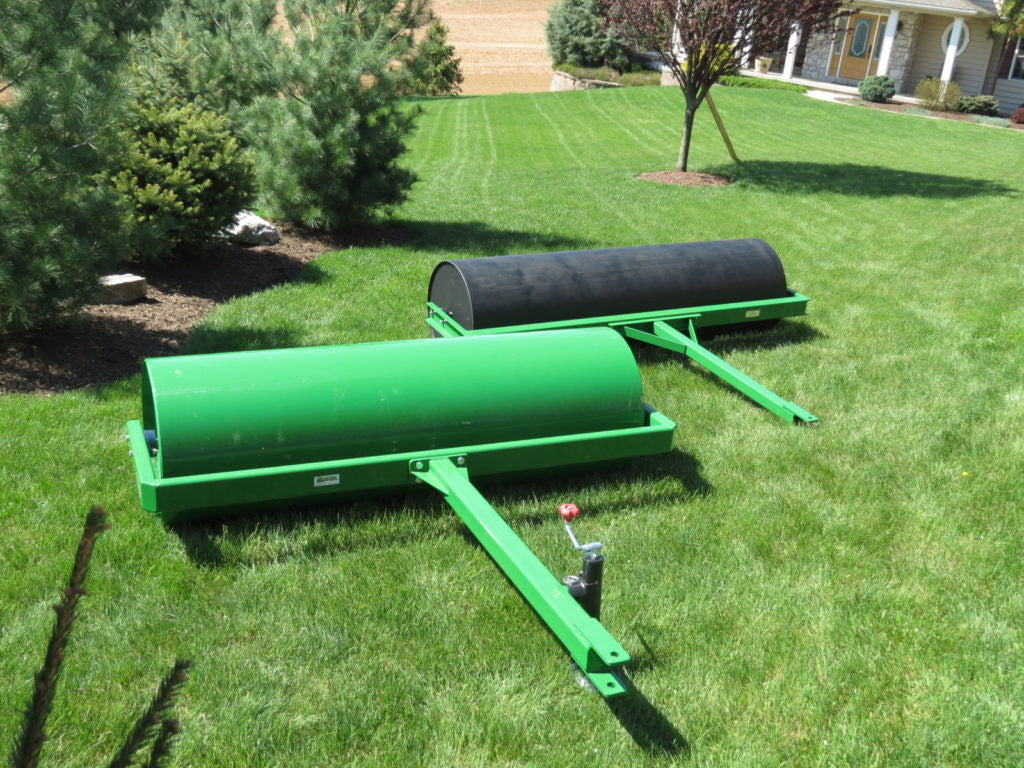

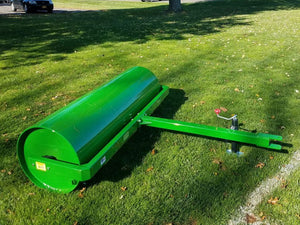

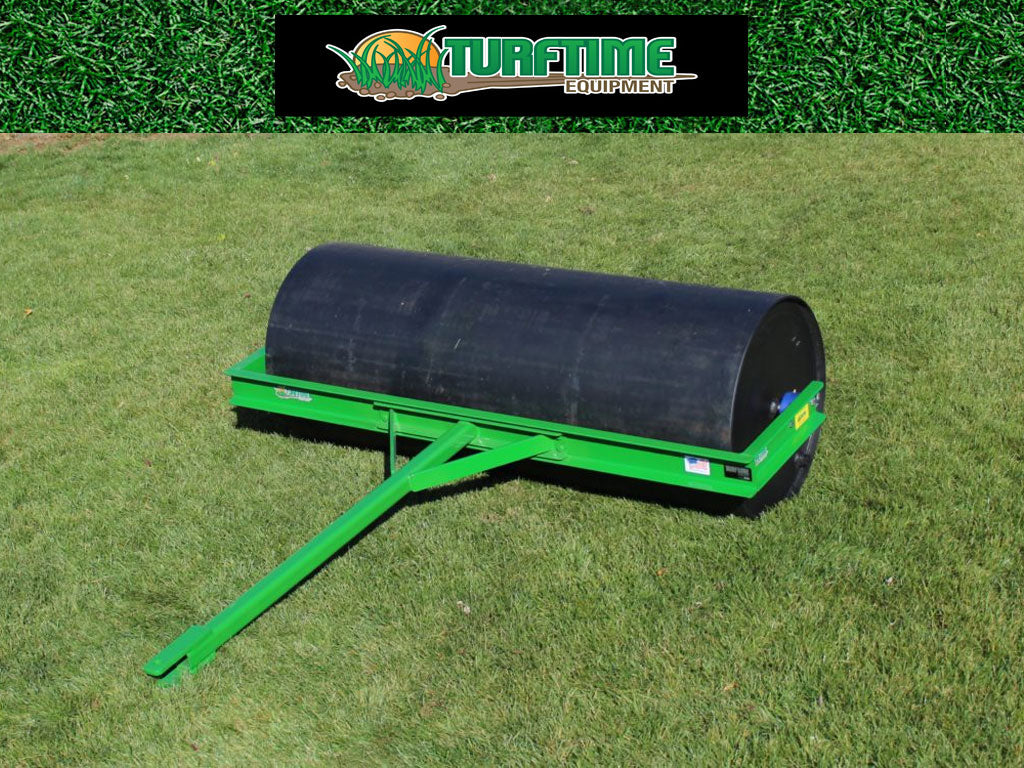

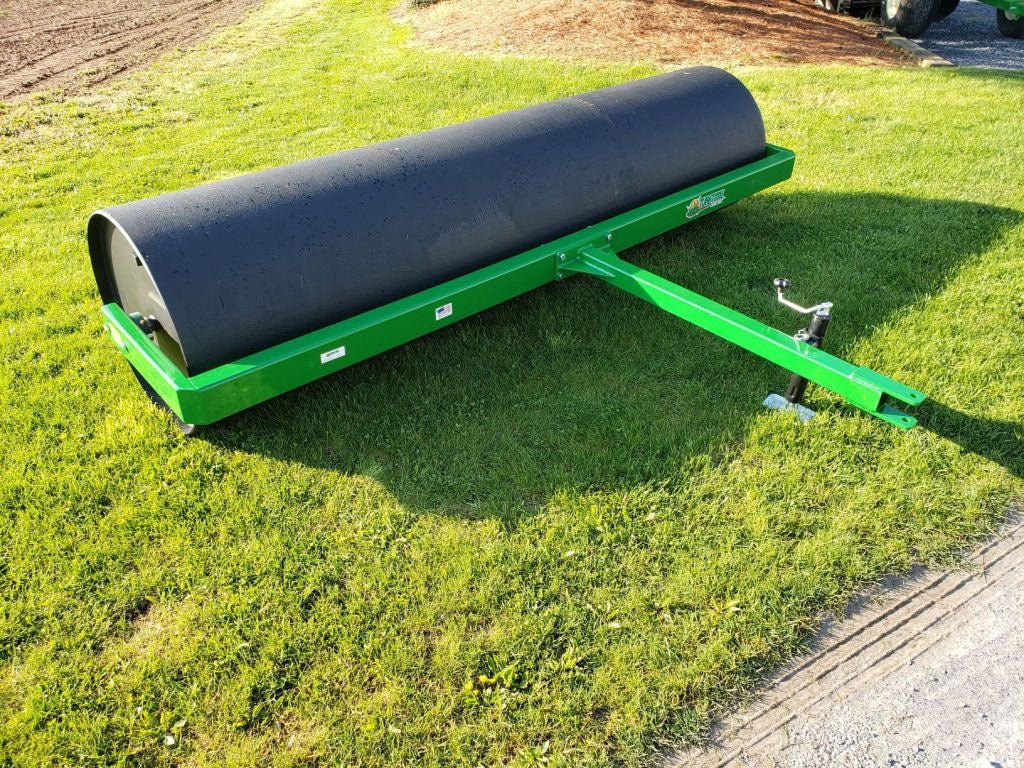

The LR-Series is 1/4 inch thick steel only available in 24″ diameter drum, The LR-Series roller is designed for landscapers, Home owners, and smaller municipalities or sports associations.
With a 3/8″ (1/4″ for LR series) thick steel rolling surface our rollers will stand up to the most rugged use, and are heavy enough to smooth most surfaces in one pass, saving you time and money.

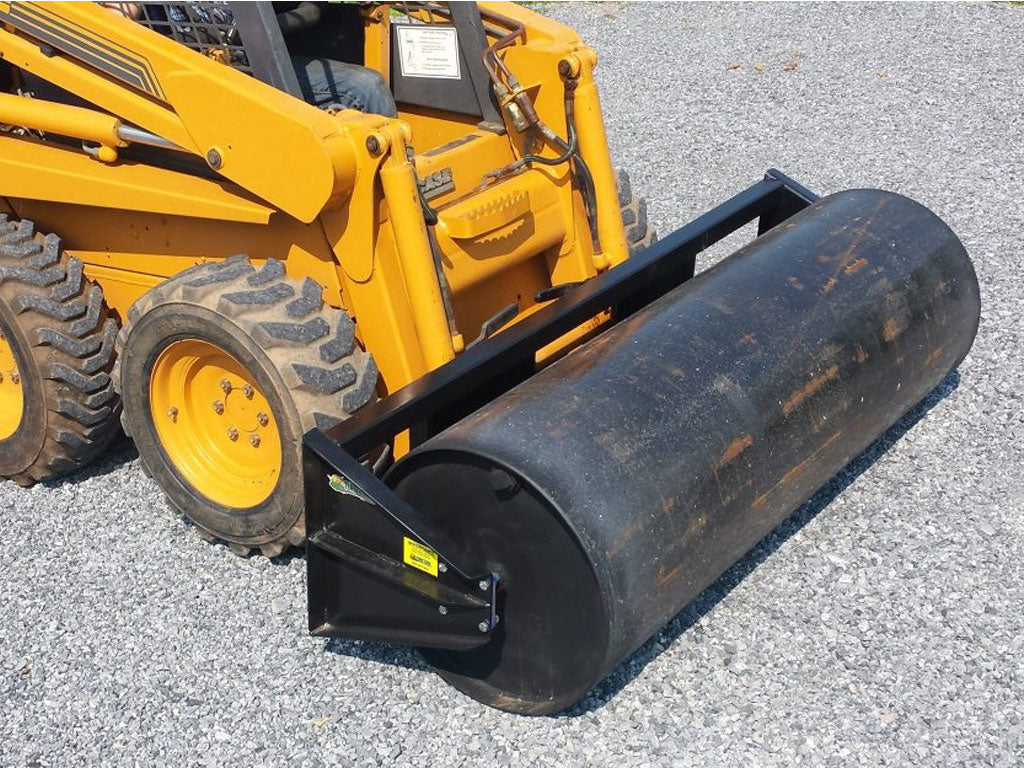

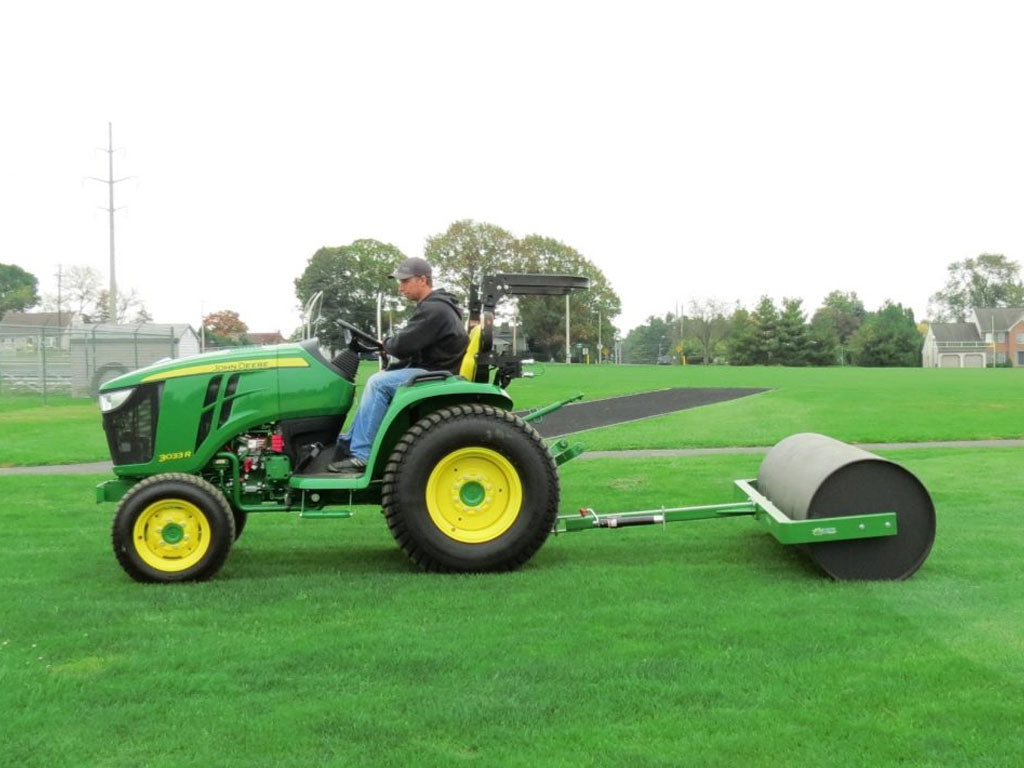

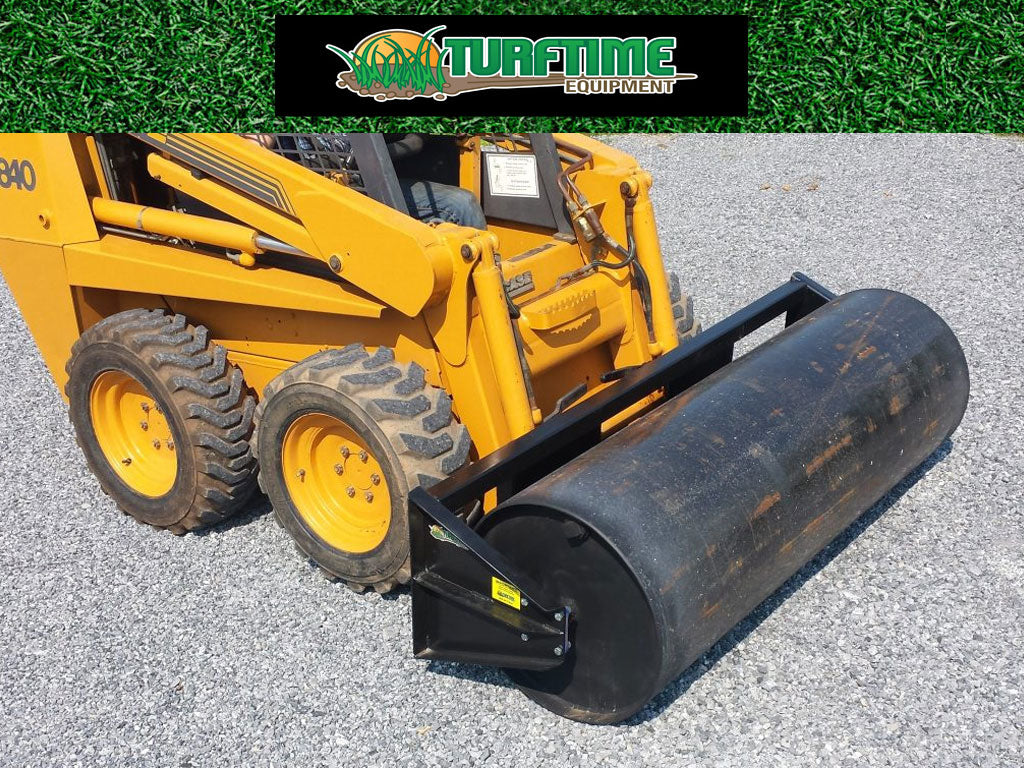

Whether you are installing sod, leveling a sports field, rolling a golf course fairway and greens, or improving a ball field, polo field or pasture, if you need to roll it you can count on TurfTime Equipment’s Heavy Duty Rollers to get the job done. Also, consider rolling to pack gravel paths and cart-ways.
Landscape Rollers |
LR-2460 | |||||
Model # | LR-2460 | LR-2472 | LR-2484 | LR-2496 | LR-24120 | LR-24144 |
Roller Diameter | 24″ | 24″ | 24″ | 24″ | 24″ | 24″ |
Roller Wall Thickness | 1/4″ | 1/4″ | 1/4″ | 1/4″ | 1/4″ | 1/4″ |
Rolling Width | 60″ | 72″ | 84” | 96″ | 120″ | 144″ |
Frame Width | 66″ | 78″ | 90” | 102″ | 126″ | 150″ |
Frame Wall Thickness | 3/16″ | 3/16″ | 3/16″ | 3/16″ | 3/16″ | 3/16″ |
Overall Length | 80″ | 80″ | 84” | 84” | 84” | 84” |
Weight Empty | 520 lbs. | 610 lbs. | 710 lbs. | 800 lbs. | 1035 lbs. | 1250 lbs. |
Weight Filled w/ Water | 1490 lbs. | 1745 lbs. | 2000 lbs. | 2270 lbs. | 3100 lbs. | 3400 lbs. |

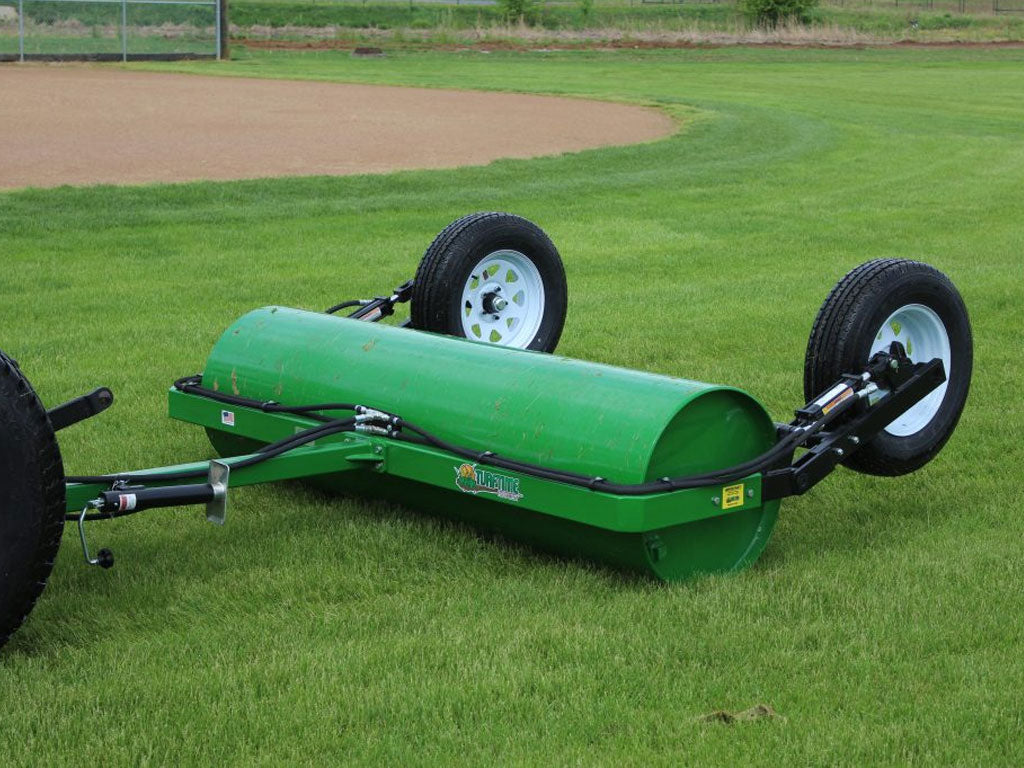

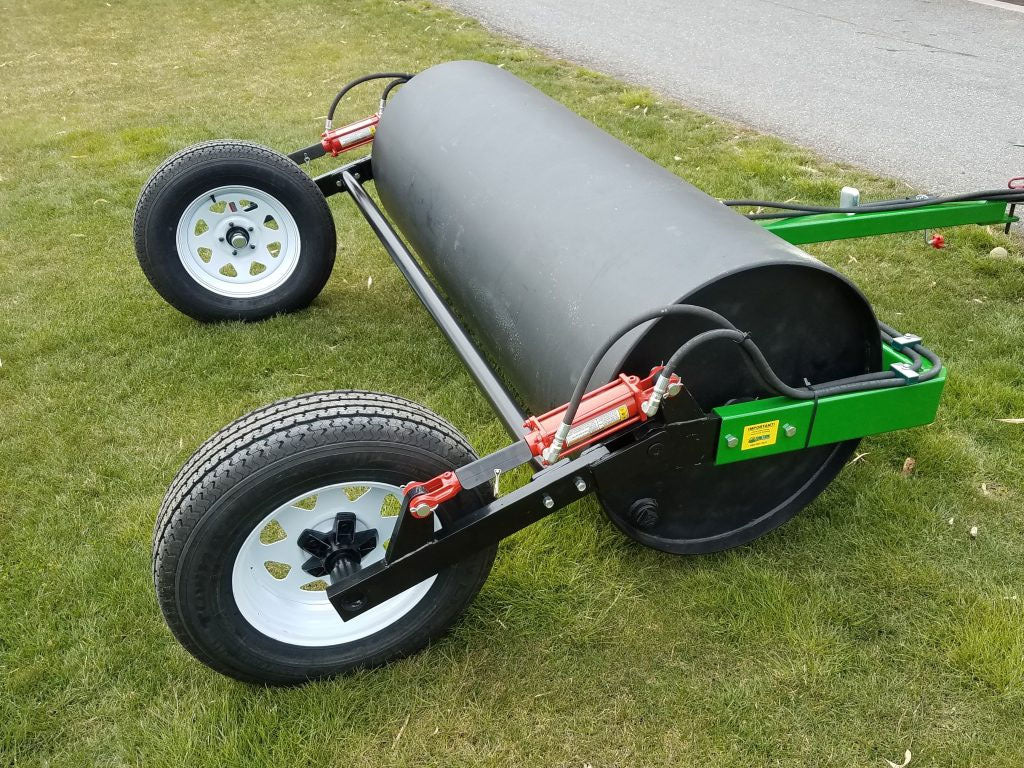

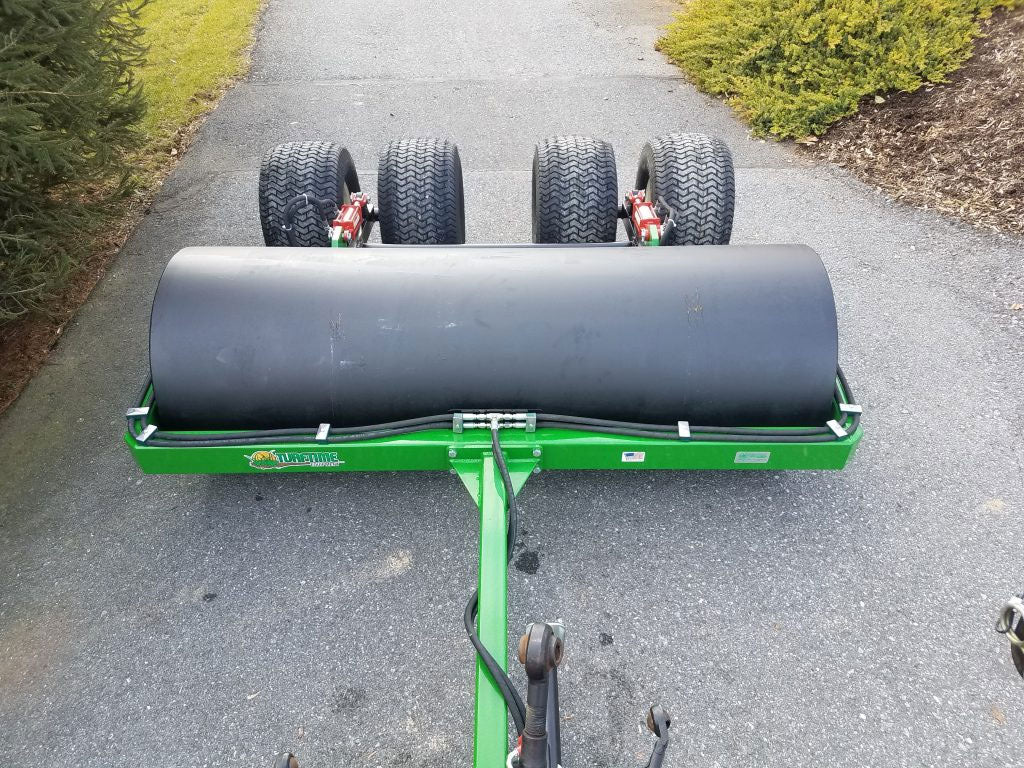

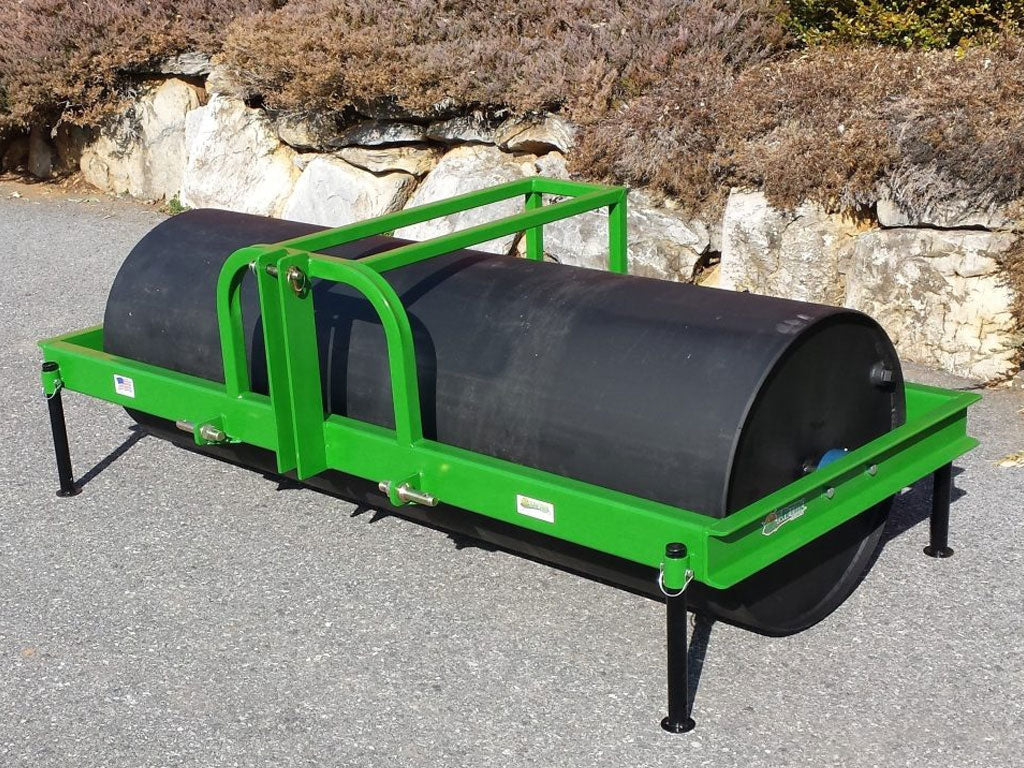

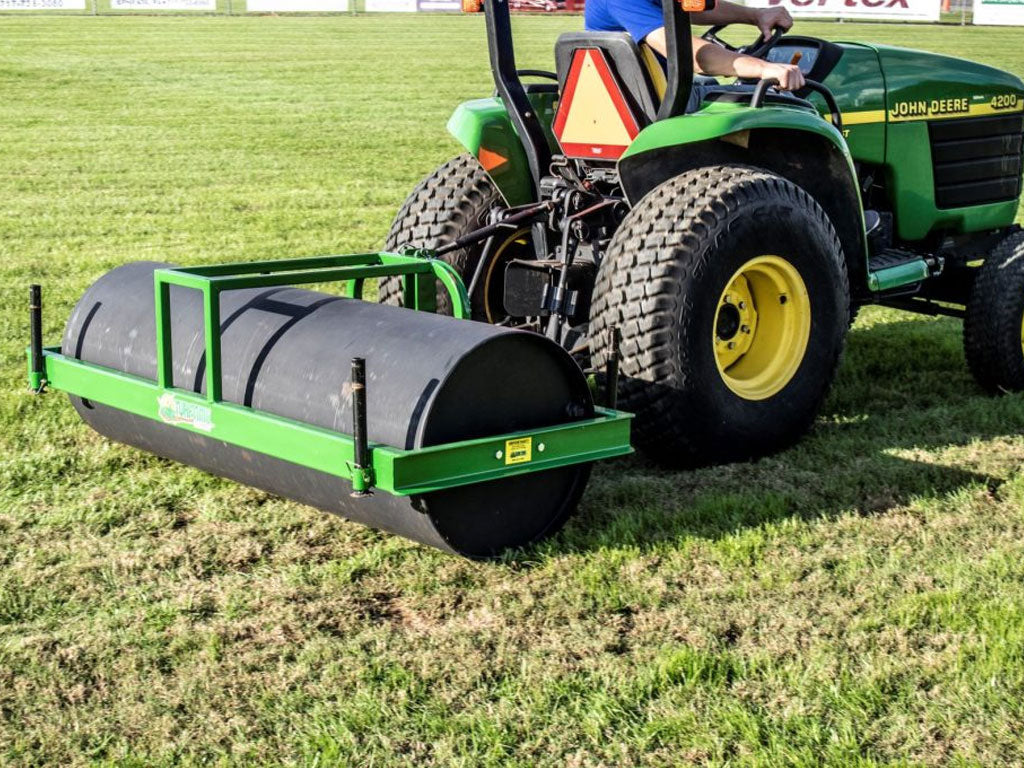

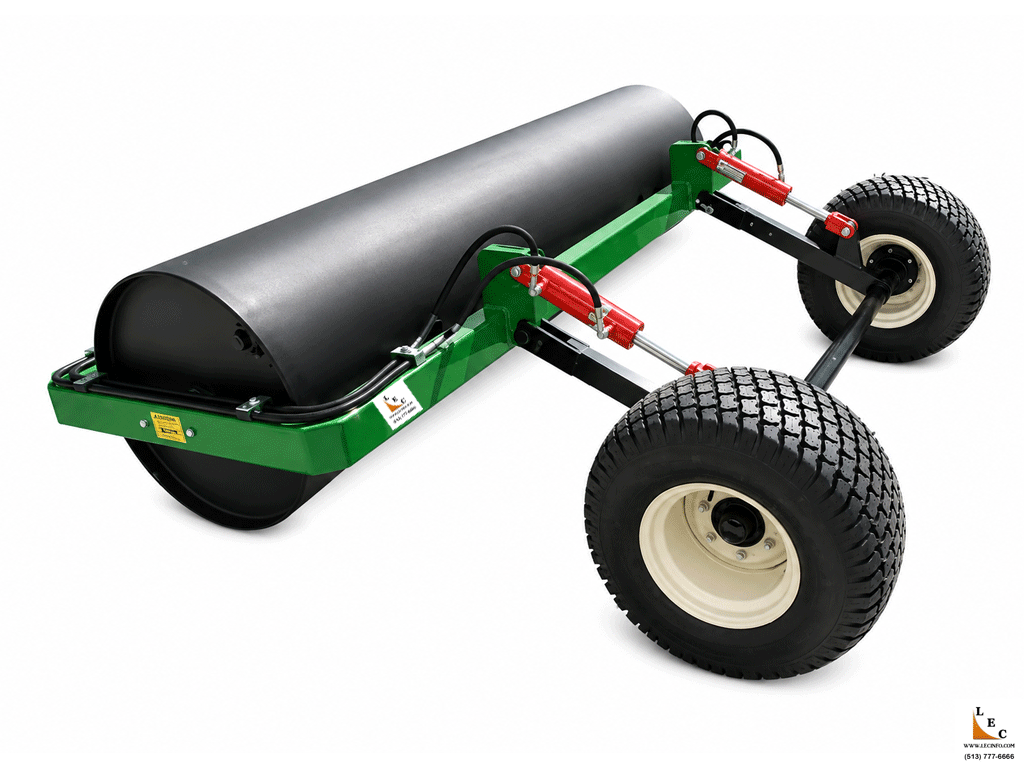

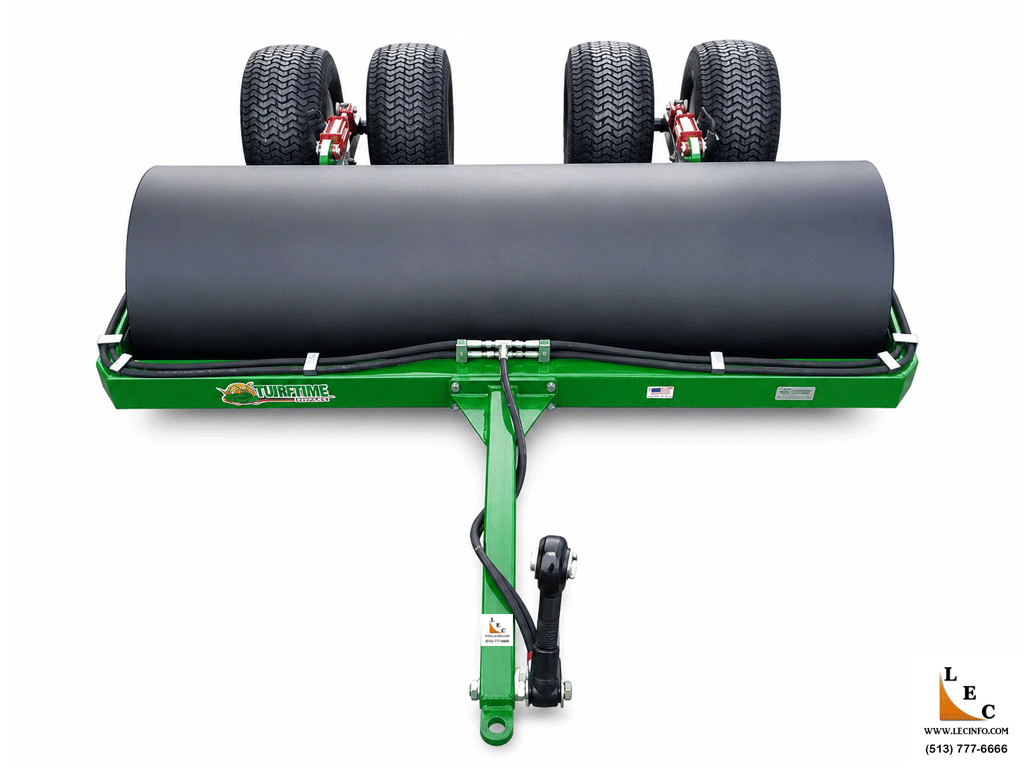

Wheel Kit w/ Hyd Lift | Optional: Hydraulic Wheel Kit or 3-point available for LR-24 Series Rollers | Optional: Hydraulic Wheel Kit or 3-point available for LR-24 Series Rollers | Optional: Hydraulic Wheel Kit or 3-point available for LR-24 Series Rollers | Optional: Hydraulic Wheel Kit or 3-point available for LR-24 Series Rollers | Optional: Hydraulic Wheel Kit or 3-point available for LR-24 Series Rollers | Optional: Hydraulic Wheel Kit or 3-point available for LR-24 Series Rollers |
ADVANTAGE Rollers |
(AR-24 Series) |
|||||
Model # | AR-2460 | AR-2472 | AR-2484 | AR-2496 | AR-24120 | AR-24144 |
Roller Diameter | 24″ | 24″ | 24″ | 24″ | 24″ | 24″ |
Roller Wall Thickness | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ |
Rolling Width | 60″ | 72″ | 84” | 96″ | 120″ | 144″ |
Frame Width | 66″ | 78″ | 90” | 102″ | 126″ | 150″ |
Frame Wall Thickness | 3/16″ | 3/16″ | 3/16″ | 3/16″ | 3/16″ | 3/16″ |
Overall Length | 84″ | 84″ | 84″ | 84″ | 84″ | 84″ |
Weight Empty | 720 lbs. | 870 lbs. | 950 lbs. | 1082 lbs. | 1300 lbs. | 1510 lbs. |
Weight Filled w/ Water | 1620 lbs. | 2000 lbs. | 2250 lbs. | 2570 lbs. | 3100 lbs. | 3730 lbs. |
Wheel Kit w/ Hyd Lift | Optional: Wheel Kit or 3-point Frame available for AR24-Series Rollers | Optional: Wheel Kit or 3-point Frame available for AR24-Series Rollers | Optional: Wheel Kit or 3-point Frame available for AR24-Series Rollers | Optional: Wheel Kit or 3-point Frame available for AR24-Series Rollers | Optional: Wheel Kit or 3-point Frame available for AR24-Series Rollers | Optional: Wheel Kit or 3-point Frame available for AR24-Series Rollers |
ADVANTAGE Rollers |
(AR-30 Series) |
|||||
Model # | AR-3060 | AR-3072 | AR-3084 | AR-3096 | AR-30120 | AR-30144 |
Roller Diameter | 30″ | 30″ | 30″ | 30″ | 30″ | 30″ |
Roller Wall Thickness | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ | 3/8″ |
Rolling Width | 60″ | 72″ | 84” | 96″ | 120″ | 144″ |
Frame Width | 66″ | 78″ | 90” | 102″ | 126″ | 150″ |
Frame Wall Thickness | 3/16″ | 3/16″ | 3/16″ | 3/16″ | 3/16″ | 3/16″ |
Overall Length | 88″ | 88″ | 88″ | 88″ | 88″ | 88″ |
Weight Empty | 870 lbs. | 1045 lbs. | 1220 lbs. | 1385 lbs. | 1750 lbs. | 2080 lbs. |
Weight Filled w/ Water | 2250 lbs. | 2700 lbs. | 3220 lbs. | 3688 lbs. | 4600 lbs. | 5520 lbs. |
Wheel Kit w/ Hyd Lift | Optional: Hydraulic Wheel Kit or 3-point Frame available for AR30-Series Rollers | Optional: Hydraulic Wheel Kit or 3-point Frame available for AR30-Series Rollers | Optional: Hydraulic Wheel Kit or 3-point Frame available for AR30-Series Rollers | Optional: Hydraulic Wheel Kit or 3-point Frame available for AR30-Series Rollers | Optional: Hydraulic Wheel Kit or 3-point Frame available for AR30-Series Rollers | Optional: Hydraulic Wheel Kit or 3-point Frame available for AR30-Series Rollers |
