ADHT36H

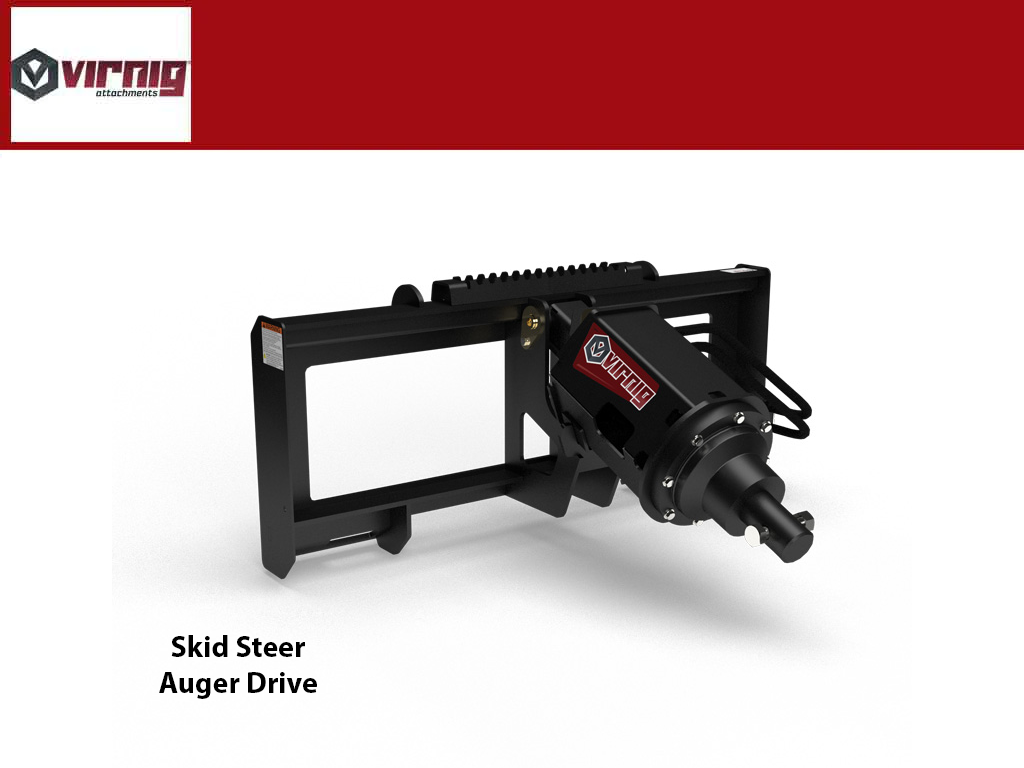

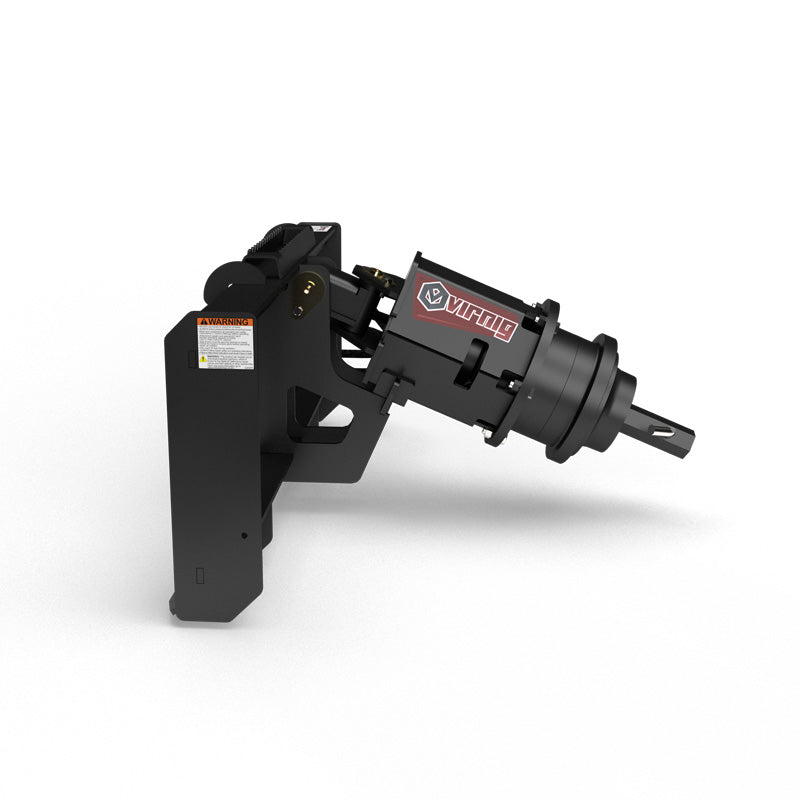

VIRNIG high torque auger drive

Name: VIRNIG high torque auger drive
Brand: Virnig
SKU: ADHT36H
Price: 4160.0 USD
Availability: InStock

$4,160.00

Auger Drive High Torque

2″ hex output & 20% more torque for the toughest drilling conditions.

HOSES ROUTED FROM TOP OF HOUSING FOR DEEPER DRILLING
PLANETARY REDUCTION WITH 2″ HEX OUTPUT
PREMIUM PARKER® MOTOR WITH HYDRAULIC PRESSURE RELIEF PROTECTION
BI-DIRECTIONAL AUGER ROTATION

Supports auger bits up to 36″ in diameter.

MODEL	ADHT36
Overall Height/Width/Depth (Inches)	20.5 / 47.3 / 37.0
Maximum Standard/Tree Auger Bit Size (Inches)	36.0
Maximum Rock Auger Bit Size (Inches)	18.0
Recommended Flow Rate (GPM)	15-27
Output Torque @ 2000 PSI (ft.-lbs.)	2230
Output Torque @ 2500 PSI (ft.-lbs.)	2790
Output Torque @ 3000 PSI (ft.-lbs.)	3345
Output Torque @ 3500 PSI (ft.-lbs.)	3905
Output Speed @ 16 GPM (RPM)	44
Output Speed @ 22 GPM (RPM)	61
Output Speed @ 27 GPM (RPM)	74
Approximate Weight (Pounds)	305

COMPARE

Name (Model)	Recommended Flow Rate (GPM)	Output Torque @ 2500 PSI (FT-LBS)	Output Torque @ 3000 PSI (FT-LBS)	Output Torque @ 3500 PSI (FT-LBS)	Output Speed @ 16 GPM (RPM)	Output Speed @ 20 GPM (RPM)	Output Speed @ 24 GPM (RPM)	Weight (lbs)

WHY DOES VIRNIG USE A PLANETARY GEAR REDUCTION SPINDLE OVER CHAIN DRIVE?

Virnig uses planetary gear reduction to transfer power from the motor to the output shaft and bit. Using a planetary provides several advantages over chain drive augers, including:

Increased Torque: Planetary typically provides higher torque output, which helps power through harder soil.

Greater Efficiency: Planetary reduction offers greater efficiency compared to chain drive. More of the power is translated into torque at the auger bit. This provides faster drilling times and lower fuel consumption.

Reduced Maintenance: Chain drive augers require regular maintenance to keep the chain properly tensioned and lubricated. In contrast, planetary reduction systems require less maintenance and have fewer parts that will wear and break over time.

Longer Lifespan: Planetary reduction auger drives tend to have a longer lifespan than chain drive augers, due to the reduced wear and tear on the drive system.

Overall, planetary reduction can offer greater drilling performance, efficiency, and longevity compared to chain drive augers.

WHAT ARE THE ADVANTAGES OF HEX OUTPUT?

Hex augers have a hexagonal shape, which provides better torque transfer from the drive unit to the bit. This means hex augers can handle higher loads and are less likely to slip or strip compared to round output augers.

Hex augers have a more stable connection to the drive unit, which helps to reduce wobbling during operation. This results in smoother operation and more precise digging.

It’s easier to attach and detach auger bits on a hex drive. A round drive requires aligning two circles properly. Also, Virnig Augers with hex output secure bits with a pin, which is easier to attach and remove than a bolt and nut used on round auger drives. This reduces downtime and increases productivity.

DOES THE VIRNIG AUGER DRIVE HIGH TORQUE USE A HEX OR ROUND OUTPUT?

The Auger Drive High Torque has a 2” hex output shaft. 2-9/16” round output isn’t available for the ADHT36.

CAN I USE THE AUGER DRIVE HIGH TORQUE WITH HIGH FLOW?

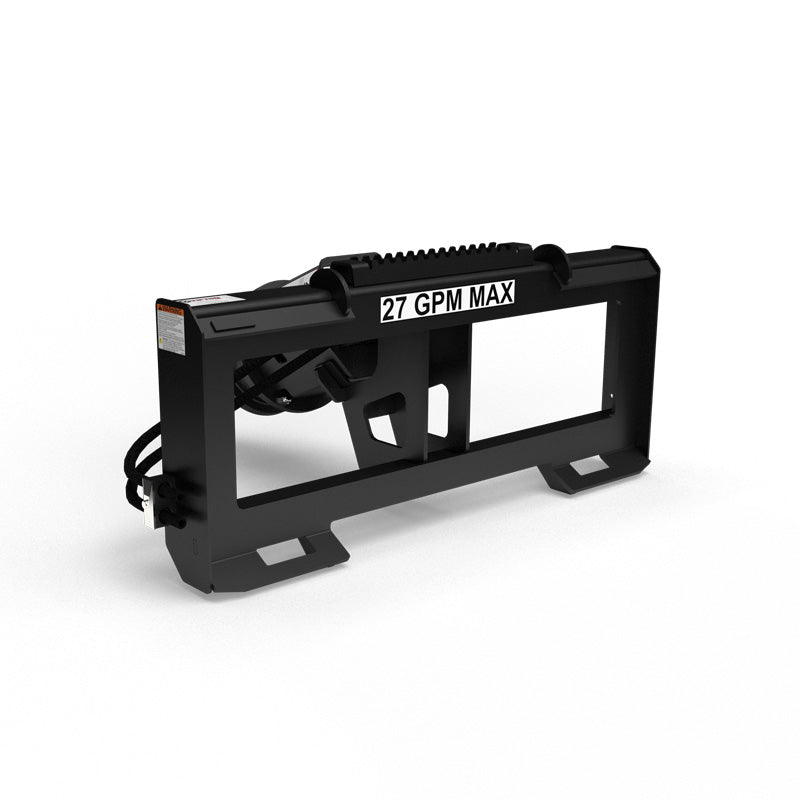

The Virnig Auger Drive High Torque (ADHT36) motors are rated for 15-27 GPM with zero overflow tolerance. Operating higher than 27 GPM will void the warranty and can cause catastrophic failure.

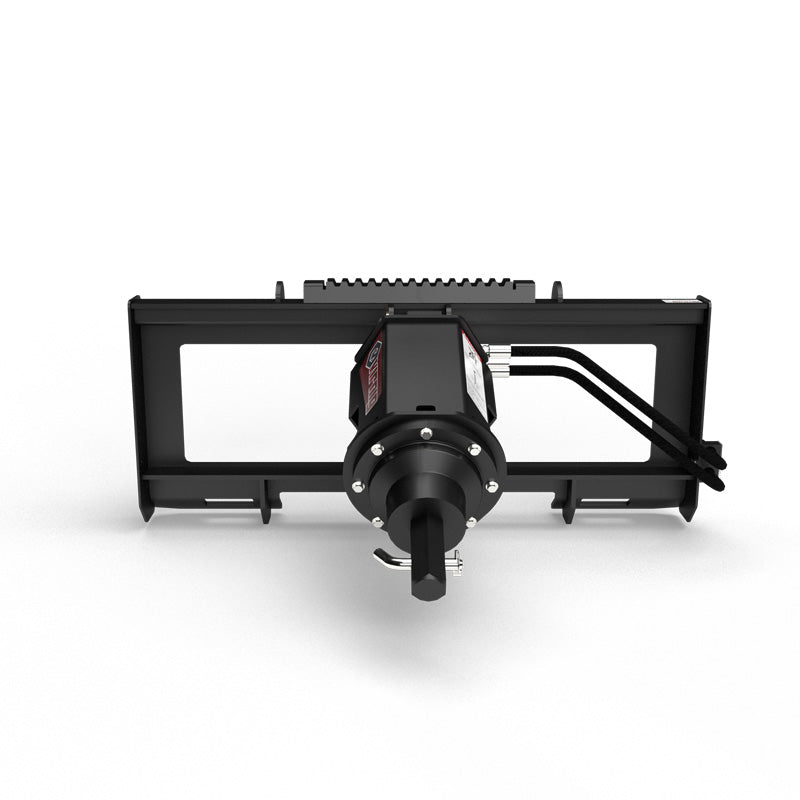

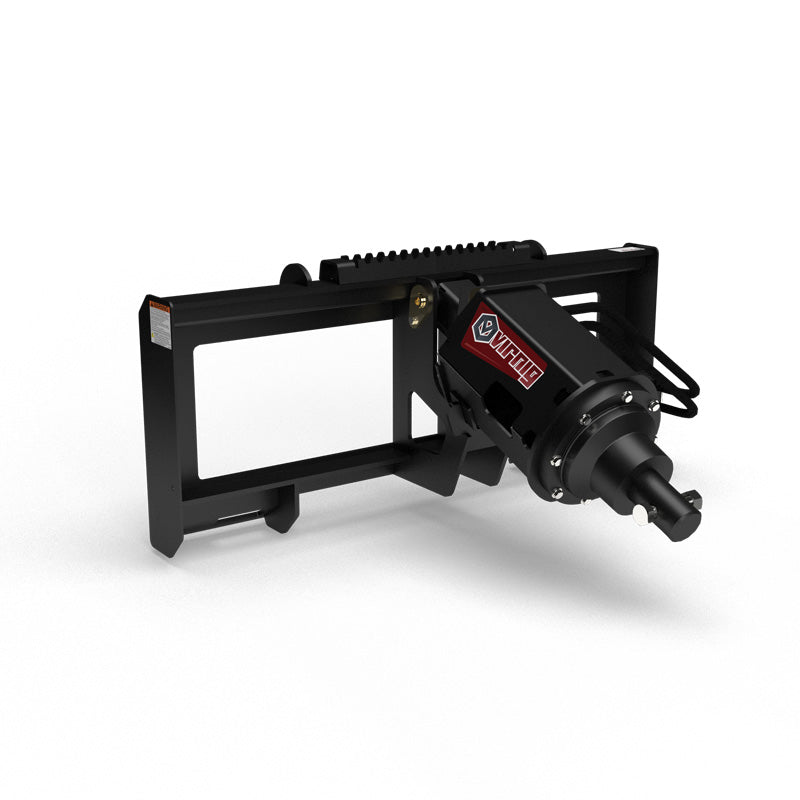

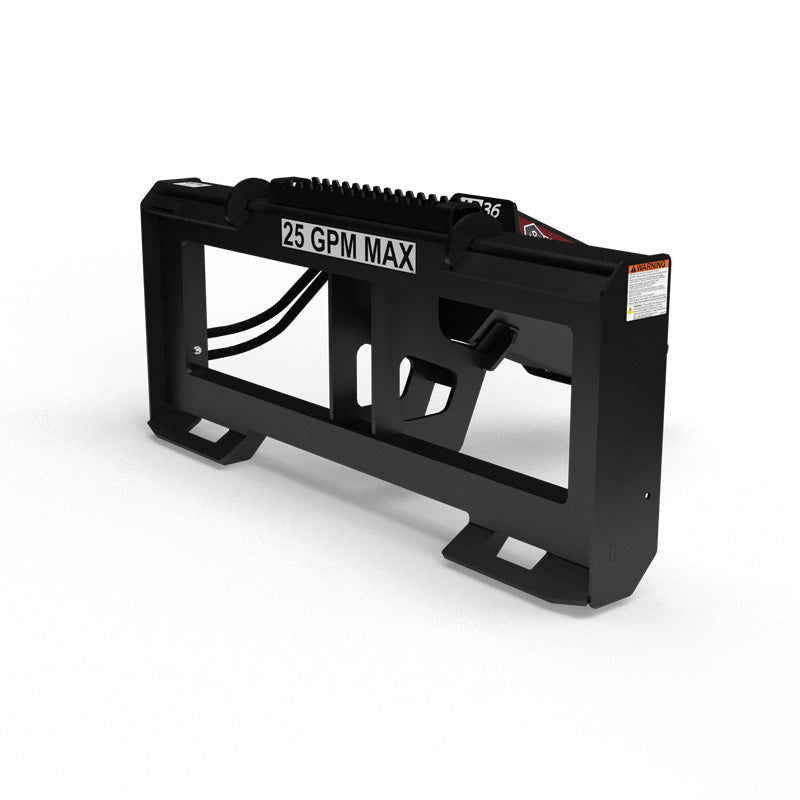

Auger Drive (AD36)	15-25	2,275	2,730	3,190	54	67	81	280
Auger Drive High Torque (ADHT36)	15-27	2,790	3,345	3,905	44	55	66	305
