FPV

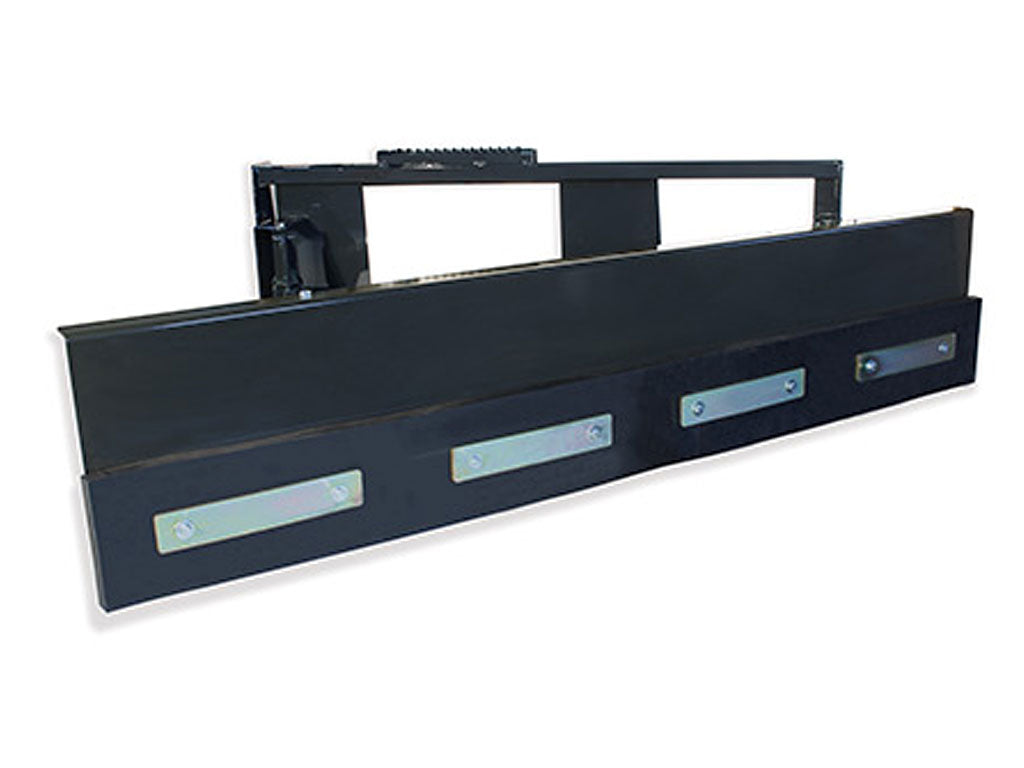

Virnig Feed Pusher

Name: Virnig Feed Pusher
Brand: Virnig
SKU: FPV
Price: 2030.0 USD
Availability: InStock

$2,030.00

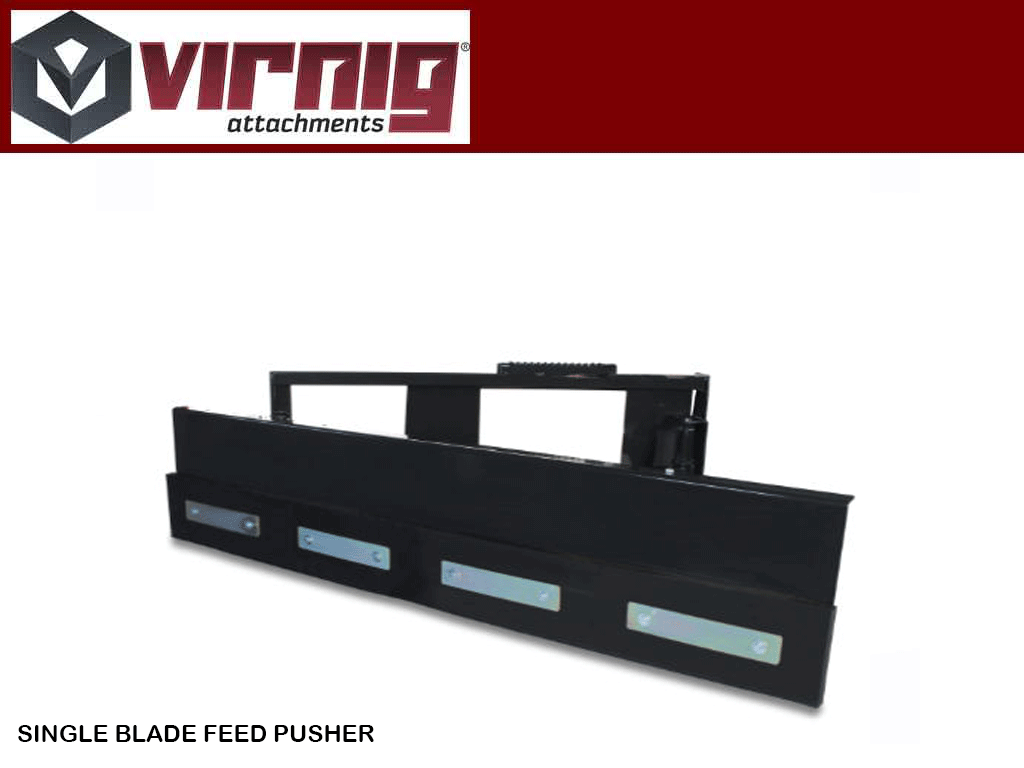

SINGLE BLADE FEED PUSHER

Virnig Feed Pusher has multiple width and angle adjustments with a replaceable rubber edge.

Manufactured with a universal mount to fit most skid steer loaders.
Five width adjustments keeps feed away from tires.
Eight angle adjustments keeps feed moving efficiently.
1 ½” x 10” reversible, replaceable rubber edge allows 6” of total wear.
Rubber edge is effective at scraping clean paths on uneven ground so feed doesn’t get run over.
Rubber edge dampens vibrations, is gentle on concrete, and will not rust.

MODEL	FPV
Overall Width, Straight (Inches)	96.0
Overall Height (Inches)	20.0
Width Adjustment Position	1	2	3	4	5
Angle: Min / Max (Degrees)	38.4 / 58.2	40.9 / 61.6	43.0 / 65.0	44.6 / 68.3	45.6 / 71.7
Push Width: Min / Max (Inches)	50.5 / 75.2	45.6 / 72.5	40.5 / 70.2	35.4 / 68.3	30.1 / 67.2
Discharge Distance: Min / Max (Inches) (Measured from Center Line of Loader)	48.7 / 49.5	51.3 / 53.9	53.3 / 58.1	54.6 / 62.1	55.3 / 66.0
Approximate Weight (Pounds)	520
