CPR48

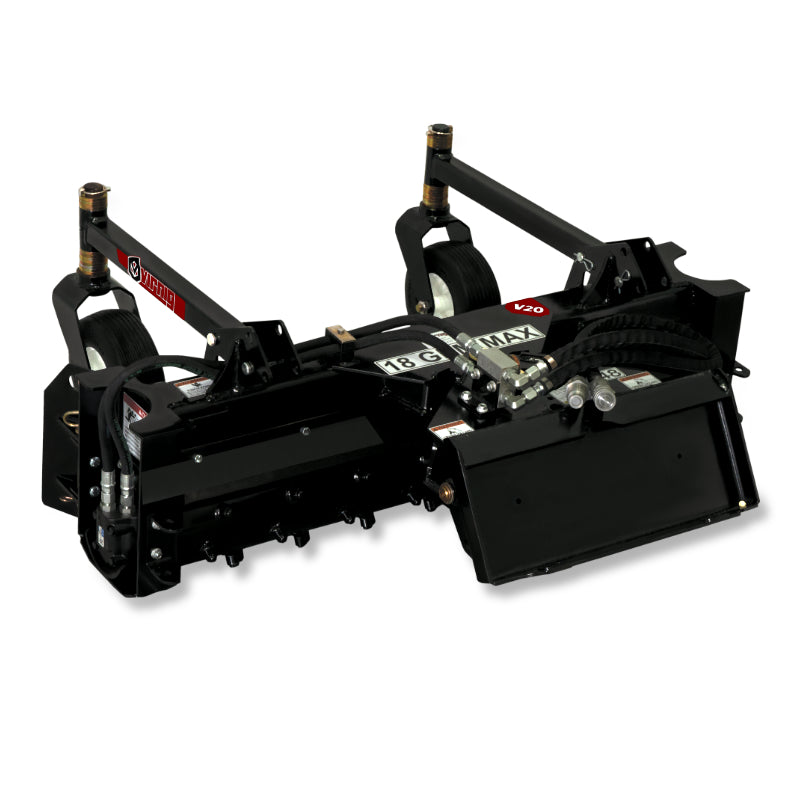

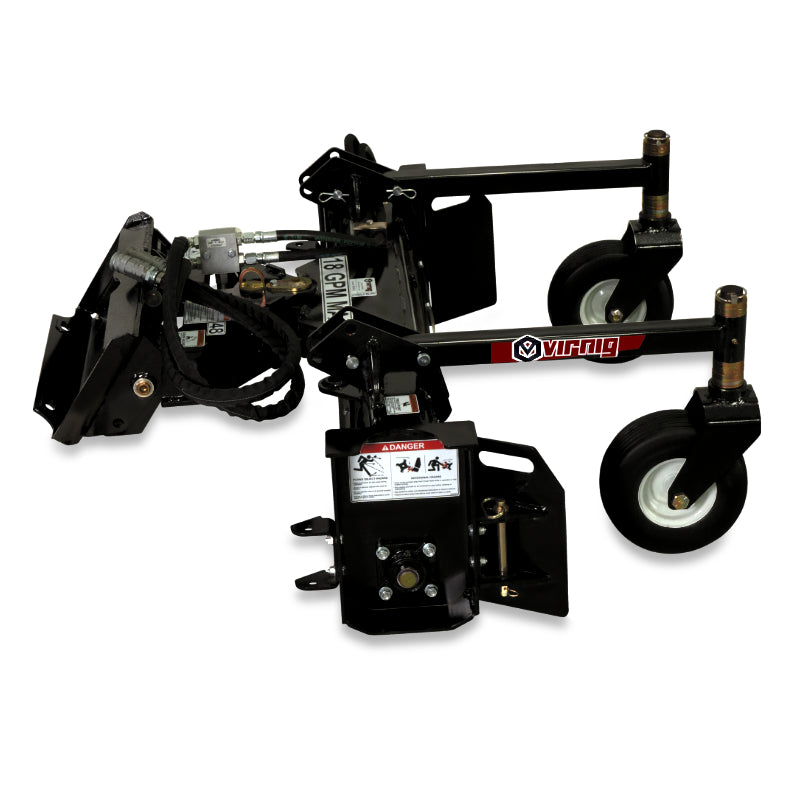

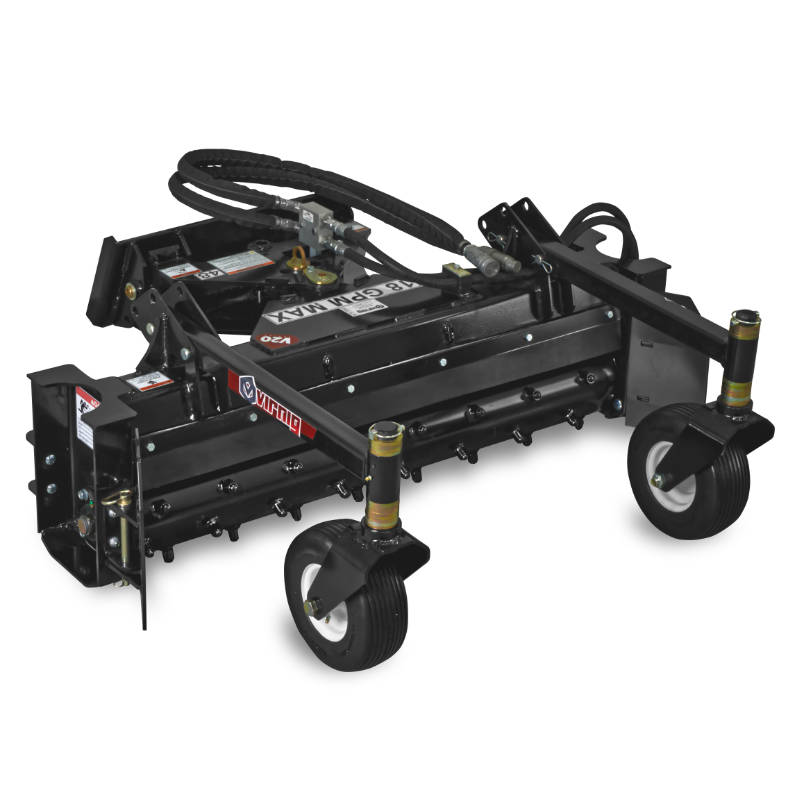

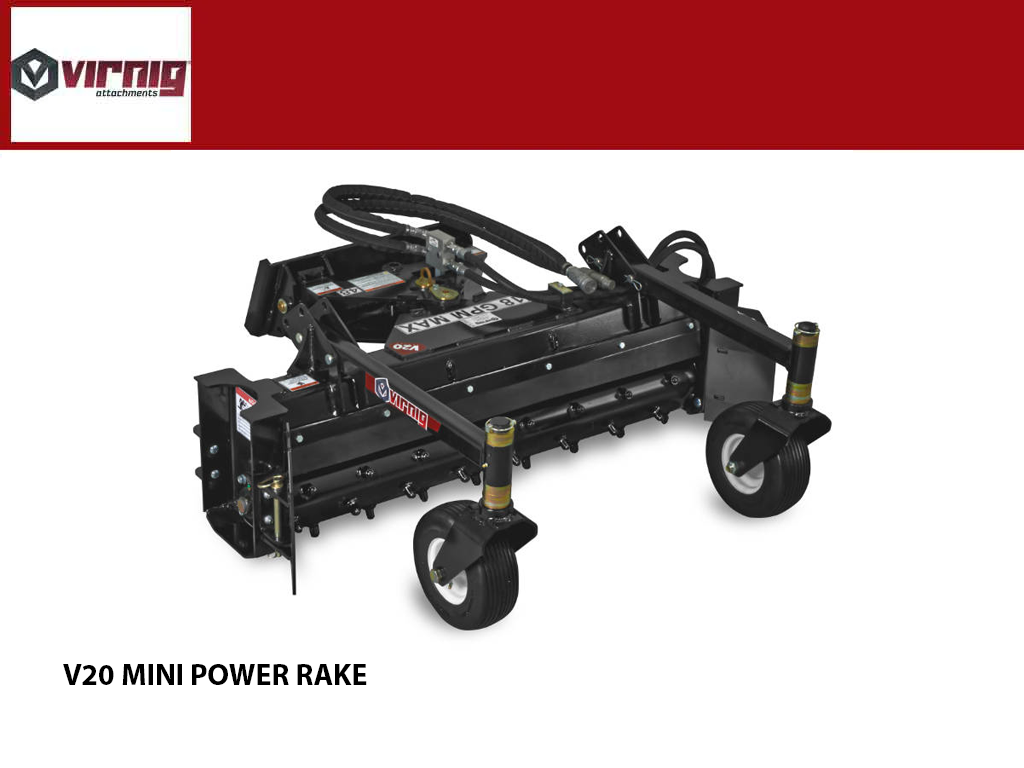

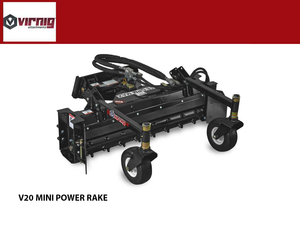

Virnig v20 Mini Skid Steer Power Rake
$9,090.00 - $12,030.00
Grade soil and gravel, prepare seedbeds and remove debris.
Available Widths 48″ & 60″
- BI-DIRECTIONAL OPERATION IN FORWARD OR REVERSE
- REVERSIBLE & REMOVEABLE END PLATES
- ANGLE THE RAKE 25° LEFT OR RIGHT
- GUARDED MOTOR
- FLOATING DESIGN FOR A SMOOTH FINISH & PROVIDES FULL DOWN PRESSURE CAPABILITY
- CARBIDE TIP TEETH
| MODEL | CPR48 | CPR60 |
| Raking Width (Inches) | 48.0 | 60.0 |
| Raking Width at Full Angle (Inches) | 44.0 | 54.2 |
| Overall Width (Inches) | 56.0 | 68.0 |
| Overall Height (Inches) | 22.2 | 22.2 |
| Overall Depth (Inches) | 52.6 | 52.6 |
| Drum Diameter (Inches) | 7.0 | 7.0 |
| Number of Teeth | 62 | 78 |
| Float Link Angle (Degrees) | 22 | 22 |
| Max Rake Angle (Degrees) | 25 | 25 |
| Recommended Flow Rate (GPM) | 10-18 Standard Flow Only | 10-18 Standard Flow Only |
| Approximate Weight (Pounds) | 5201 | 5651 |
| Recommended Loader Capacity | Greater than 515 pounds | Greater than 515 pounds |
