SRGV60-CT/9332PP-USED
VIRNIG V30 60" Skeleton Rock Grapple - Used
$1,999.00$3,230.00

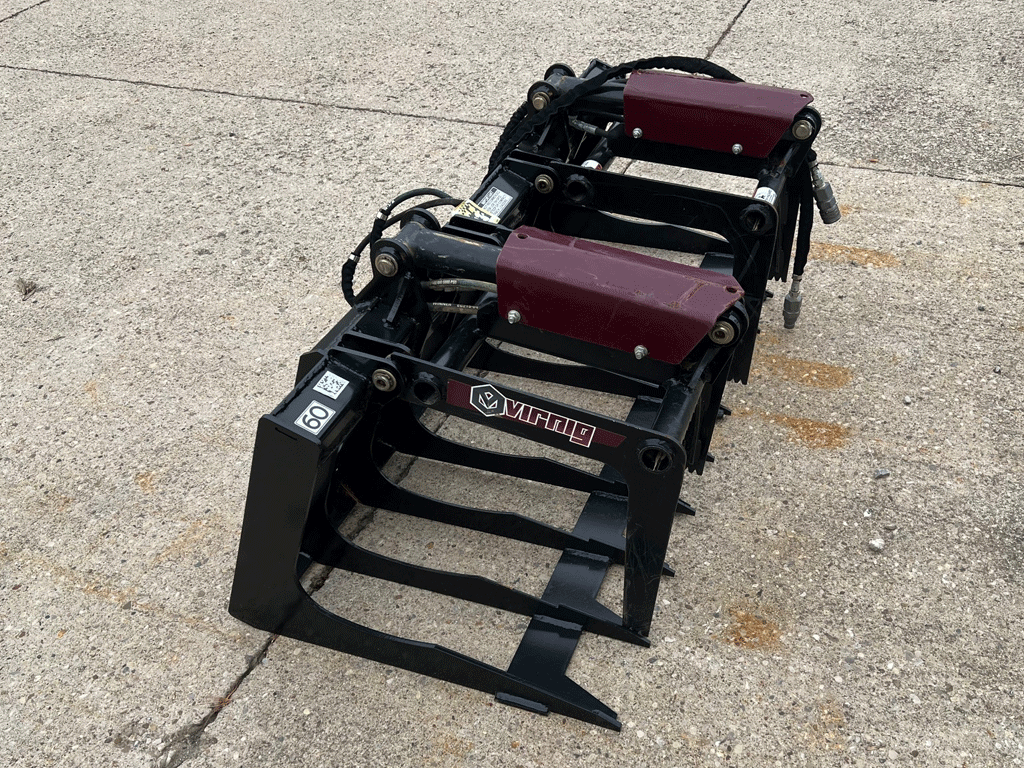

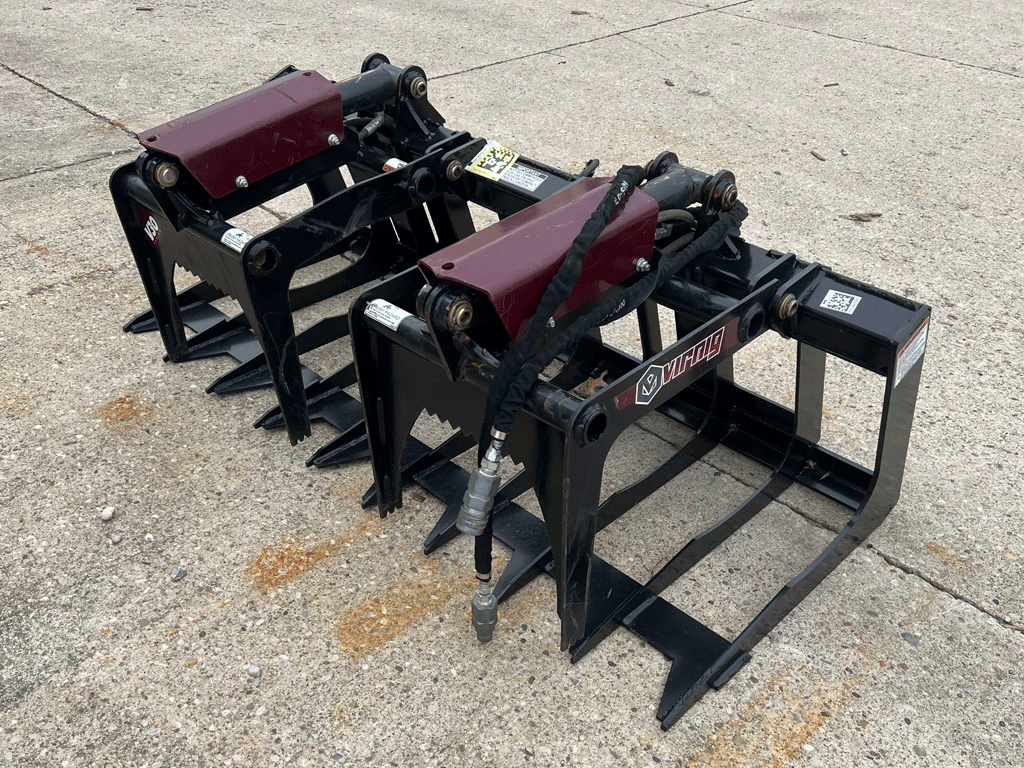

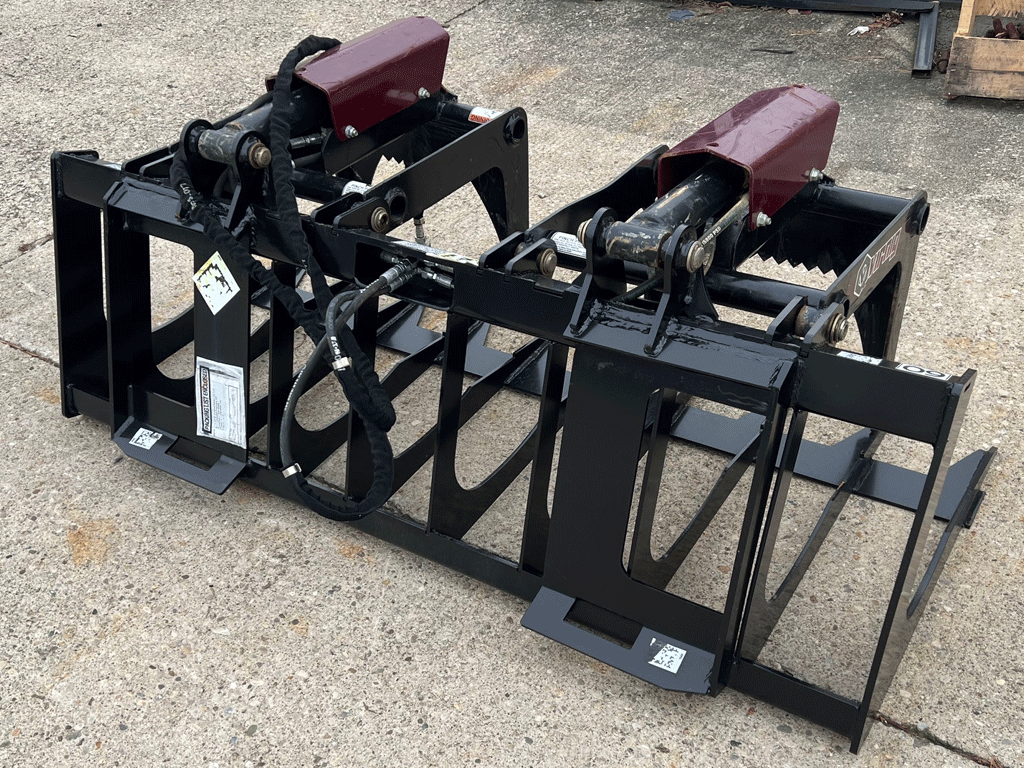

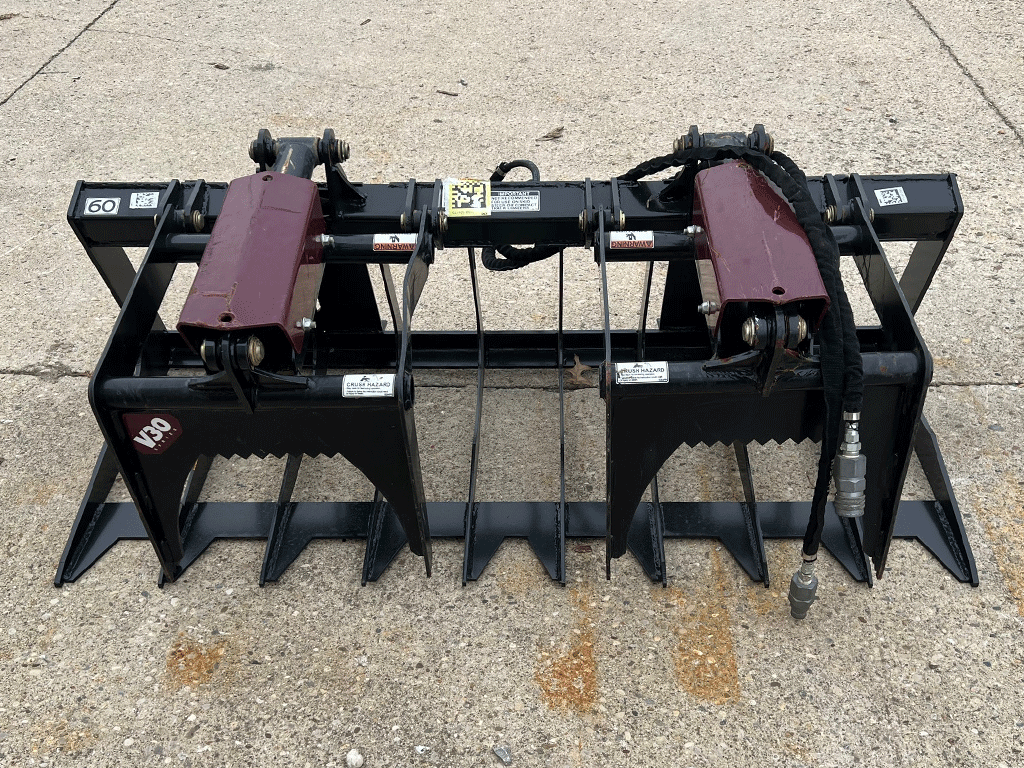

VIRNIG V30 60" SKELETON ROCK GRAPPLE
- USED - NO WARRANTY
- UNIVERSAL (BOBCAT SSL) MOUNTING
- BOTTOM PART OF THE GRAPPLE IS NEW / ORDERED FROM VIRNIG
- HAS OPTIONAL CYLINDER GUARDS AND HOSES & FITTINGS
SPECS
| MODEL | SRGV60-CT |
| Overall Width (Inches) | 60.9 |
| Height: Overall / Bucket (Inches) | 22.9 / 19.0 |
| Depth: Overall / Inside (Inches) | 29.0 / 23.5 |
| Number of Tines (With Sides) | 19 |
| Space Between Tines (Inches) | 3.1 |
| Tine Thickness (Inches) | 0.25* |
| Side Plate Thickness (Inches) | 0.375* |
| Grapple Jaw Opening (Inches) | 28.7 |
| Cylinder Bore / Stroke (Inches) | 2.0 / 6.0 |
| Cylinder Pins / Hinge Pins Diameter (Inches) | 1.0 |
| Approximate Weight (Pounds) | 385 |
| Recommended Loader Capacity | Less than 1,500 pounds |
*Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).
