DHV60EX

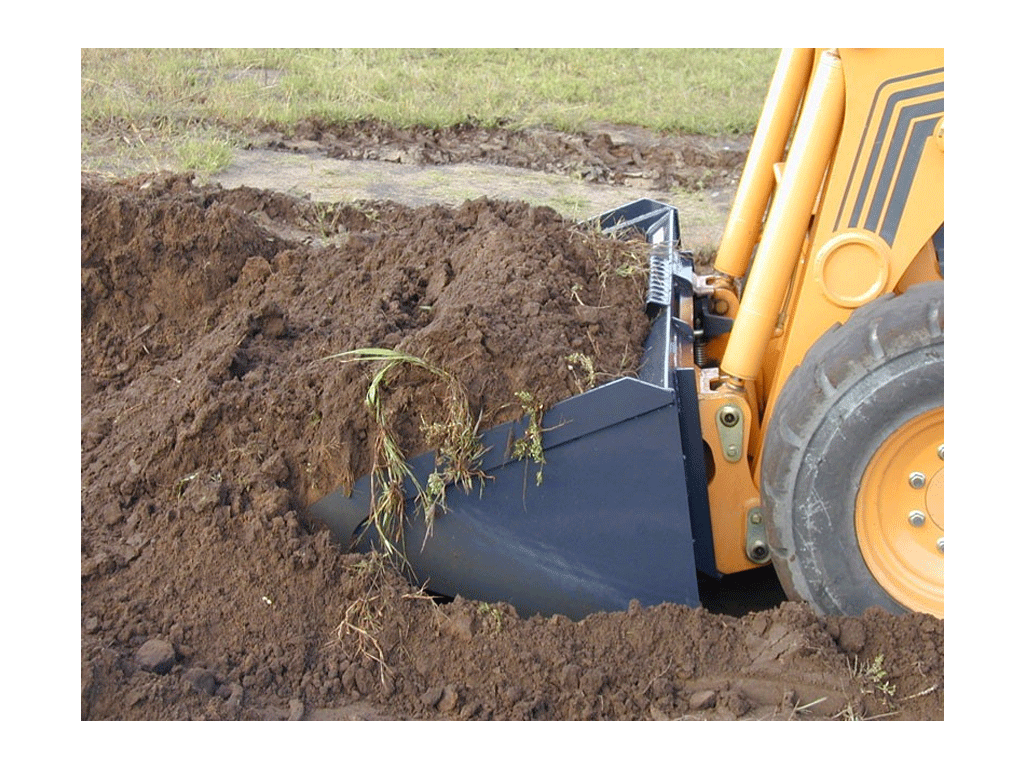

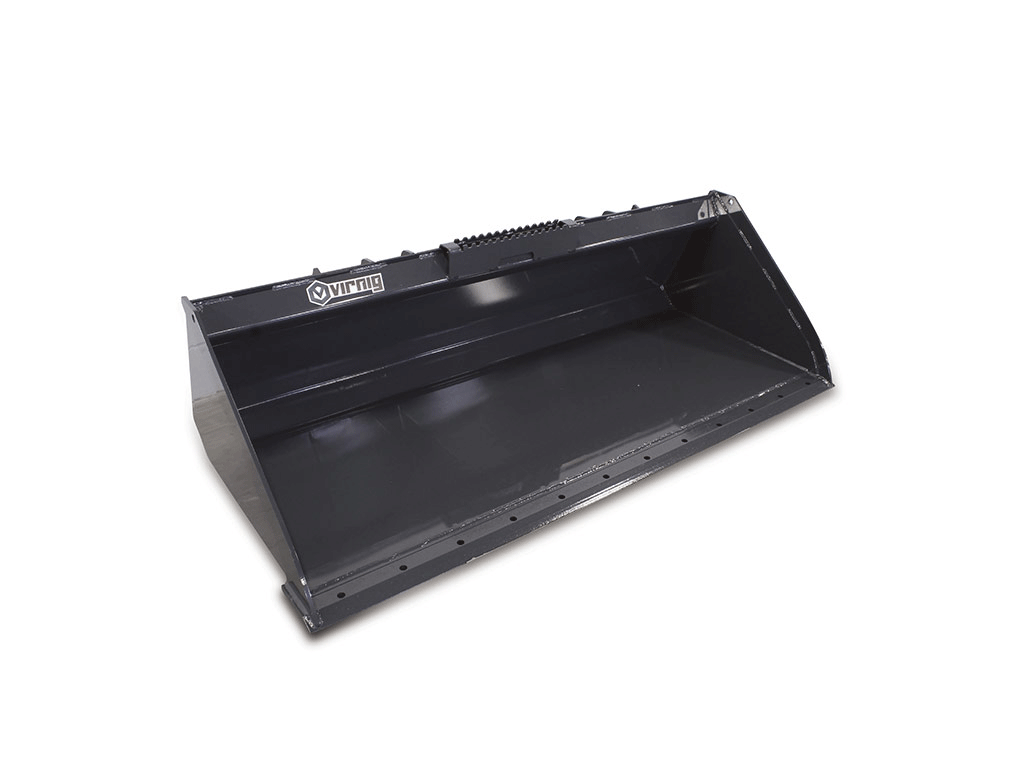

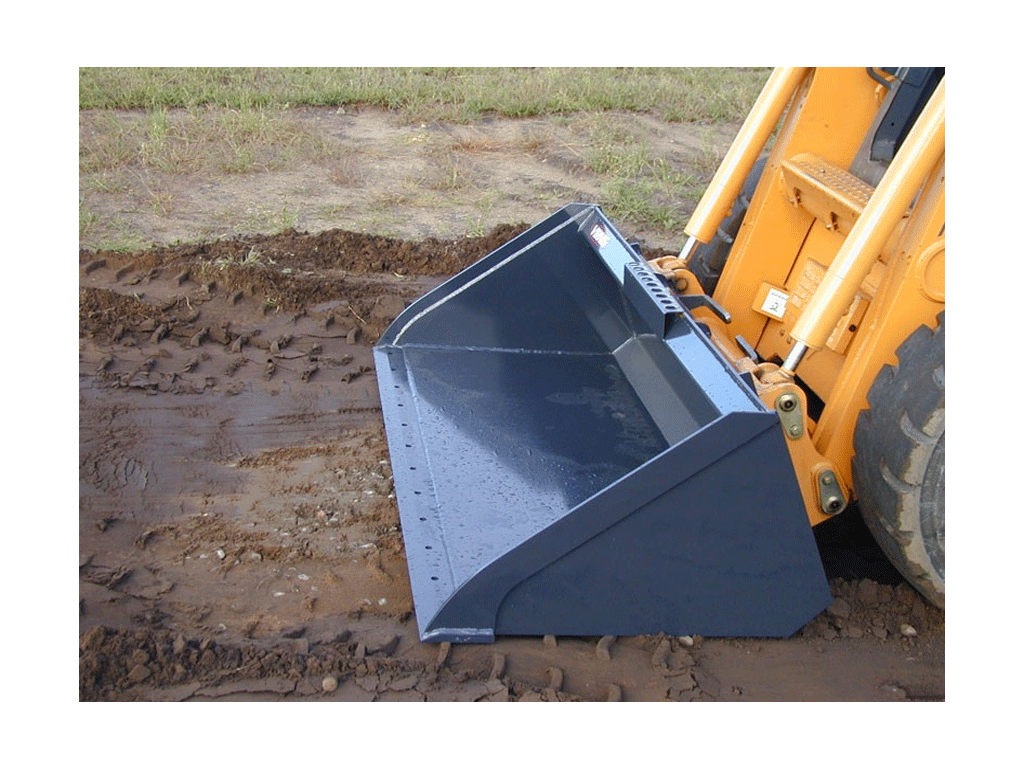

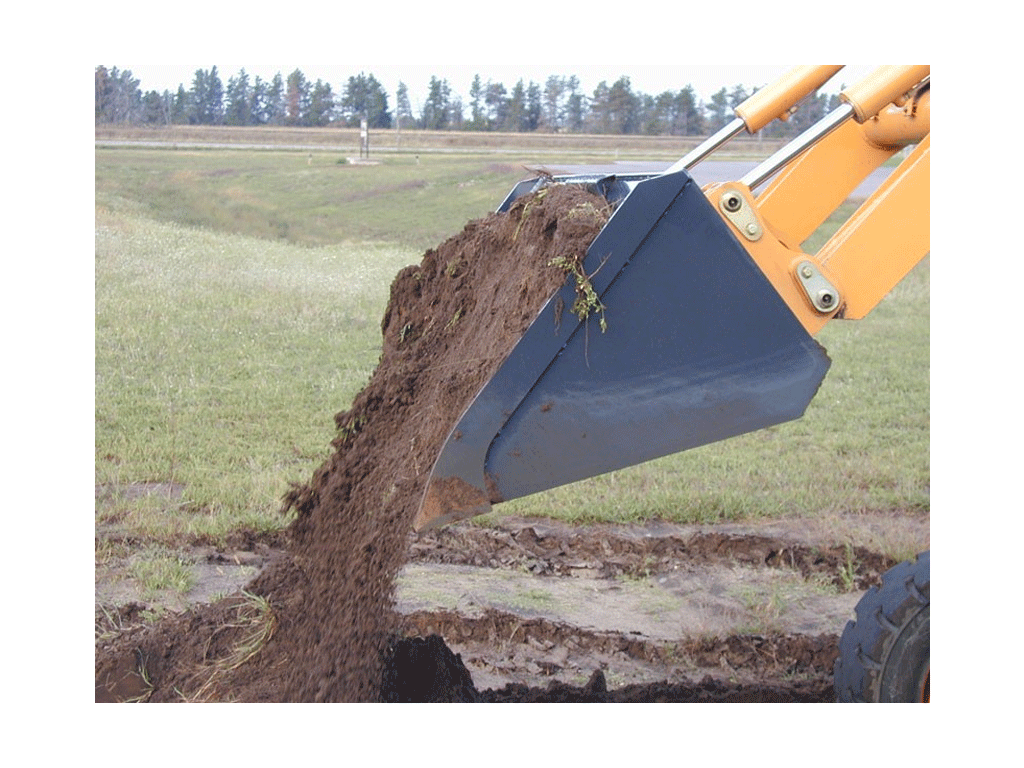

Virnig V50 Low Profile Dirt Bucket (SSL)(CTL)

Size
Edge

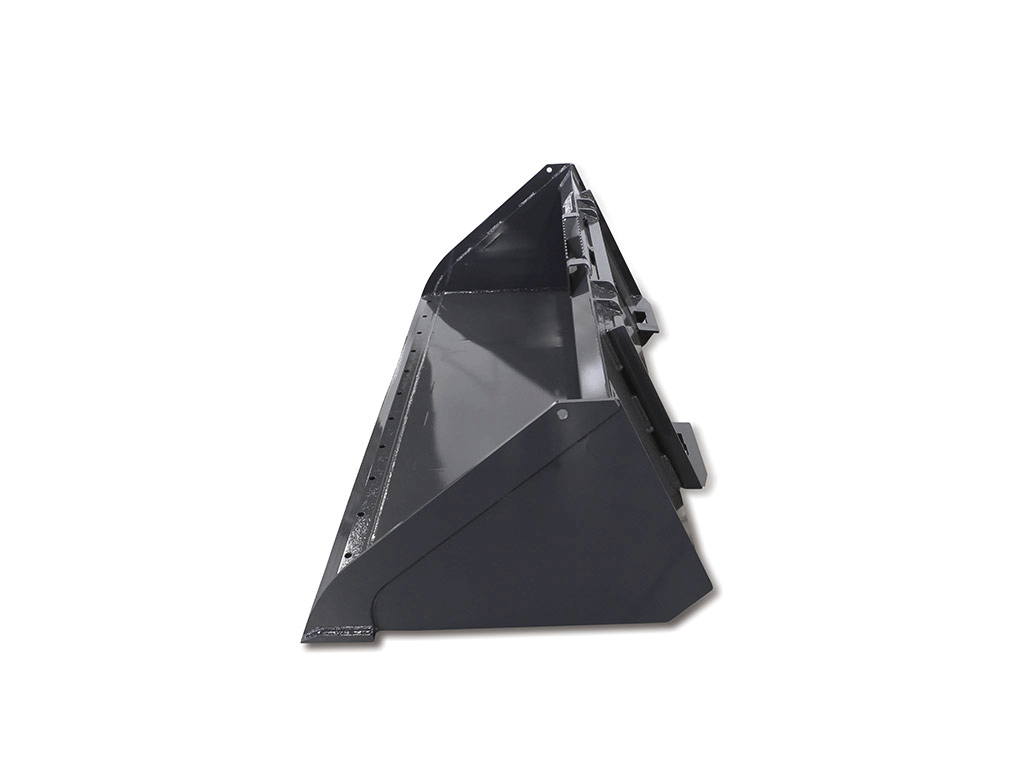

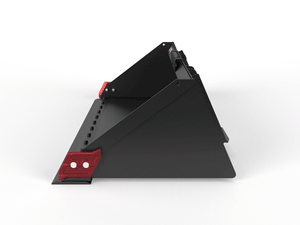

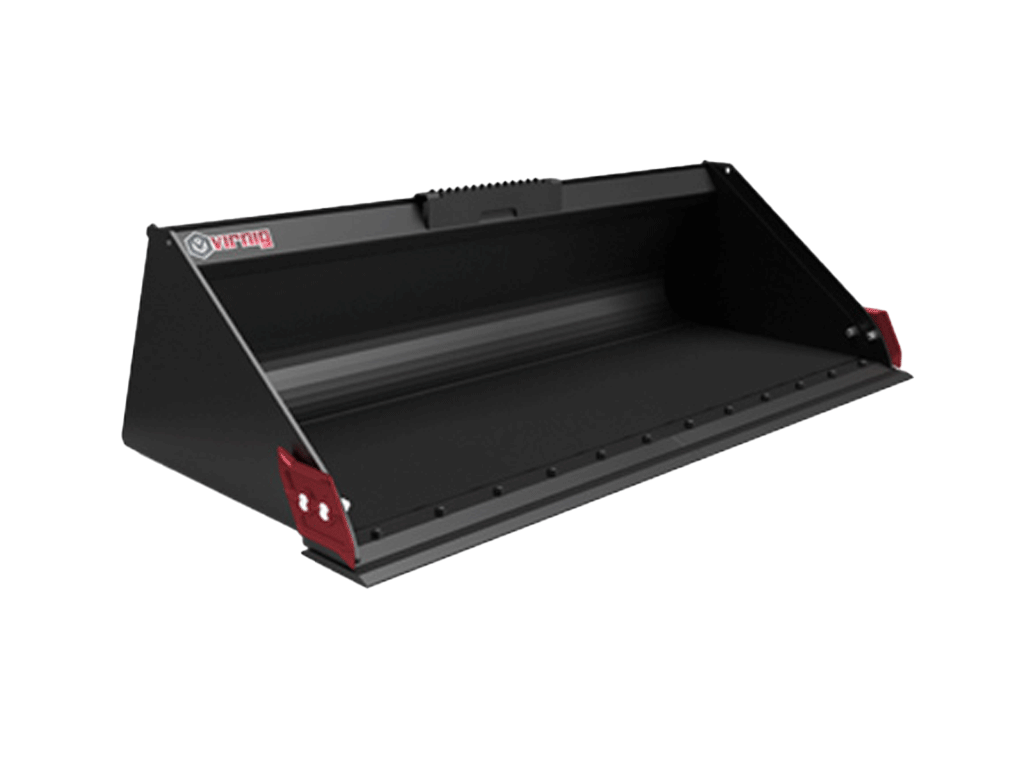

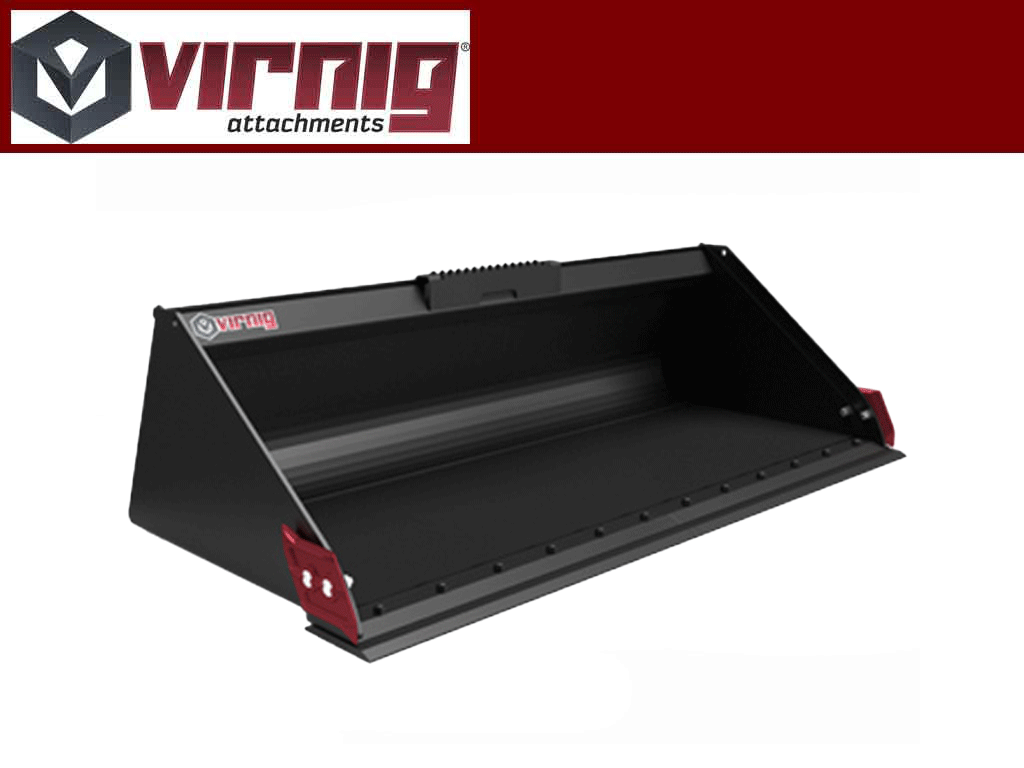

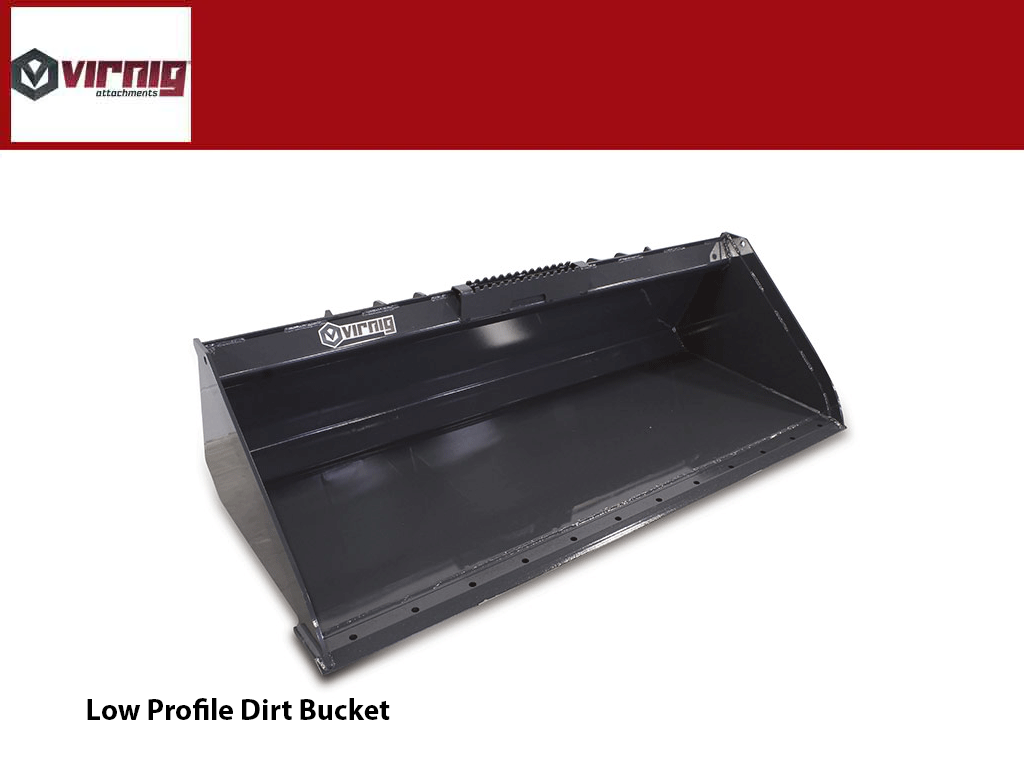

Virnig V50 Dirt Bucket is a Grade 50 steel construction and has a low profile and extended bottom for better visibility of cutting edge.

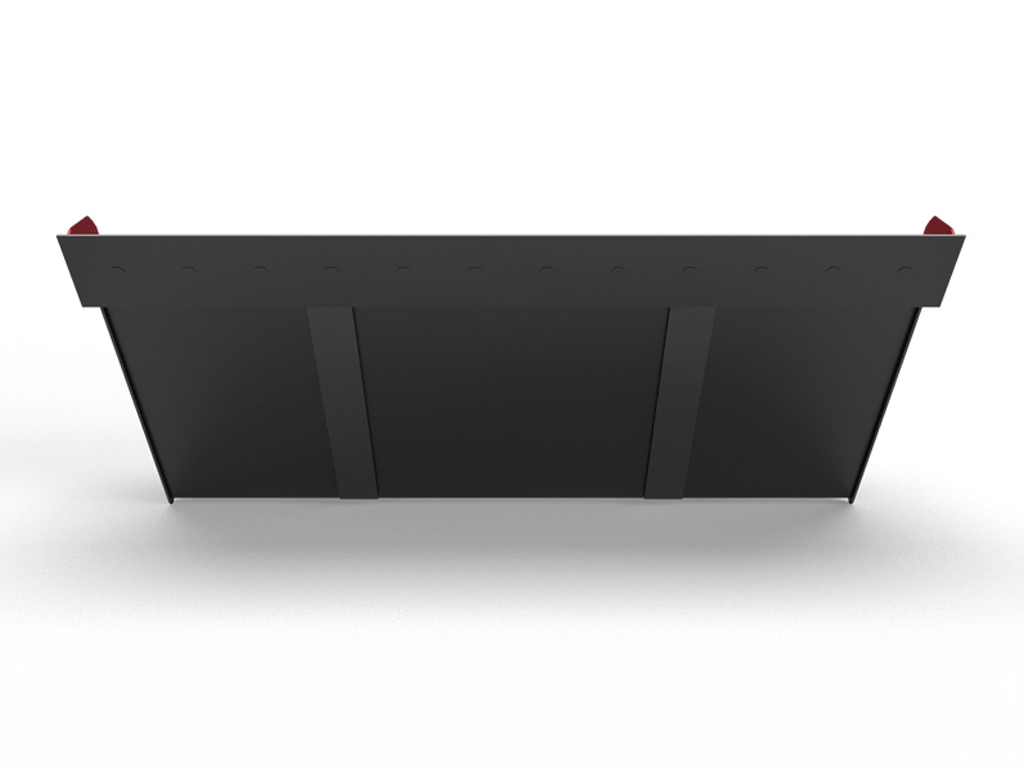

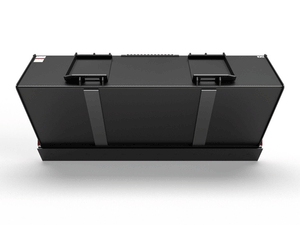

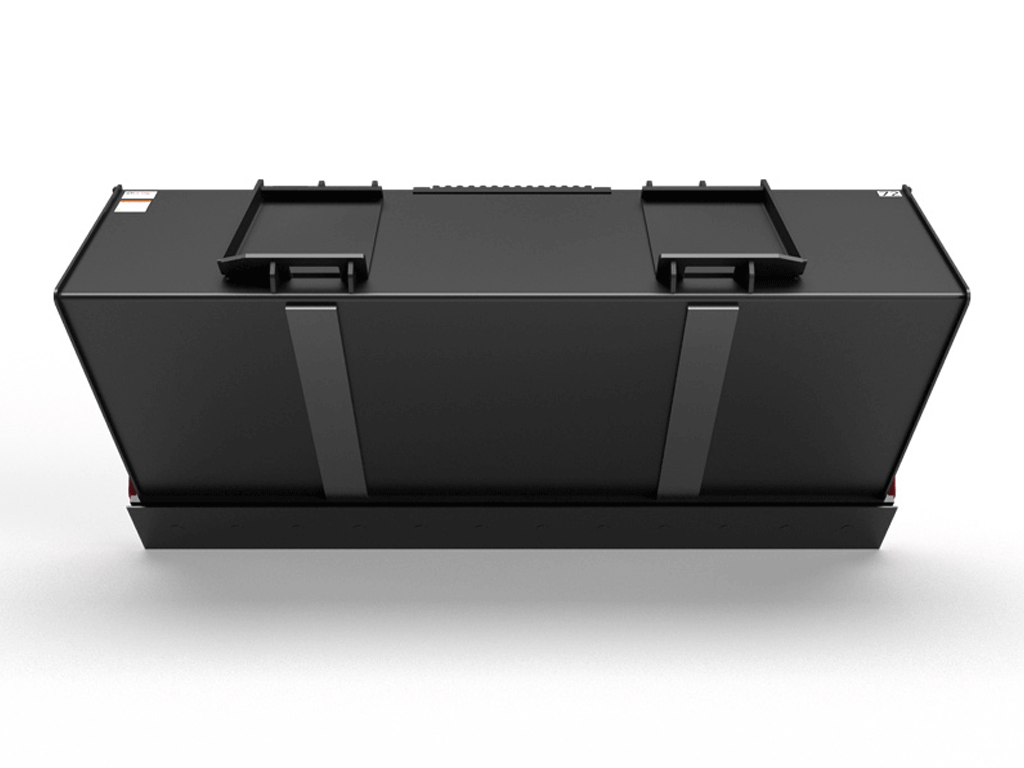

  • 1/2″ x 4ˮ structural wear bars underneath for added rigidity and life-span.
  • 3/4” x 6″ weld-on cutting edge with holes to accept optional edges.
  • Shell thickness differs between sizes.  See Specifications table.

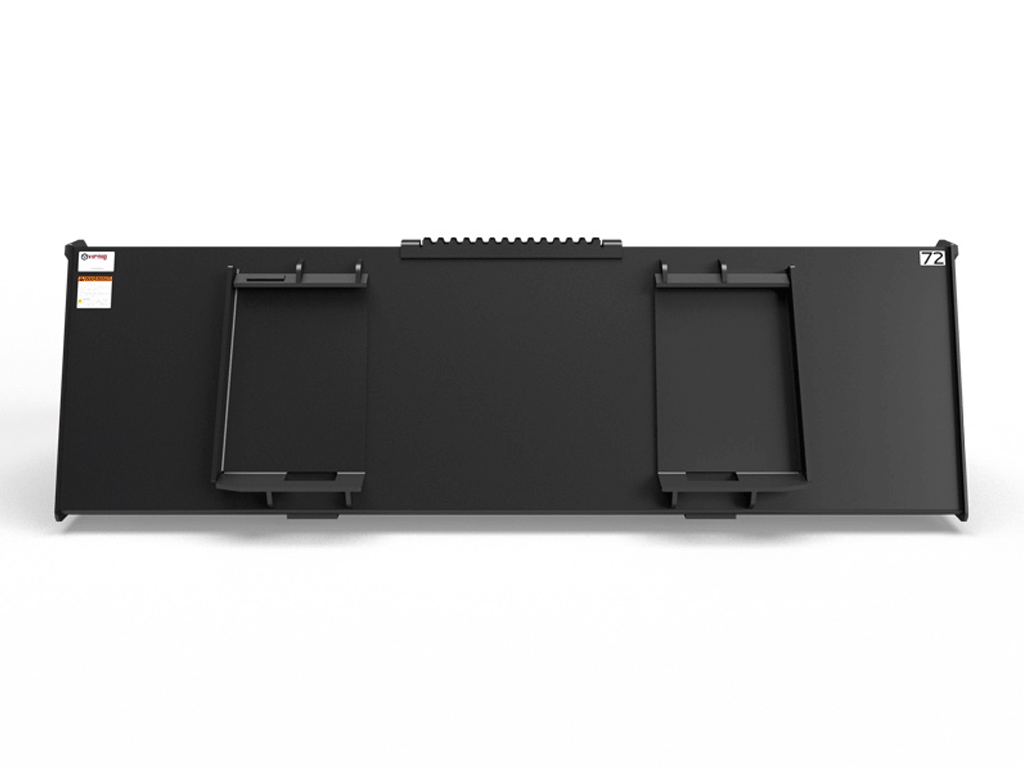

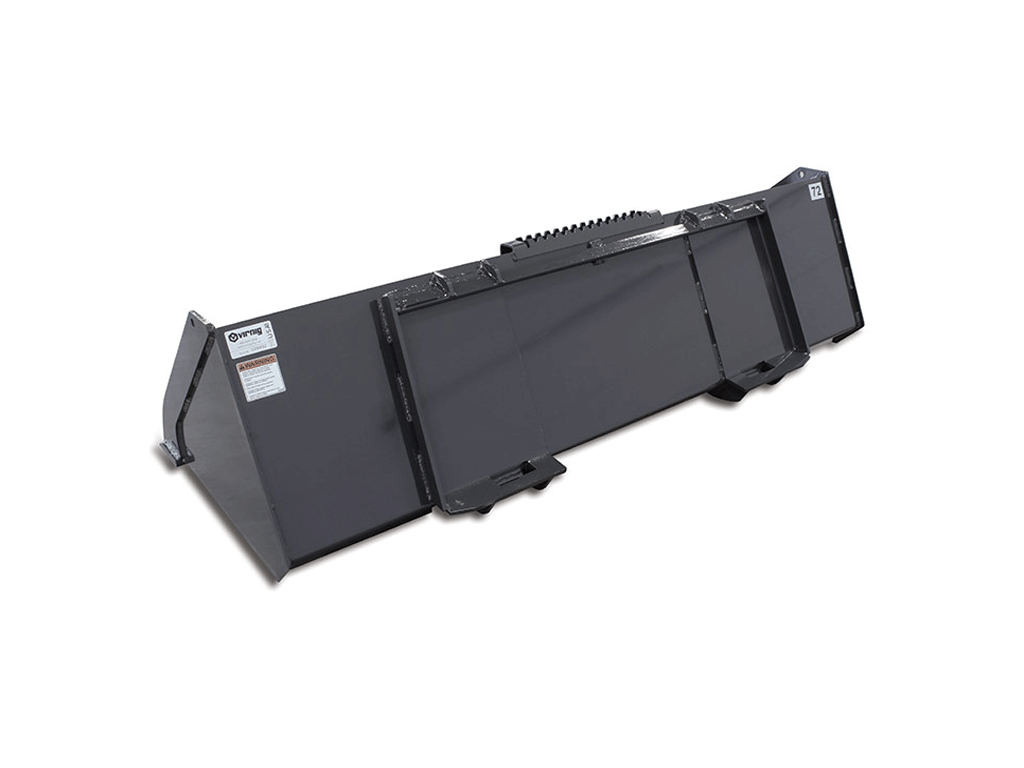

  • Manufactured with a universal mount to fit most skid steer loaders.

    Grading Bend + Rolled Inside

    • Permits better reverse grading than a standard profile bucket.
    • Grading Bend comes with Rolled Inside which makes clean out easier than a standard profile bucket.

    Bolt on Cutting Edge (BOCE) installed

    • Extends life of bucket.
    • Reversible 5/8" x 8" bolt-on wear edge with 5/8" holes spaced 6" on center.
    Serrated Edge (SE) installed
    • Excellent alternative to toothbar for chiseling and breaking up soil.
    • Single bevel, 3/4" x 8" serrated bolt-on edge with 5/8" holes spaced on 6" center.
      Weld-on Teeth (WOT) installed
      • Replaceable Series 23 cast teeth with cast shank, welded directly to the bucket edge.
      • Excellent for breaking up compact soil.

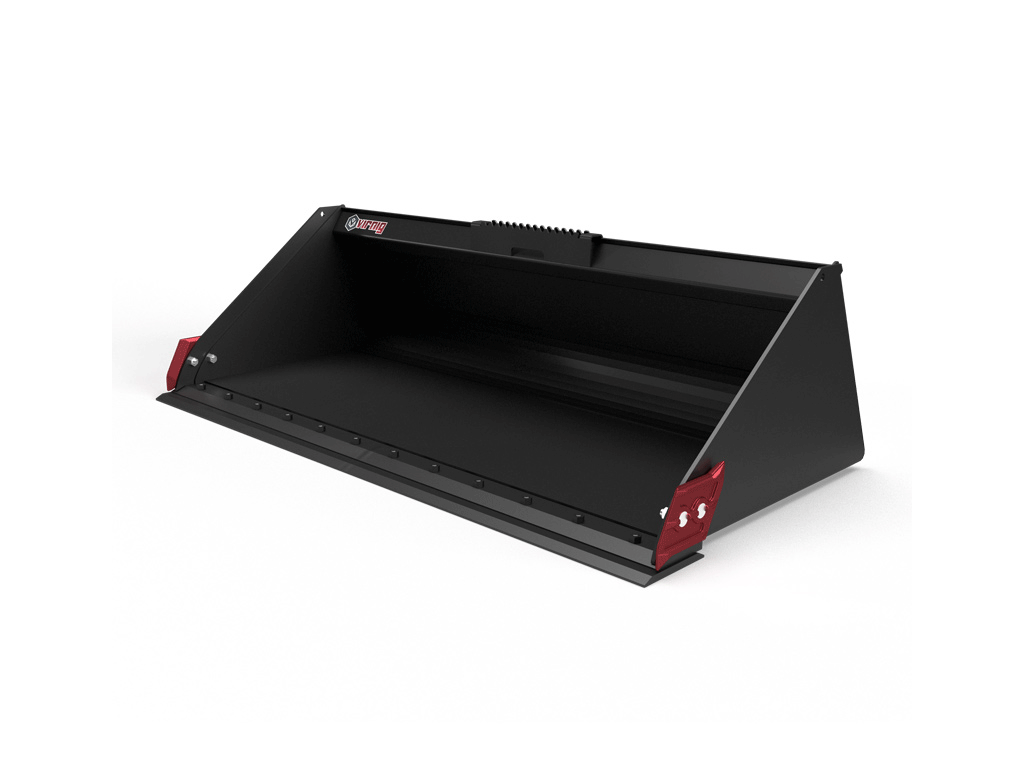

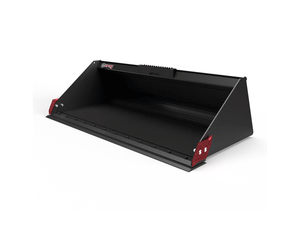

        Optional Side Cutters - Call for info and pricing
        • Reversible - only one in industry.
        • Improves performance in hard compacted soils.
        • Cast steel lengthens life of bucket sides.
        • Not compatible with toothbars.
        Models DHV 60EX DHV 66EX  DHV 72EX  DHV 78EX  DHV 84EX
        Overall Bucket Width (Inches) 61.5 67.5 73.5 79.5 85.5
        Bucket Depth (Inches) 34.6
        Bucket Height (Inches) 20.5
        Struck Capacity (Cubic Feet) 11.9 13.1 14.4 15.7 17.0
        Heaped Capacity (Cubic Feet) 14.3 15.7 17.3 18.8 20.4
        Bucket Back Angle (Degrees) 66
        Shell Thickness (Inches) 0.19 0.19 0.25  0.25 0.25
        Side Plate Thickness (Inches) 0.25 0.25 0.25 0.25 0.25
        Structural Wear Bars Under Bucket (1/2″ x 4″) 2 2 2 3 3
        Approximate Weight (Pounds) 460 490  575 620 655
        Recommended Loader Capacity Less than 2400 pounds
