RBV60-HF33-F

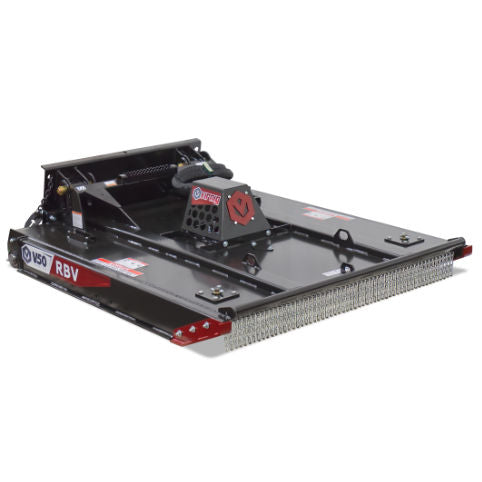

Virnig V50 Rotary Brush Cutter Floating Deck - High Flow (SSL)(CTL)

Size

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES & COUPLERS

Cuts through brush up to 4″ in diameter with ease, while three-blade design and floating deck produce a superior finish.

V50 Rotary Brush Cutters are capable of throwing debris over 200 feet and can cause serious bodily harm or death if not used with a shatterproof cab.

  • Innovative floating deck provides a consistent cut on uneven terrain by allowing 4 5/8” of deck travel. Deck can be secured in a fixed position if desired.
  • Three-blade cutting system, mounted to a large circular flywheel, ensures the flywheel bounces off stumps rather than catching and damaging components.
  • Standard dual hydraulic pressure relief valves with dynamic braking stops the 170-225 lb flywheel in under 10 seconds.
  • Two high flow Eaton® motor configurations ensure optimum performance and longevity.
  • Bracing along the top connected to a push bar at the front provides rigidity for pushing over thick brush and trees.
  • ½” x 4” single side updraft blades for efficient cutting and mulching.
  • Standard chain curtain on front of deck prevents flying debris and provides better mulching capability.
  • Standard replaceable front skid shoes increase the mower deck’s wear life.
  • Optional Rear Roller and Swivel Casters available.



  • Recommended Loader Capacity: Greater than 1500 lbs ROC
  • Vertical Deck Travel (in): 4.625
  • Cutter Height (in):  20.9
  • Deck Height (in):  8.8
  • Minimum Cut Height (in):  1.8
  • Cutting Capacity, Diameter (in):  4.0
Cut Width (in) 60" 60" 66" 66" 72" 72" 78" 78"
Flow Rate (GPM) 25-33 33-42 25-33 33-42 25-33 33-42 25-33 33-42
Overall Width 66.0 66.0 72.0 72.0 78.0 78.0 84.0 84.0
Cutter Depth (in) 81.8 81.8 87.8 87.8 93.8 93.8 99.8 99.8
Weight (lbs) 1430 1430 1560 1560 1680 1680 1760 1760





Blade Tip Speed   (FPM)

Blade Tip Speed   (FPM)

 Blade Tip Speed   (FPM)

 Blade Tip Speed   (FPM)

Model

25 GPM Min

33 GPM Max

33 GPM  Min

42 GPM  Max

60" 25-33 GPM

11,480 15,155

60" 33-42 GPM

10,060 12,805

66" 25-33 GPM

12,630 16,670

66" 33-42 GPM

11,065 14,085

72" 25-33 GPM

13,775 18,185

72" 33-42 GPM

12,070 15,365

78" 25-33 GPM

14,925 19,700

78" 33-42 GPM

13,080 16,645
