HDHV72

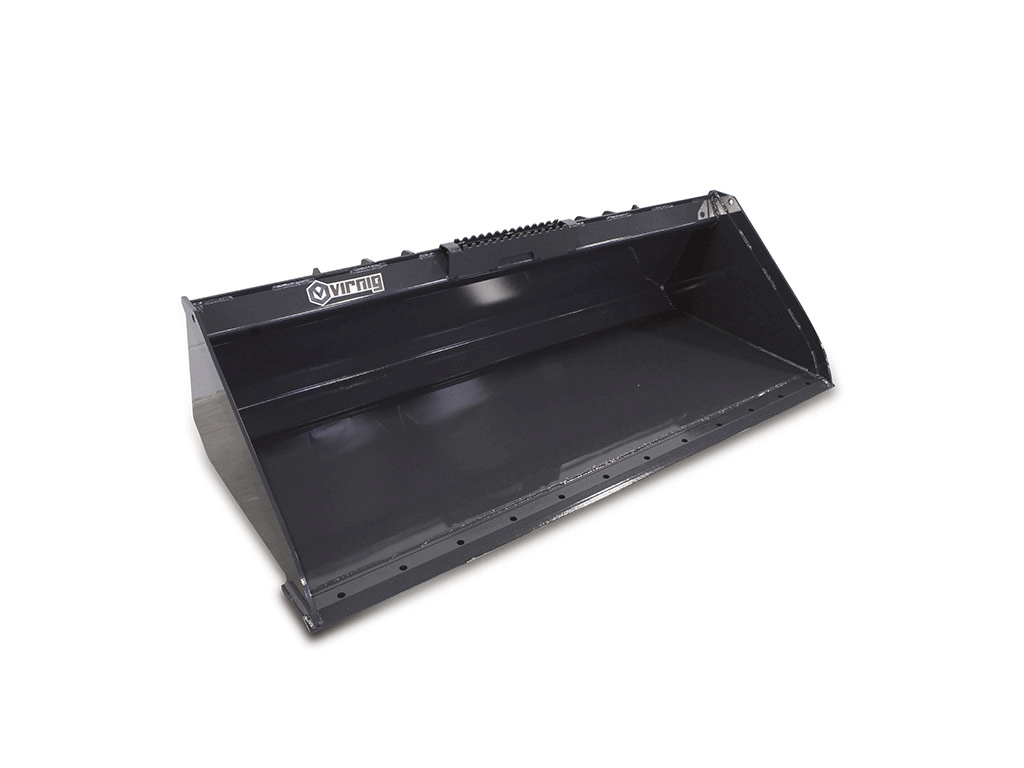

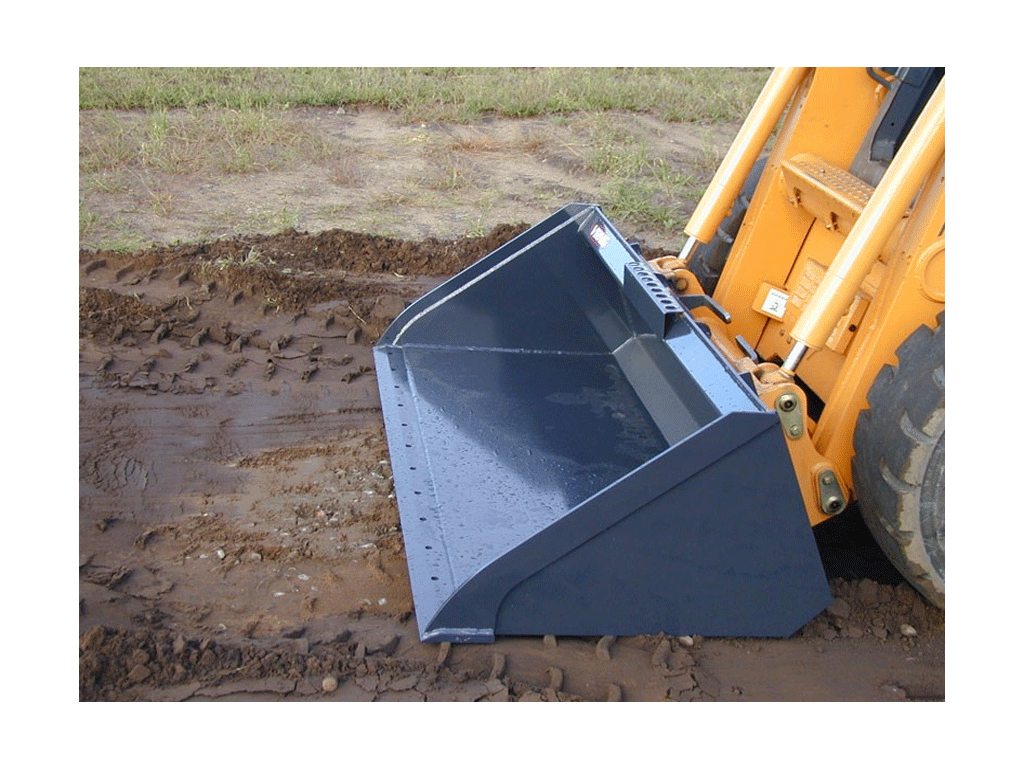

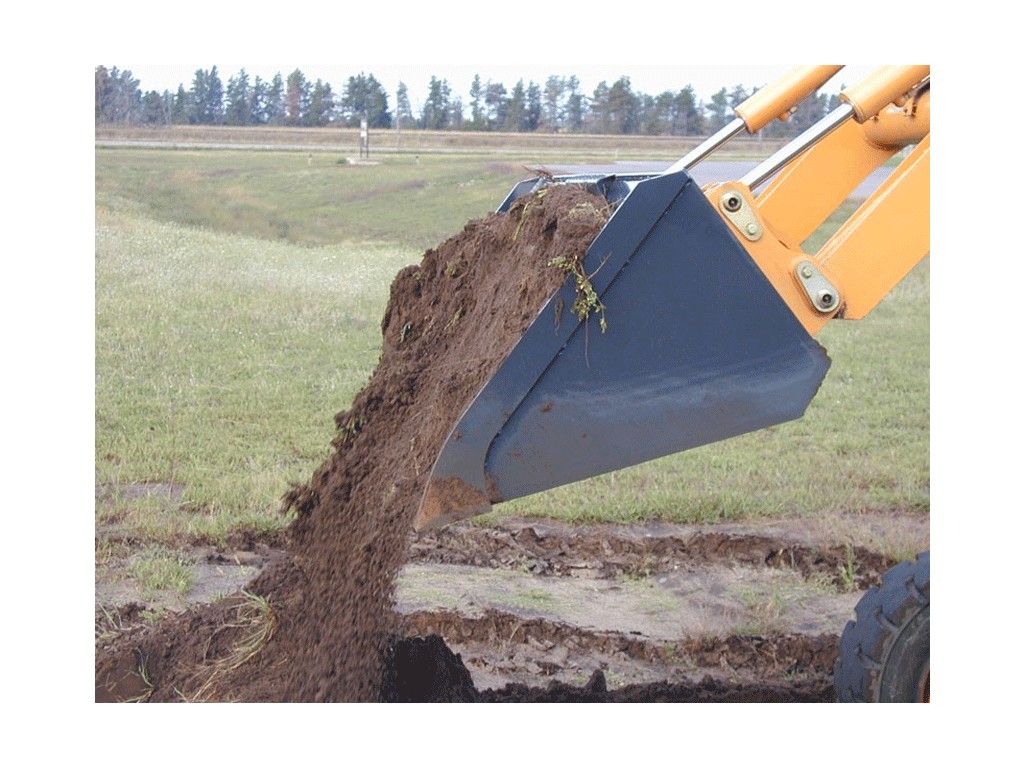

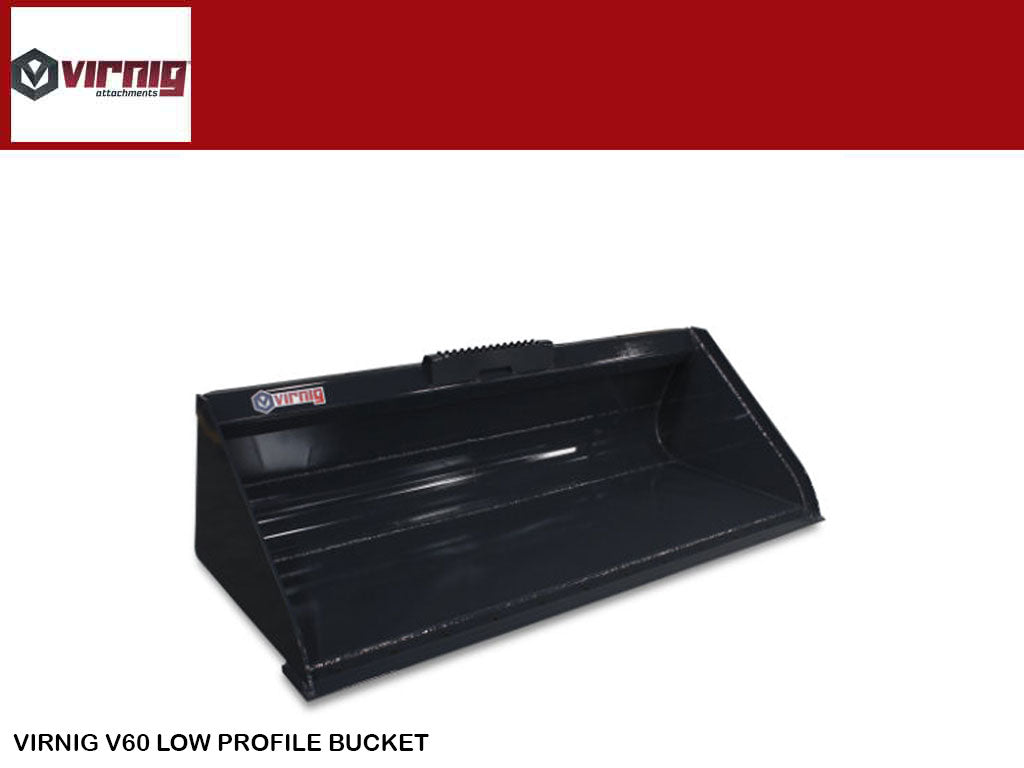

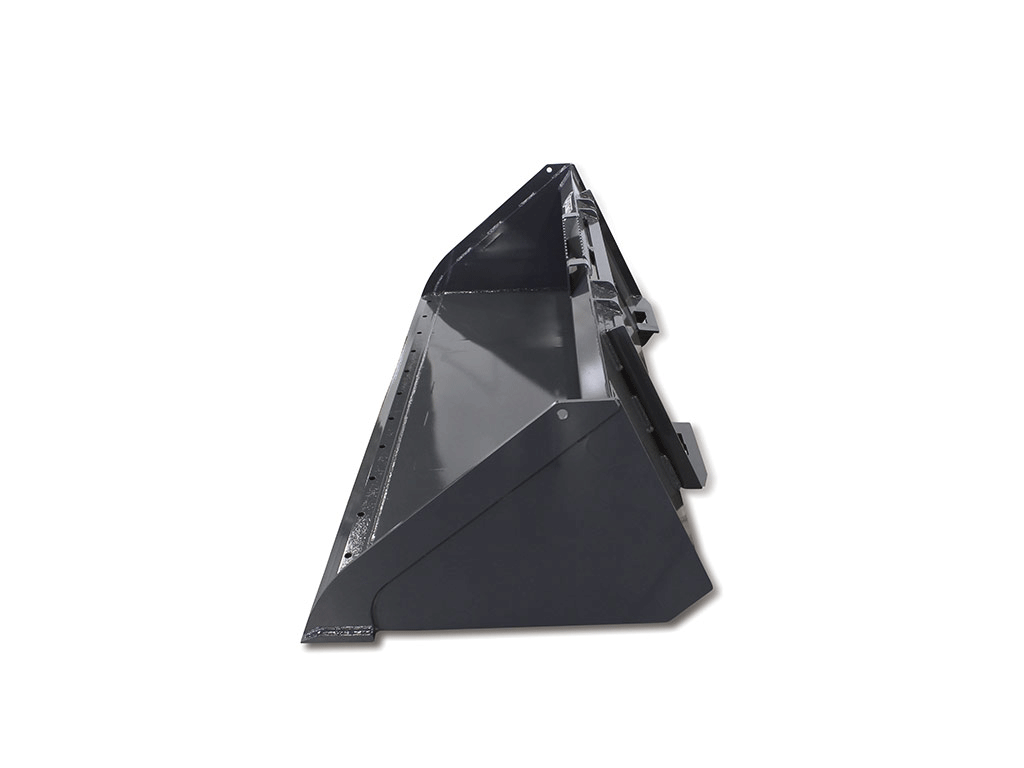

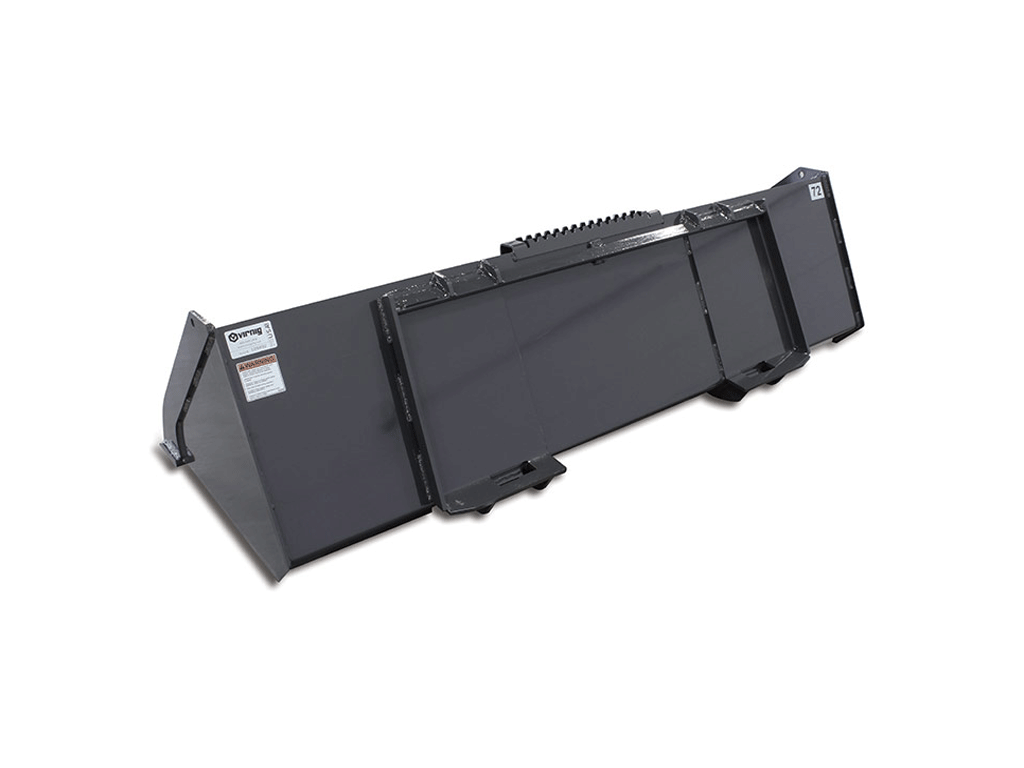

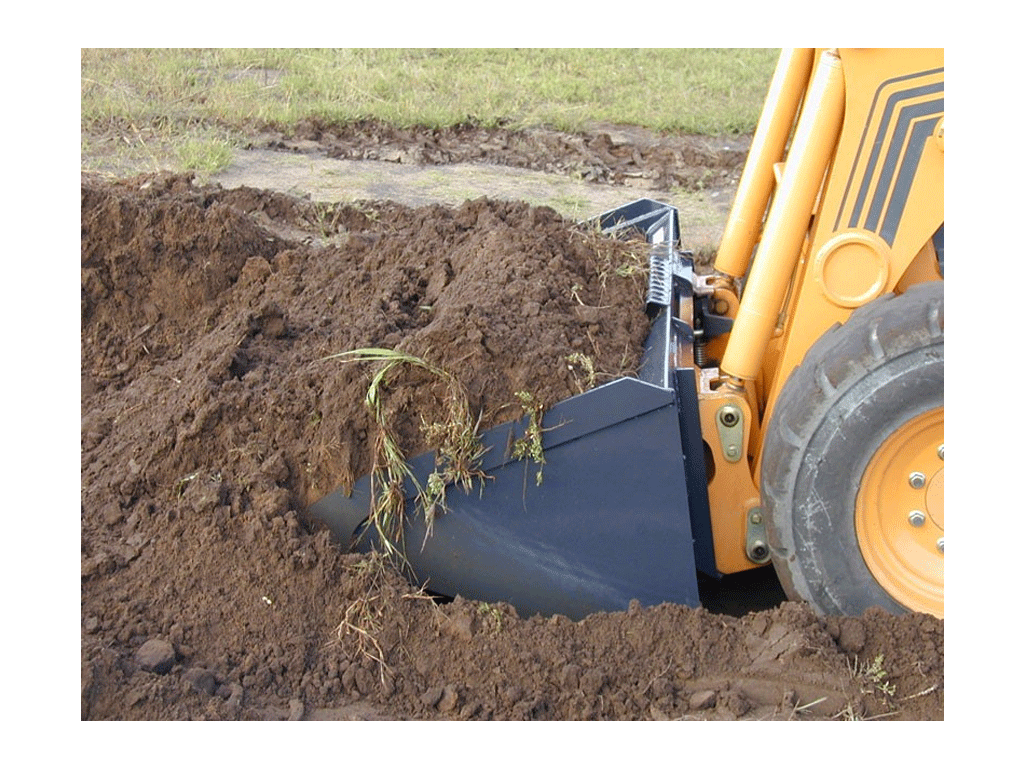

Virnig V60 Low Profile Dirt Bucket is a heavy-duty skid steer dirt bucket with 1/4″ Grade 50 steel construction and a low profile and extended bottom for better visibility of the cutting edge.
Grading Bend + Rolled Inside
Bolt on Cutting Edge (BOCE) installed
Serrated Edge (SE) installed
Weld-on Teeth (WOT) installed
DELS | HDHV72GB | HDHV78GB | HDHV84GB | HDHV90GB |
Width: Overall / Inside (Inches) | 73.5 / 71.3 | 79.5 / 77.3 | 85.5 / 83.3 | 91.5 / 89.3 |
Overall Height (Inches) | 20.5 | |||
Depth: Overall / Inside (Inches) | 37.1 / 32.5 | |||
Capacity: Struck / Heaped (Cubic Feet) | 14.2 / 17.0 | 15.4 / 18.5 | 16.6 / 20.0 | 17.8 / 21.4 |
Bucket Back Angle (Degrees) | 66 | |||
Shell Thickness (Inches) | 0.25 | |||
Side Plate Thickness (Inches) | 0.25 |
