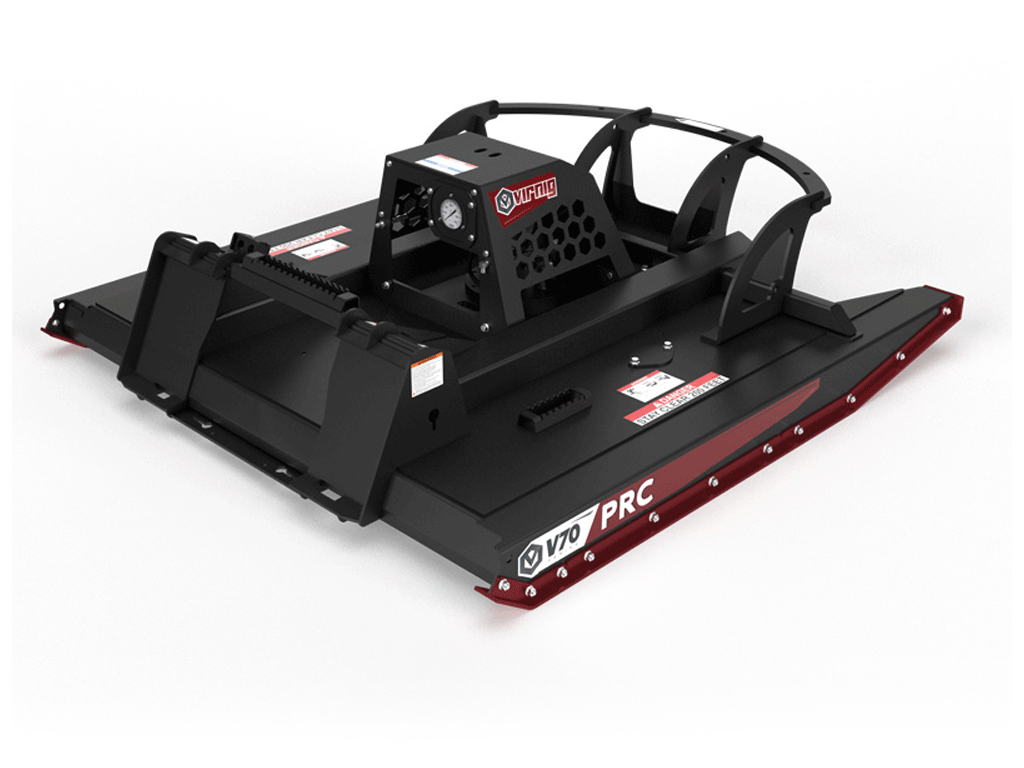

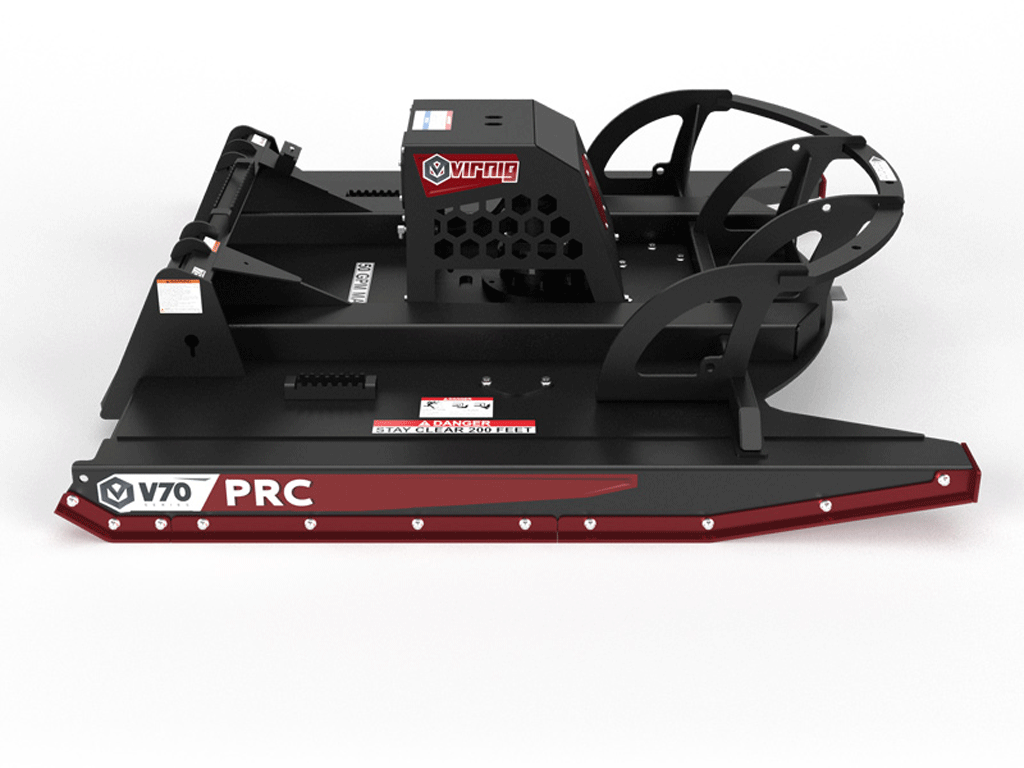

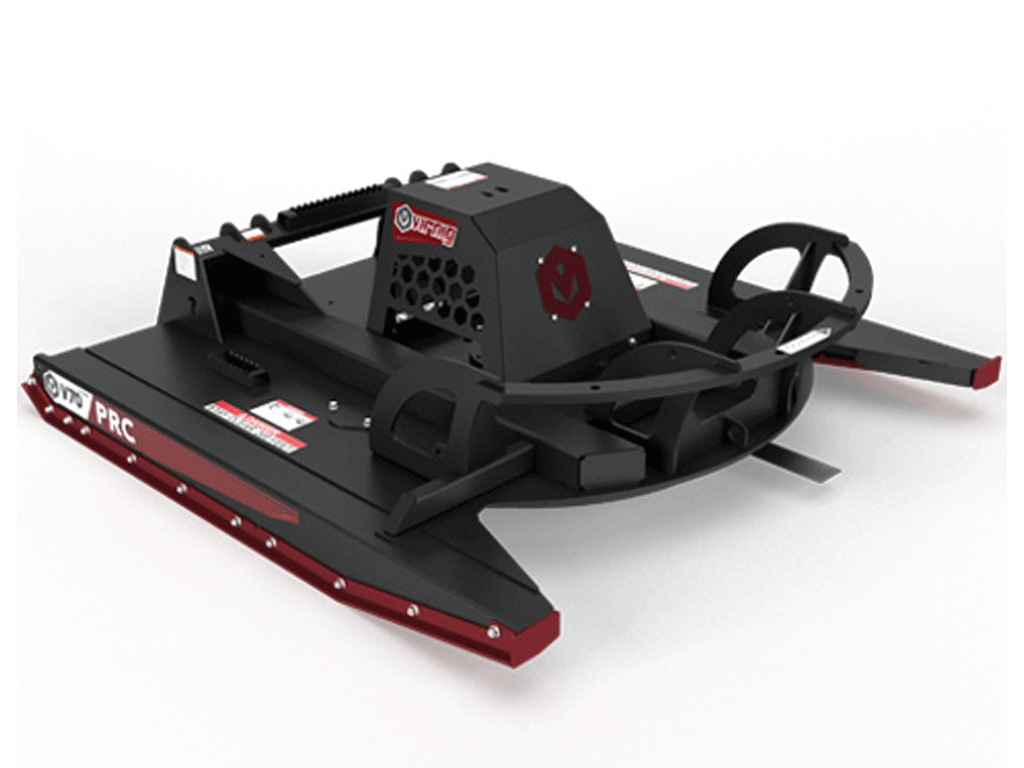

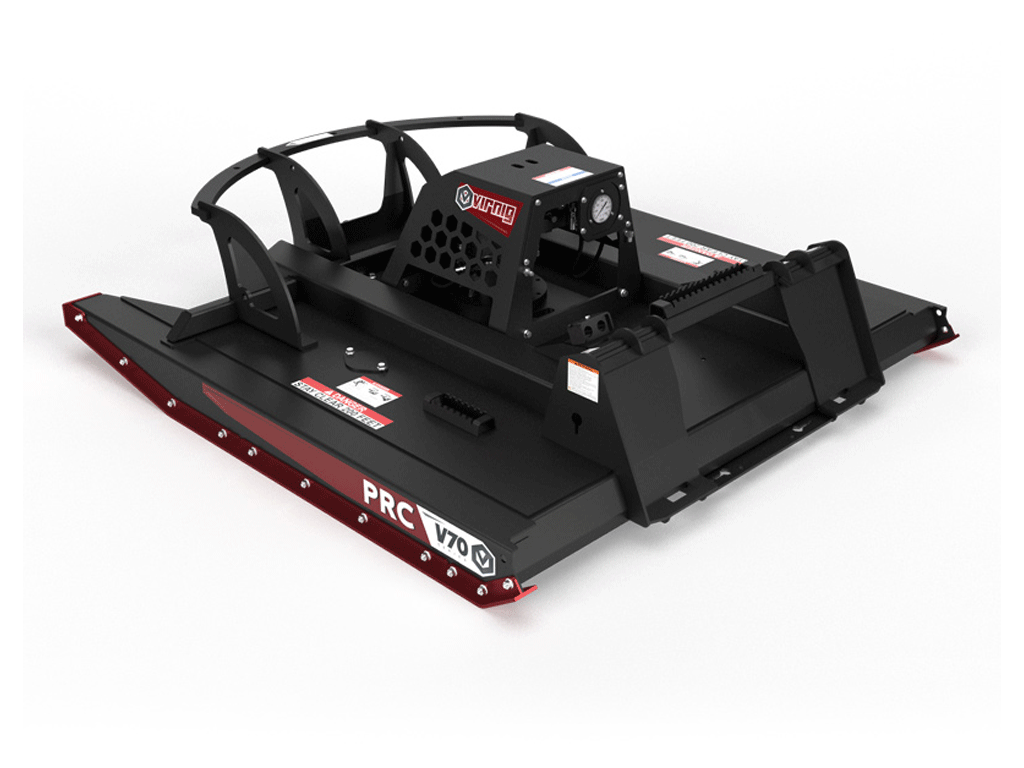

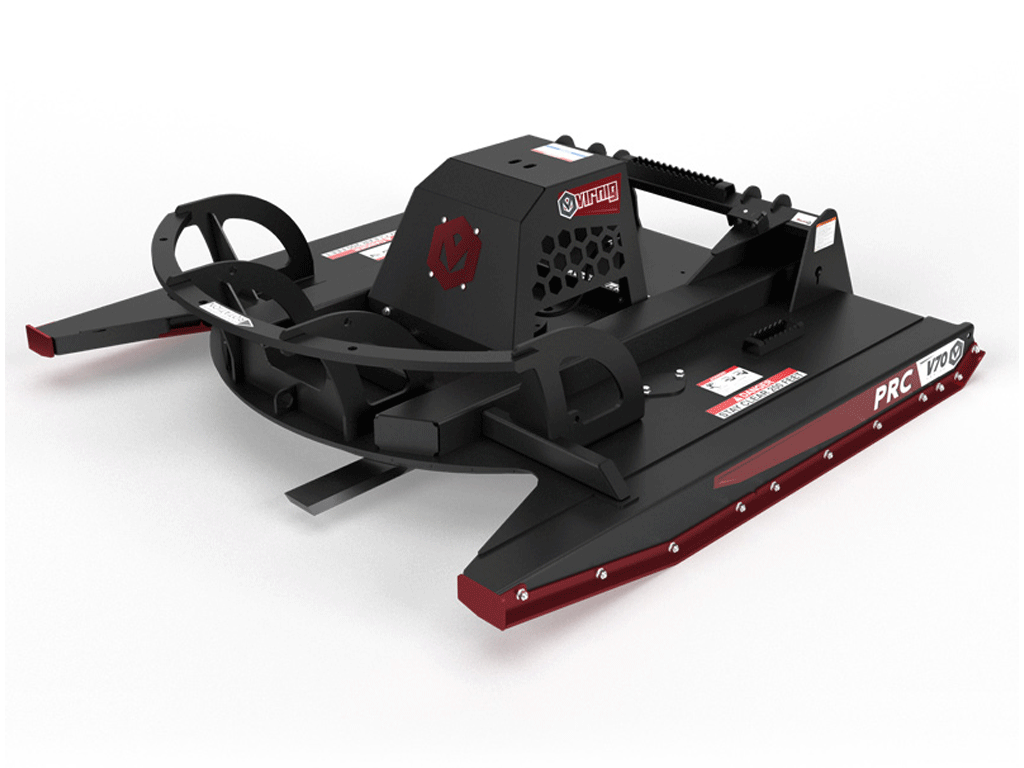

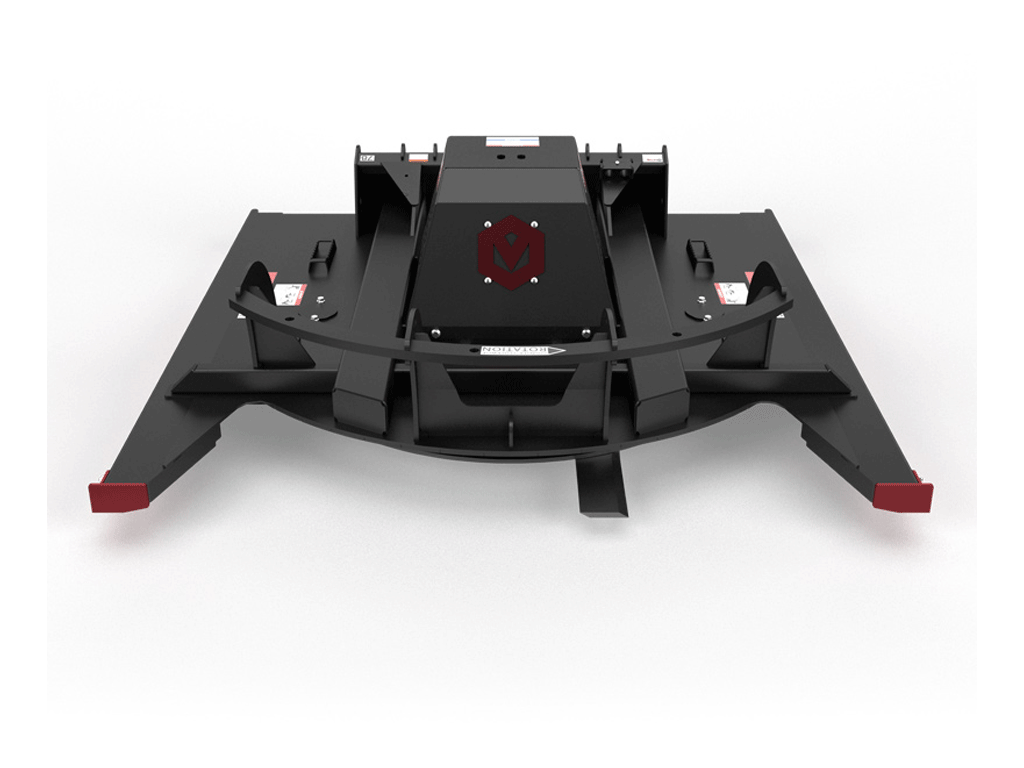

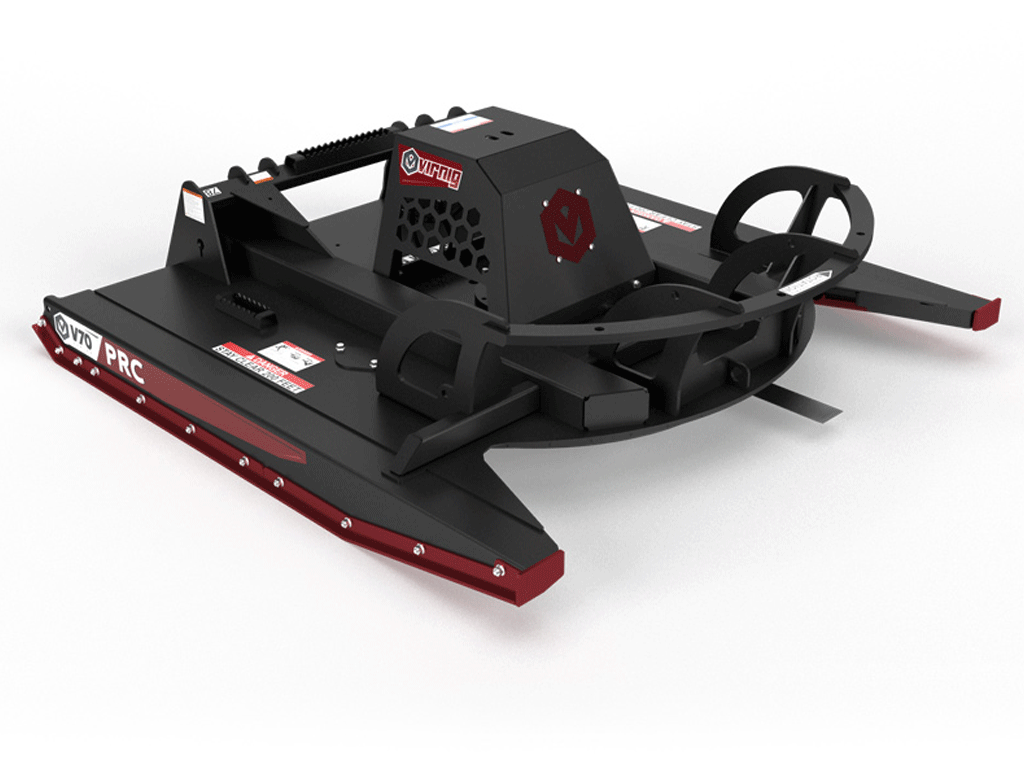

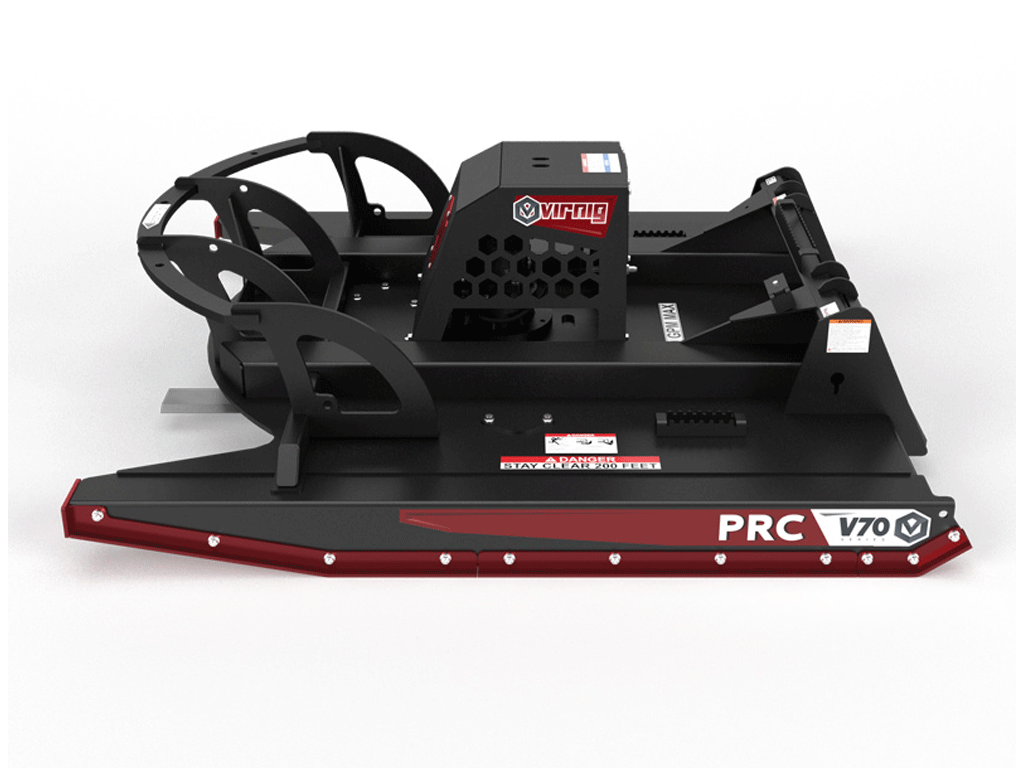

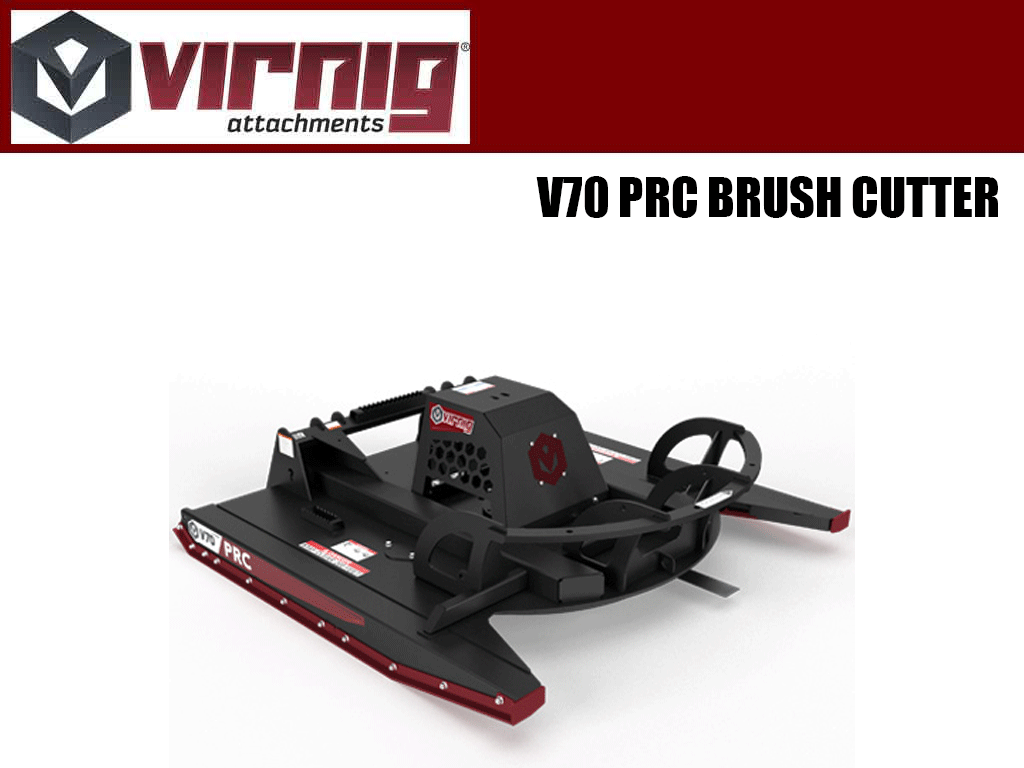

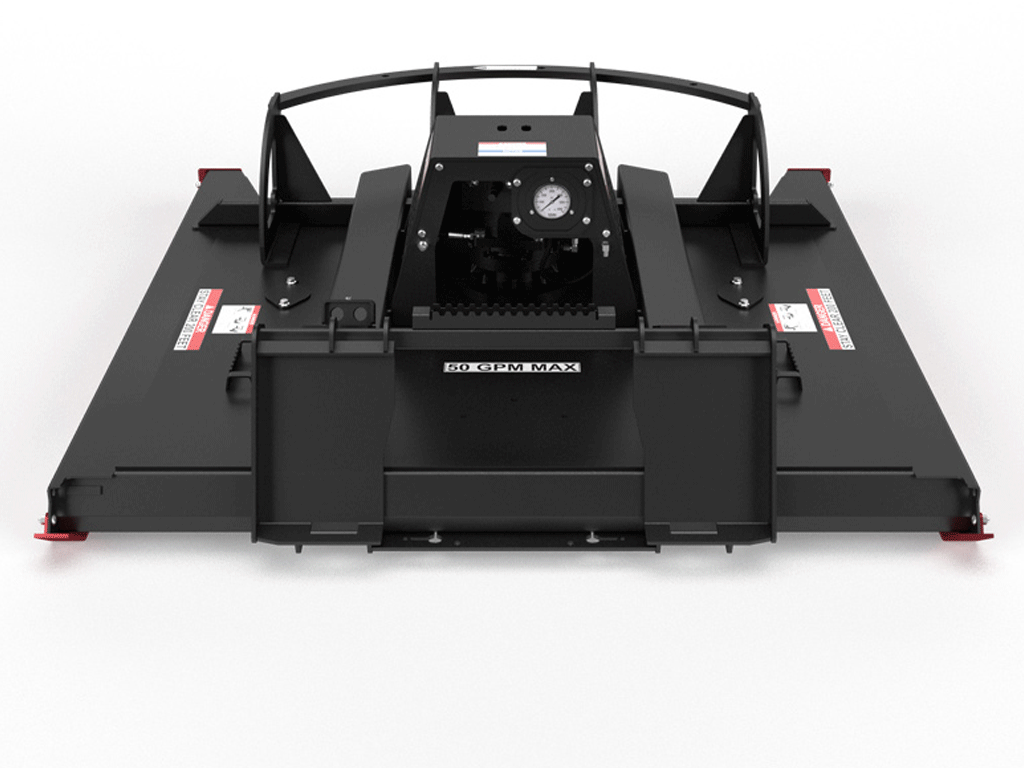

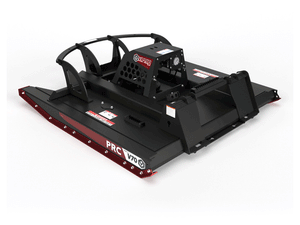

v70 Open Front Rotary Brush Cutter

Capable of cutting up to 8″ trees, this high performance brush cutter provides faster blade tip speed, quick spin up, and rapid recovery.

BENT-AXIS PISTON MOTOR WITH RELIEF VALVES ENSURES RAPID FLYWHEEL SPIN UP & RECOVERY, REACHING FULL SPEED IN 13 SECONDS
STANDARD MOTOR GUARD & SPINDLE GUARD

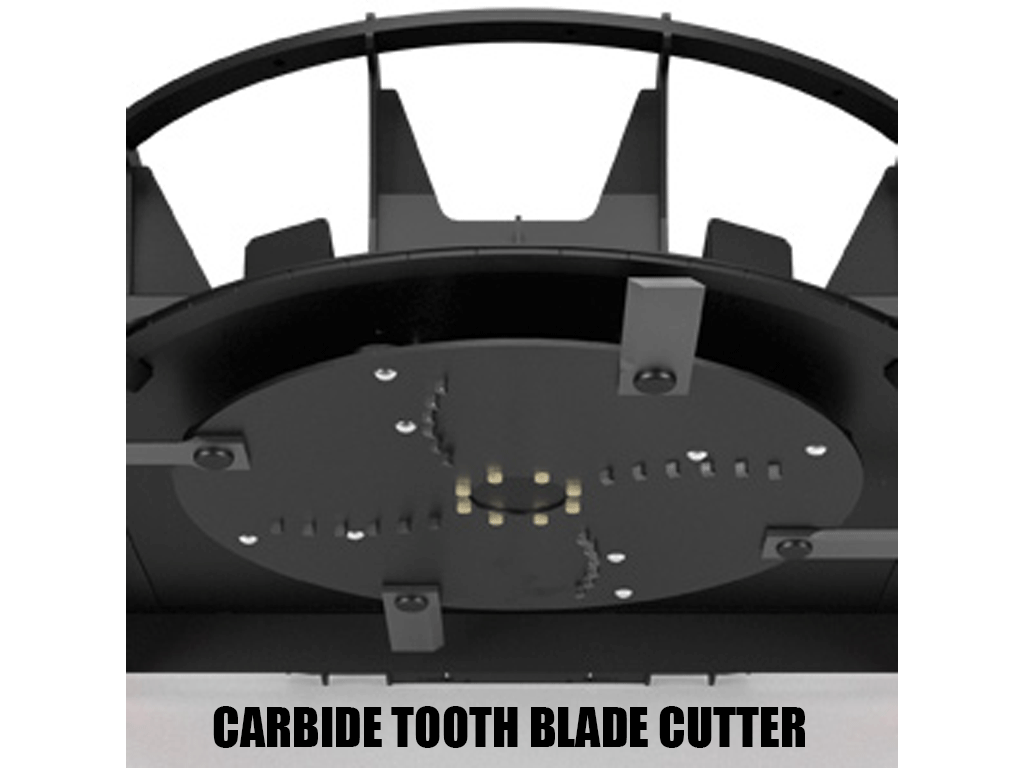

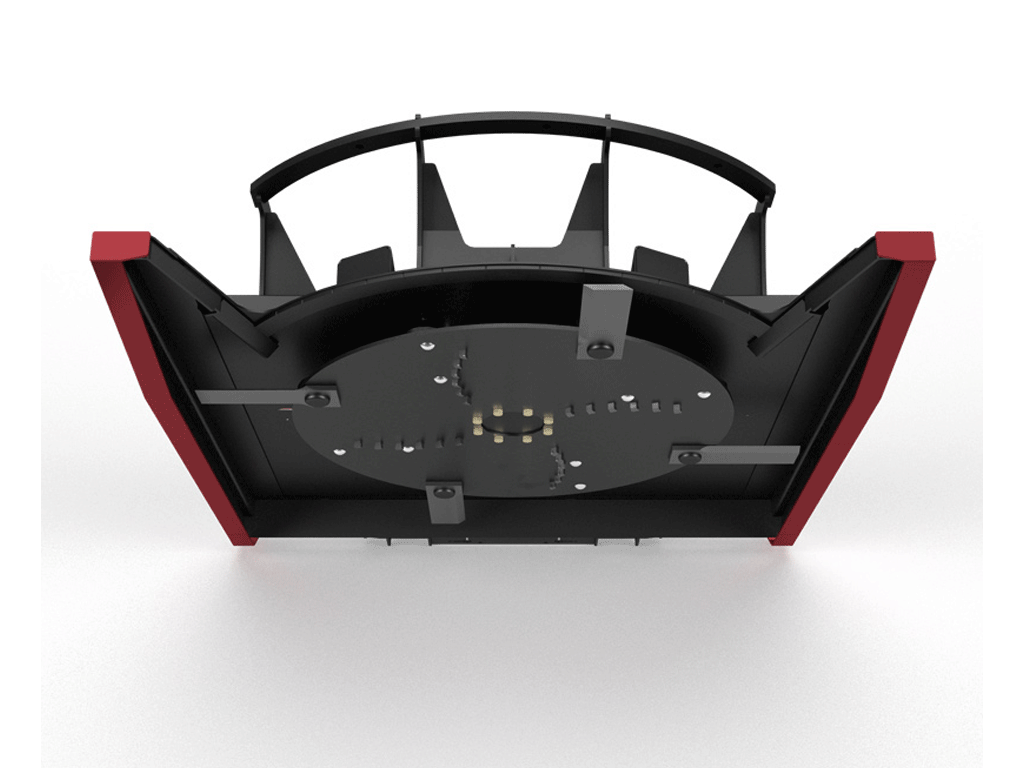

CIRCULAR FLYWHEEL WITH 4 DOUBLE-SIDED BLADES BOUNCES OFF STUMPS
REPLACEABLE AR400 FRONT SKID SHOES & BOLT-ON AR400 BOTTOM DECK RUNNERS
SPINDLE LOW PRESSURE OIL VENT SAFEGUARDS BEARING ADAPTER SEALS IF MOTOR SEALS FAIL
CASE DRAIN CONNECTION INDICATOR PROVIDES VISUAL CONFIRMATION OF FUNCTIONING CASE DRAIN

DO NOT OPERATE CUTTER WITHOUT A SHATTERPROOF CAB ON LOADER.

NO HYDRAULIC BRAKING – FLYWHEEL MAY TAKE MINUTES TO COME TO A COMPLETE STOP.

MODEL	PRC72	PRC78	PRC84
Cut Width (Inches)	72.0	78.0	84.0
Overall Width (Inches)	78.0	84.0	90.0
Overall Height (Inches)	20.1
Overall Depth (Inches)	80.3	86.3	92.3
Deck Height (Inches)	8.3
Push Bar Height (Inches)	23.4
Cut Height (Inches)	2.3
Cutting Capacity, Diameter (Inches)	8.0
Number of Teeth (Optional)	20	24	28
Deck Thickness: Top / Side (Inches)	0.25¹
Recommended Flow Rate (GPM)	30-50 High Flow Only
Approximate Weight (Pounds)	2155	2315	2490
Recommended Loader Capacity	Greater than 2200 pounds

¹Deck Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).
