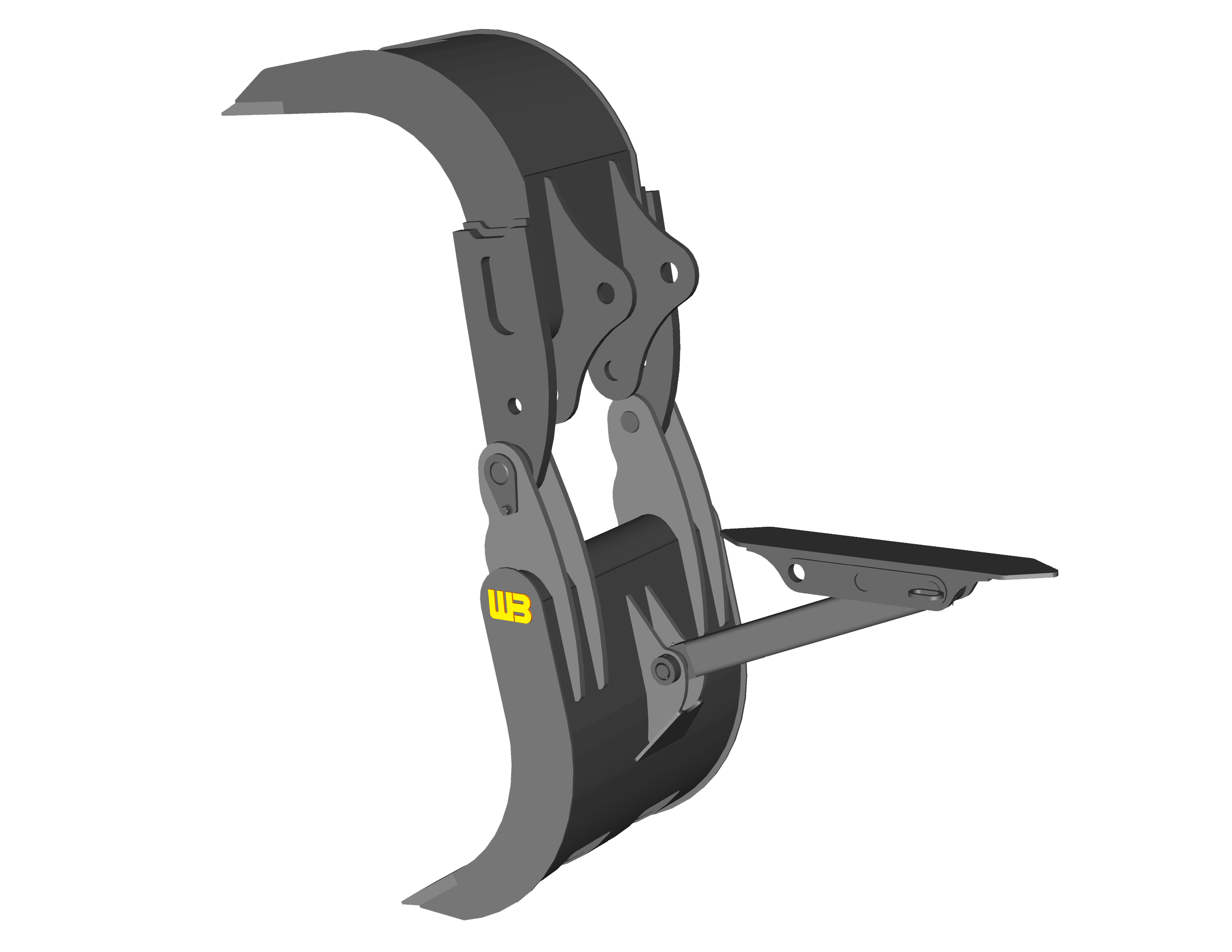

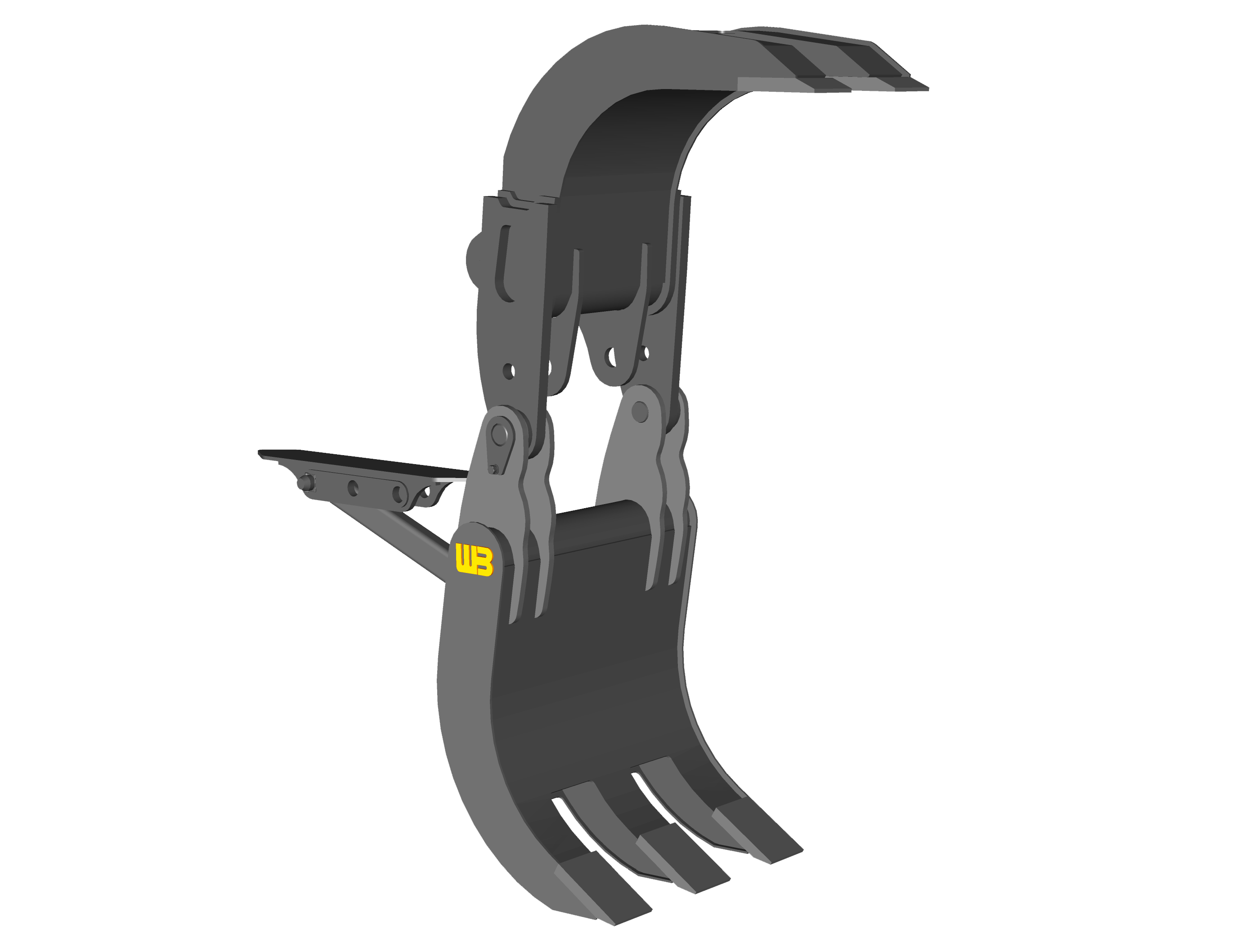

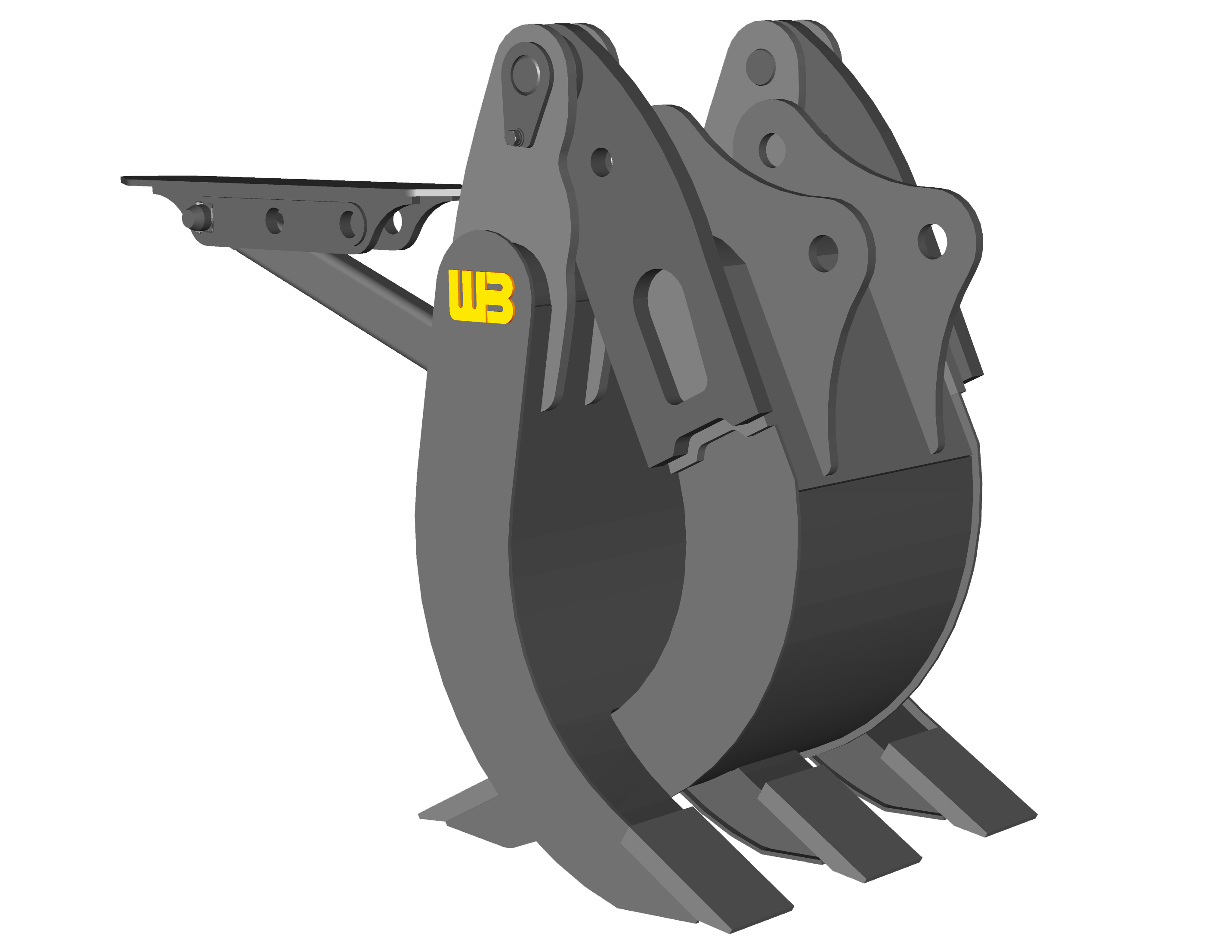

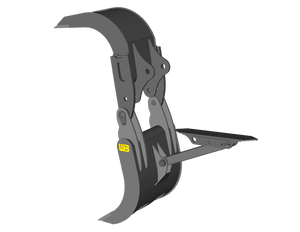

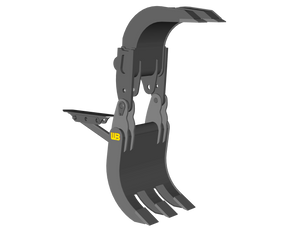

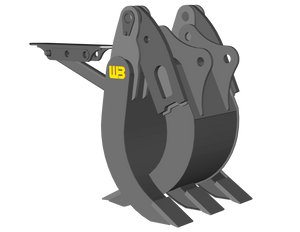

WERK-BRAU box style grapple for 50,000 -59,000 lbs Excavators (25MT)
WERK-BRAU box style grapple for 50,000 -59,000 lbs Excavators (25MT)
WERK-BRAU box style grapple for 50,000 -59,000 lbs Excavators (25MT)
WERK-BRAU box style grapple for 50,000 -59,000 lbs Excavators (25MT)
WERK-BRAU box style grapple for 50,000 -59,000 lbs Excavators (25MT)
WERK-BRAU box style grapple for 50,000 -59,000 lbs Excavators (25MT)
WERK-BRAU box style grapple for 50,000 -59,000 lbs Excavators (25MT)
WERK-BRAU box style grapple for 50,000 -59,000 lbs Excavators (25MT)
WERK-BRAU box style grapple for 50,000 -59,000 lbs Excavators (25MT)
WERK-BRAU box style grapple for 50,000 -59,000 lbs Excavators (25MT)
WERK-BRAU box style grapple for 50,000 -59,000 lbs Excavators (25MT)
WERK-BRAU box style grapple for 50,000 -59,000 lbs Excavators (25MT)

WBBG48.2

WERK-BRAU box style grapple for 50,000 -59,000 lbs Excavators (25MT)

$25,593.00 - $28,707.00

Business Financing Available

Size

11/24

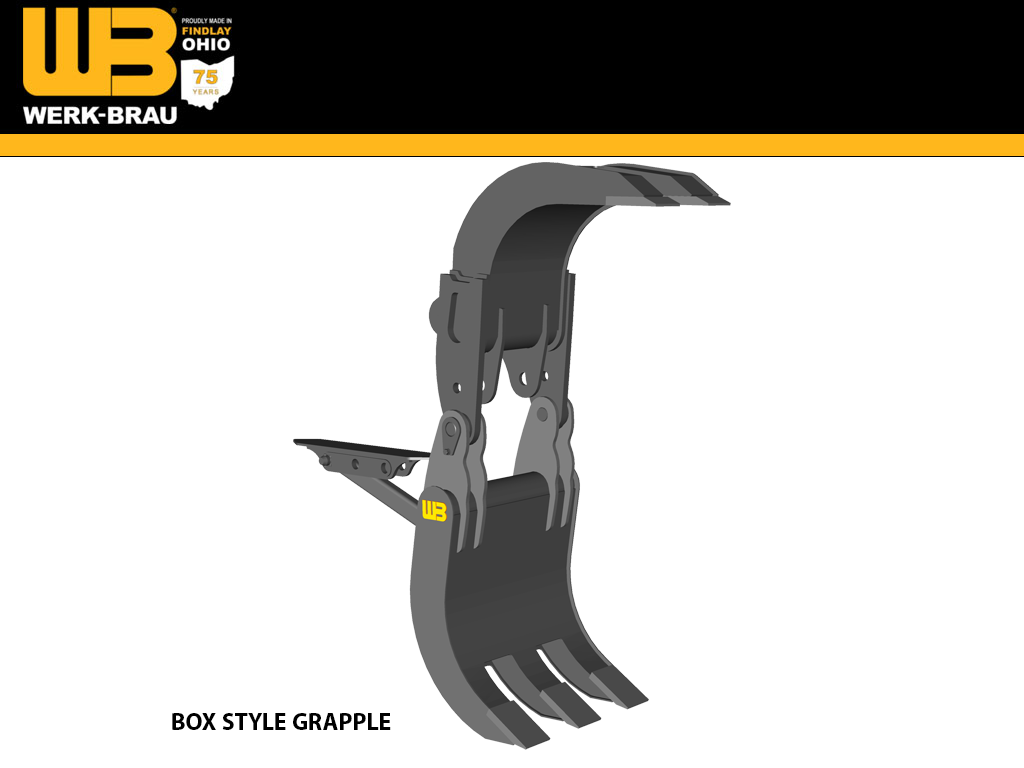

Box Style Grapple

Recommended Applications

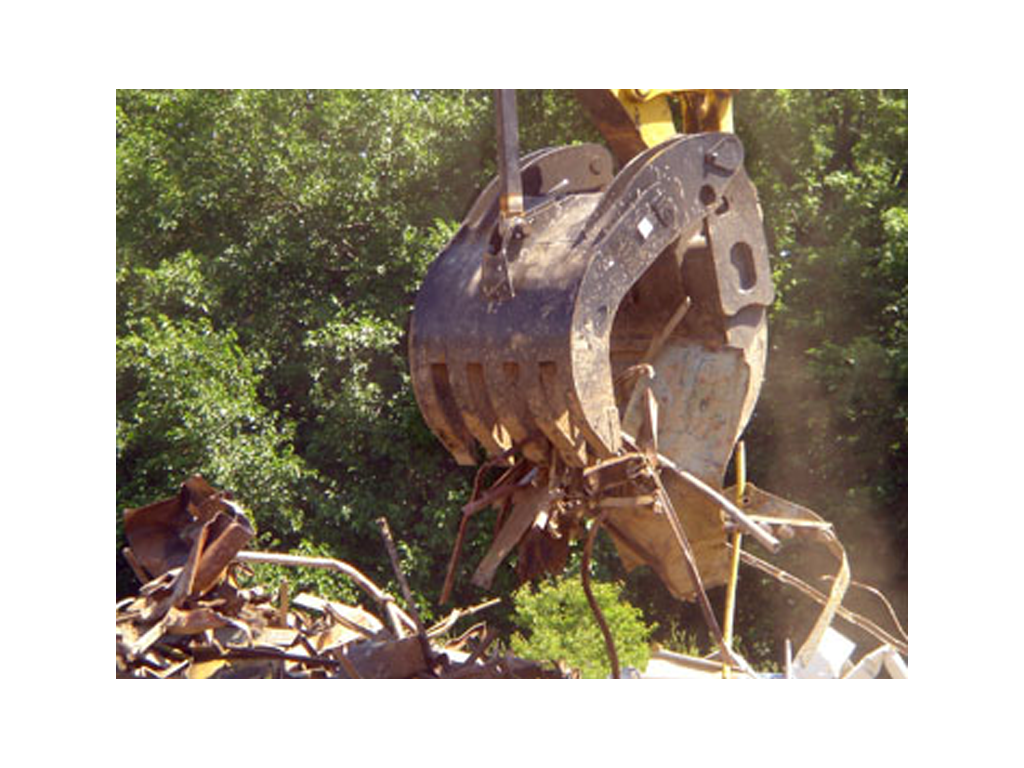

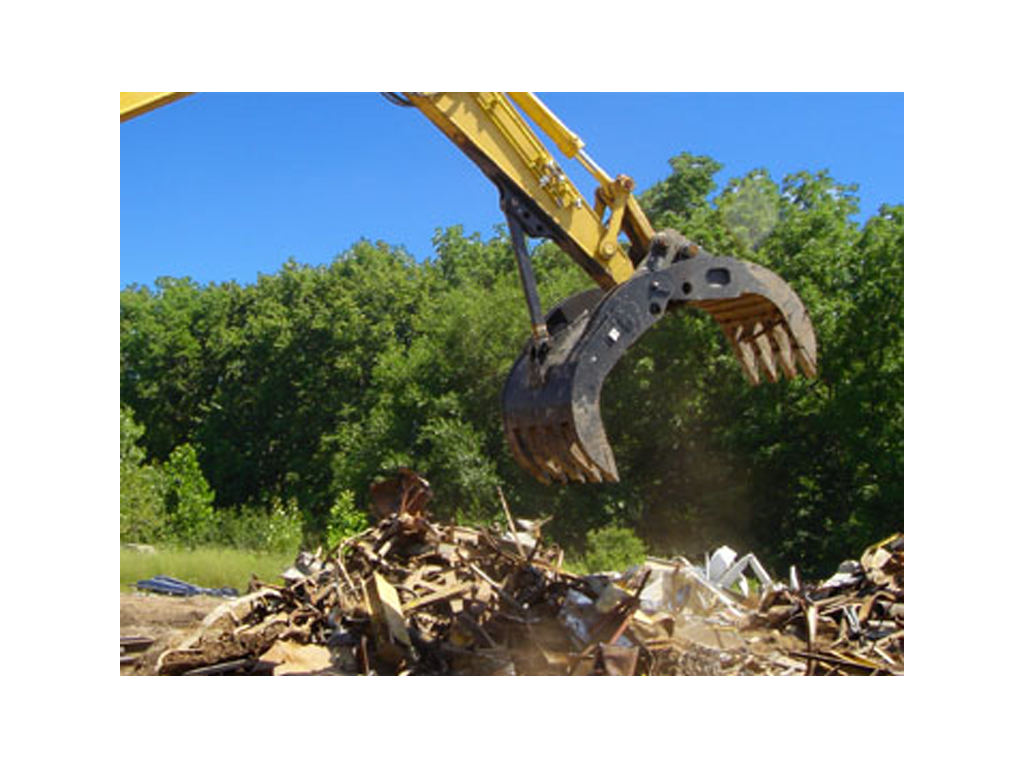

Werk-Brau's wide mouth box style grapple is specifically designed to handle various objects of different sizes such as brush, rocks, and demolition debris. Single grapples may be used with a bucket. Dual grapple styles are also available. Not designed for digging or prying.

Construction

T-1 steel is utilized in all critical or high wear components to ensure that this grapple has a long operating life. High strength steel is used throughout the weldment. Pivot points are made from hardened greaseable bushings, and are easy to access for regular greasing. The style of this grapple allows for additional reinforcement. At the end of each tine are edge pads.

Cutting Equipment Options

Not applicable.

Standard Sizes

Various widths and models are available to choose from.

Additional Features

Additional tines and width designs are available

PART NUMBER  WIDTH JAW OPENING NO. OF TINES WEIGHT
WBBG48.2
 48"
 112"
 2/3
 3,700
WBBG54.2 54" 112"
 3/4 3,900
WBBG60.2 60" 112" 3/4 4,150

25MT

MAKE / WEIGHT CLASS 25MT (50,000 - 59,000 LBS.)
CASE CX250, CX260E
CAT 325, 326F
DOOSAN DX255LC-5
HITACHI ZX240, ZX250
HYUNDAI HX260
JOHN DEERE 250G, 250P
KOBELCO SK260LC
KOMATSU PC240
LIEBHERR R 916 L, R 924 L, R 934 CD
LINK BELT 250X3, 250X4
SANY SY235, SY265
TAKEUCHI
VOLVO EC240, EC250
