HD455-110-100 / BR15-####
WERK-BRAU D-Lock Variable Center Hydraulic Coupler for 82,000 - 105,000 lbs. Excavators (40MT)
$21,924.00 - $23,849.00
11/24

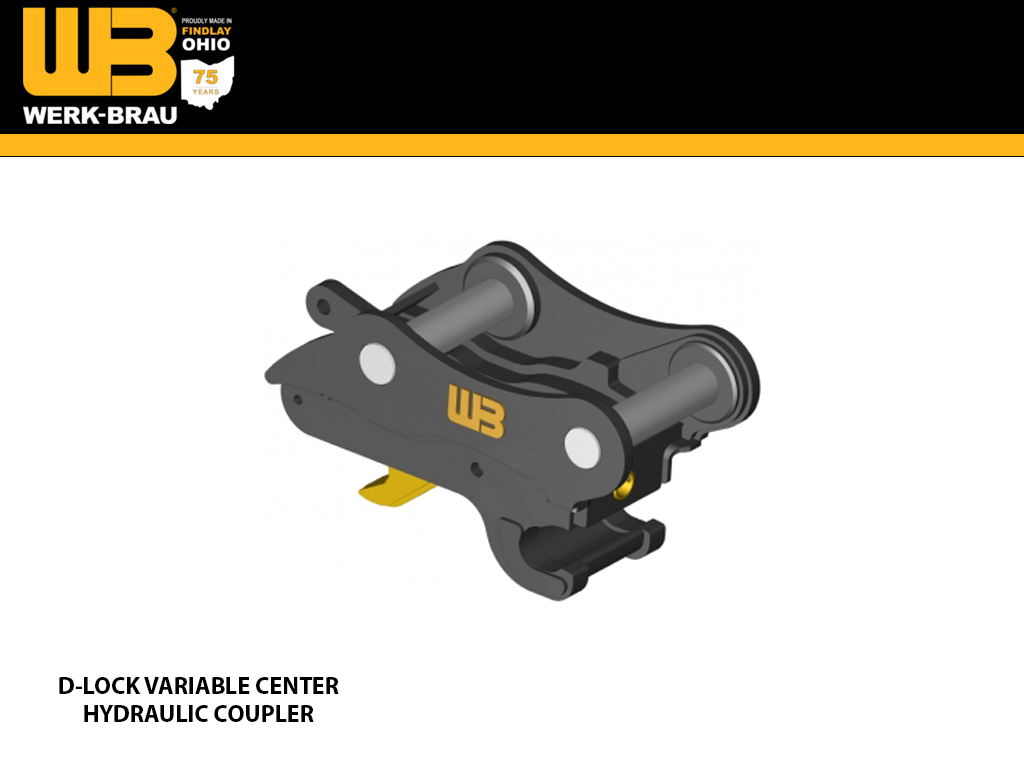

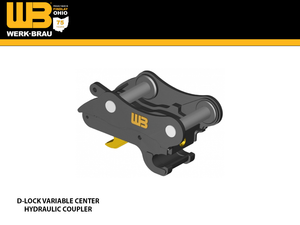

D-Lock Variable Center Hydraulic Coupler
Available For
Werk-Brau manufactures all attachments to O.E.M. specs for all makes and models of excavators, mini-excavators, and backhoes.
Features
- Automatic front lock – Locks the front pin in the event the rear pin is not secured
- Multi-pin centers, picks up all attachments in the same weight class with the same pin diameter
- Highly visible front lock indicator
- Safety system does not rely on gravity
- Dual pin lock – Locks both front and rear pins in the event of loss of engagement force
- Unlock process is designed to release only when the operator intends to do so, in a controlled and safe manner
- Simple yet safe unlock procedure eliminates accidental releases
- Only requires two hydraulic lines
- Compact design – Improving machine performance
- No greasing or lubrication required
| PART # | PIN DIAMETER | BASE WIDTH | PIN RANGE | WEIGHT |
| HD455-110-100 |
110 & 100mm |
368 |
535-615 548-645 |
1930 lbs. |
| HD455-110-100-A |
110 & 100mm |
368 |
556-636 552-643 |
1600 lbs. |
| HD465-115-110 | 115 & 110mm | 400 |
545-628 552-643 |
1,930 lbs. |
| HD565-120-115 | 120 & 115mm | 400 |
545-631 552-646 |
1,930 lbs. |
40MT
| MAKE / WEIGHT CLASS | 40MT (82,500 - 105,000 LBS.) |
| CASE | CX470, CX490 |
| CAT | 349F |
| DOOSAN | DX480, DX490LC-5 |
| HITACHI | ZX450, ZX470, ZX490 |
| HYUNDAI | HX480 |
| JOHN DEERE | 470G, 470P |
| KOBELCO | SK480, SK485, SK500 |
| KOMATSU | PC400, PC450, PC490 |
| LIEBHERR | R 944 |
| LINK BELT | 460, 470, 490X4 |
| SANY | SY500 |
| TAKEUCHI | |
| VOLVO | EC460, EC480 |
