E30ED24

WERK-BRAU Extreme Duty Rock Buckets for 59,000 - 68,000 lbs. Excavators (30MT)

Style
Size

11/24

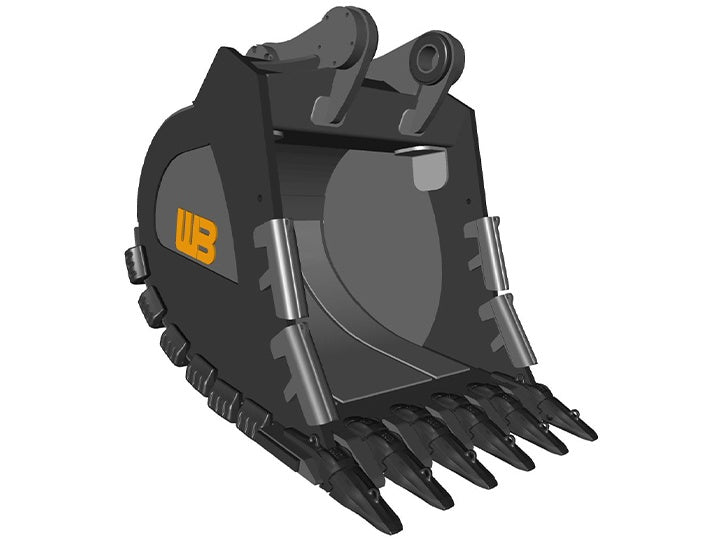

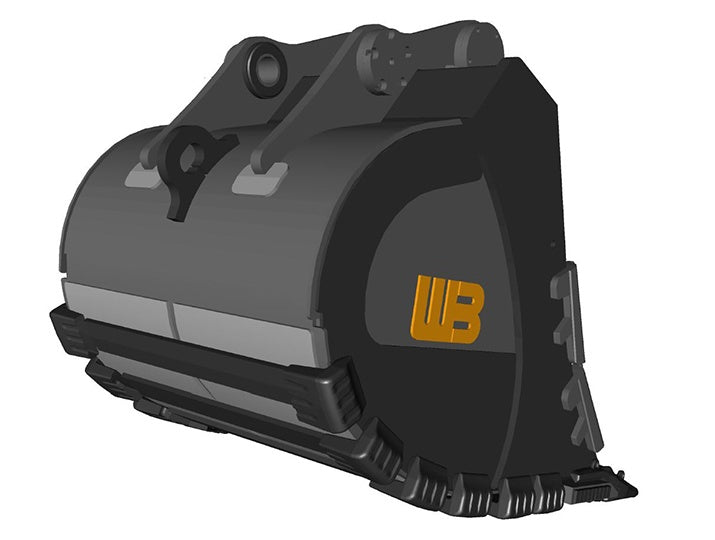

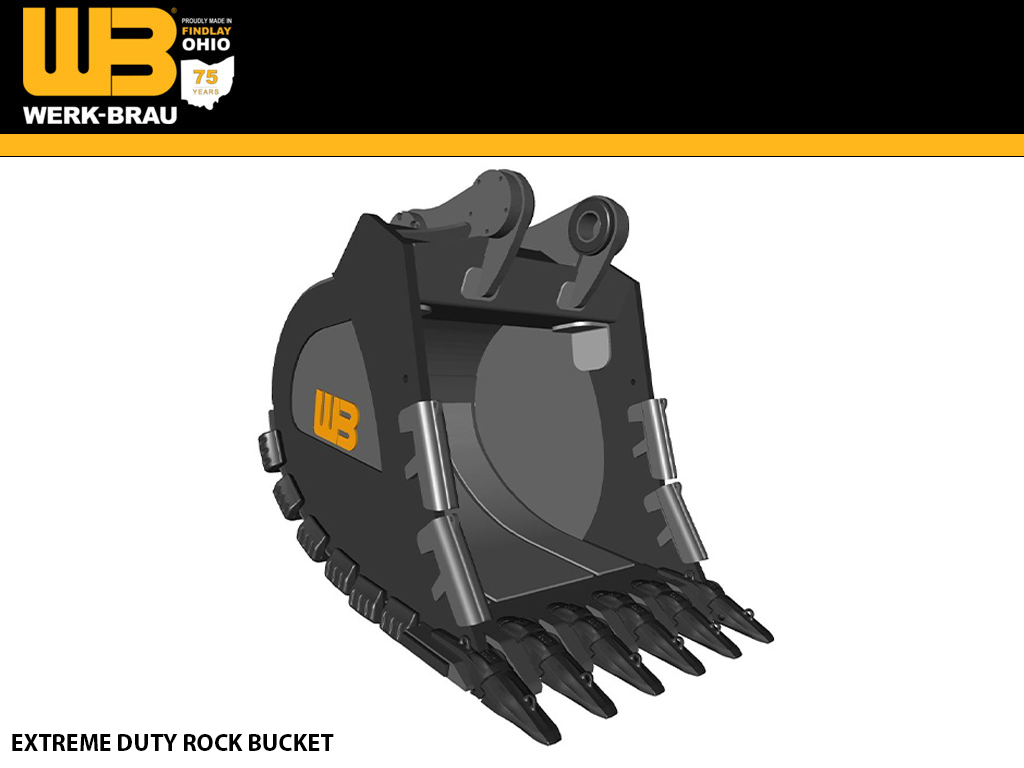

EXTREME DUTY ROCK BUCKETS

Recommended Applications

Werk-Brau's extreme duty buckets are specifically designed with an aggressive dig angle to effectively excavate in the toughest conditions. Ideal applications for this bucket include but are not limited to demolition work, shot rock, high abrasive applications, and moderate prying. When paired with a thumb, this bucket can also be used for material handling.

Construction

T-1 steel is utilized in all critical or high wear components. This bucket features tapered side plates, horizontal wear straps, and an extra thick cutting edge is backed by a wear plate that covers the entire bucket bottom. Side wear plates protect the bucket sides in the high wear areas and extend the buckets operation life. The tip radius on the severe duty excavator bucket is to or within O.E.M. specifications. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping. the cutter bit is made from heavy duty cast material.

Cutting Equipment Options

Equipped with industry standard teeth for extra durability. In most cases, the tooth size is increased to tolerate the more extreme digging application. A selection of quality brand teeth are available to choose from. Box rippers available and installed upon request.

Standard Sizes

3/8 cubic yds. to 4 cubic yds. of various widths are available. Special designs and capacities available upon request.

Additional Features

Bolt-on side cutters are highly recommended for added endurance. Box rippers are available and can be installed upon request. Special designs and capacities are available, please request a quote from your local dealer.

****PRICES DO NOT INCLUDE BUCKET PINS


Extreme Duty

PART # WIDTH CAPACITY NO. TEETH WEIGHT
E30ED24 24" 0.74 3 2,500
E30ED30 30" 0.92
4
2,860
E30ED36 36" 1.11 4
3,165
E30ED42 42" 1.29
5 3,500
E30ED48 48" 1.48
5
3,775
E30ED54 54" 1.66
6
4,165
E30ED60 60" 1.85 6
4,550




MAKE / WEIGHT CLASS 30MT (59,500 - 68,000 LBS.)
CASE CX300, CX365E
CAT 326, 328, 329, 335F, CB-LINKAGE
DOOSAN DX300LC-5, DX300LC-5SLR
HITACHI ZX300, ZX345
HYUNDAI HX300
JOHN DEERE 300G, 345G, 300P
KOBELCO SK300
KOMATSU PC270, PC290, PC308
LIEBHERR
LINK BELT 300X3, 300X4, 355X4
SANY SY305, SY335
TAKEUCHI
VOLVO EC290, EC300, EC305, ECR355
