LHG14750

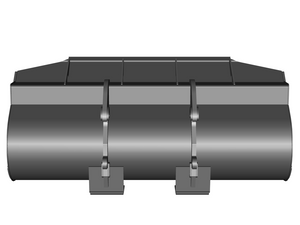

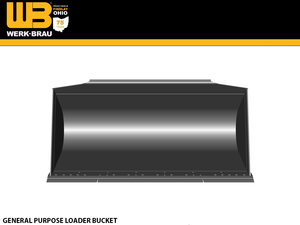

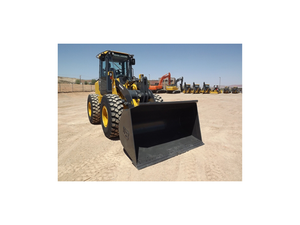

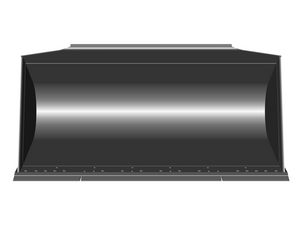

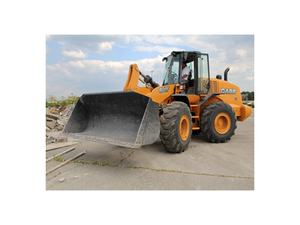

WERK-BRAU General Purpose Loader buckets for Wheel loaders 14,000 - 19,000 lbs. (class 1)

Capacity

2/24

GENERAL PURPOSE BUCKETS

Recommended Applications

Designed to dig in virgin soil and handle material up to 3,200 lbs./cu. yard in density.

Quality Construction

High-strength, abrasion-resistant steel is utilized in all critical components. Additional reinforcing ensures longer life in more rugged conditions. All seams are welded solid. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Auxiliary edge and teeth are available upon request.

Standard Sizes

3/4 cu. yd. to 8.0 cu. yds. of various widths are available. Special designs and capacities are available upon request.

Features

  • Enhanced High performance Profile
  • Designed for general purpose applications with material densities up to 3,200 lb/cy
  • Performance side plates & increased roll back angle allow for greater material retention
  • 5%+ greater material retention
  • Tapered side plates to reduce wear & easier dumping
  • integrated spill guard

PART # WIDTH CAPACITY WEIGHT
LHG14750 47" 0.42 850
LHG166100 66" 0.85 1050
LHG188125 88" 1.06 1300
LHG196150 96" 1.27 1675
LHG1100200 100" 1.69 1880
LHG1100225 100" 1.91 1950
LHG1100250 100" 2.17 2040

CLASS 1
 MAKE MODEL
CASE 321G
CAT 914
DEVELON 160
HITACHI ZW120
HYUNDAI HL720
JCB 217-3//S-3, 408, 409B ZX, 411
JOHN DEERE 710, 244, 304, 324, 344
KOMATSU WA70, WA80, WA100
KUBOTA R430, R530, R630
LIEBHERR L509, L514, L518
LINK-BELT L125
NEW HOLLAND
SANY
TAKEUCHI TW80
VOLVO L45G, L50G
WACKER NEUSON
YANMAR
