WL5GB124-6.00
WERK-BRAU Grapple Bucket for Wheel loaders 43,000 - 51,000 lbs. (class 5)
$44,220.00 - $46,000.00
2/24

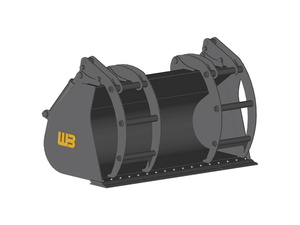

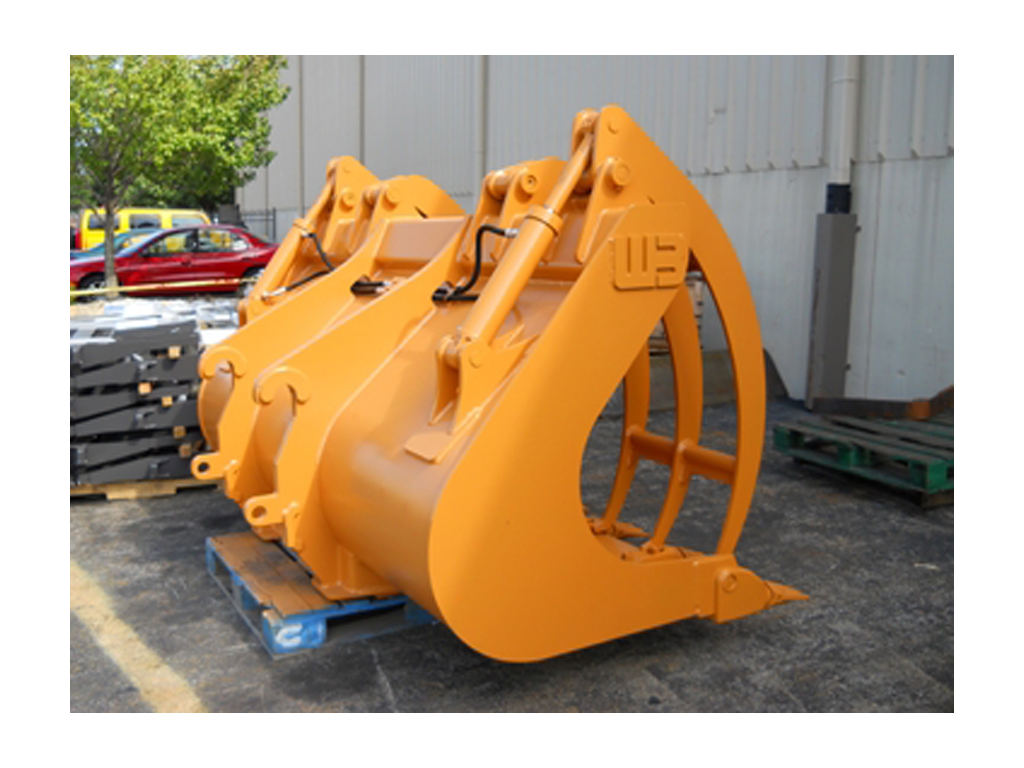

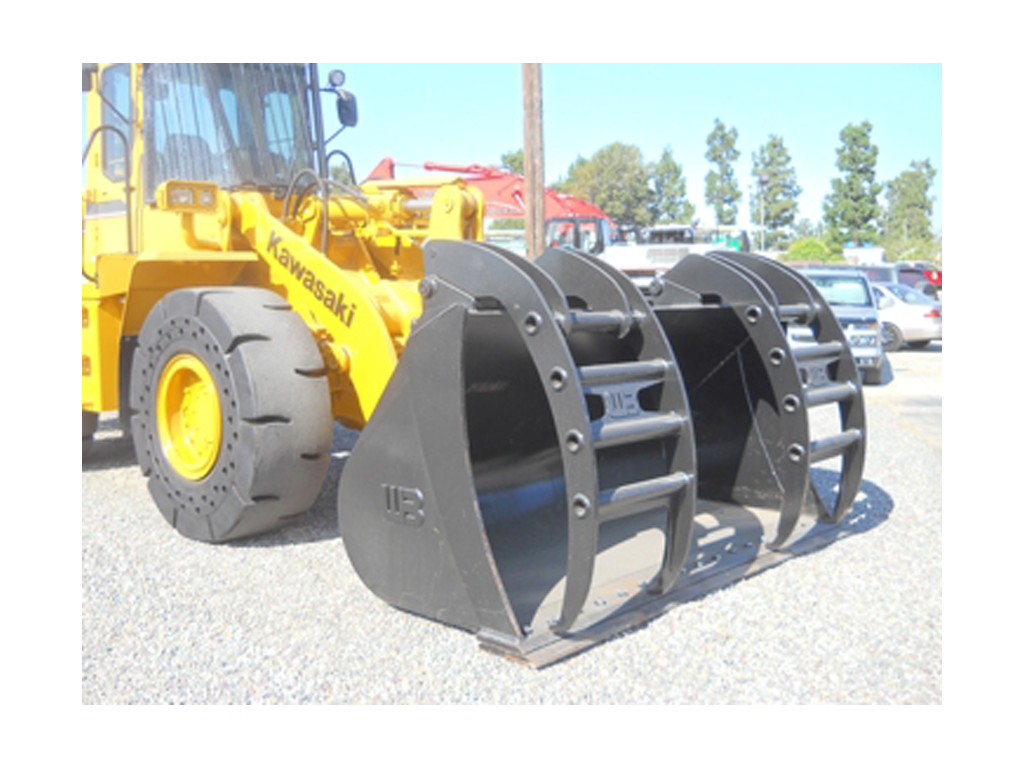

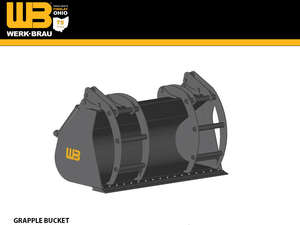

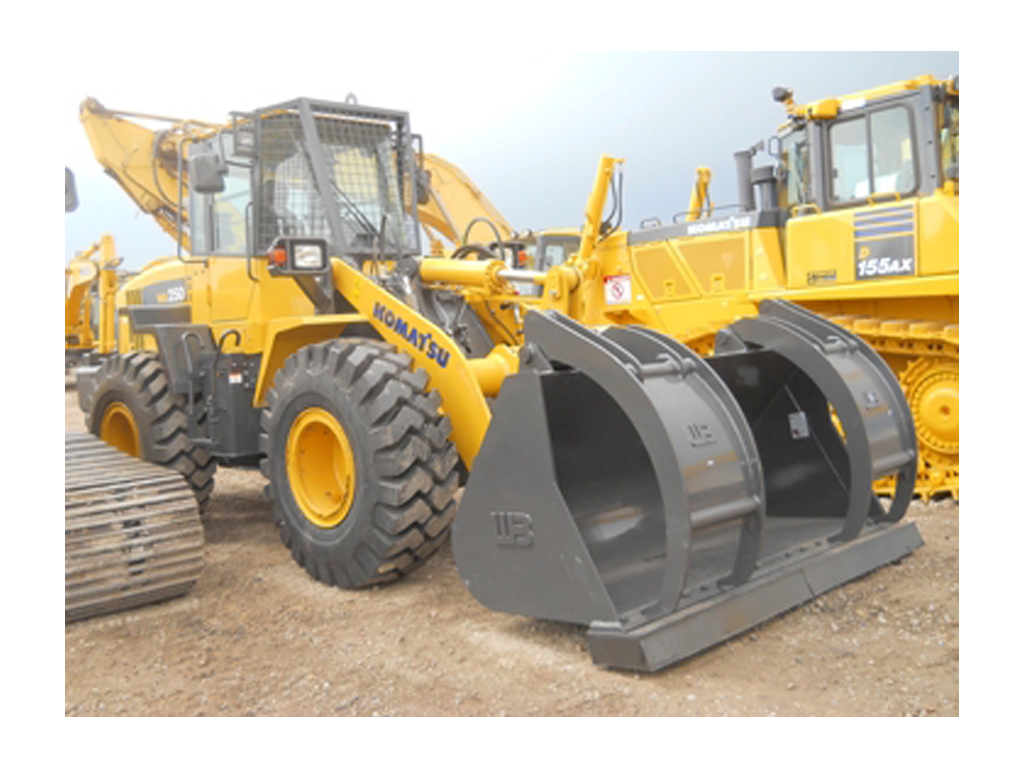

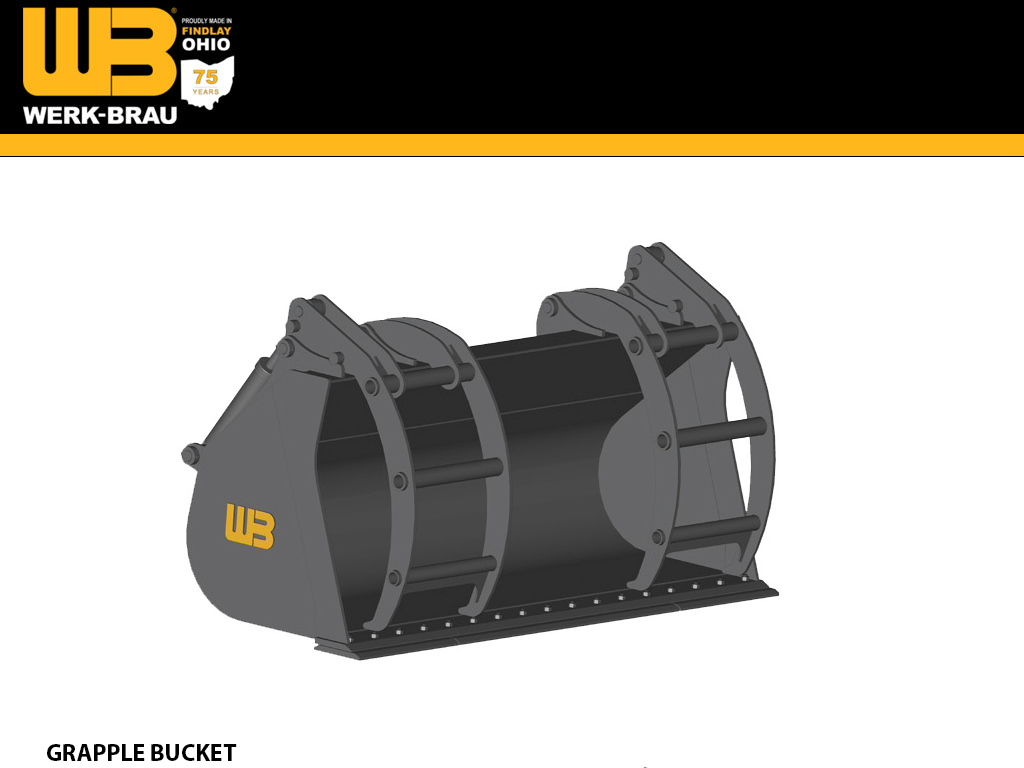

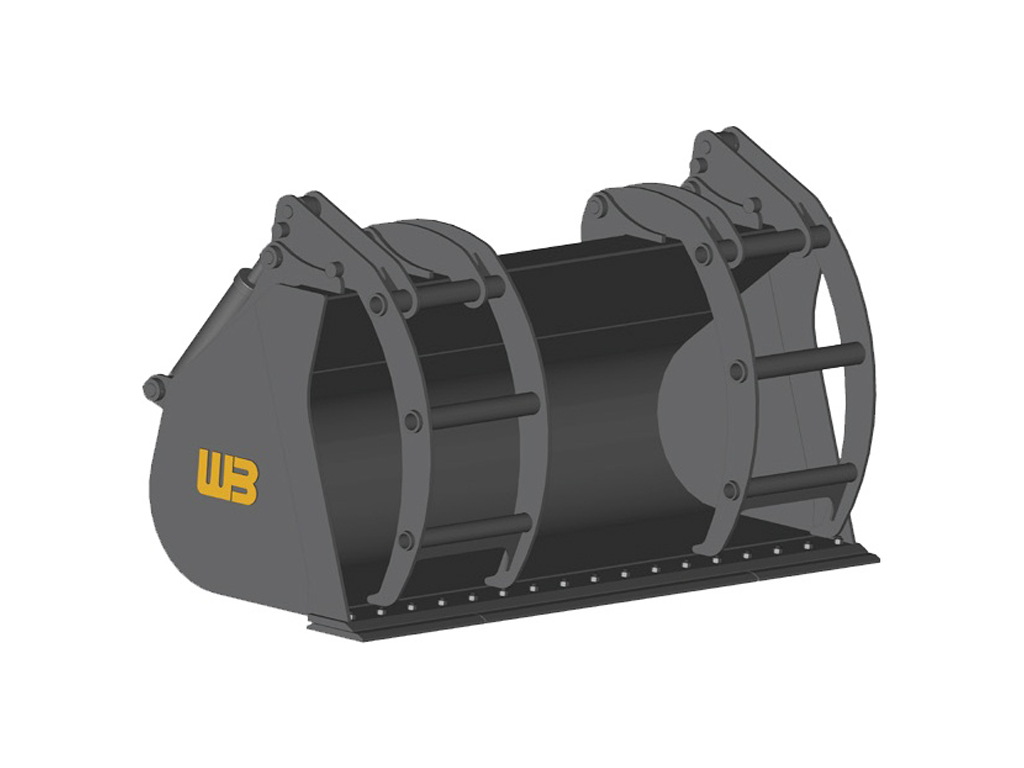

GRAPPLE BUCKET
Recommended Applications
Excellent attachment for use of metal scrap removal, brush, refuse and other light cumbersome material requiring the action of clamping for purposes of removal.
Quality Construction
Grapple arms are hydraulically operated and constructed of high tensile strength steel. High-strength, abrasion resistant steel is utilized in all critical components. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.
Standard Sizes
2.0 cu. yd. to 5.0 cu. yd. All makes and models.
Additional Features
Available with Werk-Brau front coupler or pin-up connection. Bolt on cutting edge optional. Optional tines.
- Dual tine grapple standard (shown), other options available at an upcharge
- High quality cylinders used
- includes bolt on cutting edge
- does not include hose kit
| PART # | WIDTH | CAPACITY | WEIGHT |
| WL5GB124-6.00 | 124" | 6.00 | 7,400 |
| WL5GB124-7.00 | 124" | 7.00 | 7,800 |
| CLASS 5 (43,000 - 51,000 LBS) | MODEL |
| CASE | 1021G, 1121G |
| CAT | 966, 970 |
| DEVELON | DL420-5, DL420-7, DL450-5, DL450-7 |
| HITACHI | ZW310, ZX330 |
| HYUNDAI | HL970, HL770 |
| JCB | |
| JOHN DEERE | 744, 824 |
| KOMATSU | WA470, WA480 |
| KUBOTA | |
| LIEBHERR | L566X |
| LINK-BELT | |
| NEW HOLLAND | LW230 |
| SANY | |
| TAKEUCHI | |
| VOLVO | L150 |
| WACKER NEUSON | |
| YANMAR |
