WL2GRK-102

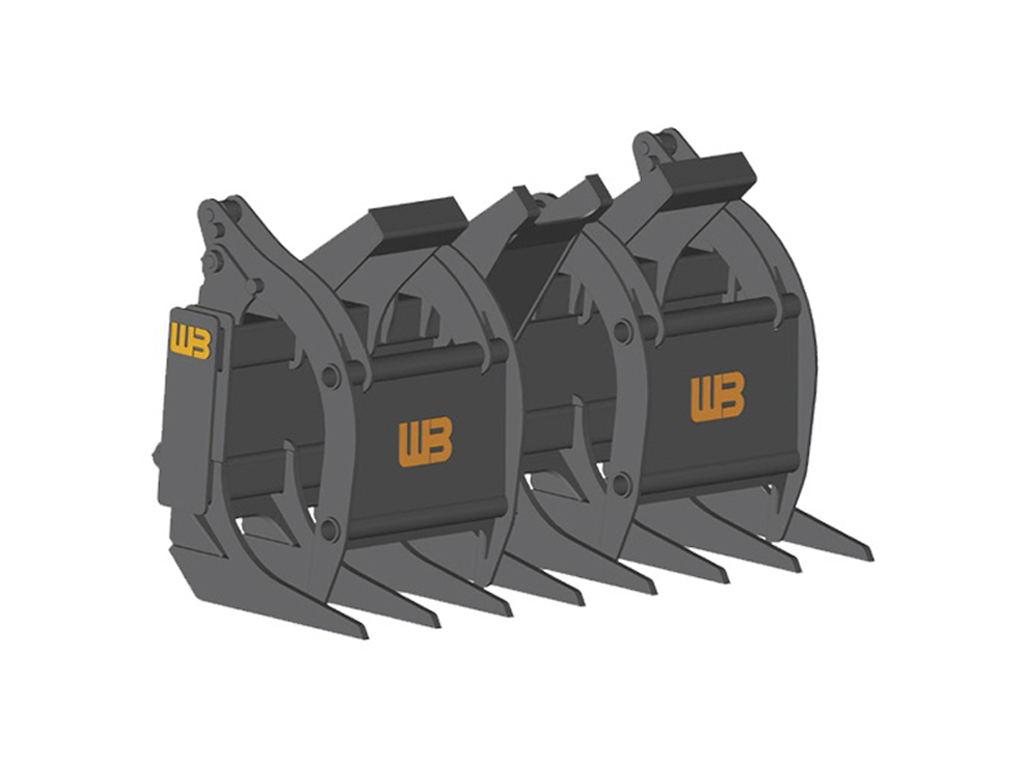

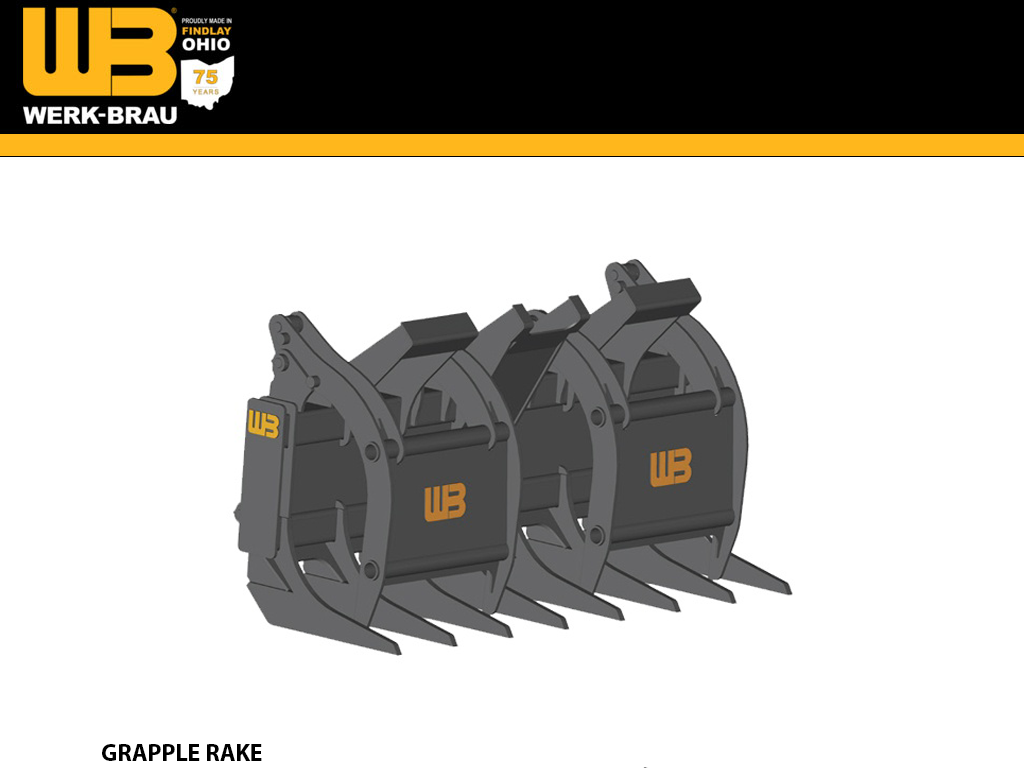

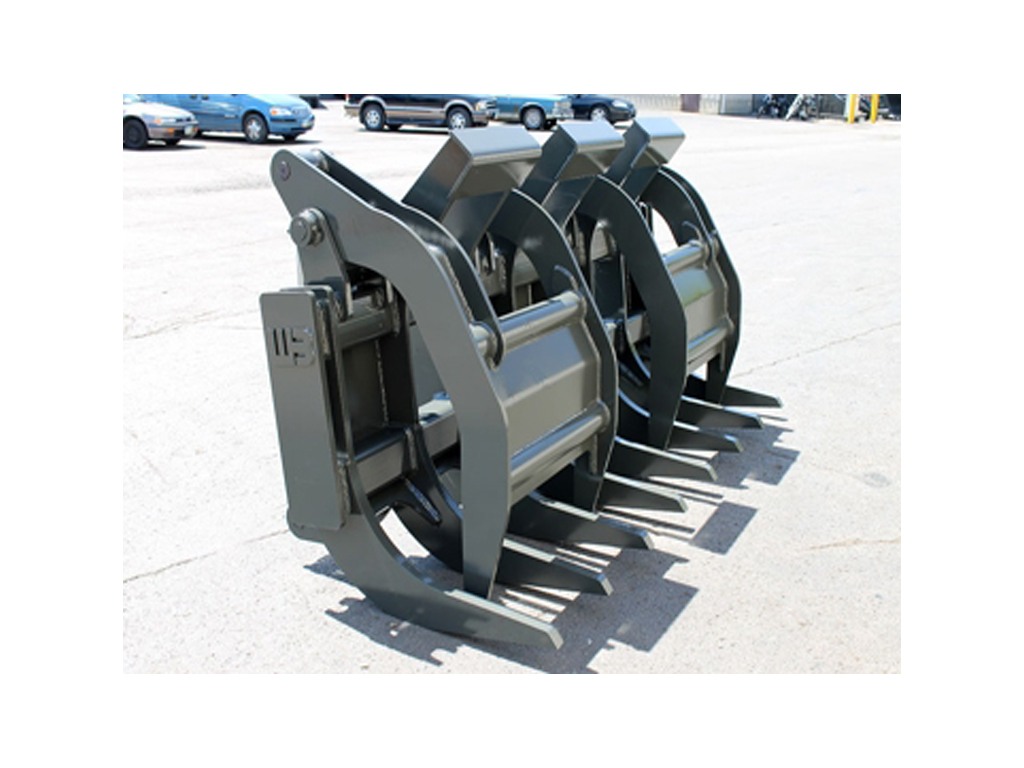

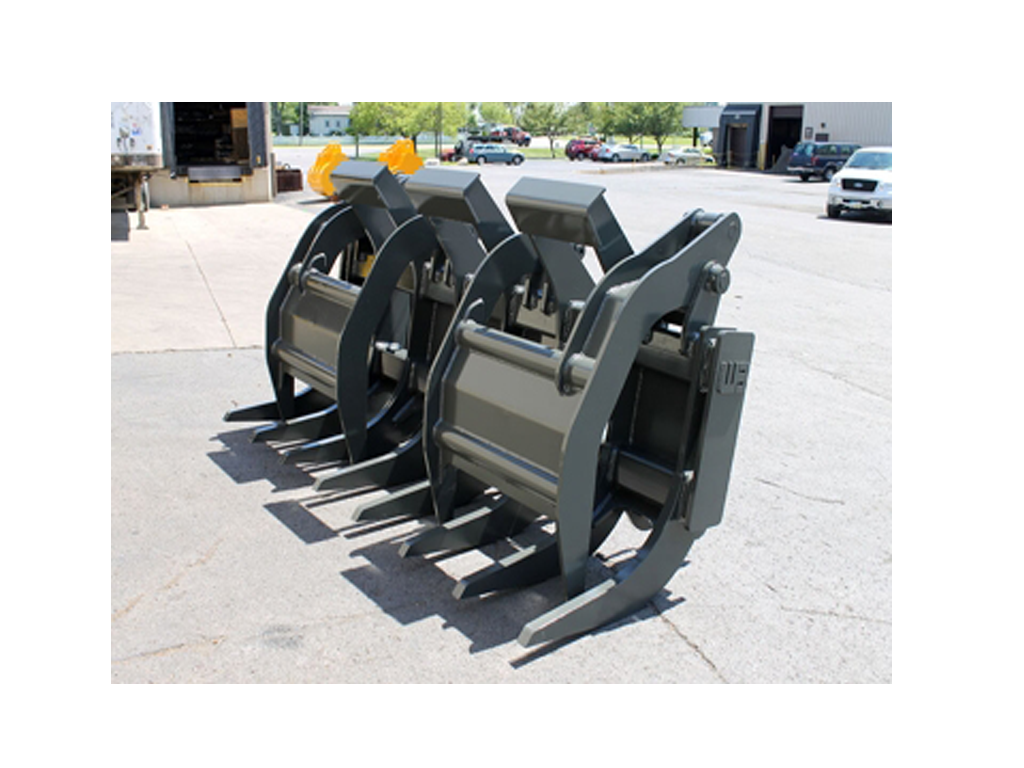

WERK-BRAU Grapple Rake for Wheel loaders 19,000 - 30,000 lbs. (class 2 & 3)

3/24

GRAPPLE RAKE

Recommended Applications

Excellent attachment for stacking and loading metal scrap, brush removal after land-clearing, refuse after clean-up, and other cumbersome material requiring the action of clamping for purposes of removal.

Quality Construction

Grapple arms are hydraulically operated and constructed of high tensile strength steel. High quality cylinders are used and various tine styles are available. High strength, abrasion resistant steel is utilized throughout the entire weldment in all critical areas for added wear. Side guards are standard reducing wear and protecting tines.

Standard Sizes

Widths range from 96" - 132". Other widths are available upon request for quotation.

Additional Features

Available with Werk-Brau front coupler or pin-up connection. Special designs and capacities are available

  • Wide mouth opening
  • Side guards
  • High Quality cylinders used
  • Dual paddle design standard
  • Does not include jumper hose kit
    PART # WIDTH # OF TINES WEIGHT
    WL2GRK-102 102" 8 3,300

    CLASS 2 (20,000 - 26,000 LBS) MODEL
    CASE 521G
    CAT 924, 928, 930, IT24-28
    DEVELON DL200-5, DL200TC-5, DL200-7
    HITACHI ZW140
    HYUNDAI HL730, HL740, HL940
    JCB 416
    JOHN DEERE 444
    KOMATSU WA150, WA200
    KUBOTA
    LIEBHERR L526
    LINK-BELT
    NEW HOLLAND LW110
    SANY
    TAKEUCHI
    VOLVO L60
    WACKER NEUSON
    YANMAR



    CLASS 3 (26,000 - 30,000 LBS) MODEL
    CASE 621G
    CAT 935, 936
    DEVELON DL220-5, DL220-7
    HITACHI ZW150
    HYUNDAI HL750
    JCB 426, 427
    JOHN DEERE 524, 544
    KOMATSU WA250, WA270
    KUBOTA
    LIEBHERR L538
    LINK-BELT L140
    NEW HOLLAND LW130
    SANY SW305
    TAKEUCHI
    VOLVO L70
    WACKER NEUSON
    YANMAR
