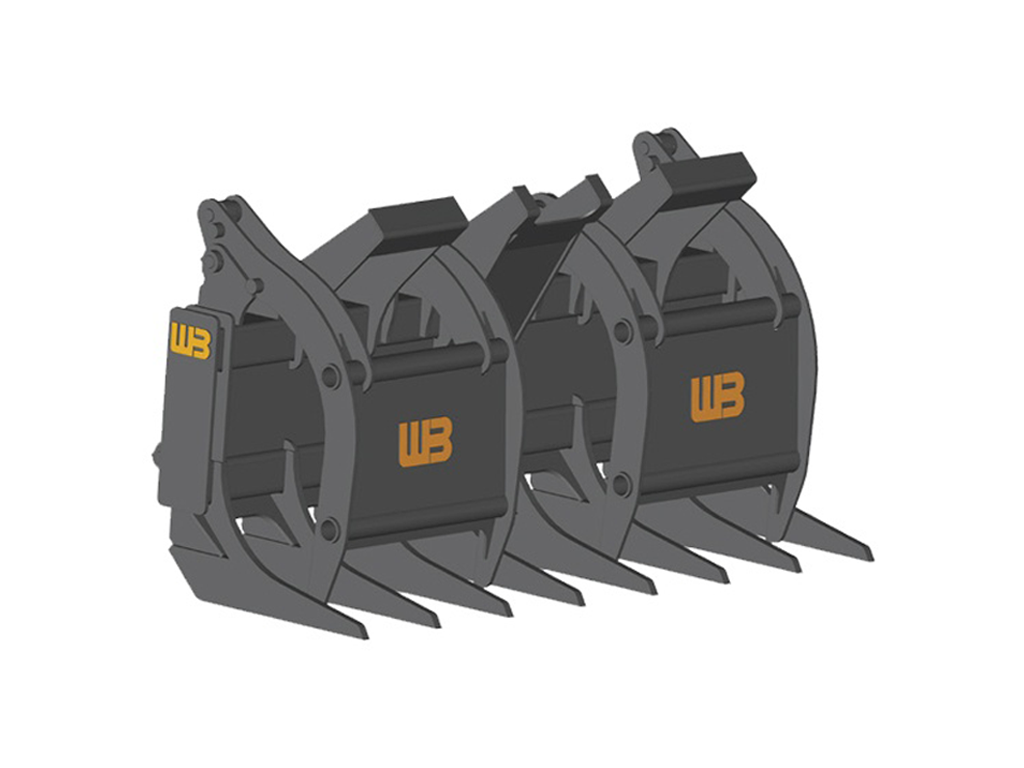

WERK-BRAU Grapple Rake for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU Grapple Rake for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU Grapple Rake for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU Grapple Rake for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU Grapple Rake for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU Grapple Rake for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU Grapple Rake for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU Grapple Rake for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)

WL3.5GRK-108

WERK-BRAU Grapple Rake for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)

$30,973.00

Business Financing Available

3/24

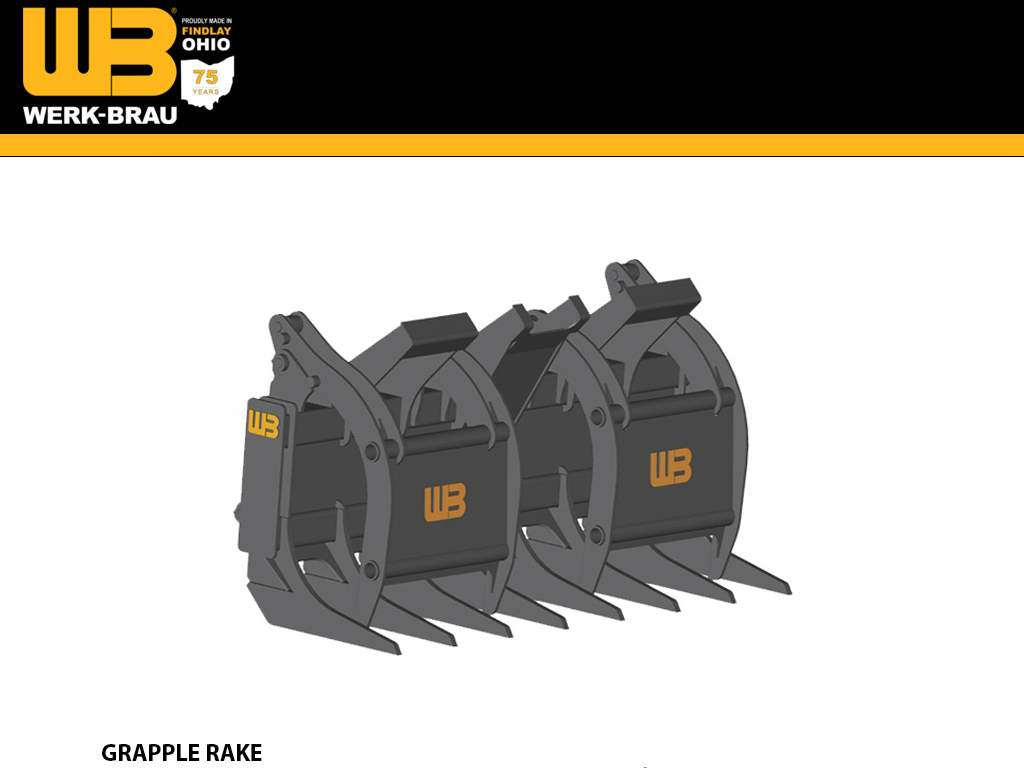

GRAPPLE RAKE

Recommended Applications

Excellent attachment for stacking and loading metal scrap, brush removal after land-clearing, refuse after clean-up, and other cumbersome material requiring the action of clamping for purposes of removal.

Quality Construction

Grapple arms are hydraulically operated and constructed of high tensile strength steel. High quality cylinders are used and various tine styles are available. High strength, abrasion resistant steel is utilized throughout the entire weldment in all critical areas for added wear. Side guards are standard reducing wear and protecting tines.

Standard Sizes

Widths range from 96" - 132". Other widths are available upon request for quotation.

Additional Features

Available with Werk-Brau front coupler or pin-up connection. Special designs and capacities are available

  • Wide mouth opening
  • Side guards
  • High Quality cylinders used
  • Dual paddle design standard
  • Does not include jumper hose kit
    PART # WIDTH # OF TINES WEIGHT
    WL3.5GRK-108 108" 9 4,000


    CLASS 3.5 (30,000 - 33,000 LBS) MODEL
    CASE 721G
    CAT 938, IT38
    DEVELON DL250-7, DL280-7
    HITACHI ZW180
    HYUNDAI HL955, HL757
    JCB 436, 437
    JOHN DEERE 624
    KOMATSU WA320
    KUBOTA
    LIEBHERR L546, L550X
    LINK-BELT
    NEW HOLLAND LW170
    SANY
    TAKEUCHI
    VOLVO L90
    WACKER NEUSON
    YANMAR
