05MN-HGS
WERK BRAU Hangers / top mounts for Mini Excavators
$313.00 - $1,547.00
12/24

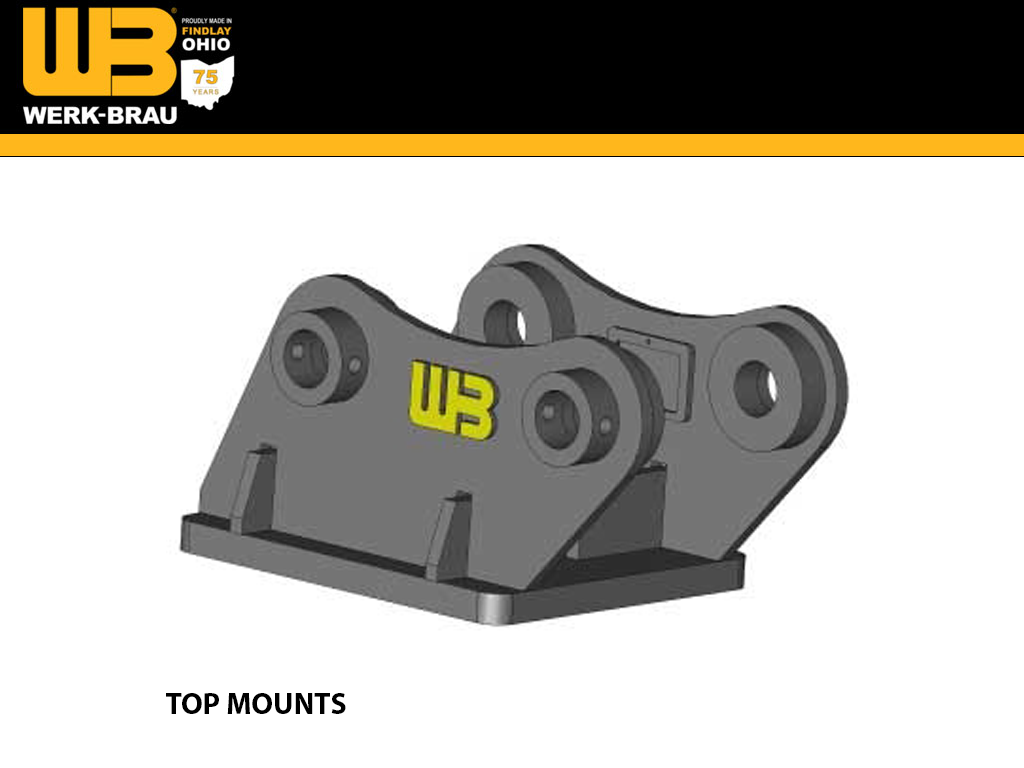

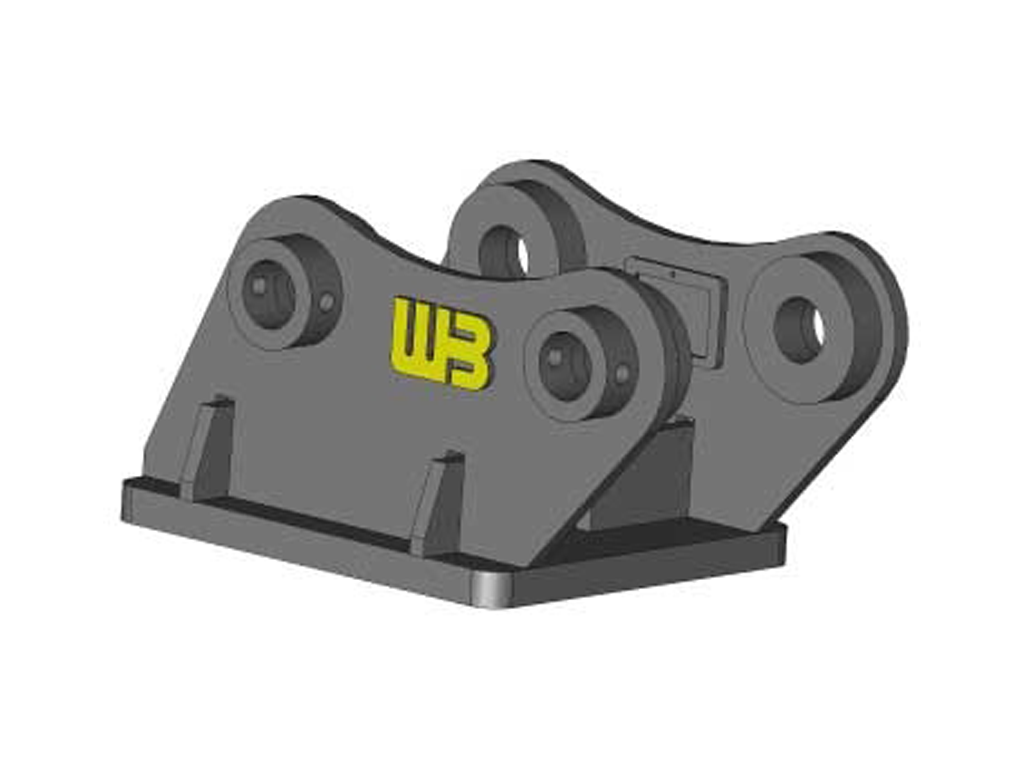

Hangers / top mounts for excavators.
Recommended Applications

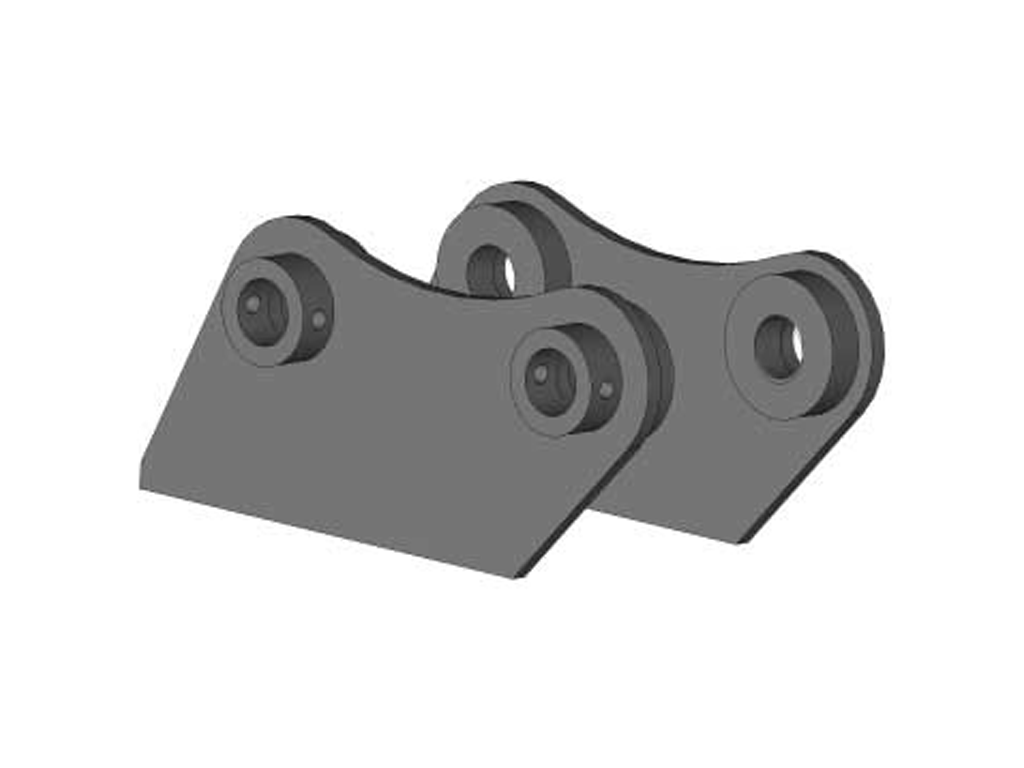

Werk-Brau's Hangers, Flat Plates, and Hammers are all standard OEM set up. Hanger blanks arrive as a loose set of ears. Hangers on a flat plate arrive as ears welded onto a plate. Hangers can be specifically drilled for a hammer, auger, compactor, etc.
***REFER TO MACHINE CLASS / FITS TAB TO DETERMINE YOUR MACHINE CLASS
| MACHINE CLASS | PART # | DESCRIPTION | WEIGHT |
| Mini 04, 05 & 76 |
05MN-HGS |
Hangers only |
20 |
| Mini 04, 05 & 76 | KLACCBKTPLS |
Klac C hanger adapter |
15 |
| Mini 04, 05 & 76 | KLACDBKTPLS |
Klac D hanger Adapter |
20 |
| Mini 04, 05 & 76 | 05MN-HFP | Hangers on flat plate | 35 |
| Mini 04, 05 & 76 | 05MN-HHM | Hangers driller for hammer | 35 |
| MACHINE CLASS | PART # | DESCRIPTION | WEIGHT |
| Mini 1 & 15 |
15MN-HGS |
Hangers only |
40 |
| Mini 1 & 15 | KLACEBKTPLS |
Klac E hanger adapter |
40 |
| Mini 1 & 15 | 15MN-HFP |
Hangers on flat plate 15" x 14" |
60 |
| Mini 1 & 15 | 15MN-HHM | Hangers drilled for hammer | 60 |
| MACHINE CLASS | PART # | DESCRIPTION | WEIGHT |
| Mini 2 & 3 |
3MN-HGS |
Hangers only |
45 |
| Mini 2 & 3 | 3MN-HFP |
Hanger on a flat plate 16.5" x 14" |
65 |
| Mini 2 & 3 | 3MN-HHM |
Hangers driller for hammer | 65 |
| MACHINE CLASS | PART # | DESCRIPTION | WEIGHT |
| Mini 4 & 5 |
4MN-HGS |
Hangers only |
50 |
| Mini 4 & 5 | KLACFBKTPLS |
Klac F hanger adapter |
50 |
| Mini 4 & 5 | 4MN-HFP |
Hangers on a flat plate 16.5" x 14" |
70 |
| Mini 4 & 5 | 4MN-HHM | Hangers drilled for hammer | 70 |
| MACHINE CLASS | PART # | DESCRIPTION | WEIGHT |
| Bobcat X-change | 6737698 | X-change adapter | 70 |
