WERK-BRAU Heavy Duty High Capacity Buckets for 176,000 - 200,000 lbs. Excavators (80MT)
WERK-BRAU Heavy Duty High Capacity Buckets for 176,000 - 200,000 lbs. Excavators (80MT)
WERK-BRAU Heavy Duty High Capacity Buckets for 176,000 - 200,000 lbs. Excavators (80MT)
WERK-BRAU Heavy Duty High Capacity Buckets for 176,000 - 200,000 lbs. Excavators (80MT)
WERK-BRAU Heavy Duty High Capacity Buckets for 176,000 - 200,000 lbs. Excavators (80MT)
WERK-BRAU Heavy Duty High Capacity Buckets for 176,000 - 200,000 lbs. Excavators (80MT)
WERK-BRAU Heavy Duty High Capacity Buckets for 176,000 - 200,000 lbs. Excavators (80MT)
WERK-BRAU Heavy Duty High Capacity Buckets for 176,000 - 200,000 lbs. Excavators (80MT)
WERK-BRAU Heavy Duty High Capacity Buckets for 176,000 - 200,000 lbs. Excavators (80MT)
WERK-BRAU Heavy Duty High Capacity Buckets for 176,000 - 200,000 lbs. Excavators (80MT)
WERK-BRAU Heavy Duty High Capacity Buckets for 176,000 - 200,000 lbs. Excavators (80MT)
WERK-BRAU Heavy Duty High Capacity Buckets for 176,000 - 200,000 lbs. Excavators (80MT)

E85HD54

WERK-BRAU Heavy Duty High Capacity Buckets for 176,000 - 200,000 lbs. Excavators (80MT)

$45,584.00 - $59,840.00

Business Financing Available

Style
Size

12/24

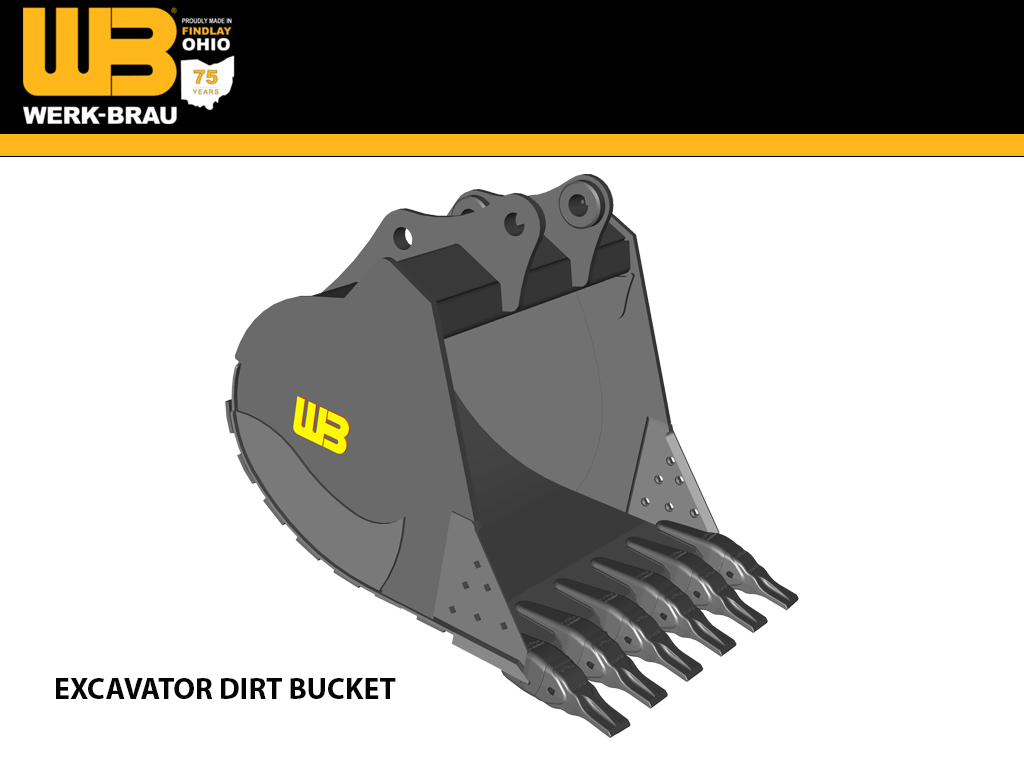

HEAVY DUTY DIRT BUCKETS

Recommended Applications

Specifically designed for tough clay or dirt with rock scattered through the soil. Werk-Brau does not recommend using this bucket for prying required to dig solid rock. For extreme digging conditions see the 'Severe Duty Bucket', ‘Extreme Duty Bucket’ and 'V-Line Strata Rock Bucket'.

Construction

High quality T-1 steel is utilized in all critical or high wear components to ensure that this bucket has a long operation life. Heavy duty cast material is used in the buckets cutter bit. The cutting edge is backed by a heavy reinforcing plate with straps protecting the rest of the bottom. Side wear plates reinforce the sides for backfilling. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Equipped with industry standard teeth for extra durability. A selection of quality brand teeth are available to choose from. Bolt on cutting edges are optional. Bolt on side cuttersare highly recommended.

Standard Sizes

Available: 3/8 cubic yds. to 6-1/2 cubic yds. of various widths are available. Special designs and capacities available upon request.

Additional Features

Bolt-on side cutters are highly recommended for added endurance.

****PRICES DO NOT INCLUDE BUCKET PINS
Heavy Duty
PART # WIDTH CAPACITY NO. TEETH WEIGHT
E75HD54 54" 3.57 4 7,770
E75HD60 60" 4.02 5 8,400
E75HD66 66" 4.57 5 8,800
E75HD72 72" 4.91 5 9,200
E75HD78 78" 5.36 6 7,790
E75HD80 80" 5.51 6 9,950
E75HD84 84" 5.81 6 10,200
MAKE / WEIGHT CLASS 80MT (176,000 - 200,000 LBS.)
CASE CX800
CAT 374
DOOSAN
HITACHI ZX890
HYUNDAI 890
JOHN DEERE 870G LC
KOBELCO
KOMATSU PC850
LIEBHERR
LINK BELT LX800
SANY
TAKEUCHI
VOLVO 1
