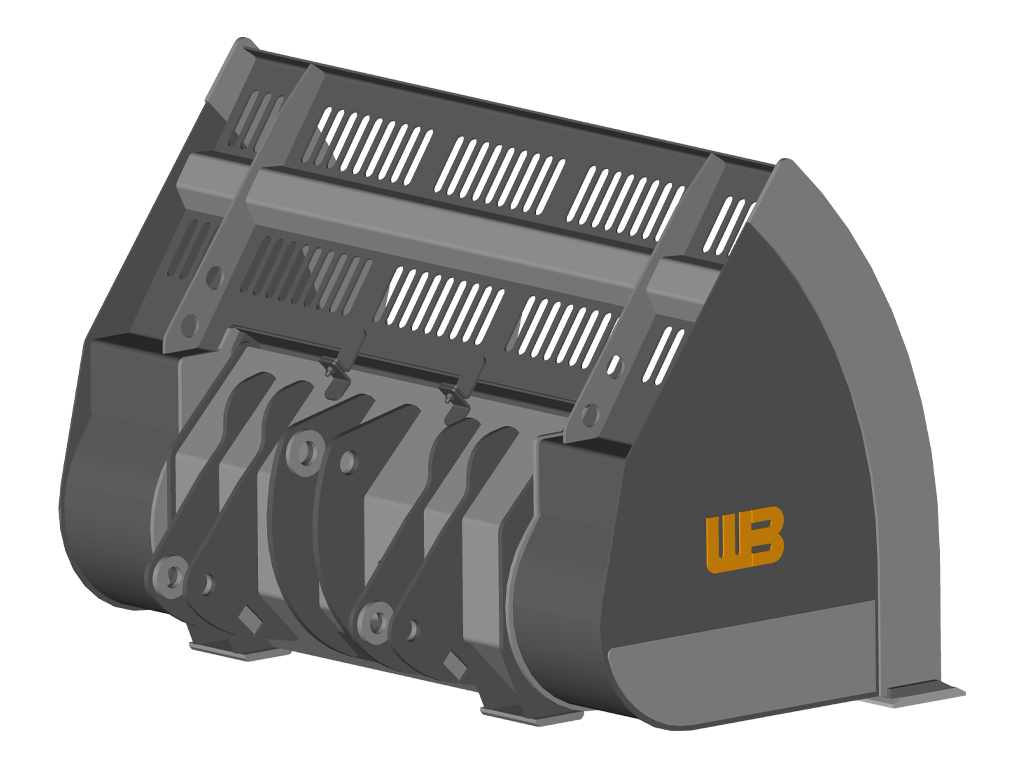

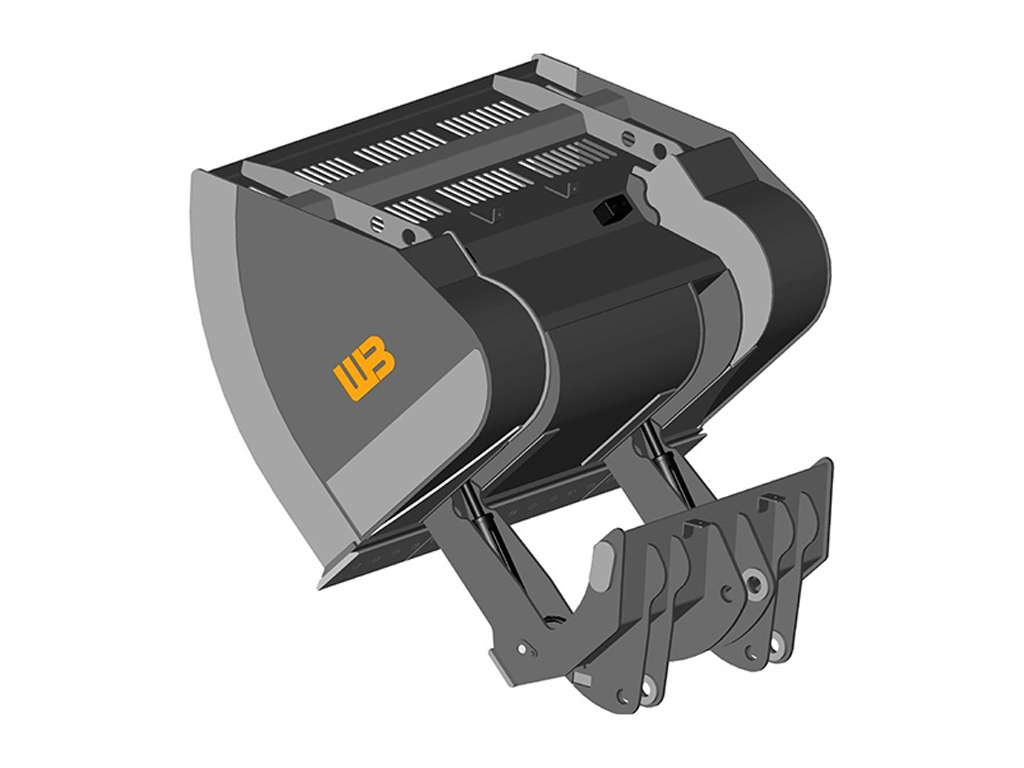

WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)
WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)

WL3.5HT105-5.00

WERK-BRAU High Tip / Roll out Bucket for Wheel loaders 30,000 - 33,000 lbs. (class 3.5)

$35,280.00 - $37,433.00

Business Financing Available

Capacity

2/24

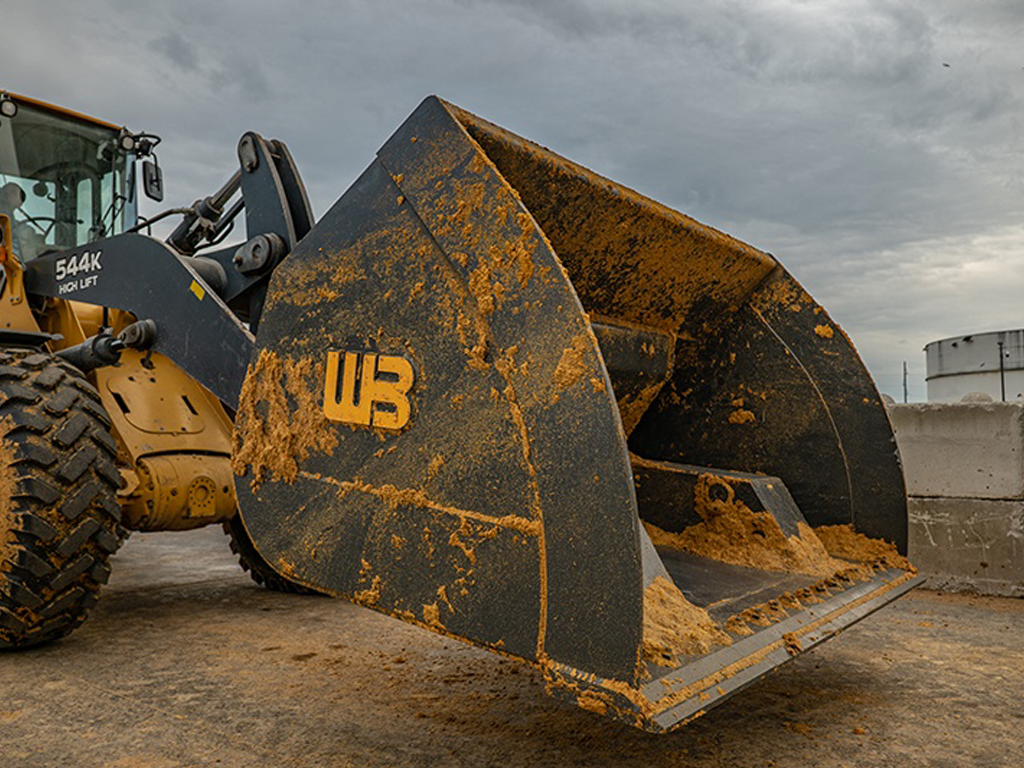

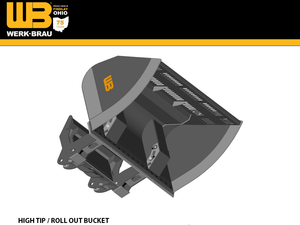

HIGH TIP / ROLL OUT BUCKET

Recommended Applications

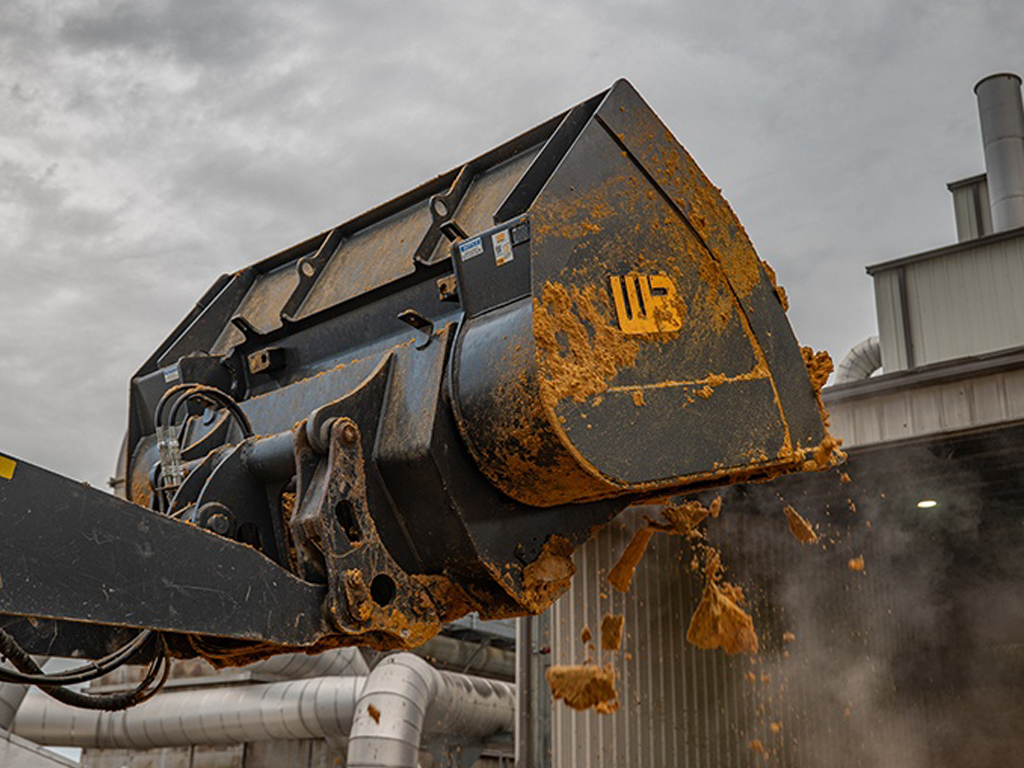

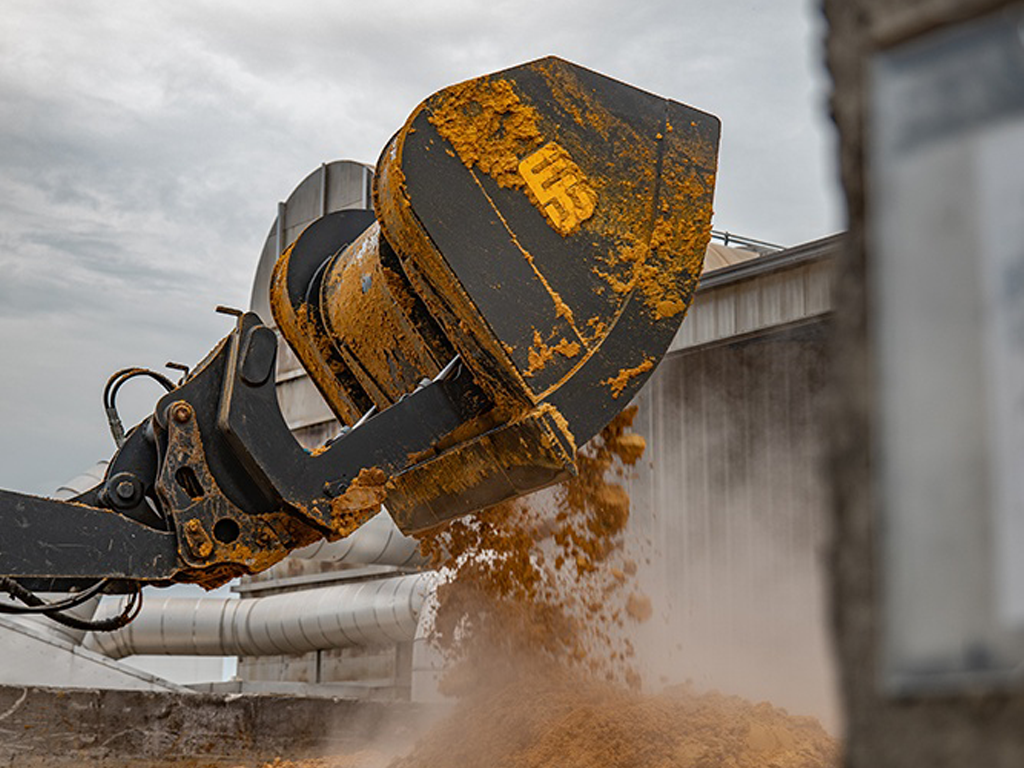

Specifically designed for increased dump height 24"+ which is perfect for backfilling or loading trucks and re-handling light materials up to 2,000 lbs.

Additional Features

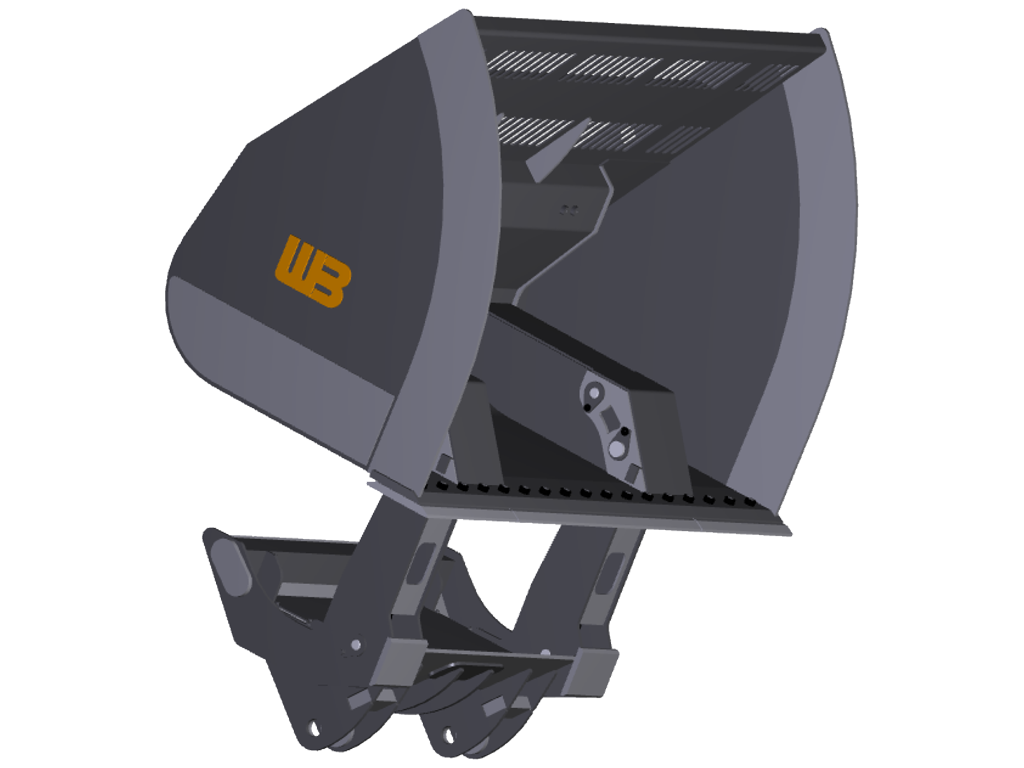

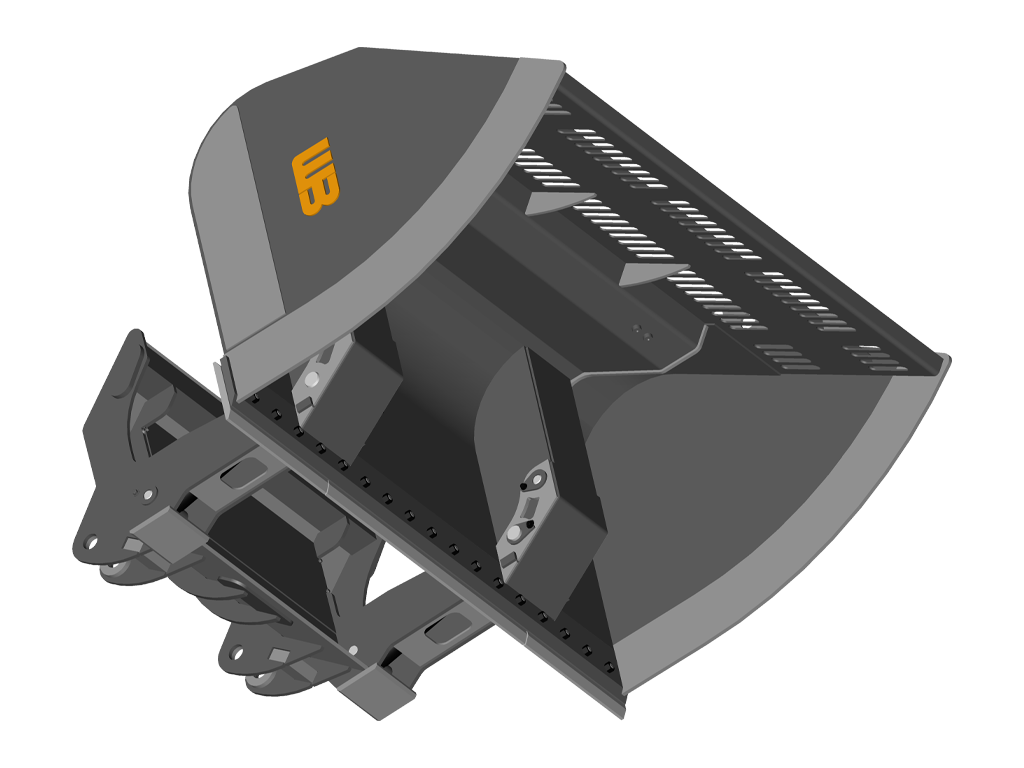

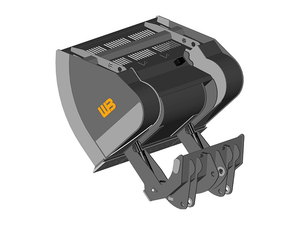

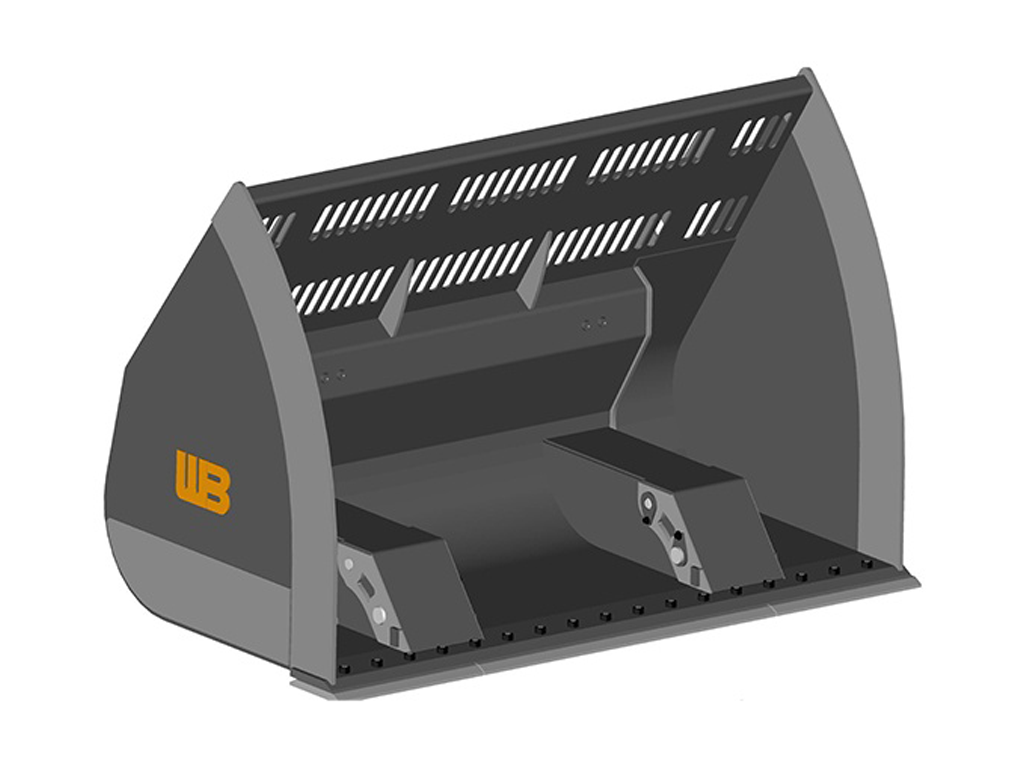

Bucket design incorporates a recessed carriage design to improve center of gravity. This mean less tippyness and less stress on the loader and bucket. Visibility slots come standard along with dual cushioned cylinders and performance side plates for increased material retention.
  • Dual cylinders
  • Over 93° of dump action
  • versatile design
  • designed for overhead loading,vertical piling, & back filling
  • High performance light material profile loader bucket
  • includes bolt on cutting edge
  • does not include hose kit
  • designed for materials up to 2,000 lbs.

 
PART # WIDTH CAPACITY WEIGHT
WL3.5HT105-5.00 105" 5.00 5,350
WL3.5HT105-6.00 105" 6.00 5,850

CLASS 3.5 (30,000 - 33,000 LBS) MODEL
CASE 721G
CAT 938, IT38
DEVELON DL250-7, DL280-7
HITACHI ZW180
HYUNDAI HL955, HL757
JCB 436, 437
JOHN DEERE 624
KOMATSU WA320
KUBOTA
LIEBHERR L546, L550X
LINK-BELT
NEW HOLLAND LW170
SANY
TAKEUCHI
VOLVO L90
WACKER NEUSON
YANMAR
