WTB3-42-100
1/24

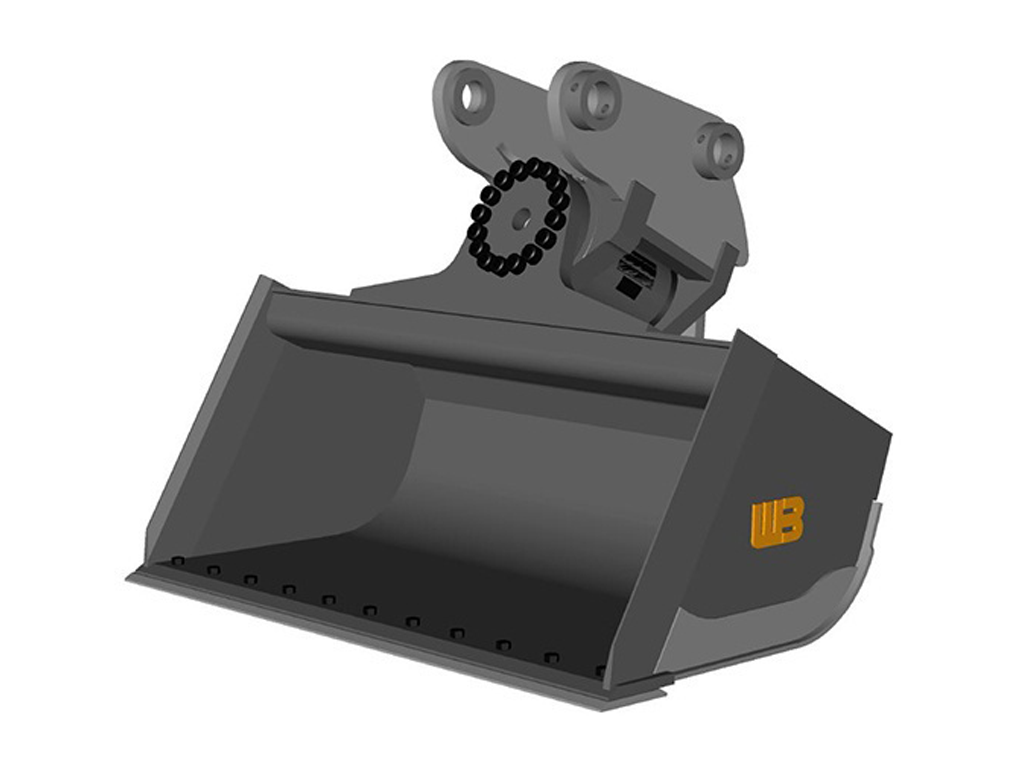

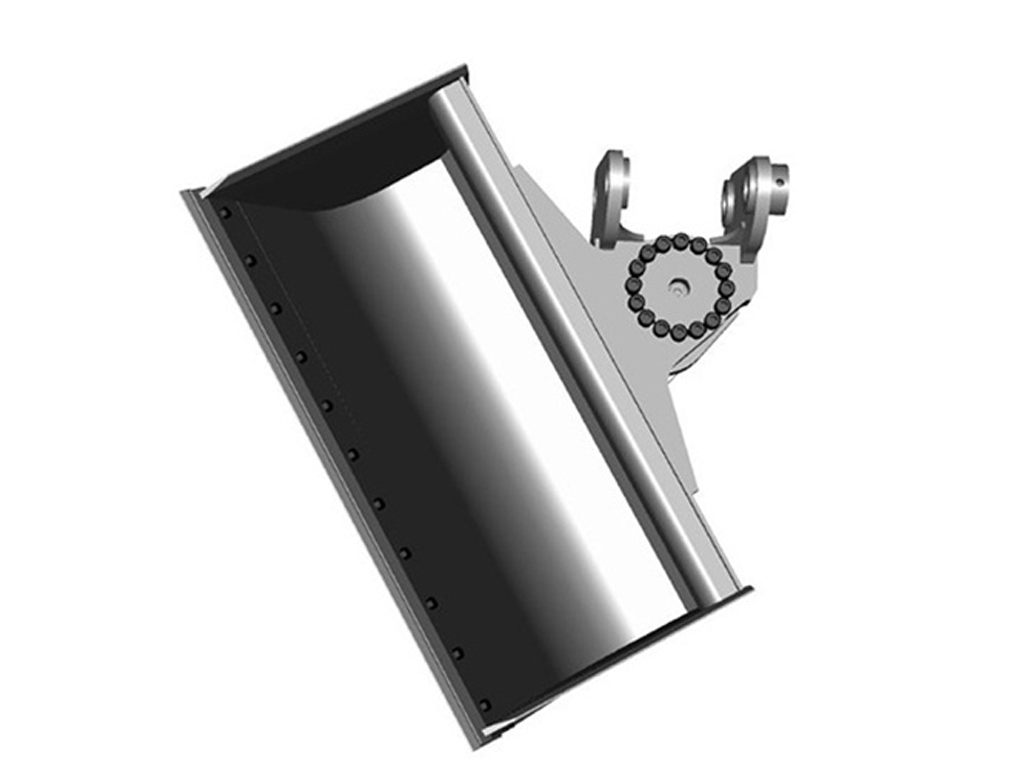

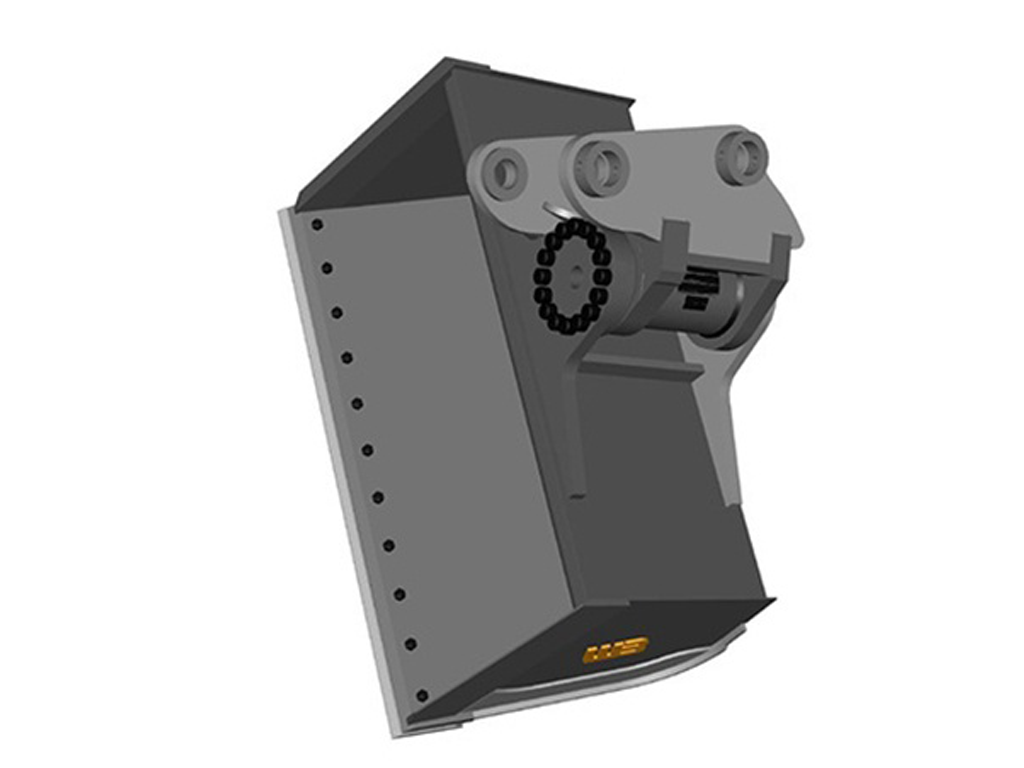

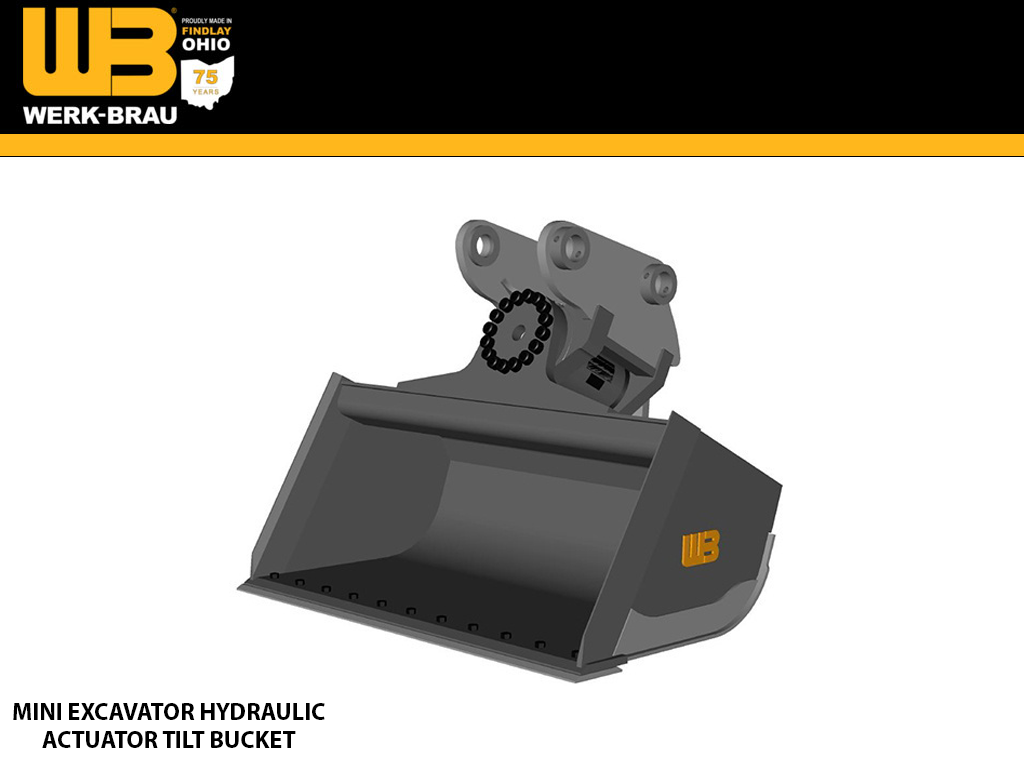

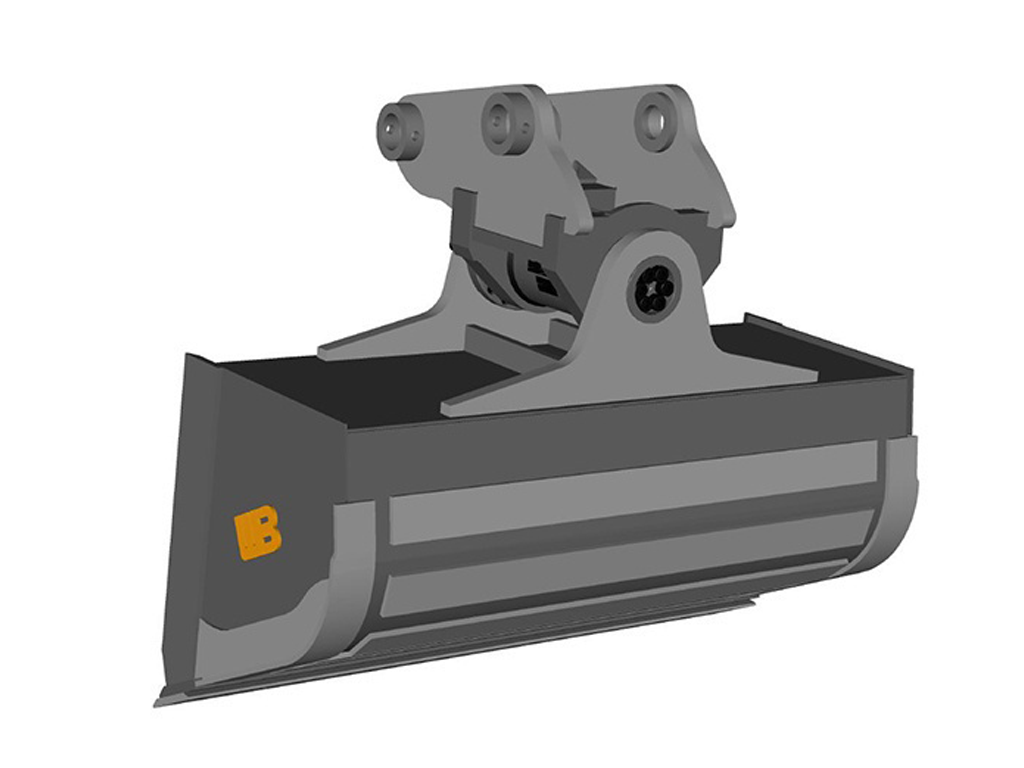

With the Werk-Brau Actuator Tilt Ditching bucket, you can tilt any bucket up to 90 degrees each way (180 degrees total) vs. 45 degrees each way in a cylinder design. This bucket design eliminates minimum width constraints like a typical cylinder version.
Instead of tilt cylinders, Werk-Brau offers their tilting grade bucket with a rotary actuator to achieve more tilting range of motion, tilting force, and also less downtime and maintenance. Productivity can increase by up to 50% by simply tilting your attachments. The tilting function is powered by a fully enclosed rotary actuator with improved tilt holding force. With no exposed cylinders, this bucket reduces downtime.
PART # | WIDTH | CAPACITY | WEIGHT |
WTB3-42-100 | 42" | 8.75 |
834 |
WTB3-48-100 | 48" | 10.00 | 872 |
MAKE / WEIGHT CLASS | MINI 3 (11,000 - 14,000 LBS.) |
BOBCAT | E80, E85 |
CASE | |
CAT | 306CR |
DOOSAN | DX80 |
DITCH WITCH | |
GEHL | GE753Z, GE803 |
HITACHI | |
HYUNDAI | R75 |
IHI | 55N-2, 55NX, 65NX, 80NX |
JCB | 8060 |
JOHN DEERE | |
KOBELCO | |
KOMATSU | PC78, PC95, PC88MR-8 |
KUBOTA | |
LINK BELT | |
MUSTANG | 8003, 7503ZT |
NEW HOLLAND | |
SANY | |
TAKEUCHI | HR32 |
VOLVO | |
YANMAR | |
WACKER NEUSON | ET90, EW100, 8003 |
