WTB1-36-050

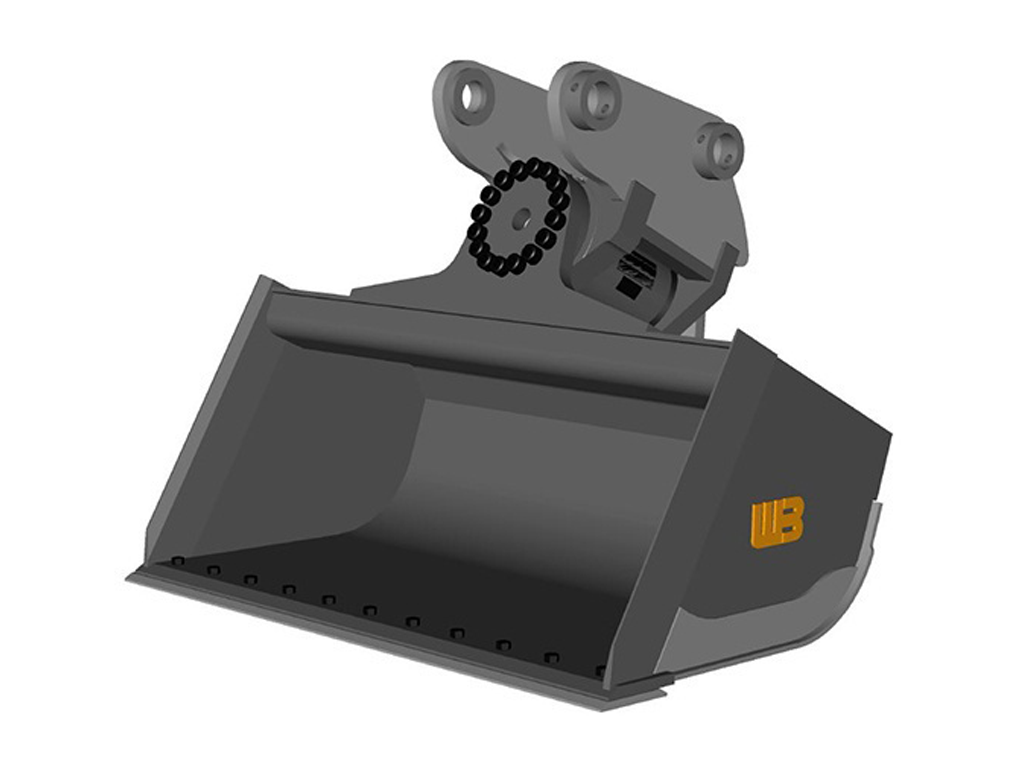

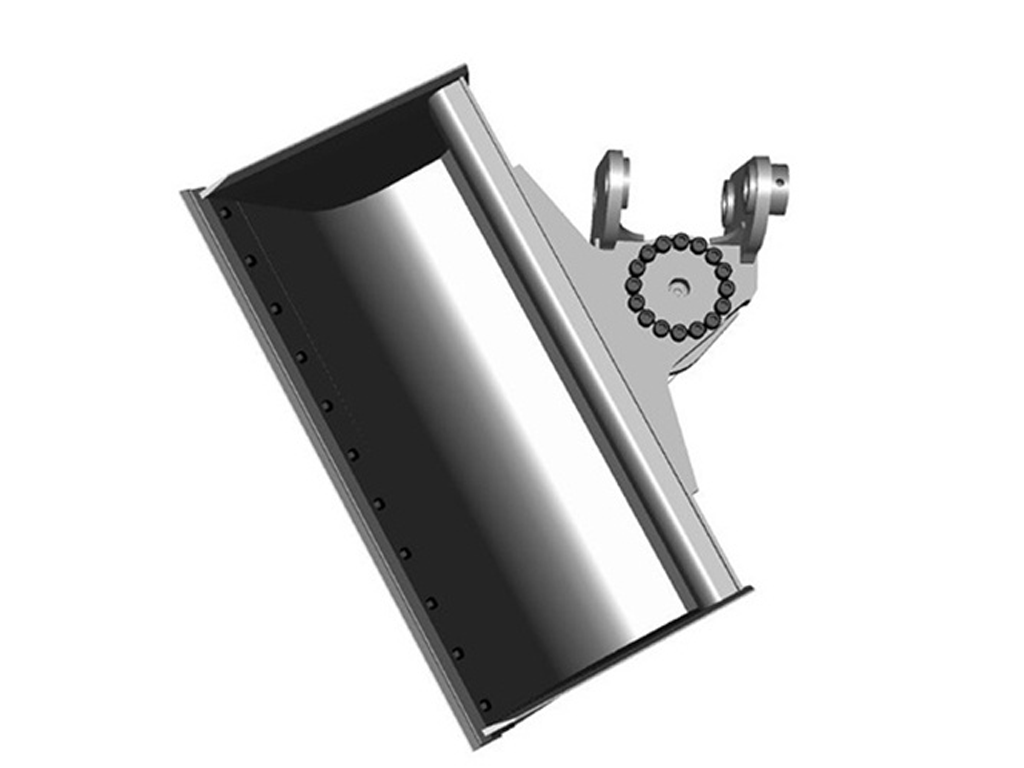

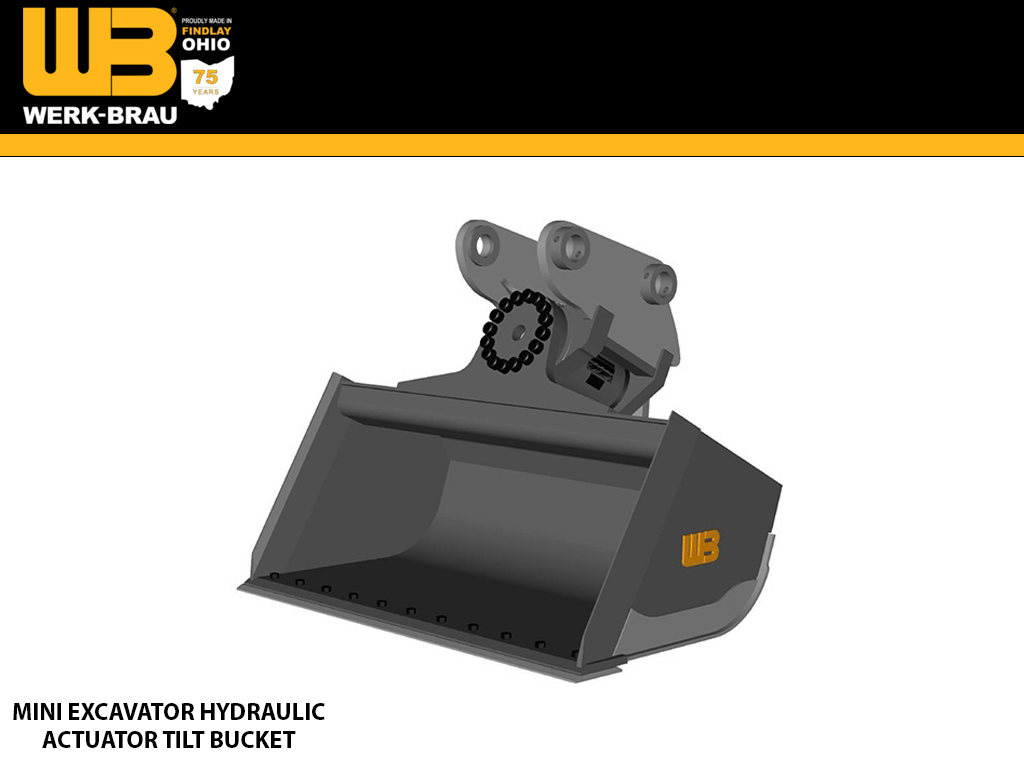

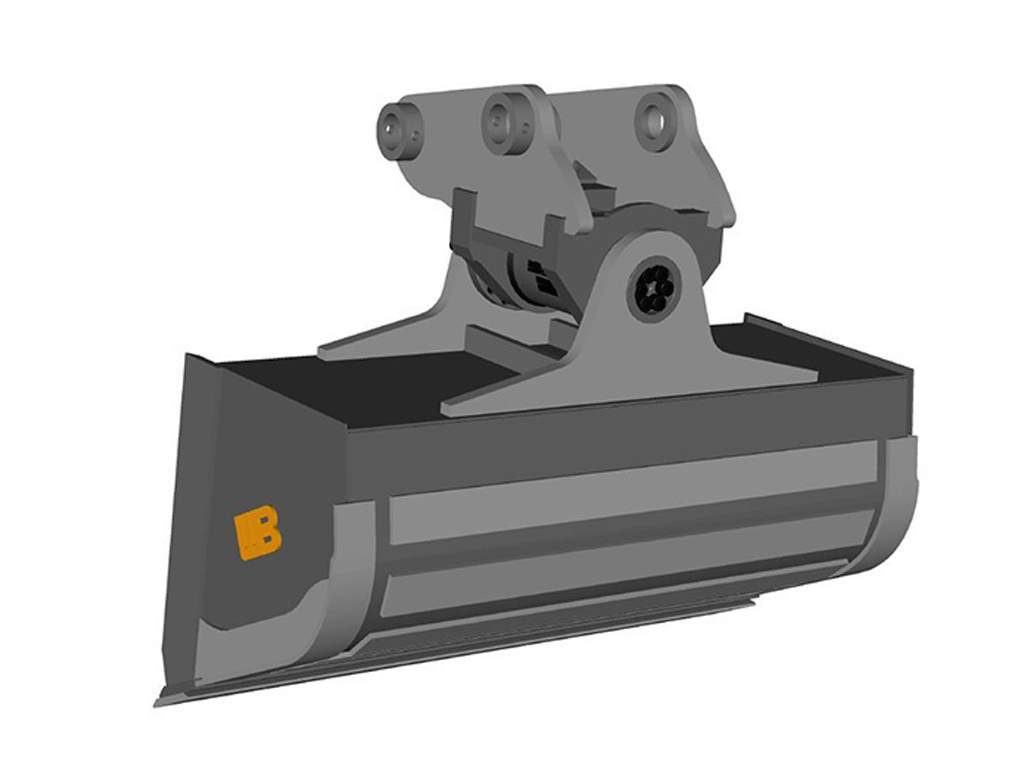

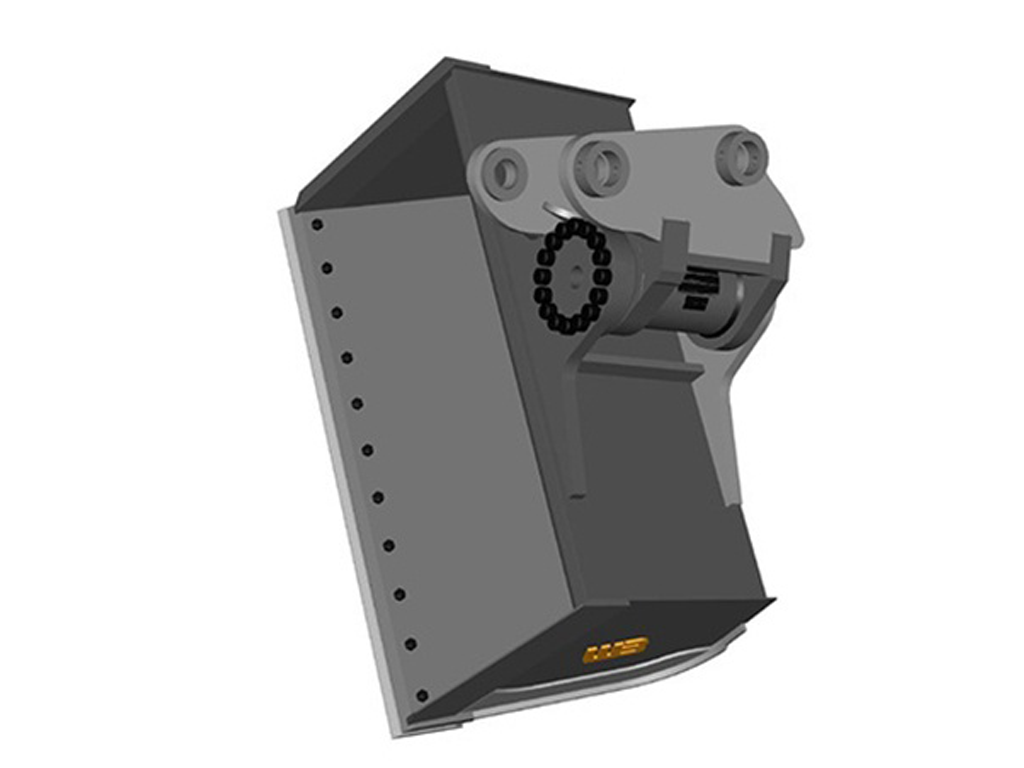

WERK-BRAU Hydraulic Actuator Tilt Bucket for 5,000 -11,000 lbs. Excavators. (Mini 1, 15 & 2)
$10,140.00 - $10,807.00
1/24
WERK-BRAU HYDRAULIC ACTUATOR TILT BUCKETS
Recommended Applications
With the Werk-Brau Actuator Tilt Ditching bucket, you can tilt any bucket up to 90 degrees each way (180 degrees total) vs. 45 degrees each way in a cylinder design. This bucket design eliminates minimum width constraints like a typical cylinder version.
Key Features
Instead of tilt cylinders, Werk-Brau offers their tilting grade bucket with a rotary actuator to achieve more tilting range of motion, tilting force, and also less downtime and maintenance. Productivity can increase by up to 50% by simply tilting your attachments. The tilting function is powered by a fully enclosed rotary actuator with improved tilt holding force. With no exposed cylinders, this bucket reduces downtime.
| PART # | WIDTH | CAPACITY | WEIGHT |
| WTB1-36-050 | 36" | 5.50 | 609 |
| WTB1-42-050 | 42" | 6.50 | 675 |
| WTB1-48-050 | 48" | 7.50 | 713 |
MINI 1
| MAKE / WEIGHT CLASS | MINI 1 (5,000 - 7,500 LBS.) |
| BOBCAT | 325, 328(D), 331(D/E), 334(D), 430, 329, E35, 425 |
| CASE | CX31B, CX36B, CX37C |
| CAT | 302.7DCR, 303ECR |
| DOOSAN | DX30, DX35 |
| DITCH WITCH | XT1600 |
| GEHL | GE283X, GE303, GE353, GE383Z |
| HITACHI | ZX35U-2 |
| HYUNDAI | R35, R36 |
| IHI | 35N-2 |
| JCB | 2CX, 8030, 8035, MIDI |
| JOHN DEERE | 35G |
| KOBELCO | 30SR, 35SR |
| KOMATSU | PC27MR-3, PC35MR-3 |
| KUBOTA | U35, U48, KX033, KX040, KX71 |
| LINK BELT | |
| MUSTANG | ME3003, 2803ZT, ME3503, ME3703, 3803ZT |
| NEW HOLLAND | E30, E35 |
| SANY | SY26, SY35 |
| TAKEUCHI | TB125, TB135, TB228, TB240, TB138FR, TB235 |
| VOLVO | EC35C, ECR48C |
| YANMAR | Vio27-5, Vio35-5, Vio45-5, Vio-50 |
| WACKER NEUSON | EZ28, EZ38, 3503 |
MINI 15
| MAKE / WEIGHT CLASS | MINI 15 (7,500 - 11,000 LBS.) |
| BOBCAT | 335, 337, 341, 435, E45, E50, E55, E60 |
| CASE | CX50B, CX55B, CX57C, CX60C |
| CAT | 303.5E2CR, 304E2CR, 304.5E2XTC, 305E2CR, 305.5E2CR |
| DOOSAN | DX60, DX63-3 |
| DITCH WITCH | |
| GEHL | GE503Z, GE603 |
| HITACHI | ZX50, AX60 |
| HYUNDAI | R55, R60 |
| IHI | 40JX, 45JX |
| JCB | 8040, 8045, 8052 |
| JOHN DEERE | 50G |
| KOBELCO | 50SR, 55SRX |
| KOMATSU | PC45MR-3, PC55MR-3, PC58UU-3 |
| KUBOTA | U55, KX057 |
| LINK BELT | |
| MUSTANG | 5003ZT, 6003 |
| NEW HOLLAND | E50, E55BX |
| SANY | SY50, SY60 |
| TAKEUCHI | TB145, TB153FR, TB250, TB260 |
| VOLVO | EC55B, ECR58 |
| YANMAR | Vio55-5 |
| WACKER NEUSON | ET65, EW65, EZ53, 6003 |
MINI 2
| MAKE / WEIGHT CLASS | MINI 2 (7,500 - 11,000 LBS.) |
| BOBCAT | |
| CASE | |
| CAT | |
| DOOSAN | |
| DITCH WITCH | |
| GEHL | |
| HITACHI | |
| HYUNDAI | |
| IHI | |
| JCB | |
| JOHN DEERE | 60G |
| KOBELCO | |
| KOMATSU | |
| KUBOTA | |
| LINK BELT | |
| MUSTANG | |
| NEW HOLLAND | |
| SANY | |
| TAKEUCHI | |
| VOLVO | |
| YANMAR | |
| WACKER NEUSON |
