HPL2100350
WERK-BRAU Light Material Loader buckets for Wheel loaders 20,000 - 26,000 lbs. (class 2)
$11,500.00 - $13,833.00
2/24

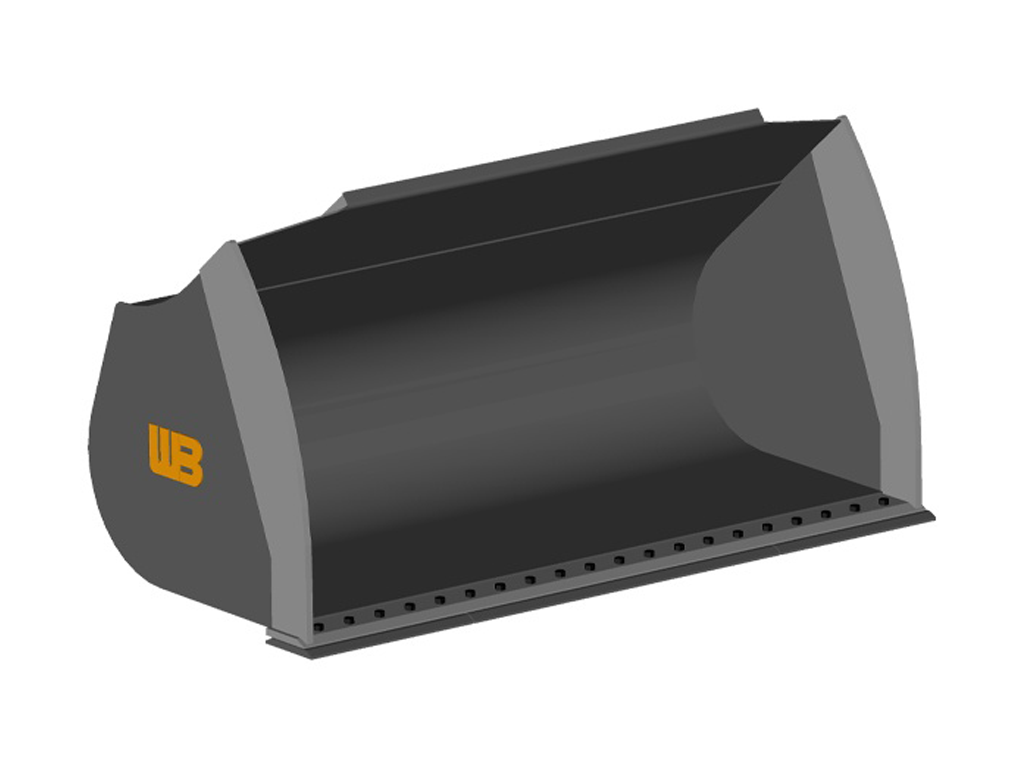

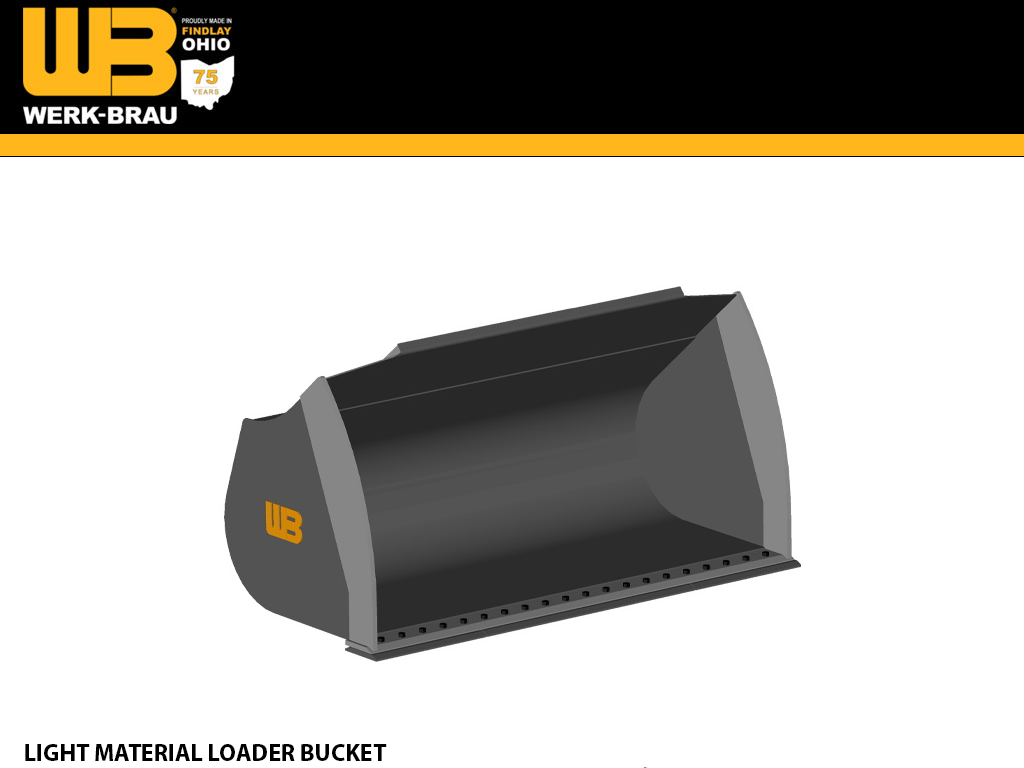

LIGHT MATERIAL LOADER BUCKET
Recommended Applications
Specifically designed to dig in virgin soil and re-handle materials up to 2,000 lbs/cubic yard in density.
Quality Construction
High-strength, abrasion-resistant steel is utilized in all critical components. All seams are welded solid for extra durability. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.
Cutting Equipment Options
Auxiliary edge and teeth are available upon request.
Standard Sizes
7/8 cu. yd. to 6-1/2 cu. yd. of various widths are available. Special designs and capacities available upon request.
Additional Features
Bucket design incorporates an inclined bottom to reduce loading forces. Strong top design withstands high-digging forces exerted by today's machines. Special designs and capacities are available
Features
- Light material Design with enhanced high-performance profile
- Ideal for material up to 2,000 lb/cy
- Curved side plates & increased roll back angle allow for greater material retention
- 5% + greater material retention
- Ideal for fertilizer & feed applications to prevent spillage
- Designed for handling materials such as corn, silage, hay, cottonseed, and other lightweight materials
- Inclined bottom to reduce loading force
| PART # | WIDTH | CAPACITY | WEIGHT |
| HPL2100350 | 100" | 3.50 | 2,300 |
| HPL2100400 | 100" | 4.00 | 2,450 |
| HPL2100450 | 100" | 4.00 | 2,575 |
| HPL2100500 | 100" | 5.00 | 2,725 |
| HPL2100600 | 100" | 6.00 | 2,950 |
CLASS 2
| CLASS 2 (20,000 - 26,000 LBS) | MODEL |
| CASE | 521G |
| CAT | 924, 928, 930, IT24-28 |
| DEVELON | DL200-5, DL200TC-5, DL200-7 |
| HITACHI | ZW140 |
| HYUNDAI | HL730, HL740, HL940 |
| JCB | 416 |
| JOHN DEERE | 444 |
| KOMATSU | WA150, WA200 |
| KUBOTA | |
| LIEBHERR | L526 |
| LINK-BELT | |
| NEW HOLLAND | LW110 |
| SANY | |
| TAKEUCHI | |
| VOLVO | L60 |
| WACKER NEUSON | |
| YANMAR |
