HPL4117500

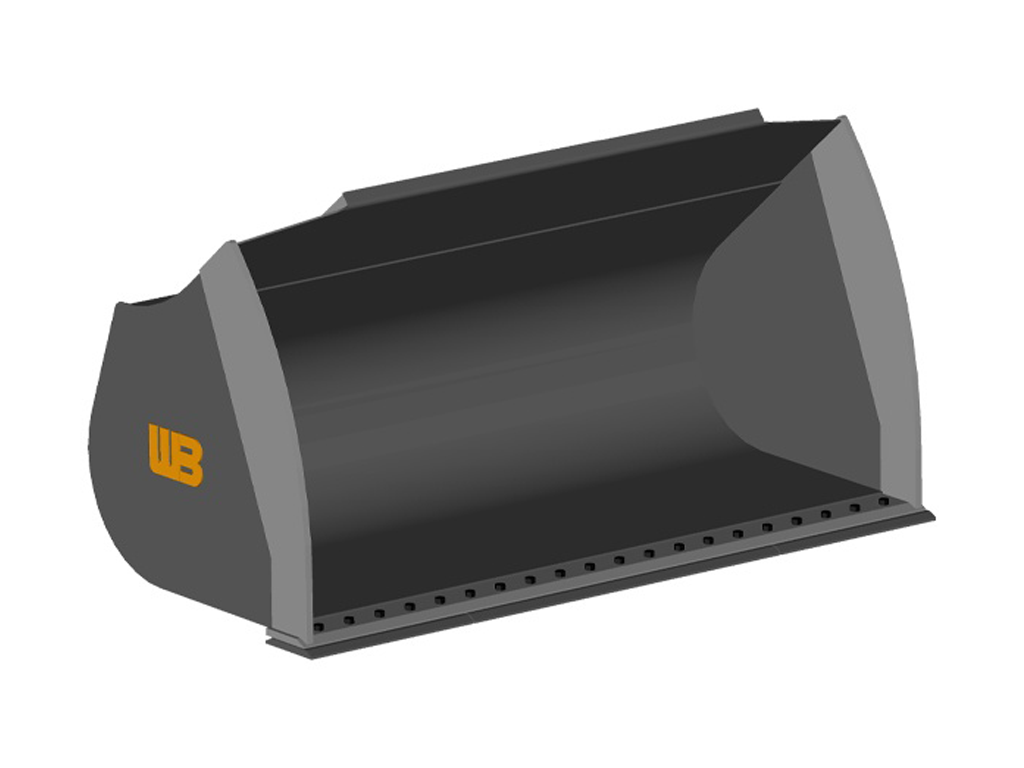

WERK-BRAU Light Material Loader buckets for Wheel loaders 33,000 - 43,000 lbs. (class 4)

Capacity

2/24

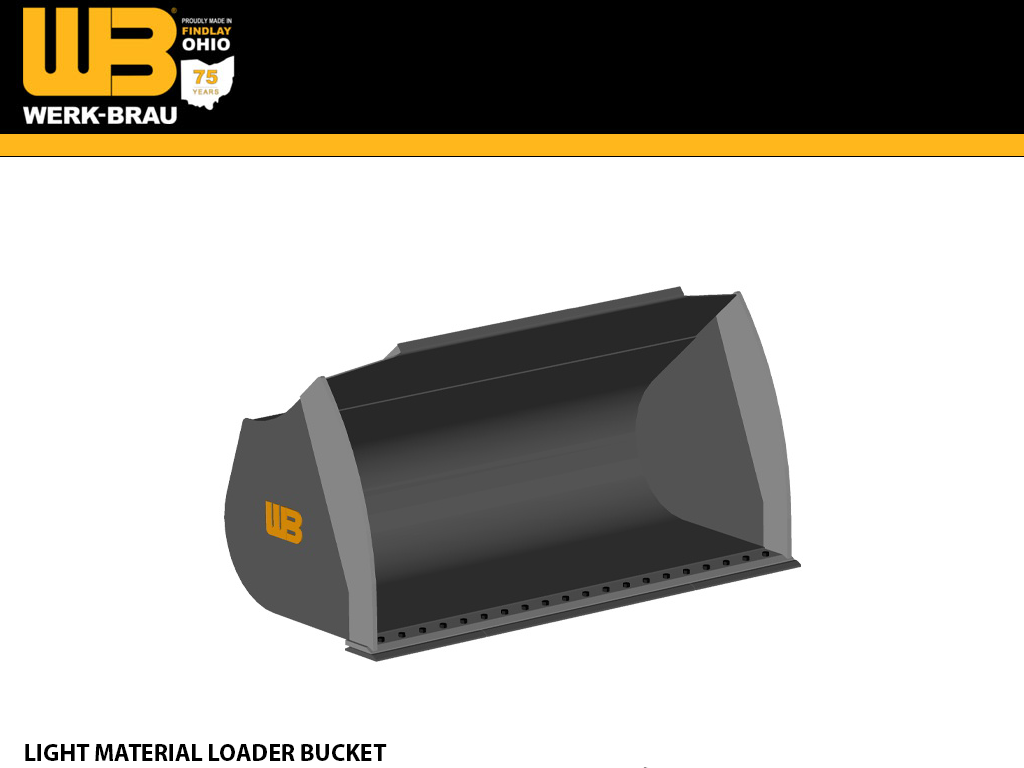

LIGHT MATERIAL LOADER BUCKET

Recommended Applications

Specifically designed to dig in virgin soil and re-handle materials up to 2,000 lbs/cubic yard in density.

Quality Construction

High-strength, abrasion-resistant steel is utilized in all critical components. All seams are welded solid for extra durability. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Auxiliary edge and teeth are available upon request.

Standard Sizes

7/8 cu. yd. to 6-1/2 cu. yd. of various widths are available. Special designs and capacities available upon request.

Additional Features

Bucket design incorporates an inclined bottom to reduce loading forces. Strong top design withstands high-digging forces exerted by today's machines. Special designs and capacities are available

Features


  • Light material Design with enhanced high-performance profile
  • Ideal for material up to 2,000 lb/cy
  • Curved side plates & increased roll back angle allow for greater material retention
  • 5% + greater material retention
  • Ideal for fertilizer & feed applications to prevent spillage
  • Designed for handling materials such as corn, silage, hay, cottonseed, and other lightweight materials
  • Inclined bottom to reduce loading force

PART # WIDTH CAPACITY WEIGHT
HPL4117500 117" 5.00 4,000
HPL4117600 117" 6.00 4,250
HPL4117700 117" 7.00 4,475
HPL4117800 117" 8.00 4,700
CLASS 4
CLASS 4 (33,000 - 43,000 LBS) MODEL
CASE 821G, 921G
CAT 950, 960, 962, IT62
DEVELON DL300-5, DL320-7, DL350-5, DL380-7
HITACHI ZW220, ZW250
HYUNDAI HL960, HL760
JCB 456, 457
JOHN DEERE 644, 724
KOMATSU WA380, WA430
KUBOTA
LIEBHERR L556X
LINK-BELT L150
NEW HOLLAND LW190
SANY SW405
TAKEUCHI
VOLVO L110, L120
WACKER NEUSON
YANMAR
