HPL5124700

WERK-BRAU Light Material Loader buckets for Wheel loaders 43,000 - 51,000 lbs. (class 5)

Capacity

2/24

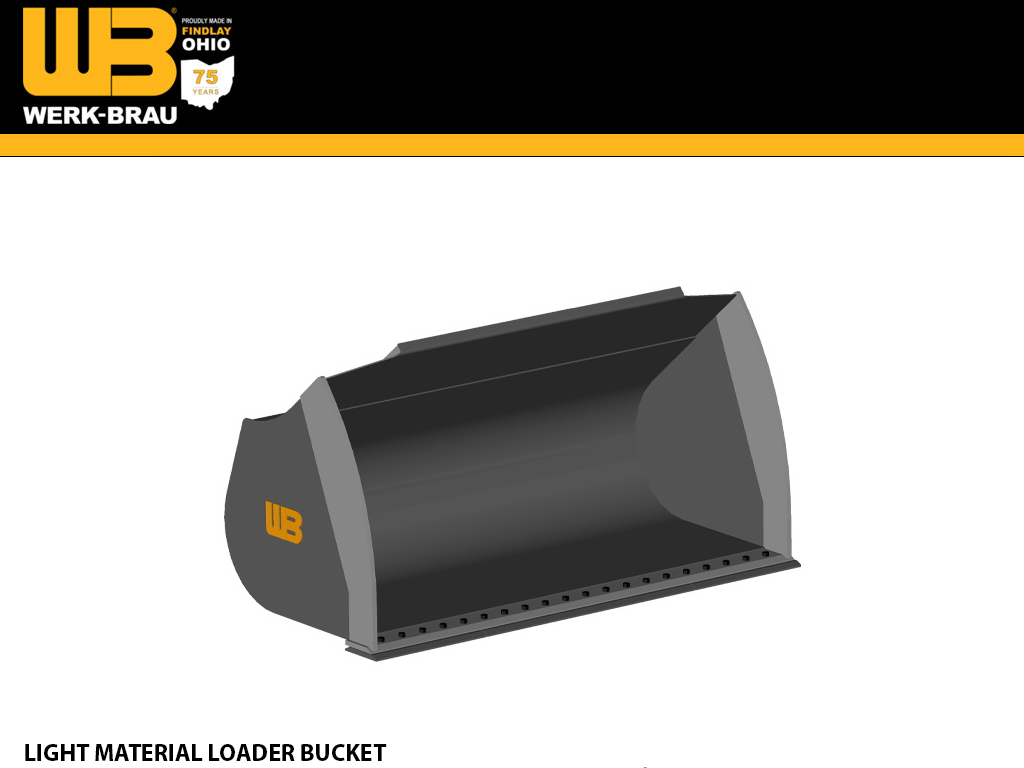

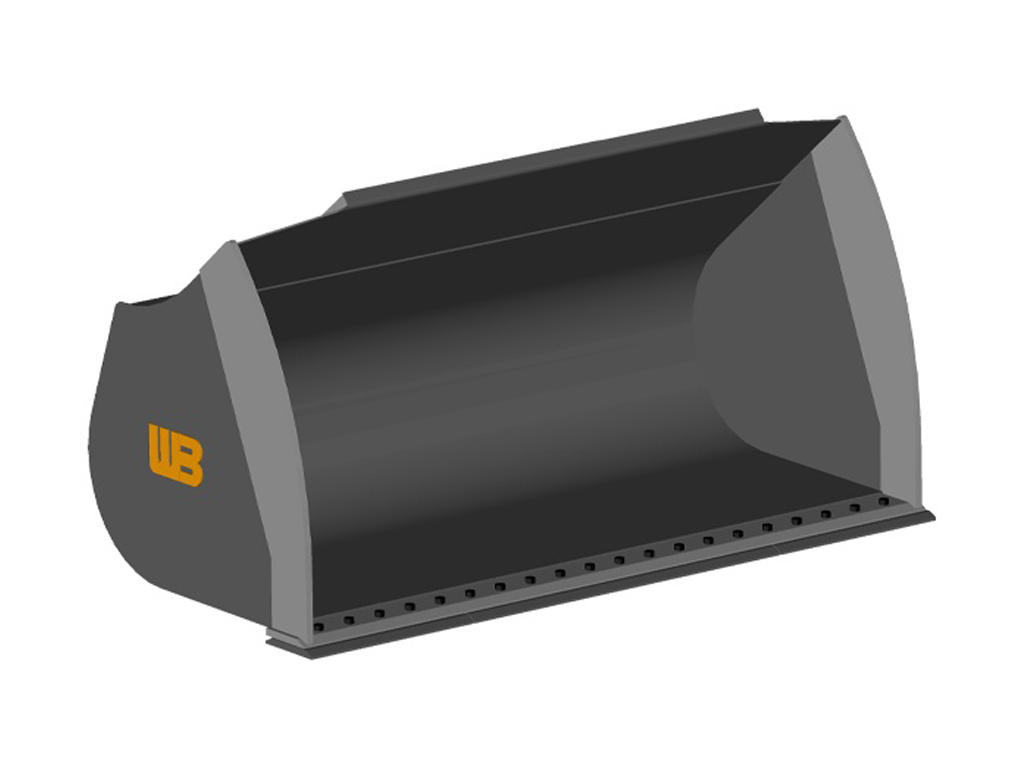

LIGHT MATERIAL LOADER BUCKET

Recommended Applications

Specifically designed to dig in virgin soil and re-handle materials up to 2,000 lbs/cubic yard in density.

Quality Construction

High-strength, abrasion-resistant steel is utilized in all critical components. All seams are welded solid for extra durability. Each bucket is engineered with tapered side plates to reduce wear on the buckets sides, and to allow for easier dumping.

Cutting Equipment Options

Auxiliary edge and teeth are available upon request.

Standard Sizes

7/8 cu. yd. to 6-1/2 cu. yd. of various widths are available. Special designs and capacities available upon request.

Additional Features

Bucket design incorporates an inclined bottom to reduce loading forces. Strong top design withstands high-digging forces exerted by today's machines. Special designs and capacities are available

Features


  • Light material Design with enhanced high-performance profile
  • Ideal for material up to 2,000 lb/cy
  • Curved side plates & increased roll back angle allow for greater material retention
  • 5% + greater material retention
  • Ideal for fertilizer & feed applications to prevent spillage
  • Designed for handling materials such as corn, silage, hay, cottonseed, and other lightweight materials
  • Inclined bottom to reduce loading force

PART # WIDTH CAPACITY WEIGHT
HPL5124700 124" 7.00 5,675
HPL5124800 124" 8.00 6,000
HPL5124900 124" 9.00 6,300
CLASS 5
CLASS 5 (43,000 - 51,000 LBS) MODEL
CASE 1021G, 1121G
CAT 966, 970
DEVELON DL420-5, DL420-7, DL450-5, DL450-7
HITACHI ZW310, ZX330
HYUNDAI HL970, HL770
JCB
JOHN DEERE 744, 824
KOMATSU WA470, WA480
KUBOTA
LIEBHERR L566X
LINK-BELT
NEW HOLLAND LW230
SANY
TAKEUCHI
VOLVO L150
WACKER NEUSON
YANMAR
