EZG-EX20-3

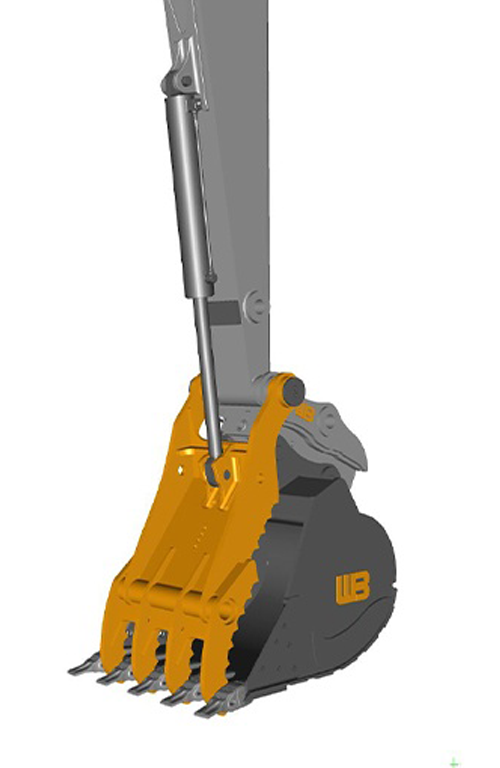

WERK-BRAU Main Pin hydraulic thumb for excavators 42,000 - 50,000 lbs. (20MT)
$0.00 - $11,300.00
11/24

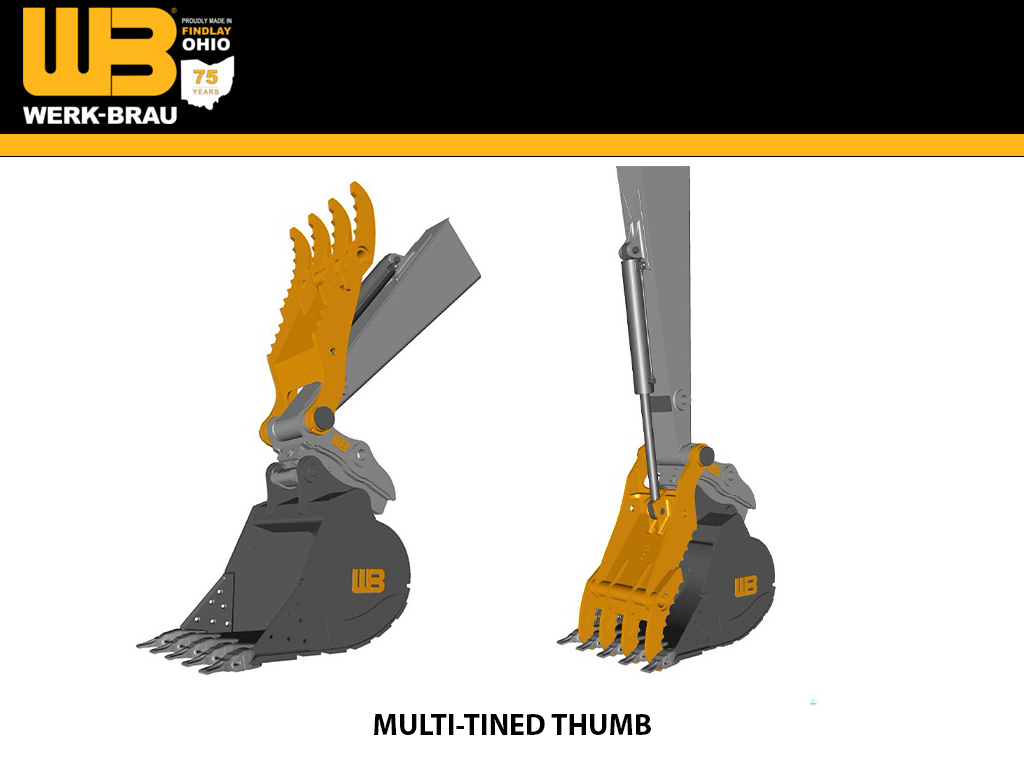

MAIN PIN HYDRAULIC THUMBS
Recommended Applications

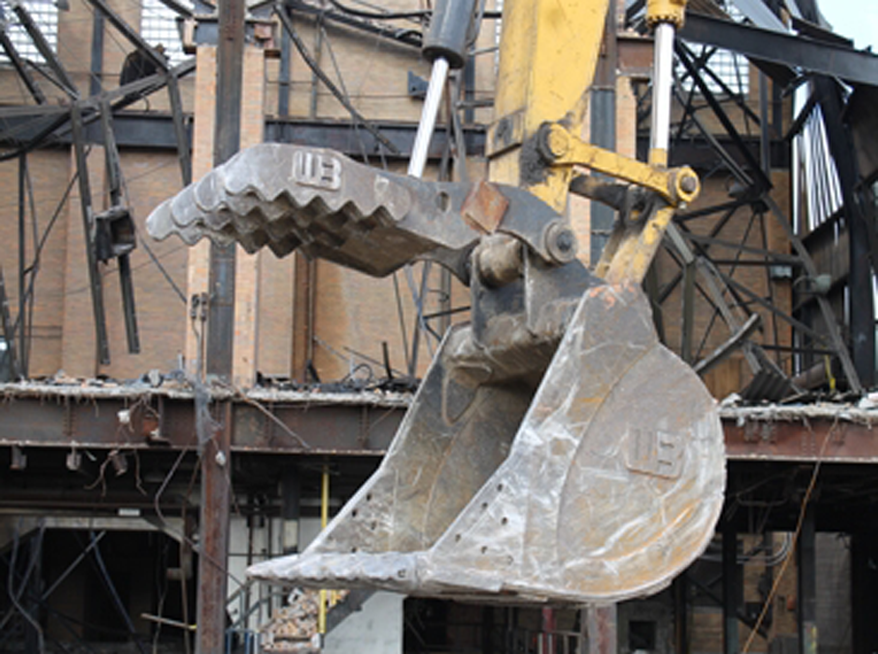

Werk-Brau's Multi-Tined Thumb for Excavators is specifically engineered to aid in handling or loading irregular shaped objects, debris, logs, rocks, or anything that cannot be handled with a bucket alone. Because it retracts against the stick, it can be left on the machine during normal excavation. This thumb is not recommended for prying. Each thumb has a standard 120 degree rotation.
Quality Construction
Each thumb is custom designed to match the tip radius of the bucket it is being paired with. High strength steel is used throughout entire weldment. This thumb features hardened pins, and greasable bushings at all pivot points.
Standard Sizes
Each unit is custom designed to match the bucket width and tip radius. This information is required when ordering.
Features
- 120 degree standard rotation
- does not include jumper hose kit
- info form must be completed when thumb is working with any non Werk-Brau attachment
| PART # | NUMBER OF TINES | WEIGHT |
| EZG-EX20-3 | 3 |
1240 |
| EZG-EX20-4 |
4 |
1280 |
| EZG-EX20-5 | 5 | 1380 |
| MAKE / WEIGHT CLASS | 20MT (42,000 - 50,000 LBS.) |
| CASE | CX210, CX220E, CX235, CX245 |
| CAT | 320, 321, M322F, 323 (B-Linkage) |
| DOOSAN | DX210W-5, DX225LC-5, DX225LC-5SLR, DX235LCR-5 |
| HITACHI | ZX180, ZX200, ZX210, ZX245 |
| HYUNDAI | HX220, HX235 |
| JOHN DEERE | 210G, 245G, 180P, 210P, 190GW, 230GW |
| KOBELCO | SK210, SK230SR, SK260, SK270SR |
| KOMATSU | PC210-11, PC228, PC238 |
| LIEBHERR | R 920 L, 922 L |
| LINK BELT | 210X4, 234X4, 245X4 |
| SANY | SY215 |
| TAKEUCHI | |
| VOLVO | EC200, EW210, EC210, EC220, ECR235 |
