WBLCF1-60-2 / FK1-48
WERK-BRAU Manual Adjustable Forks for Wheel loaders 14,000 - 30,000 lbs. (class 1, 2 & 3)
$7,573.00 - $10,053.00
3/24

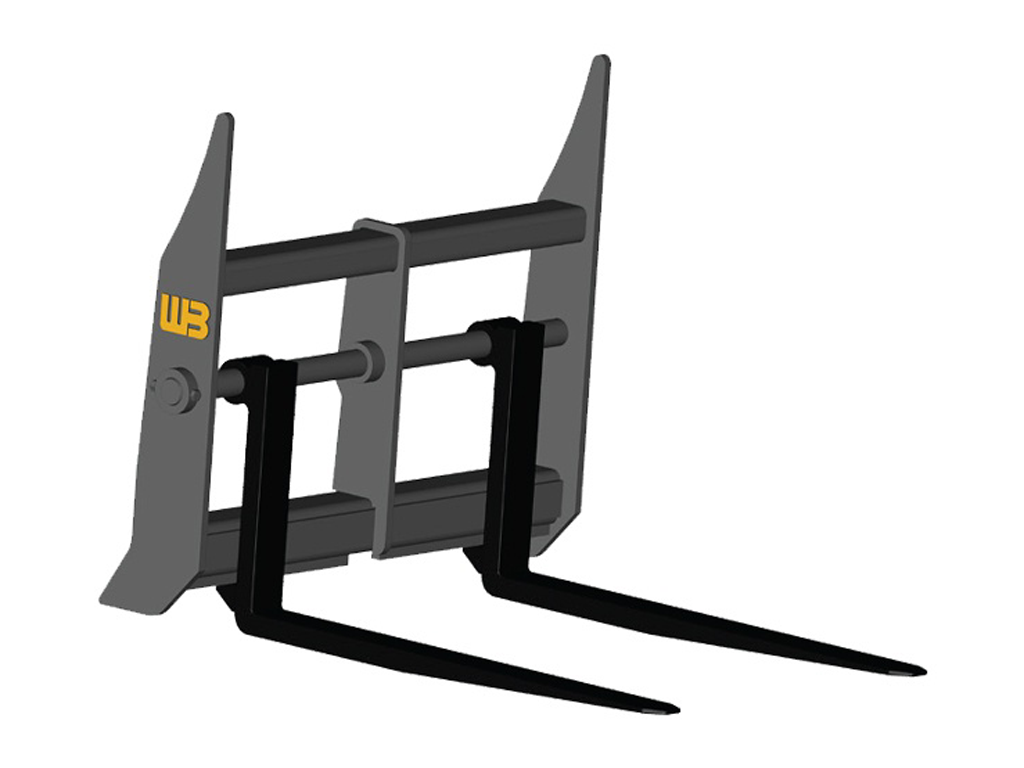

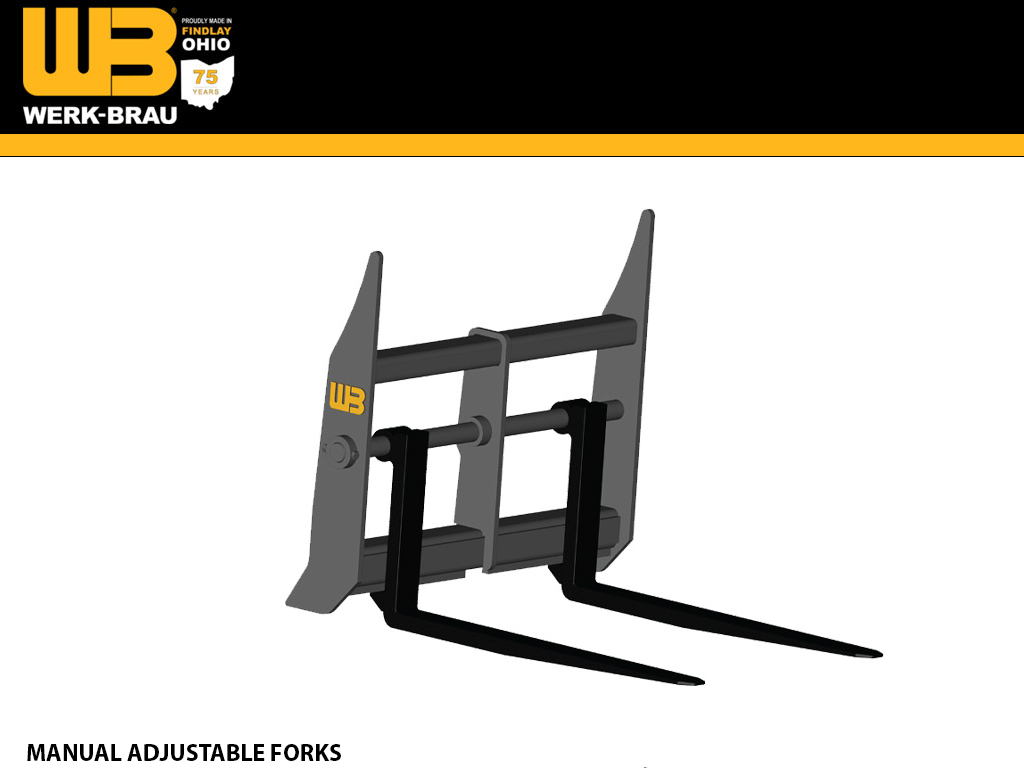

MANUAL ADJUSTABLE FORKS
Recommended Applications
For the removal or displacement of palletized material and/or pipe.
Quality Construction
High strength steel construction with high tensile strength forged forks for long wear. Tines are tapered to prevent wedging.
Standard Sizes
Tine lengths range from 48"-96" -- Tine width placements range from 12"-96"
Additional Features
Available with Werk-Brau front coupler or pin-up connection. For carriage information, see chart blow or call and speak to a sales rep. Anti-swing is standard, see chart below or call to speak to a sales representative. Special designs and capacities are available
- Tines are manually adjustable
- Anti-swing (standard)
- Forks exceed ISO 2330 and ASME standards
- Tapered tines for easier loading
- Lock out position bolt standard
Carriage
| PART # | WIDTH | BAR DIAMETER | WEIGHT |
| WBLCF1-60-2 | 60" | 3.0" | 1200 |
| WBLCF1-96-2 | 96" | 3.0" | 1450 |
Forks
| PART # | TINE LENGTH | TINE THICKNESS | TINE WIDTH | BAR DIA | BACK HEIGHT | WEIGHT PER/TOTAL | CAP @ 24" | CAP @ 36" | CAP @ 48" |
| FK1-48 | 48" | 2.5" | 5.0" | 3.00" | 29.5" | 205/410 | 17,800 | 11,800 | 8,800 |
| FK1-60 | 60" | 2.5" | 5.0" | 3.00" | 29.5" | 280/560 | 17,800 | 11,800 | 8,800 |
| FK1-72 | 72" | 2.5" | 6.0" | 3.00" | 29.5" | 390/780 | 21,400 | 14,200 | 10,600 |
| FK1-84 | 84" | 2.5" | 6.0" | 3.00" | 29.5" | 390/780 | 21,400 | 14,200 | 10,600 |
| FK1-96 | 96" | 2.5" | 6.00" | 3.00" | 29.5" | 490/980 | 21,400 | 14,200 | 10,600 |
| CLASS 1 (14,000-19,000 LBS) | MODEL |
| CASE | 321G |
| CAT | 914 |
| DEVELON | 160 |
| HITACHI | ZW120 |
| HYUNDAI | HL720 |
| JCB | 217-3//S-3, 408, 409B ZX, 411 |
| JOHN DEERE | 710, 244, 304, 324, 344 |
| KOMATSU | WA70, WA80, WA100 |
| KUBOTA | R430, R530, R630 |
| LIEBHERR | L509, L514, L518 |
| LINK-BELT | L125 |
| NEW HOLLAND | |
| SANY | |
| TAKEUCHI | TW80 |
| VOLVO | L45G, L50G |
| WACKER NEUSON | |
| YANMAR |
| CLASS 2 (20,000 - 26,000 LBS) | MODEL |
| CASE | 521G |
| CAT | 924, 928, 930, IT24-28 |
| DEVELON | DL200-5, DL200TC-5, DL200-7 |
| HITACHI | ZW140 |
| HYUNDAI | HL730, HL740, HL940 |
| JCB | 416 |
| JOHN DEERE | 444 |
| KOMATSU | WA150, WA200 |
| KUBOTA | |
| LIEBHERR | L526 |
| LINK-BELT | |
| NEW HOLLAND | LW110 |
| SANY | |
| TAKEUCHI | |
| VOLVO | L60 |
| WACKER NEUSON | |
| YANMAR |
| CLASS 3 (26,000 - 30,000 LBS) | MODEL |
| CASE | 621G |
| CAT | 935, 936 |
| DEVELON | DL220-5, DL220-7 |
| HITACHI | ZW150 |
| HYUNDAI | HL750 |
| JCB | 426, 427 |
| JOHN DEERE | 524, 544 |
| KOMATSU | WA250, WA270 |
| KUBOTA | |
| LIEBHERR | L538 |
| LINK-BELT | L140 |
| NEW HOLLAND | LW130 |
| SANY | SW305 |
| TAKEUCHI | |
| VOLVO | L70 |
| WACKER NEUSON | |
| YANMAR |
