WLFC5-96-ST / WLCF5-FK-72

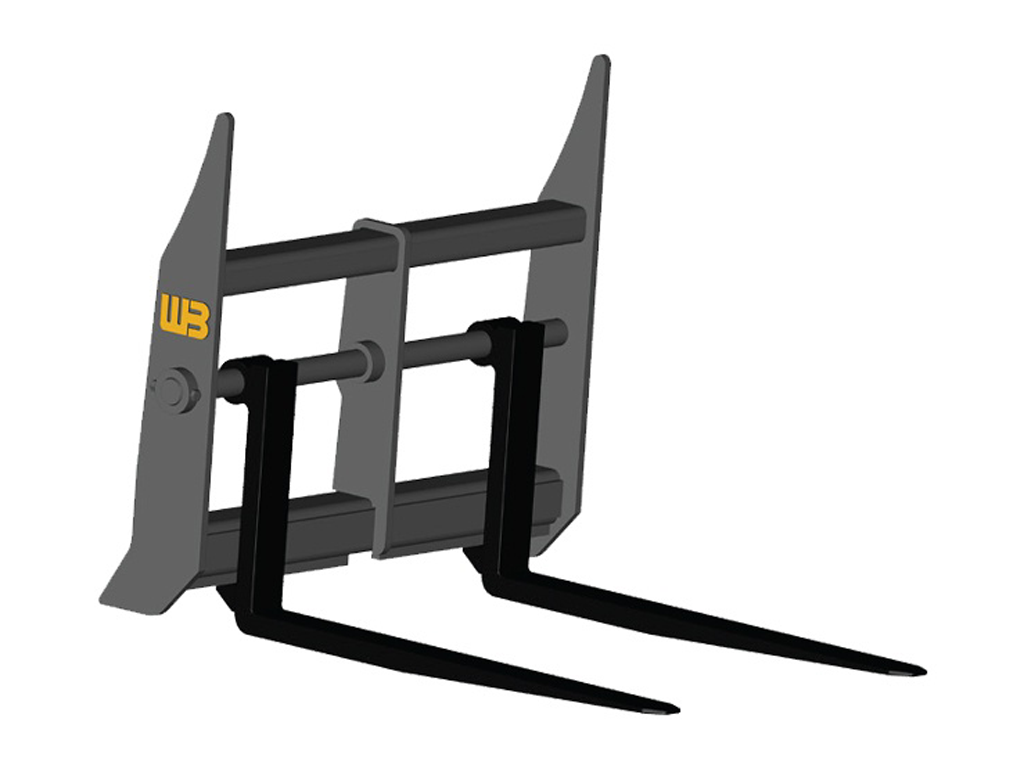

WERK-BRAU Manual Adjustable Forks for Wheel loaders 43,000 - 68,000 lbs. (class 5 & 6)
$18,621.00 - $20,413.00
10/25

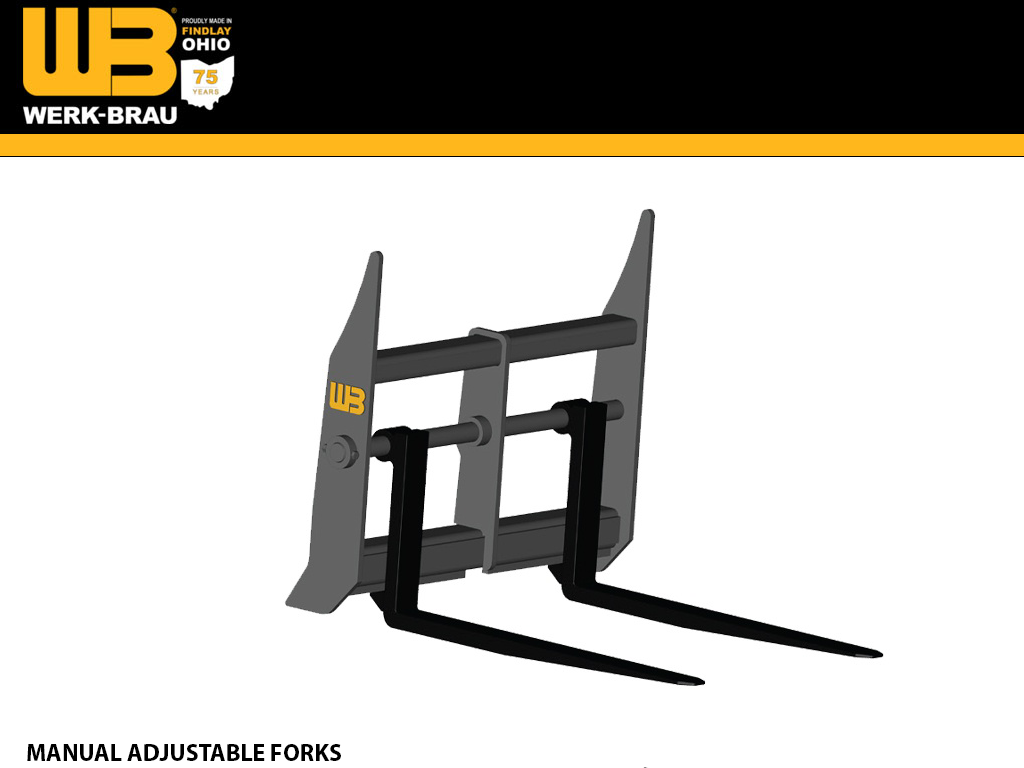

MANUAL ADJUSTABLE FORKS
Recommended Applications
For the removal or displacement of palletized material and/or pipe.
Quality Construction
High strength steel construction with high tensile strength forged forks for long wear. Tines are tapered to prevent wedging.
Standard Sizes
Tine lengths range from 48"-96" -- Tine width placements range from 12"-96"
Additional Features
Available with Werk-Brau front coupler or pin-up connection. For carriage information, see chart blow or call and speak to a sales rep. Anti-swing is standard, see chart below or call to speak to a sales representative. Special designs and capacities are available
- Tines are manually adjustable
- Anti-swing (standard)
- Forks exceed ISO 2330 and ASME standards
- Tapered tines for easier loading
- Lock out position bolt standard
Carriage
| PART # | WIDTH | BAR DIAMETER | WEIGHT |
| WBLCF5-96-ST | 96" | 4.0" | 1500 |
| WBLCF5-105-ST | 105" | 4.0" | 1650 |
Forks
| PART # | TINE LENGTH | TINE THICKNESS | TINE WIDTH | BAR DIA | BACK HEIGHT | WEIGHT PER/TOTAL | CAP @ 24" | CAP @ 36" | CAP @ 48" |
| WLCF5-FK-72 | 72" | 3.5" | 8.0" | 4.00" | 36.0" | 750/1500 | 54,600 | 36,400 | 27,200 |
| WLCF-FK-96 | 72" | 3.5" | 8.0" | 4.00" | 36.0" | 940/1880 | 54,600 | 36,400 | 27,200 |
| CLASS 5 (43,000 - 51,000 LBS) | MODEL |
| CASE | 1021G, 1121G |
| CAT | 966, 970 |
| DEVELON | DL420-5, DL420-7, DL450-5, DL450-7 |
| HITACHI | ZW310, ZX330 |
| HYUNDAI | HL970, HL770 |
| JCB | |
| JOHN DEERE | 744, 824 |
| KOMATSU | WA470, WA480 |
| KUBOTA | |
| LIEBHERR | L566X |
| LINK-BELT | |
| NEW HOLLAND | LW230 |
| SANY | |
| TAKEUCHI | |
| VOLVO | L150 |
| WACKER NEUSON | |
| YANMAR |
| CLASS 6 (51,000 - 68,000 LBS) | MODEL |
| CASE | 1221 |
| CAT | 972, 980 |
| DEVELON | DL480-7, DL550-5, DL550-7 |
| HITACHI | ZW370 |
| HYUNDAI | HL780 |
| JCB | |
| JOHN DEERE | 844 |
| KOMATSU | WA500 |
| KUBOTA | |
| LIEBHERR | L576X, L580X, L586X |
| LINK-BELT | |
| NEW HOLLAND | |
| SANY | |
| TAKEUCHI | |
| VOLVO | L180, L220 |
| WACKER NEUSON | |
| YANMAR |
